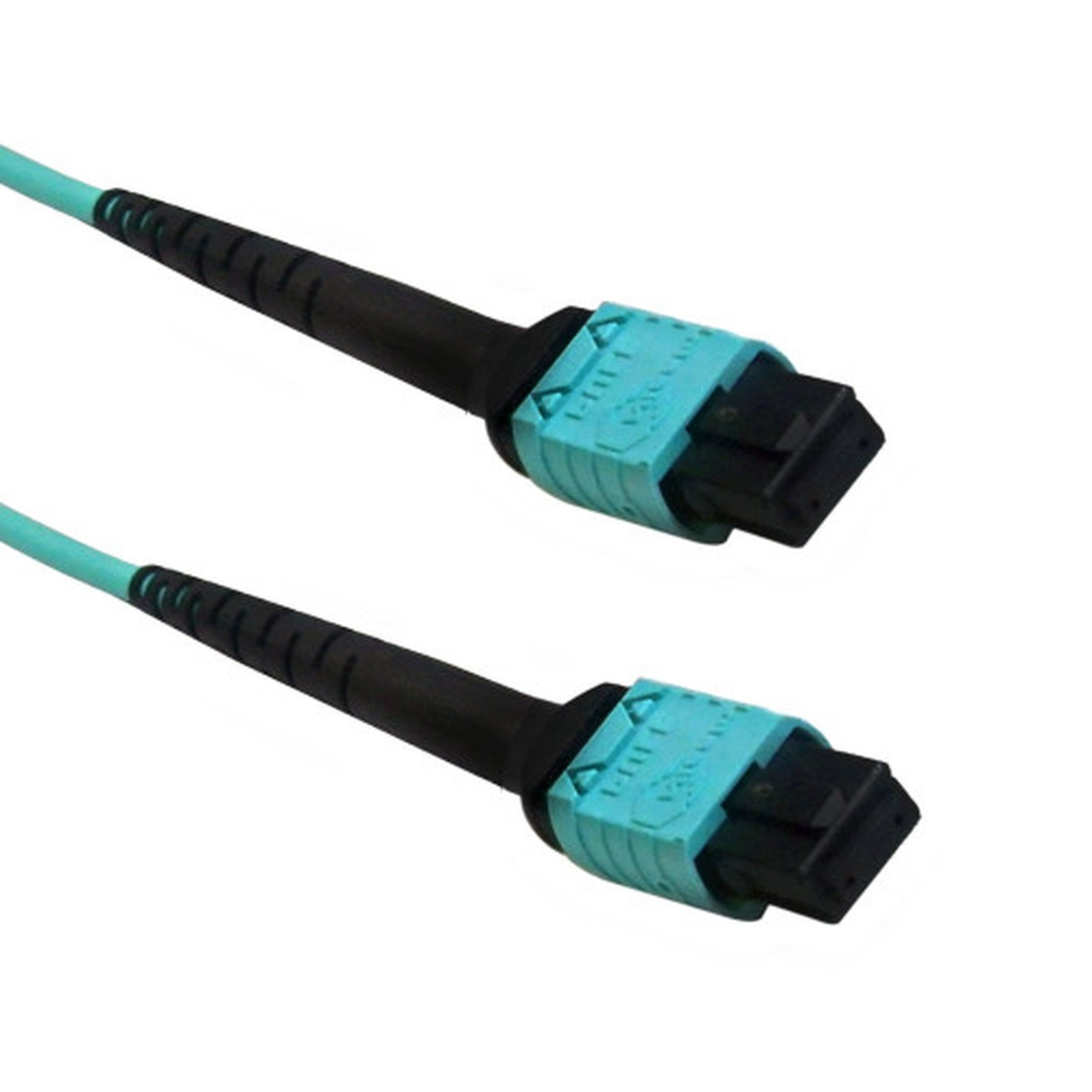

This multimode OM3 fiber optic MPO trunk cable is made with Corning glass fiber and consists of a MPO/MTP female connector on both ends. It is used in high bandwidth datacenter applications connecting switches or MPO/MTP cassettes.
Physical Characteristics | |
---|---|
Cable Length | 40m [131 foot] |
Color | Aqua |
Cable Diameter | 3mm |
Fiber Count | 12 Fibers |
Fiber Type | Multimode OM3 50/125 Micron |

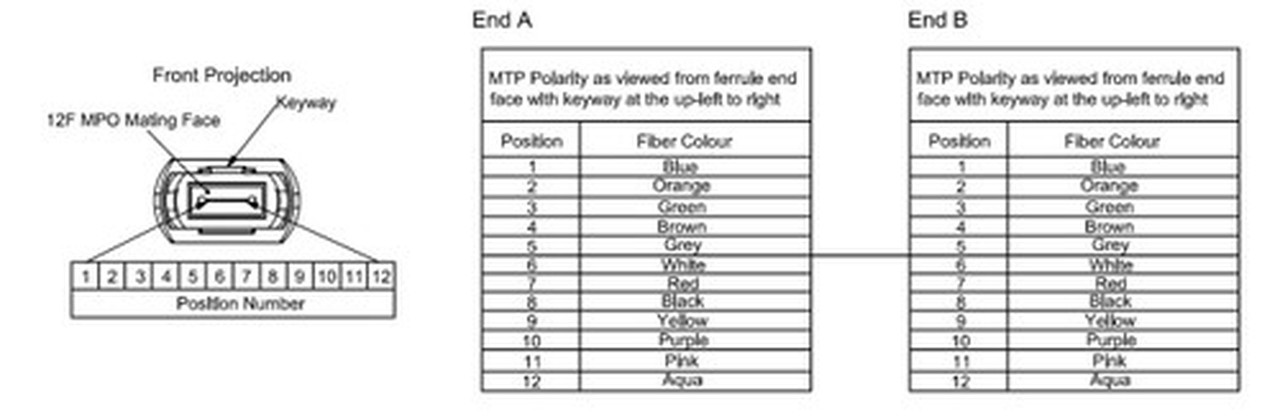

Polarity | Method A |
Glass Manufacturer | Corning Glass |
Jacket Rating | Plenum (OFNP) |
Connector(s) | |
Connector A | 1 - 12-Position MPO Female (no guide pins) Elite Connectors |
Connector B | 1 - 12-Position MPO/PC Female (no guide pins) Elite Connectors |
Performance | |
Insertion Loss | ≤0.35 dB |
Return Loss | ≥20db |
testing | 100% IL, RL and Interferometer Tested |
Environmental | |
RoHS | Yes |
UL | UL Listed Cable |
Packaging Information | |
Package Quantity | 1 |
Product Weight | 0.86 lbs [0.39kg] |
Warranty Information | |
Warranty | Limited Lifetime |
