12 Fiber Singlemode MPO APC Female No Guide Pins To Method B Low Smoke Riser OFNP MPO/APC FN-FO-1010B-131P
SKU:
FN-FO-1010B-131P
(No reviews)
Write a Review
Write a Review
Fleet Network
12 Fiber Singlemode MPO APC Female No Guide Pins To Method B Low Smoke Riser OFNP MPO/APC FN-FO-1010B-131P
MSRP:
$163.56
$146.00
Save:
$17.56 (10.74%)
Weight:
0.86 LBS
-
Professional Pricing
B2B volume discount
-
IT Pro & Consultants
Real-world IT expertise
-
Configuration Service
Available on request
-
In-Stock in Canada
Toronto - AB - BC - QC
Products Features
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
Description

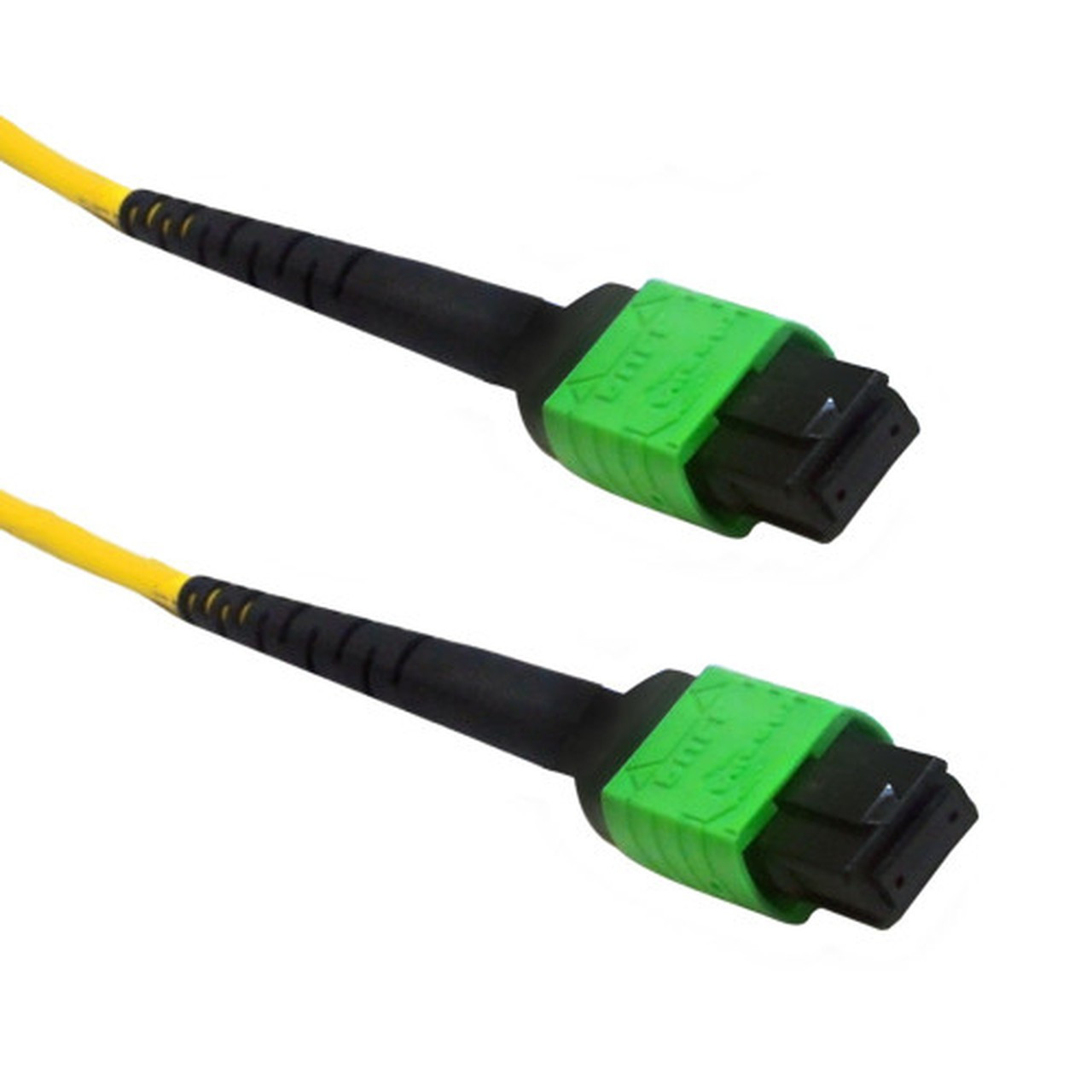

This singlemode fiberoptic MPO trunk cable is made with Corning glass fiber and consists of a MPO/MTP female connector on both ends. It is used in high bandwidth data center applications connecting switches or MPO/MTP cassettes.
| Physical Characteristics | |
|---|---|
| Cable Length | 40m [131 foot] |
| Color | Yellow |
| Cable Diameter | 3mm |
| Fiber Count | 12 Fibers |
| Fiber Type | Singlemode 9/125 Micron |

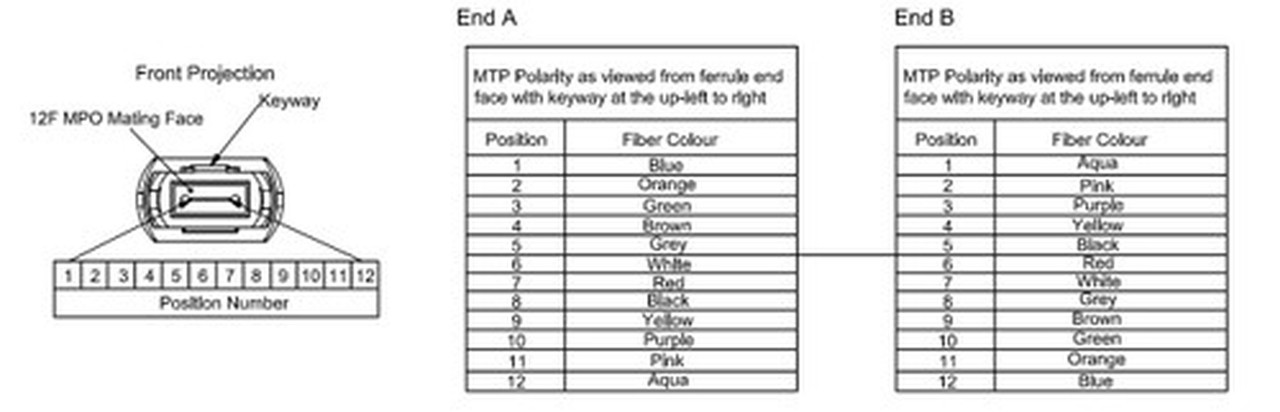

| Polarity | Method B |
| Glass Manufacturer | Corning Glass |
| Jacket Rating | Plenum (OFNP) |
| Connector(s) | |
| Connector A | 1 - 12-Position MPO/APC Female (no guide pins) Elite Connectors |
| Connector B | 1 - 12-Position MPO/APC Female (no guide pins) Elite Connectors |
| Performance | |
| Insertion Loss | ≤0.35 dB |
| Return Loss | ≥60db |
| testing | 100% IL, RL and Interferometer Tested |
| Environmental | |
| RoHS | Yes |
| UL | UL Listed Cable |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.86 lbs [0.39kg] |
| Warranty Information | |
| Warranty | Limited Lifetime |
