Eaton 9SX3000GL 3000VA/2. 7kW Tower UPS - 3 kVA Double Conversion Online - 230V AC Input - 5. 8 Min Runtime - NEMA L6-20P Plug
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

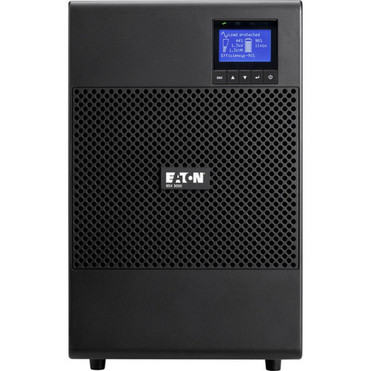

This double-conversion online UPS topology ensures zero transfer time between on-line and battery modes, providing uninterrupted power to connected devices. The front-panel LCD displays real-time status information, analytics, and alerts for proactive management.

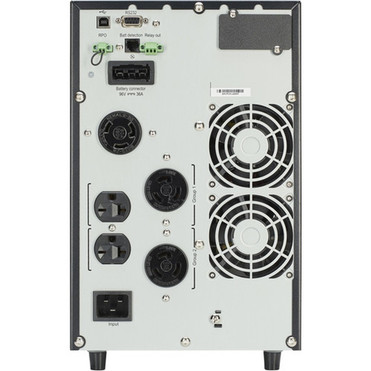

Connectivity includes a NEMA L6-20P and IEC 60320 C20 input plug, with outlet configuration featuring one NEMA L6-30R, two NEMA L6-20R, and two NEMA 6-20R receptacles to support various industrial and IT devices. Optional external battery modules can be added to extend runtime, and the NETWORK-M2 network card enables remote access and control for centralized power management.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Eaton 9SX3000GL offers robust power protection with features tailored for reliability and scalability in critical applications.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Uninterrupted Operation, Scalable Runtime, Advanced Monitoring.
Uninterrupted Operation
Zero transfer time between power modes ensures no disruption to connected equipment, maintaining continuous operation during outages or fluctuations.
- Double-conversion online topology
- Pure sine wave output
Scalable Runtime

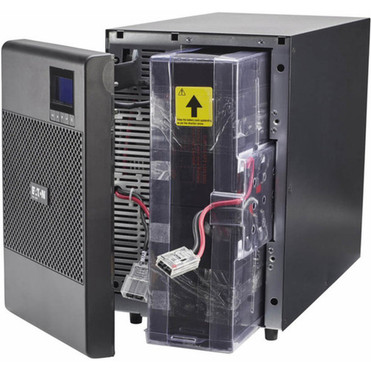

Optional external battery modules allow for extended backup times, adapting to longer outage scenarios or increased power demands.
- Supports external battery expansion
- Flexible runtime configuration
Advanced Monitoring
The front-panel LCD provides clear status updates and analytics, while the optional NETWORK-M2 card enables remote management and control.
- Real-time LCD display
- Remote access capabilities
Deployment / Use Cases
This tower UPS is ideal for environments where stable, clean power is critical to operational continuity. Its industrial-grade design and outlet configuration suit a range of applications requiring reliable backup power.
Common deployments include industrial automation systems, manufacturing equipment, data center edge devices, and IT infrastructure in facilities with fluctuating power quality. The unit's ability to handle multiple output voltages makes it suitable for global deployments or mixed-equipment setups.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Industrial Automation
Protects PLCs, HMIs, and control systems in manufacturing plants from power interruptions that could cause downtime or data loss.
IT System Backup
Safeguards servers, networking gear, and storage devices in small to medium server rooms or remote offices.
Physical Profile
The tower form factor is designed for standalone placement on floors or in equipment rooms, with a substantial weight of 77.20 lb (35017.33 g) indicating robust construction. This design supports easy access to outlets and the front-panel display without requiring rack mounting, making it suitable for environments where rack space is limited or not available.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 77.20 lb (35017.33 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 77.20 lb (35017.33 g)
What's in the Box
The package includes all essential components for immediate setup and operation.
Highlights
- 3000VA/2.7kW double-conversion online UPS for reliable power backup
- 5.8-minute runtime at full load with optional external battery expansion
- 230V AC input with wide 190-276V AC range for stable operation
- Multiple output voltages: 200V, 208V, 220V, 230V, 240V AC
- NEMA L6-20P and IEC C20 input plug with five NEMA outlets
- Front-panel LCD for real-time status and analytics display
- Optional NETWORK-M2 network card enables remote management
- Tower form factor, 77.20 lb weight, 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9SX3000GL |
| Brand Name | Eaton |
| Product Name | 3000VA Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L6-20P,IEC 60320 C20 |
| Receptacle Type | NEMA L6-30R,NEMA L6-20R,NEMA 6-20R |
| Receptacle Detail | 1 x NEMA L6-30R,2 x NEMA L6-20R,2 x NEMA 6-20R |
| Application/Usage | Industrial Equipment,Industrial Automation System,IT System |
| Power Description | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Input Voltage | 230 V AC |
| Input Voltage Range | 190 V AC - 276 V AC |
| Output Voltage | 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC |
| Waveform Type | Sine Wave |
| Battery Information | |
| Backup/Run Time (Full Load) | 5.80 Minute |
| Physical Characteristics | |
| Form Factor | Tower |
| Weight (Approximate) | 77.20 lb (35017.33 g) |
| Miscellaneous | |
| Package Contents | 3000VA Tower UPS Manual Quick Start Guide Safety Guide Serial And USB Cables |
| Country of Origin | Philippines |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this Eaton UPS?
The Eaton 9SX3000GL provides 3000VA (3 kVA) and 2700W (2.7 kW) of power capacity. This double-conversion online UPS can support industrial equipment and IT systems requiring reliable backup power during outages or fluctuations.
How long does the battery last at full load?
At full load, the internal battery delivers 5.8 minutes of runtime. For extended backup times, optional external battery modules can be added to increase runtime based on your specific power needs and outage scenarios.
What input and output voltages does this UPS support?
The input voltage is 230V AC with a wide range from 190V to 276V AC. Output voltages include 200V, 208V, 220V, 230V, and 240V AC, providing flexibility for various regional standards and equipment requirements.
What types of outlets are included?
The UPS features five NEMA outlets: one L6-30R, two L6-20R, and two 6-20R receptacles. This configuration supports a range of industrial and IT devices, with input via a NEMA L6-20P plug and an IEC 60320 C20 connector.
Can this UPS be managed remotely?
Yes, with the optional NETWORK-M2 network card, you can enable full remote access and control. This allows for monitoring status, configuring settings, and receiving alerts from a centralized management interface.
What is the form factor and warranty?
This UPS has a tower form factor, weighing 77.20 lb, designed for standalone placement. It comes with a 3-year limited warranty, providing coverage for parts and labor to ensure long-term reliability.
What power capacity is listed for this UPS?
The listed power specification is 3 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 230 V AC, which helps position the unit for the right load level and installation role.
