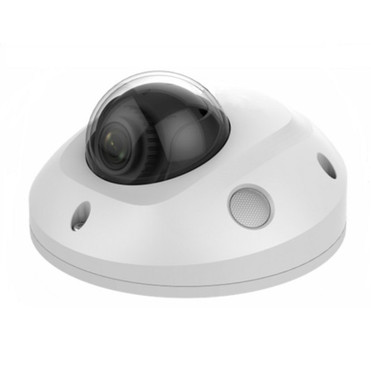

Compact Dome IP Camera With Fixed Lens Two Way Audio And IR Range IP66 Rated White Communication Outdoor FN-CA-NC324-WDA-WH
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Overview
This 4MP indoor/outdoor, IP based compact dome camera provides a sharp, high definition images in daylight or nighttime settings. The camera has a 2.8mm fixed lens which delivers a 98°horizontal field of view. It also comes with a built in microphone and a speaker output for voice recording and 2-way communication. Its maximum resolution is 2688 x 1520 at 30 fps and supports H.265+ video compression technology, which assures savings in bandwidth and storage. The camera is IP based with integrated PoE technology which makes for a quick and easy installation over a single CAT5e/CAT6 cable. Its housing is IP66 rated for outdoor use and has 10 meters of night vision using an IR cut filter and IRLEDs.
 |
Features
|
Application
Specifications
|
Camera
|
|
|---|---|
| Image Sensor | 1/3" Progressive Scan CMOS |
| Minimum Illumination | Color: 0.018 lux @ (f/1.6, AGC on), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Auto-Iris | No |
| Day /Night | IR cut filter |
| Digital Noise Reduction | 3D DNR |
| WDR | 120dB |
| Angle Adjustment | Pan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360° |
|
Lens
|
|
| Focal Length | 2.8 mm fixed lens |
| Aperture | f/1.6 |
| Focus | Manual |
| FOV | horizontal field of view: 98°, vertical field of view: 55°, diagonal field of view: 114° |
| Lens Mount | M12 |
|
IR
|
|
| IR Range | Up to 35 ft (10 m) |
| Wavelength | 850 nm |
|
Compression Standard
|
|
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, sub-stream: H.265+/H.265/H.264+/H.264/MJPEG, third stream: H.265+/H.265/H.264+/H.264 |
| H.264 Type | Main profile/high profile |
| H.264+ | Main stream and sub-stream support |
| H.265 Type | Main profile |
| H.265+ | Main stream and sub-stream support |
| Video Bit Rate | 256 Kbps to 16 Mbps |
| Audio Compression | G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM |
| Audio Bit Rate | 64 kbps (G.711)/16 kbps (G.722.1)/16 kbps (G.726)/32 to 192 kbps (MP2L2) |
|
Smart Features
|
|
| Behavior Analysis | Line crossing detection, intrusion detection |
| Face Detection | Yes |
| Region of Interest | One fixed region for main stream and sub-stream |
|
|
|
| Maximum Resolution | 2688 x 1520 |
| Main Stream | 30 fps (2688 x 1520, 2304 x 1296, 1920 x 1080) |
| Sub-Stream | 30 fps (640 x 480, 640 x 360, 320 x 240) |
| Third Stream | 30 fps (1280 x 720, 640 x 360, 352 x 240) |
| Image Enhancement | BLC, 3D DNR |
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
| Day/Night Switch | Auto/schedule/day/night/triggered by alarm in |
|
Network
|
|
| Network Storage | MicroSD/SDHC/SDXC card (128 GB), local storage, NAS (NFS,SMB/CIFS), and ANR |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6 |
| General Function | One-key reset, anti-flicker, 5 streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, and IP address filtering |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 6 channels |
| User / Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | IE 8+, Chrome 31.0 to 44, Firefox 30.0 to 51, Safari 8.0+ |
|
Interface
|
|
| Audio | 2 inputs: line in (3.5 mm) or mic in (built-in microphone), 1 output: line out (3.5 mm), mono sound |
| Alarm | 1 Input: alarm in (3.5mm), 1 output: alarm out (3.5mm) |
| Communication Interface | 1-port RJ-45 10M/100M self-adaptive Ethernet port |
| On-board storage | Built-in microSD/SDHC/SDXC slot, up to 128 GB |
| SVC | H.264 and H.265 encoding |
|
Audio
|
|
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 16 kHz, 32kHz, 44.1kHz, 48kHz |
|
General
|
|
| Operating Conditions | -22° F to 140° F (-30° C to 60° C); humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, N 5.5 mm coaxial power plug, PoE (802.3af, class 3) |
| Power Consumption and Current | 12 VDC, 0.7 A, maximum 8.5 W; PoE (802.3aft, 36 V to 57 V), 0.3 A to 0.1 A, maximum 10 W |
| Protection Level | IK08, IP66 |
| Material | Front cover: plastic, bottom base: metal |
| Dimensions | Ø 4.3" x 2.2" (Ø 110 mm x 56.4 mm) |
| Weight | 0.90 lbs (0.40 kg) |
|
Approvals
|
|
| c(UL)us | Yes |
| CE | Yes |
| FCC | Yes |
| ONVIF | Yes |
Downloads
Quick Start Guide
Data Sheet
RJ45 pin out diagram
Web Portal Remote Access
Register/login with your Guarding Vision account for access to all devices in your account remotely from the browser. Supports Internet Explorer 8+, Chrome 41.0 to 44, Firefox 30.0 to 51 and Safari 8.0 to 11
Guarding vision Android app
Supports Android 4.1 and up
Guarding vision iOS app
Supports iOS 8.0 or later. Compatible with iPhone, iPad and iPod touch
iVMS-4200 video management software for the DVRs, NVRs and IP cameras
Supports macOS version 10.12,10.13 and 10.14 (64-bit)
iVMS-4200 video management software for the DVRs, NVRs and IP cameras
Supports Microsoft Windows 7/Windows 8.1/Windows 10 (32-bit or 64-bit)/Windows XP SP3 (32-bit)/Windows 2008 R2/Windows Server 2012 (64-bit)
SADP Tool V3.1.0.8
Search, activate devices on the network and modify the basic network information
