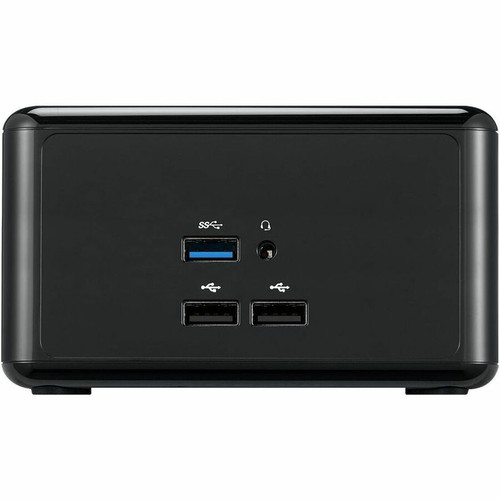

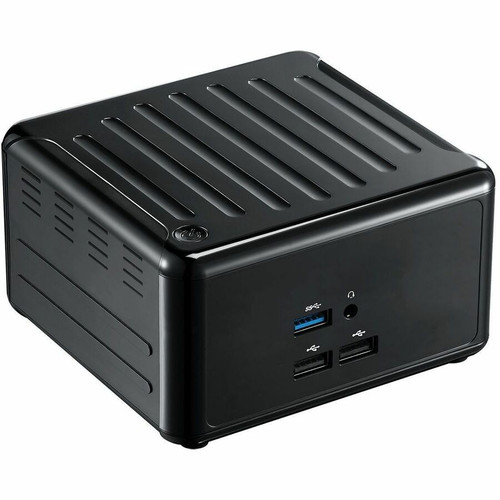

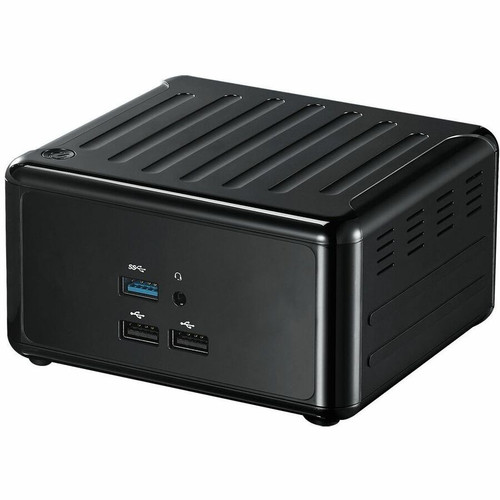

ASRock 4X4 BOX-V1000M Mini Barebone System - AMD Ryzen Embedded V1605B Quad-Core - 32GB DDR4 - 2x M. 2 - Gigabit Ethernet - Windows 10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the 4X4 BOX-V1000M is the AMD Ryzen Embedded V1605B processor, a quad-core chip operating at 2 GHz with 64-bit processing capabilities. The system supports DDR4-2400 memory across two slots, accommodating up to 32GB total for demanding applications.
Storage flexibility comes from two M.2 interfaces and one Serial ATA/600 port, allowing for NVMe SSDs, SATA SSDs, or traditional hard drives. The AMD Radeon Vega 8 graphics controller utilizes shared DDR4 system memory for display processing, supporting multiple monitor configurations through the available HDMI and DisplayPort outputs.
Relevant factors for this section include Processor Type, Processor Model, Processor Core, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This barebone system combines compact dimensions with enterprise-grade connectivity and expansion options, making it suitable for various deployment environments. The flexible configuration approach allows organizations to tailor memory and storage to specific workload requirements while maintaining a consistent hardware platform.
Compact Deployment Ready
With dimensions of 4.67" × 4.33" × 2.65" and weighing just 2.2 pounds, this system fits easily in space-constrained environments. The included VESA mounting bracket enables secure attachment to monitors or walls.
- Mini PC form factor
- VESA mount compatible
- Lightweight design
Comprehensive Connectivity
Dual Gigabit Ethernet ports provide network redundancy or separate network segmentation, while Wi-Fi 802.11ac and Bluetooth 4.2 offer wireless flexibility. Five USB ports include three high-speed USB 3.2 Gen 2 connections.
- Dual Ethernet
- Wireless ready
- Multiple USB 3.2 ports
Deployment / Use Cases
The 4X4 BOX-V1000M serves well in digital signage applications where its compact size and multiple display outputs support multi-screen configurations. The system's connectivity options make it suitable for network appliances, firewall implementations, or edge computing nodes requiring both wired and wireless network access.
Office environments benefit from the system's Windows 10 compatibility for productivity applications, while the flexible storage configuration supports either high-speed NVMe storage for performance-sensitive tasks or cost-effective SATA storage for data archival purposes. The barebone approach allows IT departments to standardize on a hardware platform while customizing memory and storage to match departmental needs.
Physical Profile
Measuring 4.67" wide × 4.33" deep × 2.65" high (118.5 × 110 × 67.3 mm), this mini PC occupies minimal desk or mounting space. The 2.2-pound (1000g) weight and included VESA mounting bracket enable versatile placement options, including behind monitors or in wall-mounted configurations. The compact form factor maintains comprehensive connectivity without sacrificing port availability.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.65" (67.30 mm), 4.67" (118.50 mm), 4.33" (110 mm), 2.20 lb (1000 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 4.67" (118.50 mm)
- Depth
- 4.33" (110 mm)
- Height
- 2.65" (67.30 mm)
- Weight
- 2.20 lb (1000 g)
What's in the Box
This barebone system ships with all necessary components for installation and operation.
Highlights
- AMD Ryzen Embedded V1605B quad-core processor at 2 GHz
- Supports up to 32GB DDR4-2400 memory across two slots
- Dual M.2 interfaces for high-speed NVMe or SATA storage
- Dual Gigabit Ethernet ports for network connectivity
- Wi-Fi 802.11ac and Bluetooth 4.2 wireless capabilities
- Five USB ports including three USB 3.2 Gen 2
- HDMI and DisplayPort video outputs
- Compact mini PC form factor with VESA mounting
- Windows 10 operating system support
- 96W power adapter included
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASRock, Inc |
| Manufacturer Part Number | 4X4 BOX-V1000M |
| Brand Name | ASRock |
| Product Model | 4X4 BOX-V1000M |
| Product Name | 4X4 BOX-V1000M Barebone System |
| Product Type | Barebone System |
| Processor | |
| Processor Type | Ryzen Embedded |
| Processor Model | V1605B |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 2 GHz |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | AMD |
| Memory | |
| Maximum Memory Supported | 32 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2400/PC4-19200 |
| Total Number of Memory Slots | 2 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Display & Graphics | |
| Graphics Controller Model | Radeon Vega 8 Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ac |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 4.2 |
| I/O Expansions | |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 5 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| DisplayPort | Yes |
| Number of SATA Interfaces | 1 |
| Operating System | |
| Operating System Supported | Windows 10 |
| Power Description | |
| Maximum Power Supply Wattage | 96 W |
| Physical Characteristics | |
| Form Factor | Mini PC |
| Height | 2.65" (67.30 mm) |
| Width | 4.67" (118.50 mm) |
| Depth | 4.33" (110 mm) |
| Weight (Approximate) | 2.20 lb (1000 g) |
| Miscellaneous | |
| Package Contents | 4X4 BOX-V1000M Barebone System 1 x 12V/96W Power Adapter 1 x Screw Package 1 x Product DVD 1 x VESA Mounting Bracket 1 x Heatsink For M.2 Key M |
User Manual
FAQ
What processor does the ASRock 4X4 BOX-V1000M use?
This barebone system features the AMD Ryzen Embedded V1605B processor, a quad-core chip operating at 2 GHz with 64-bit processing capabilities. The Ryzen Embedded platform provides efficient performance for compact computing applications while maintaining compatibility with Windows 10 and various embedded operating systems.
How much memory can this system support?
The 4X4 BOX-V1000M supports up to 32GB of DDR4-2400 memory across two available slots. This capacity allows for substantial multitasking capabilities and accommodates memory-intensive applications while maintaining the system's compact form factor and power efficiency.
What storage options are available?
This platform provides flexible storage configuration with two M.2 interfaces supporting NVMe or SATA SSDs and one Serial ATA/600 port for traditional hard drives or SATA SSDs. The dual M.2 slots enable RAID configurations or separate boot and data drives for optimized performance.
What connectivity features does it include?
Connectivity includes dual Gigabit Ethernet ports for wired networking, Wi-Fi 802.11ac and Bluetooth 4.2 for wireless capabilities, five USB ports (three of which are USB 3.2 Gen 2), HDMI and DisplayPort video outputs, and audio connections. This comprehensive connectivity suite supports various peripheral and network deployment scenarios.
Can this system be wall-mounted?
Yes, the system includes a VESA mounting bracket that enables secure attachment to compatible mounts, monitors, or walls. The compact dimensions of 4.67" × 4.33" × 2.65" and lightweight 2.2-pound design make it suitable for space-constrained installations where traditional desktop systems would not fit.
What operating systems are supported?
The system officially supports Windows 10, providing a familiar platform for productivity applications and general computing tasks. The AMD Ryzen Embedded architecture also offers compatibility with various Linux distributions and embedded operating systems for specialized deployment scenarios.
