12 Fiber Multimode MPO Female No Guide Pins To LC UPC Not Clipped OFNP LC/UPC FN-FO-1315-80P
SKU:
FN-FO-1315-80P
(No reviews)
Write a Review
Write a Review
Fleet Network
12 Fiber Multimode MPO Female No Guide Pins To LC UPC Not Clipped OFNP LC/UPC FN-FO-1315-80P
MSRP:
$212.50
$180.00
Save:
$32.50 (15.29%)
Warranty Information:
Covered by Manufacturer
Condition:
New
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
Products Features
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
Description

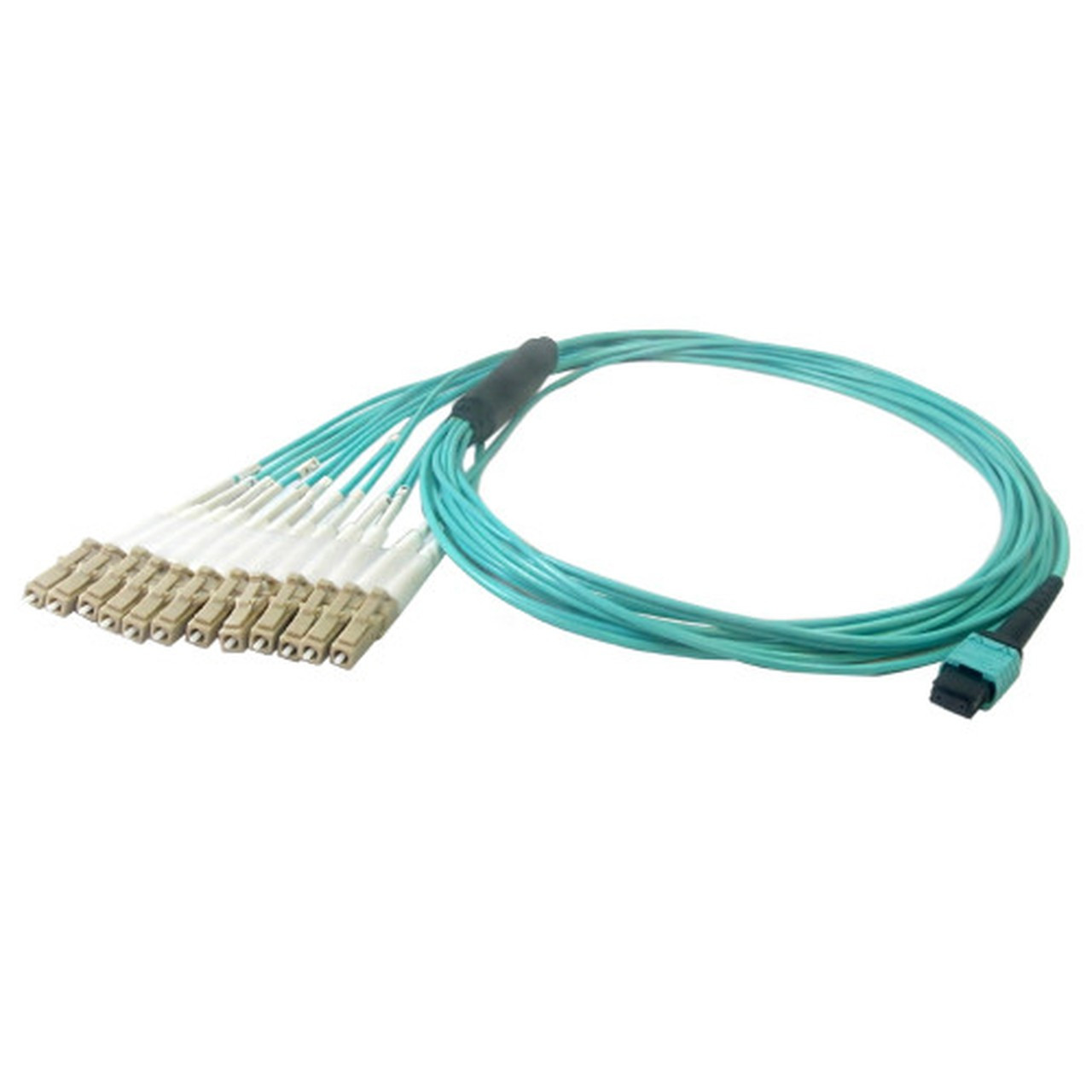

This multimode fiber optic MPO breakout cable is made with Corning glass fiber and consists of a MPO/MTP female connector on one end and 12 simplex LC male connectors on the other. It is used in high bandwidth datacenter applications connecting switches or MPO/MTP cassettes.
| Physical Characteristics | |
|---|---|
| Cable Length | 25m [82 foot] |
| Breakout Length | 24 inches |
| Color | Aqua |
| Cable Diameter | 3mm |
| Fiber Count | 12 Fibers |
| Fiber Type | Multimode 50/125 Micron OM3 |
| Glass Manufacturer | Corning Glass |
| Jacket Rating | Plenum (OFNP) |
| Connector(s) | |
| Connector A | 1 - 12-Position MPO Female (no guide pins) Elite Connectors |
| Connector B | 12 - LC Simplex Male |
| Performance | |
| MPO Insertion Loss | ≤0.35 dB |
| MPO Return Loss | ≥20db |
| LC Insertion Loss | ≤0.3 dB |
| LC Return Loss | ≥20 dB |
| testing | 100% IL, RL and Interferometer Tested |
| Environmental | |
| RoHS | Yes |
| UL | UL Listed Cable |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.70 lbs [0.32kg] |
| Warranty Information | |
| Warranty | Limited Lifetime |
Warranty Information
Warranty Information
Covered by Manufacturer
Volume Discounts
| Qty | Price | Available |
|---|
