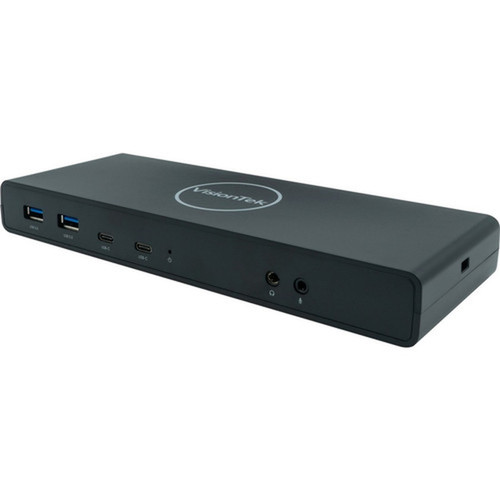

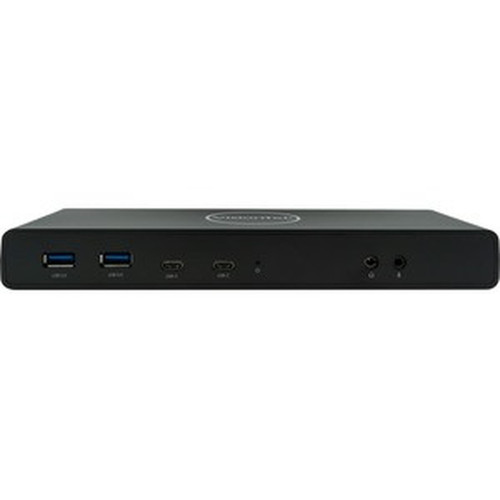

VisionTek Dual 4K USB PD Dock - Dual Display up to 4K resolutions, USB 3.0, USB-C and Thunderbolt 3 system compatible, Up to 60W Power (901250)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- VT4500 Dual Display 4K USB 3.0 / USB-C Docking Station with Power Delivery
- 1 x DC20V Certified Power Adapter
- 1 x USB-C 3.0 to USB-C 3.0 Cable
- 1 x USB-A 3.0 to USB-C 3.0 Cable
- Sotiware Installation CD
- User Manual
- Apple MacBook
- Microsoft Surface Pro
- Windows, Mac or Chrome laptop systems
Connectivity Technology: Wired
Number of Displays Supported: 2
Supported Resolutions: 4096 x 2160,5120 x 2880
Screen Mode Supported: 4K,5K
Management Features: MAC Address Pass-through,PXE Boot,Wake-on-LAN
Device Supported: Tablet PC,Desktop PC,Notebook
Host Interface: USB 3.1 (Gen 1) Type C
Audio Line In: Yes
Audio Line Out: Yes
Total Number of USB Ports: 6
Number of USB 3.0 Ports: 4
Number of USB 3.1 Gen 1 Type-C Ports: 2
USB Type-C: Yes
Number of RJ-45 Ports: 1
Network (RJ-45): Yes
DisplayPort: Yes
Microphone: Yes
Number of HDMI Ports: 2
HDMI: Yes
USB Power Delivery: 60W
Operating System Supported: Windows 10,Windows 8.1,Windows 7,Mac OS 10.x,ChromeOS
Maximum Power Supply Wattage: 100 W
Product Color: Black
Height: 1.13" (28.70 mm)
Width: 8.75" (222.25 mm)
Depth: 3.32" (84.33 mm)
Weight (Approximate): 11.80 oz (334.52 g)
Package Contents:
Kensington Security Slot: Yes
Compatibility:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Limited Warranty: 3 Year
Additional Warranty Information: Product must be registered within 30 days of purchase to be covered by the full 3-Year Warranty period. Products not registered within 30 days of purchase will default to our 1-Year Warranty period.

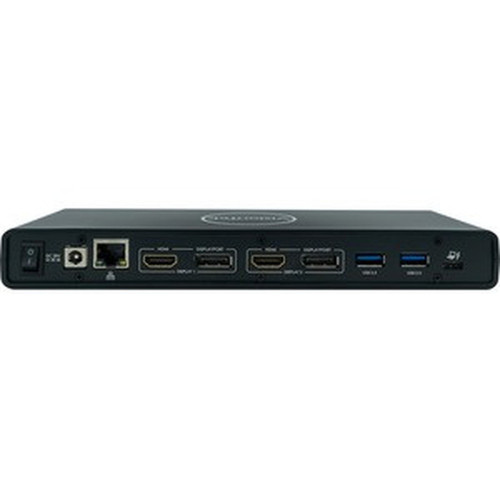

- Genuine Universal Compatibility for USB 3.0 & Type-C
- Supports up to 2 external displays
- 4x SuperSpeed USB 3.0 Ports
- 3x USB-C Ports (1 to System w/Power Delivery)
- 2x DisplayPort
- 2x HDMI
- 1x 3.5mm Audio 2.0 Headphone Out Port
- 1x 3.5mm Audio 2.0 Mic In Port
- RJ45 Gigabit Ethernet Port
- Kensington™ Lock Slot
[custom-specifications]
| Specifications | |
| Manufacturer | VisionTek Products, LLC |
| Manufacturer Part Number | 901250 |
| Manufacturer Website Address | http://www.visiontek.com |
| Brand Name | VisionTek |
| Product Model | VT4500 |
| Product Name | VT4500 Dual Display 4K USB 3.0 / USB-C Docking Station with Power Delivery |
| Packaged Quantity | 1 |
| Package Type | Retail |
| Product Type | Docking Station |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Displays Supported | 2 |
| Supported Resolutions | 4096 x 2160,5120 x 2880 |
| Screen Mode Supported | 4K,5K |
| Management Features | MAC Address Pass-through,PXE Boot,Wake-on-LAN |
| Device Supported | Tablet PC,Desktop PC,Notebook |
| Interfaces/Ports | |
| Host Interface | USB 3.1 (Gen 1) Type C |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 3.0 Ports | 4 |
| Number of USB 3.1 Gen 1 Type-C Ports | 2 |
| USB Type-C | Yes |
| Number of RJ-45 Ports | 1 |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Microphone | Yes |
| Number of HDMI Ports | 2 |
| HDMI | Yes |
| USB Power Delivery | 60W |
| Software | |
| Operating System Supported | Windows 10,Windows 8.1,Windows 7,Mac OS 10.x,ChromeOS |
| Power Description | |
| Maximum Power Supply Wattage | 100 W |
| Physical Characteristics | |
| Product Color | Black |
| Height | 1.13" (28.70 mm) |
| Width | 8.75" (222.25 mm) |
| Depth | 3.32" (84.33 mm) |
| Weight (Approximate) | 11.80 oz (334.52 g) |
| Miscellaneous | |
| Package Contents |
|
| Kensington Security Slot | Yes |
| Compatibility |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Product must be registered within 30 days of purchase to be covered by the full 3-Year Warranty period. Products not registered within 30 days of purchase will default to our 1-Year Warranty period. |
