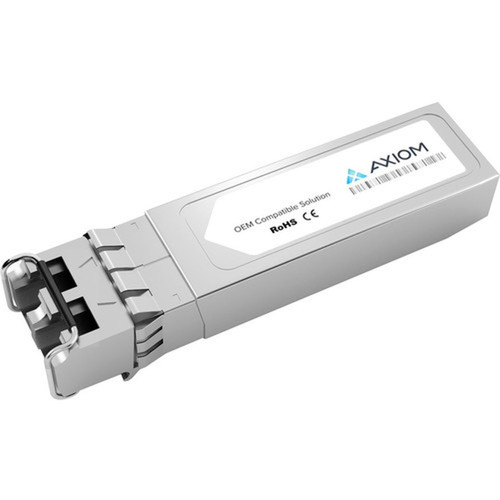

Axiom 99-25-0010-AX 10GBASE-ZR SFP+ Transceiver - RuggedCom Compatible - Single-mode LC - 10GbE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This transceiver operates on the 10GBASE-ZR standard, which specifies long-reach optical communication over single-mode fiber. The LC duplex connector interface ensures secure fiber optic connections, while the module's design supports full-duplex data transmission at 10 Gbps speeds.
Built with environmentally friendly materials, the module meets industry standards for reduced ecological impact. Its small footprint and lightweight construction make it suitable for high-density networking equipment where space optimization is critical.
Key Product Advantages
This transceiver combines RuggedCom-specific compatibility with high-performance 10GbE optics, providing a reliable solution for industrial and enterprise networks that require robust, long-distance connectivity.
RuggedCom Integration
Engineered for seamless compatibility with RuggedCom networking devices, ensuring reliable operation in harsh environments where industrial-grade equipment is essential.
- 100% RuggedCom Compatible
- MSA Compliance for Interoperability
Long-Distance Performance
Utilizes single-mode fiber technology to maintain signal integrity over extended distances, supporting data and audio/video transmission across miles without degradation.
- 10GBASE-ZR Standard
- Single-mode Fiber Optimization
Deployment / Use Cases
Ideal for upgrading or expanding RuggedCom-based networks that require high-bandwidth, long-reach fiber optic connections. Common applications include industrial automation, utility substations, transportation systems, and any environment where ruggedized networking equipment is deployed.
The module's 10GbE capability supports bandwidth-intensive tasks such as real-time data acquisition, video surveillance backhaul, and inter-facility network links. Its single-mode fiber compatibility makes it suitable for campus-wide or metropolitan area network extensions where distance and reliability are priorities.
Industrial Networking
Deploy in RuggedCom switches and routers within manufacturing plants, oil and gas facilities, or railway communications systems to enable high-speed data transfer between distributed control systems.
Network Backbone Expansion
Use as a backbone link between network segments in utility grids or transportation networks, leveraging single-mode fiber for low-latency, high-capacity connections over long distances.
Physical Profile
The transceiver measures 0.49 inches in height, 0.53 inches in width, and 2.21 inches in depth (12.50 mm x 13.40 mm x 56.10 mm), with an approximate weight of 16.8 grams. This compact design allows for high-port-density installations in networking equipment, while the standard SFP+ form factor ensures easy integration into compatible slots.
- Width
- 0.53" (13.40 mm)
- Depth
- 2.21" (56.10 mm)
- Height
- 0.49" (12.50 mm)
- Weight
- 16.8 g
Highlights
- 10 Gigabit Ethernet SFP+ transceiver for RuggedCom networks
- Single-mode LC fiber optic interface for long-distance connectivity
- MSA compliant design ensures broad interoperability
- Compact dimensions: 0.49" H x 0.53" W x 2.21" D
- Lightweight at 16.8 g for high-density deployments
- Hot-pluggable for flexible installation and maintenance
- Environmentally friendly construction
- Supports data networking and optical network applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | 99-25-0010-AX |
| Brand Name | Axiom |
| Product Model | 99-25-0010-AX |
| Product Name | 10GBASE-ZR SFP+ Transceiver for RuggedCom - 99-25-0010 |
| Product Type | SFP+ |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC 10GBASE-ZR Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Physical Characteristics | |
| Height | 0.49" (12.50 mm) |
| Width | 0.53" (13.40 mm) |
| Depth | 2.21" (56.10 mm) |
| Weight (Approximate) | 16.8 g |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Environmentally Friendly | Yes |
FAQ
What is the compatibility of this SFP+ transceiver?
This Axiom transceiver is 100% compatible with RuggedCom networking devices and is MSA compliant, ensuring it meets industry standards for interoperability with other SFP+ slots. It is specifically engineered for seamless integration into RuggedCom environments, providing reliable performance in industrial and harsh-condition applications.
What type of fiber and connector does this module use?
The module uses single-mode optical fiber with an LC duplex connector. Single-mode fiber is designed for long-distance transmission, making this transceiver suitable for extended network links. The LC connector provides a secure, low-loss interface that is widely adopted in fiber optic networking equipment.
What is the data rate and application of this transceiver?
This transceiver operates at 10 Gigabit Ethernet (10GbE) speeds, supporting high-bandwidth data transfer. It is designed for data networking and optical network applications, including backbone connections, industrial automation networks, and any scenario requiring reliable, long-reach 10GbE connectivity over fiber optic cabling.
