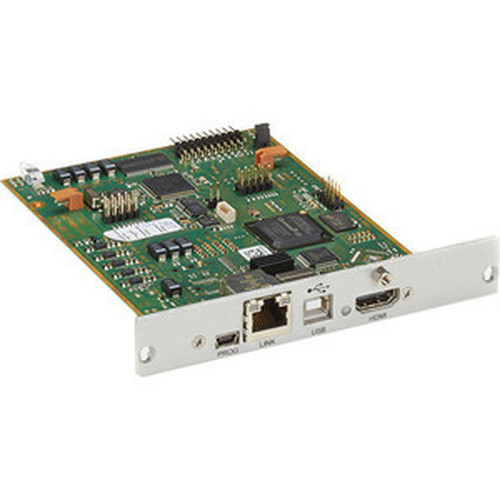

Black Box ACX1MT-HDMI-C DKM FX Transmitter Modular Interface Card - HDMI and USB over CATx - TAA Compliant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This transmitter card operates as a modular component within Black Box's DKM FX series, transmitting uncompressed HDMI video and USB peripheral signals across standard CAT5e, CAT6, or CAT6a cabling. The interface maintains signal integrity over extended distances while supporting high-definition video resolutions appropriate for presentation and collaboration applications.
The card's compact form factor optimizes chassis slot utilization while providing reliable thermal performance in rack-mounted environments. Its design emphasizes interoperability with existing structured cabling infrastructure, reducing installation complexity and enabling cost-effective AV system expansion without requiring dedicated AV cabling runs.
Key Product Advantages
This transmitter card delivers distinct advantages for AV system integrators and IT professionals managing multimedia distribution networks. Its modular architecture provides deployment flexibility while maintaining consistent performance across diverse installation scenarios.
Infrastructure Efficiency
Leverages existing CATx cabling for AV signal distribution, eliminating the need for separate HDMI and USB cable runs while maximizing infrastructure utilization.
- Reduces cable clutter
- Lowers installation costs
- Simplifies maintenance
Modular Scalability
Designed for integration into compatible Black Box chassis systems, allowing incremental expansion of AV distribution capabilities as needs evolve.
- Hot-swappable installation
- Mixed card configurations
- Centralized management
Compliance Assurance
TAA compliance ensures eligibility for government, education, and institutional procurement programs requiring trade agreement adherence.
- German manufacturing
- Documentation support
- Regulatory confidence
Deployment / Use Cases
The ACX1MT-HDMI-C transmitter card serves as a fundamental building block for professional AV distribution systems across multiple vertical markets. Its capability to extend HDMI and USB signals over structured cabling makes it particularly valuable in environments where source devices need separation from display and peripheral locations.
In corporate settings, this card enables flexible conference room configurations where presentation sources can be located in equipment racks while displays remain wall-mounted. Educational institutions benefit from centralized control of classroom multimedia systems, with instructors able to connect laptops at teaching stations while signals route to projectors or interactive displays. Digital signage networks utilize these transmitters to distribute content from central servers to multiple display endpoints across facilities.
Conference Room Systems
Enables table-based source connectivity with wall or ceiling-mounted displays, supporting collaborative presentations and video conferences.
Digital Signage Distribution
Distributes content from centralized media players to multiple display locations using existing network infrastructure.
Physical Profile
The interface card measures 5" wide by 5.75" deep with a low-profile 0.70" height, optimized for high-density installation in modular chassis systems. This compact form factor allows multiple cards to occupy minimal rack space while maintaining adequate airflow for thermal management. The card's dimensions ensure compatibility with standard rack-mounted AV equipment and facilitate straightforward installation and servicing by technical personnel.
- Width
- 5" (127 mm)
- Depth
- 5.75" (146.05 mm)
- Height
- 0.70" (17.78 mm)
Highlights
- Transmits HDMI and USB signals over CATx cabling
- Modular design for Black Box DKM FX series chassis
- Compatible with ACXMODH2R, ACXMODH4, ACXMODH21R chassis
- TAA compliant for government and institutional procurement
- Manufactured in Germany with quality assurance
- 2-year limited warranty for reliability protection
- Compact dimensions: 5"W × 5.75"D × 0.70"H
- Utilizes existing structured cabling infrastructure
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | ACX1MT-HDMI-C |
| Brand Name | Black Box |
| Product Series | FX |
| Product Name | DKM FX Transmitter Modular Interface Card, HDMI and USB over CATx |
| Product Type | Interface Module |
| Physical Characteristics | |
| Height | 0.70" (17.78 mm) |
| Width | 5" (127 mm) |
| Depth | 5.75" (146.05 mm) |
| Miscellaneous | |
| Compatibility | Matrix Switch Modular Housing chassis: ACXMODH2R ACXMODH4 ACXMODH21R |
| Country of Origin | Germany |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What type of signals does this transmitter card extend?
The ACX1MT-HDMI-C transmits both HDMI video/audio signals and USB peripheral data over standard CATx network cabling. This allows you to extend source devices like computers, media players, or document cameras to distant displays and USB peripherals using your existing structured cabling infrastructure rather than running dedicated AV cables.
Which chassis systems are compatible with this interface card?
This transmitter card is designed for Black Box Matrix Switch Modular Housing chassis models ACXMODH2R, ACXMODH4, and ACXMODH21R. These chassis provide power, management, and switching capabilities for multiple interface cards, creating scalable AV distribution systems. The modular design allows mixing different transmitter and receiver cards within the same chassis.
What does TAA compliance mean for this product?
TAA (Trade Agreements Act) compliance indicates this product meets sourcing requirements for U.S. federal government purchases and other institutional procurement programs. The card is manufactured in Germany, a TAA-designated country, and documentation supports compliance verification. This makes the product eligible for government, education, and other contracts requiring TAA adherence.
What warranty coverage does this interface card include?
Black Box provides a 2-year limited warranty for the ACX1MT-HDMI-C transmitter card. This warranty covers defects in materials and workmanship under normal use conditions. The warranty period begins from the date of purchase and includes support for technical issues that may arise during professional installation and operation in commercial environments.
