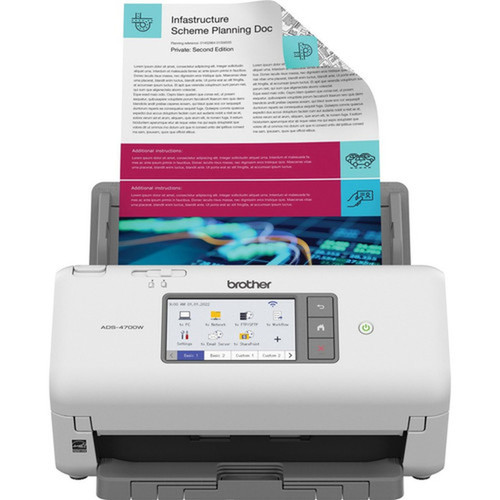

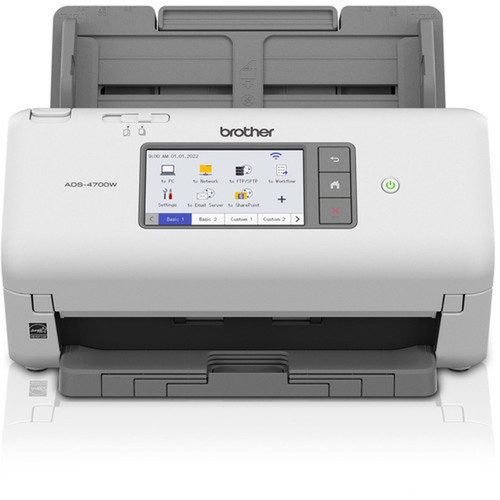

Brother ADS4700W Sheetfed Scanner - 40 ppm Color/Mono - 600 dpi - 48-bit - 80 Sheet ADF - Duplex - USB
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC

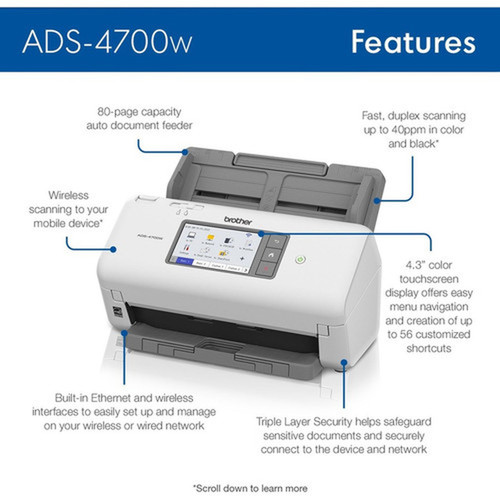

Product Features
Technical Overview
The ADS-4700W achieves its 40 ppm scanning speed through optimized document transport and imaging technology, delivering 80 images per minute in duplex mode for efficient two-sided document processing. The 600 x 600 dpi optical resolution ensures sharp text reproduction and detailed image capture, while the 48-bit color depth provides over 281 trillion color variations for accurate color representation in scanned photographs and graphics.
Media handling extends beyond standard papers to include glossy paper, inkjet paper, recycled paper, thick paper up to 43 lb index, thin paper, and embossed cards. The scanner processes documents from 2.1" x 2.9" business cards up to 8.5" x 14" legal size sheets, accommodating diverse office documentation needs without manual resizing.
Relevant factors for this section include Optical Resolution (dpi), Scan Color, Color Depth, USB. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ADS-4700W combines professional-grade scanning performance with office-optimized features that reduce workflow bottlenecks and improve document management efficiency. The balanced combination of speed, media versatility, and image quality makes this scanner suitable for departments handling mixed document types including financial records, client files, and archival materials.
High-Speed Document Processing
Maintains consistent 40 ppm throughput for both color and monochrome documents, with automatic duplex scanning doubling effective throughput to 80 images per minute for two-sided originals.
- 40 ppm color and monochrome speed
- Automatic duplex scanning
- 80-sheet ADF reduces reloading
Professional Image Quality
Delivers 600 dpi optical resolution with 48-bit color depth for accurate document reproduction, capturing fine text details and subtle color variations in photographs and graphics.
- 600 x 600 dpi optical resolution
- 48-bit color depth
- Precise grayscale and monochrome modes
Versatile Media Handling
Processes diverse document types from standard office papers to specialty media including receipts, plastic cards, business cards, and embossed materials without manual intervention.
- 80-sheet ADF capacity
- Mixed media compatibility
- Wide size range support
Deployment / Use Cases
The ADS-4700W serves as a dedicated scanning solution for offices requiring consistent document digitization without the complexity of multifunction devices. Its balanced performance profile makes it suitable for departmental scanning stations, records management workflows, and document preparation for digital archiving systems.
Legal and financial offices benefit from the scanner's legal-size media support and precise document capture for contract digitization and record retention. Healthcare administrators utilize the plastic card and ID card compatibility for patient record processing, while educational institutions leverage the mixed media handling for administrative document workflows and archival projects.
Office Document Digitization
Streamlines daily document scanning for accounting departments, HR records management, and general office administration with consistent 40 ppm performance and automatic document feeding.
- Batch processing capability
- Mixed document type handling
- Reduced manual intervention
Records Management & Archival
Provides reliable document capture for legal records, financial documents, and historical archives with precise 600 dpi resolution and color-accurate reproduction for long-term digital preservation.
- High-resolution scanning
- Color fidelity preservation
- Legal-size document support
Physical Profile
The ADS-4700W maintains a compact desktop footprint measuring 11.70" wide by 7.50" high, with a weight of approximately 6.40 pounds for stable operation without excessive desk space consumption. The professional gray finish complements office environments while the integrated design requires minimal setup beyond USB connection to host systems.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 7.50" (190.50 mm), 11.70" (297.18 mm), 48-bit, 6.40 lb (2902.99 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 11.70" (297.18 mm)
- Depth
- 48-bit
- Height
- 7.50" (190.50 mm)
- Weight
- 6.40 lb (2902.99 g)
Highlights
- 40 ppm scanning speed for both color and monochrome documents
- 600 x 600 dpi optical resolution with 48-bit color depth
- 80-sheet automatic document feeder reduces manual reloading
- Automatic duplex scanning for two-sided document processing
- USB connectivity with cross-platform operating system support
- Processes diverse media including receipts, cards, and specialty papers
- Energy Star certified with EPEAT Silver environmental rating
- 3-year limited warranty for reliable long-term operation
- Compact desktop design with professional office aesthetics
- Legal-size document support up to 8.5" x 14"
Specifications
| Specifications | |
|---|---|
| Manufacturer | Brother Industries, Ltd |
| Manufacturer Part Number | ADS4700W |
| Brand Name | Brother |
| Product Model | ADS-4700W |
| Product Name | Professional Desktop Scanner ADS-4700W |
| Packaged Quantity | 1 Each |
| Product Type | Sheetfed Scanner |
| Technical Information | |
| Optical Resolution (dpi) | 600 x 600 |
| Scan Color | Color,Monochrome,Grayscale |
| Color Depth | 48-bit |
| Maximum Mono Scan Speed (ppm) | 40 |
| Maximum Color Scan Speed (ppm) | 40 |
| Maximum Mono Scan Speed (ipm) | 80 |
| Maximum Color Scan Speed (ipm) | 80 |
| Media Type | Receipt,Plastic Card,ID Card,Plain Paper,Glossy Paper,Inkjet Paper,Recycled Paper,Thick Paper,Thin Paper,Standard Paper,Business Card,Embossed Card,Postcard |
| Media Size | A4 - 8.27" (210.06 mm) x 11.69" (296.93 mm),A5 - 5.83" (148.08 mm) x 8.27" (210.06 mm),A6 - 4.13" (104.90 mm) x 5.83" (148.08 mm),B5 - 6.93" (176.02 mm) x 9.84" (249.94 mm),B6 - 4.92" (124.97 mm) x 6.93" (176.02 mm),Executive - 7" (177.80 mm) x 10" (254 mm),Legal - 8.50" (215.90 mm) x 14" (355.60 mm),Letter - 8.50" (215.90 mm) x 11" (279.40 mm) |
| ADF Capacity | 80 Sheets |
| Duplex Scanning | Yes |
| Scanning Modes | Duplex |
| Interfaces/Ports | |
| USB | Yes |
| Software | |
| Operating System Supported | Apple iOS,Android,Mac OS,Linux,Windows |
| Physical Characteristics | |
| Height | 7.50" (190.50 mm) |
| Width | 11.70" (297.18 mm) |
| Weight (Approximate) | 6.40 lb (2902.99 g) |
| Miscellaneous | |
| Energy Star | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Silver (EPEAT Silver) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | |
FAQ
What is the maximum scanning speed of the Brother ADS-4700W?
The ADS-4700W delivers 40 pages per minute for both color and monochrome documents. In duplex mode, this translates to 80 images per minute when scanning two-sided originals. The consistent speed applies across supported media types from standard papers to specialty materials like receipts and plastic cards.
What types of media can this scanner process?
The scanner handles diverse media including plain paper, glossy paper, inkjet paper, recycled paper, thick paper, thin paper, standard paper, business cards, embossed cards, postcards, receipts, plastic cards, and ID cards. Media size support ranges from business cards (2.1" x 2.9") up to legal-size documents (8.5" x 14") with automatic size detection.
Does the ADS-4700W support automatic duplex scanning?
Yes, the scanner includes automatic duplex scanning capability for efficient two-sided document processing. This feature works with the 80-sheet automatic document feeder to scan both sides of documents in a single pass, effectively doubling throughput to 80 images per minute while maintaining the 40 ppm mechanical speed.
What operating systems are compatible with this scanner?
The ADS-4700W supports Windows, Mac OS, Linux, Android, and Apple iOS operating systems. USB connectivity provides plug-and-play compatibility with most modern computing devices, making the scanner suitable for mixed-platform office environments and mobile device integration when supported by scanning applications.
What is the optical resolution and color depth of this scanner?
The scanner features 600 x 600 dpi optical resolution for sharp document capture and detailed image reproduction. Color depth measures 48-bit, providing over 281 trillion color variations for accurate color representation in scanned photographs, graphics, and documents with color elements.
What warranty coverage does Brother provide for this scanner?
Brother backs the ADS-4700W with a 3-year limited warranty covering manufacturing defects and component failures. The scanner also carries Energy Star certification and EPEAT Silver environmental rating, reflecting its energy-efficient operation and reduced environmental impact throughout its product lifecycle.
