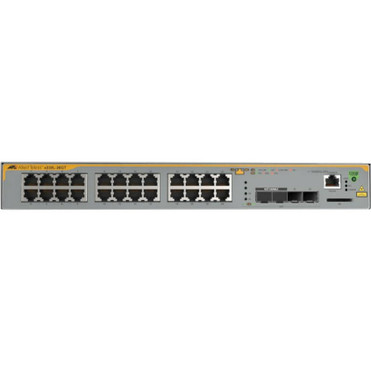

Allied Telesis AT-X230L-26GT-10 x 230L-26GT Layer 3 Managed Switch - 24 Gigabit Ports - 2 SFP Uplinks - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates at Layer 3, supporting routing protocols and advanced network segmentation for efficient traffic management across subnets. The 24 copper ports deliver Gigabit Ethernet performance with auto-negotiation for optimal speed and duplex settings, while the two SFP expansion slots accept standard mini-GBIC transceivers for fiber optic connections up to 1000 Mbps.
Management capabilities include comprehensive monitoring, configuration, and security features accessible through web interface, CLI, or SNMP. The switch supports advanced networking protocols including VLANs, QoS, link aggregation, and spanning tree for robust network infrastructure.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This switch combines enterprise-grade features with practical deployment advantages for modern network environments. The fanless operation eliminates moving parts that can fail, reducing maintenance requirements while providing completely silent performance ideal for office and retail settings.
Advanced Security Features
Includes AMF secure mode, VLAN ACLs, and TACACS+ command authorization for granular access control and network protection.
- AMF secure mode
- VLAN ACLs
- TACACS+ Command Authorization
Network Resilience
Features G.8032 Ethernet Ring Protection and active fiber monitoring for high availability and quick fault recovery in critical network segments.
- G.8032 Ethernet Ring Protection
- Active Fiber Monitoring
Modern Protocol Support
Supports OpenFlow for SDN implementations, VLAN Mirroring (RSPAN) for traffic analysis, and Precision Time Protocol (PTP) Transparent Mode for time-sensitive applications.
- OpenFlow for SDN
- VLAN Mirroring (RSPAN)
- PTP Transparent Mode
Deployment / Use Cases
The AT-X230L-26GT-10 serves as an ideal access layer switch for small to medium business networks, providing connectivity for workstations, IP phones, wireless access points, and other edge devices. With 24 Gigabit ports, it can support an entire department or floor while maintaining performance headroom for future growth.
For branch office deployments, the dual SFP uplinks enable reliable fiber connections back to headquarters or data centers, while the Layer 3 capabilities allow for local routing between VLANs without traversing the WAN. The low power consumption and fanless design make it suitable for environmentally controlled spaces like server rooms or for deployments where energy efficiency is prioritized.
Office Network Core
Connect workstations, printers, and VoIP phones with Gigabit performance while using SFP uplinks for connection to servers or internet gateway.
Retail Environment
Silent operation suits point-of-sale systems, inventory management terminals, and security cameras without adding ambient noise to customer areas.
Physical Profile
Designed for standard 19-inch rack mounting, this switch occupies 1U of vertical space with dimensions of 1.73 inches in height, 13.43 inches in width, and 9.09 inches in depth. The compact form factor maximizes port density while minimizing rack space consumption, and the 5.29-pound weight ensures easy installation without requiring special mounting hardware.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.73" (44 mm), 13.43" (341 mm), 9.09" (231 mm), 5.29 lb (2400 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 13.43" (341 mm)
- Depth
- 9.09" (231 mm)
- Height
- 1.73" (44 mm)
- Weight
- 5.29 lb (2400 g)
Highlights
- 24 Gigabit Ethernet ports with auto-sensing 10/100/1000Base-T
- 2 SFP uplink ports for fiber optic expansion
- Layer 3 managed switching with advanced routing capabilities
- Fanless design for silent operation and reduced maintenance
- Rack-mountable 1U form factor for standard installation
- Low power consumption at 20.50 watts
- Advanced security features including AMF secure mode and VLAN ACLs
- Network resilience with G.8032 Ethernet Ring Protection
- Support for modern protocols including OpenFlow and PTP
- Compliant with RoHS, REACH, WEEE, and China RoHS environmental standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | Allied Telesis, Inc |
| Manufacturer Part Number | AT-X230L-26GT-10 |
| Brand Name | Allied Telesis |
| Product Series | x230 |
| Product Model | x230L-26GT |
| Product Name | L3 Switch with 24 x 10/100/1000T Ports and 2 x 100/1000X SFP Ports |
| Product Type | Layer 3 Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network,2 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 4 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Supply |
| Power Consumption | 20.50 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 13.43" (341 mm) |
| Depth | 9.09" (231 mm) |
| Weight (Approximate) | 5.29 lb (2400 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE),China Restriction of Hazardous Substances (China RoHS) |
| Country of Origin | China |
FAQ
How many devices can I connect to this Allied Telesis switch?
The AT-X230L-26GT-10 provides 24 Gigabit Ethernet ports for connecting network devices such as computers, printers, IP phones, and wireless access points. Additionally, it includes 2 SFP uplink ports for fiber optic connections to other switches or network infrastructure, giving you a total of 26 physical connection points for building a comprehensive network.
What are the SFP ports used for on this switch?
The two SFP (Small Form-factor Pluggable) ports support mini-GBIC transceivers for 1000Base-X fiber optic connections. These uplink ports enable longer distance connections between switches, connection to fiber backbone networks, or linking to equipment in different buildings. They provide flexibility for network expansion beyond the limitations of copper cabling.
Is this switch manageable, and what management features does it offer?
Yes, this is a fully managed Layer 3 switch. Management features include web-based configuration, command line interface (CLI) access, and SNMP monitoring. It supports VLAN configuration, Quality of Service (QoS), link aggregation, spanning tree protocols, and advanced security features like AMF secure mode and TACACS+ command authorization for comprehensive network control.
What does Layer 3 switching capability provide?
Layer 3 switching enables this device to perform routing functions between different IP subnets or VLANs. This means it can make forwarding decisions based on IP addresses rather than just MAC addresses, allowing for more efficient traffic flow in segmented networks. It supports routing protocols for dynamic path selection and reduces the need for separate routers in many network designs.
Can this switch be installed in a standard server rack?
Yes, the AT-X230L-26GT-10 is designed for standard 19-inch rack mounting and occupies 1U (1.73 inches) of vertical space. Its dimensions of 13.43 inches wide by 9.09 inches deep fit typical rack enclosures, and the 5.29-pound weight makes installation straightforward with standard rack mounting hardware.
What are the power requirements for this network switch?
This switch operates on standard AC power through its internal power supply and consumes approximately 20.50 watts under typical load conditions. The fanless design means there are no cooling fans to fail, contributing to the low power consumption and silent operation. No special power requirements or dedicated circuits are needed for standard deployment.
