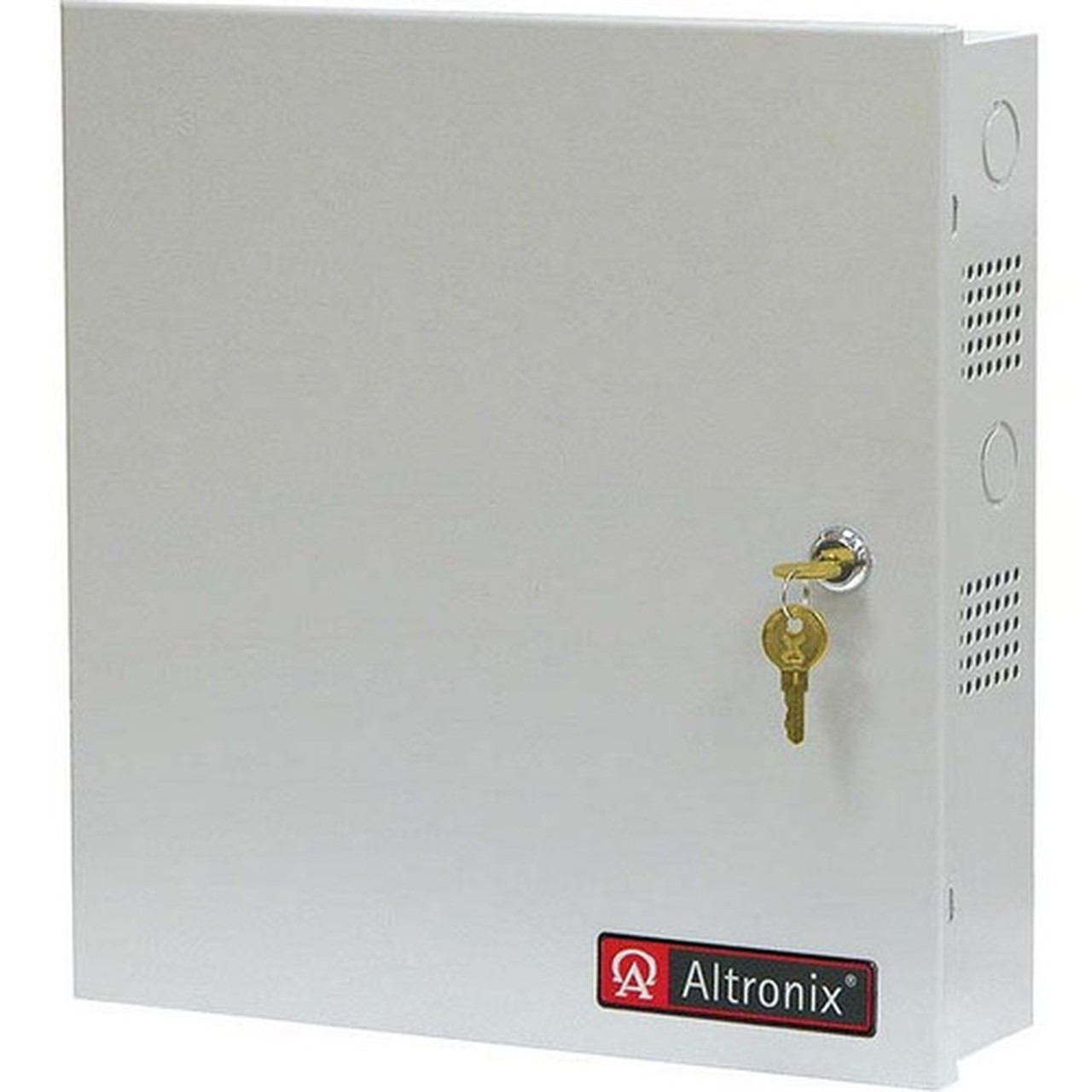

Altronix 8 Fused Outputs Supervised Power Supply/Charger. 12/24VDC @ 2.5A. Grey Enclosure - Wall Mount - 110 V AC, 220 V AC Input - 12 (SMP3PMP8)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Protection Type: Short Circuit,Overload
Input Voltage: 110 V AC,220 V AC
Output Voltage: 12 V DC,24 V DC
Output Voltage Detail: 12 V DC @ 2.5 A,24 V DC @ 2.5 A
Output Current: 2.50 A
Form Factor: Wall Mount
Height: 13.50" (342.90 mm)
Width: 13" (330.20 mm)
Depth: 3.25" (82.55 mm)
Weight (Approximate): 3.86 kg
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: Lifetime
[custom-specifications]
| Specifications | |
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | SMP3PMP8 |
| Manufacturer Website Address | http://www.altronix.com |
| Brand Name | Altronix |
| Product Model | SMP3PMP8 |
| Product Name | 8 Fused Outputs Supervised Power Supply/Charger. 12/24VDC @ 2.5A. Grey Enclosure |
| Product Type | Proprietary Power Supply |
| Technical Information | |
| Protection Type | Short Circuit,Overload |
| Power Description | |
| Input Voltage | 110 V AC,220 V AC |
| Output Voltage | 12 V DC,24 V DC |
| Output Voltage Detail | 12 V DC @ 2.5 A,24 V DC @ 2.5 A |
| Output Current | 2.50 A |
| Physical Characteristics | |
| Form Factor | Wall Mount |
| Height | 13.50" (342.90 mm) |
| Width | 13" (330.20 mm) |
| Depth | 3.25" (82.55 mm) |
| Weight (Approximate) | 3.86 kg |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
[/custom-specifications]
