Overview
This active optical High-Speed HDMI® cable isplenum rated and consists of a HDMI male connector on both ends. The cable hasa built in signal booster chipset which allows it to maintain a HDMI 2.1 signalover a thin cable at longer lengths with no signal loss. It is typically usedto connect a HDMI source such as Blu-Ray players and PC's to a HDTV or monitorand supports full 8K Ultra HD resolution and High Dynamic Range (HDR). The AOCcable also works with splitters, switches and other video sharing devices.

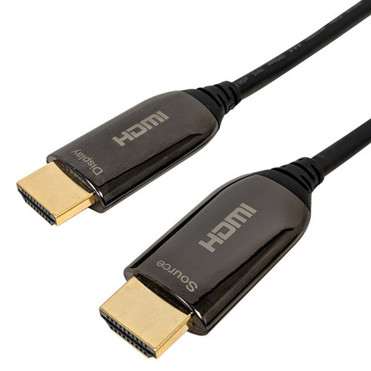

This active optical HDMI® cable is directional. Each end of the cable ismarking €œSource€ and €œDisplay€ to indicate the direction of the signalflow. Always test the cable to be sure that the signal flow is correctand for device compatibility before permanently installing in a wall orceiling.
 | Extend HDMI Signals Over Optical CableThese cables are plenum rated and constructedfrom both copper and optical fiber. They feature a built-in booster chipsetideal for maintaining 8K Ultra HD resolution and ensure a full 48Gpbs bandwidthwith no signal loss over longer distances. Optimum Performance and Easy InstallationThese cables utilize AOC technology which makethem more flexible and thinner than traditional long-length HDMI cables, makingthem easier to install. The transmission signal is transferred over fiber opticcable which eliminates EMI/RFI interference, maintaining a high level ofperformance even in high interference environments.
|
Applications
Digital Signage €¢ LED signboards in streets and in stadiums €¢ Medical Imaging Equipment €¢ Airplane On-board Video System €¢ Home Theater €¢ Blue-ray, 3D video, Projector, Set-up box, DVR, Game Consoles and Computer €¢ TV Broadcast Station €¢ Conference Room Video Equipment €¢ Security systems
Specifications
Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Shell Material | Zinc-Alloy |
| Cable Specs | Hybrid with OM3 Fiber / Copper |
| Cable Diameter | 4.5mm |
| Shielding | 75% Braid + 100% Aluminum-Mylar Foil |
| Jacket Fire Rating | Plenum Rated CMP |
| Jacket Material | PVC |
| Strain Relief | Molded PVC |
| Bend Radius | 45mm |
| Differential Input | 100 ohm |
| Power Consumption | 250mW (Max) |
Connectors | |
| Connector A | HDMI A (19 pin) Male |
| Connector B | HDMI A (19 pin) Male |
Performance | |
| Maximum Resolution | Ultra HD 8K (50/60Hz) up to 30m, 4K (50/60/100/120Hz), 1080p Deep Color, 1080i, 720p, 480p |
| Maximum Bandwidth | 12 Gbps x 4 Channel |
| Video | HDR, Deep Color (48-bit) and 3D Compatible |
| Audio | Supports eARC |
| O/E Converter | 4 channel 850 nm VCSEL array (Transmitter) 4 channel GaAs PD array (Receiver) |
| Support | EDID (Self-Detecting) VBR (Variable Refresh Rate) QMS (Quick Media Switching) QFT (Quick Frame Transport) ALLM (Auto Low Latency Mode) DSC (Display Stream Compression) |
| Built in Ethernet Channel | Yes |
| HDCP 2.2 Compliant | Yes |
| HDMI Version | HDMI 2.1, Backward Compatible with HDMI 2.0/1.4 |
Approvals | |
| c(UL)us | Yes |
| CE | Yes |
| FCC | Yes |
| CPR | Yes |
| ATC | Yes |
Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
Packaging Information | |
| Package Quantity | 1 |
Warranty Information | |
| Warranty | Limited Lifetime |
| 15ft | 25ft | 35ft | 50ft | 75ft | 100ft |
|---|---|---|---|---|---|
| 0.36 lbs | 0.52 lbs | 0.69 lbs | 0.93 lbs | 1.37 lbs | 2.25 lbs |
