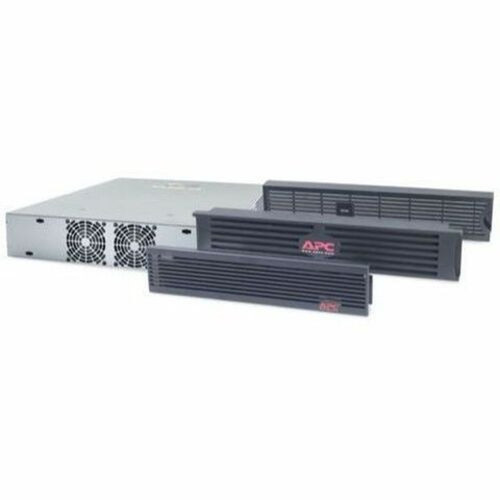

APC by Schneider Electric AP9626 Step-Down Rack-Mountable Transformer - 208V to 120V 5 kVA 2U
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This transformer features a robust power rating of 5 kVA with a maximum line current of 30 A, ensuring stable power delivery for connected devices. The input accepts 208V through a NEMA L6-30P receptacle, while the output provides 120V via a NEMA 5-20R receptacle, supporting standard North American power configurations.
Built with a rack-mountable form factor, it occupies 2U of vertical rack space, optimizing rack real estate. The transformer is manufactured in the Philippines and complies with RoHS environmental standards, reflecting a commitment to reduced hazardous substances.
This section brings together practical product details such as Power Rating, Input Receptacle Type, Output Receptacle Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The AP9626 transformer offers precise voltage conversion with high reliability, backed by a 2-year limited warranty for peace of mind. Its rack-mountable design simplifies installation in data centers, reducing clutter and improving airflow management.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Efficient Voltage Conversion, Rack-Optimized Design.
Efficient Voltage Conversion
Converts 208V input to 120V output, enabling compatibility with standard 120V equipment in 208V power environments.
- 5 kVA capacity
- 30 A maximum line current
Rack-Optimized Design
Occupies only 2U of rack space with included mounting brackets, facilitating seamless integration into server racks.
- 2U rack height
- Includes mounting brackets
Deployment / Use Cases
This transformer is ideal for data centers, server rooms, and network closets where 208V power is available but equipment requires 120V input. It supports reliable power distribution for servers, networking gear, and other rack-mounted devices.
Common applications include voltage conversion in colocation facilities, enterprise IT environments, and telecommunications installations. The rack-mountable form factor makes it suitable for high-density rack deployments where space efficiency is critical.
This section brings together practical product details such as Power Rating, Input Receptacle Type, Output Receptacle Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Data Center Power Management
Use in data centers to step down 208V power to 120V for compatible servers and network equipment, ensuring proper voltage supply.
Server Room Integration
Deploy in server rooms to consolidate power conversion within racks, reducing the need for external transformers and simplifying cable management.
Physical Profile
The transformer measures 3.50" in height, 17.52" in width, and 24.02" in depth, fitting standard 19-inch racks with a 2U footprint. It weighs approximately 95.20 lb, providing a sturdy build for stable rack mounting. The design includes rack mounting brackets for secure installation, ensuring reliable performance in rack environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.50" (89 mm), 17.52" (445 mm), 24.02" (610 mm), 95.20 lb (43181.99 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.52" (445 mm)
- Depth
- 24.02" (610 mm)
- Height
- 3.50" (89 mm)
- Weight
- 95.20 lb (43181.99 g)
What's in the Box
The package includes the step-down rack-mountable transformer, rack mounting brackets, and a user manual for easy setup and operation.
Package contents include Step-Down Rack-mountable Transformer Rack mounting brackets User manual, Step-Down Rack-mountable Transformer. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 5 kVA power rating for reliable voltage conversion
- Converts 208V input to 120V output
- Rack-mountable design with 2U height
- Includes rack mounting brackets for easy installation
- NEMA L6-30P input and NEMA 5-20R output receptacles
- Maximum line current of 30 A
- 2-year limited warranty
- RoHS compliant for environmental safety
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP9626 |
| Brand Name | APC by Schneider Electric |
| Product Name | Step-Down Rack-mountable Transformer |
| Packaged Quantity | 1 Each |
| Product Type | Step Down Converter |
| Technical Information | |
| Power Rating | 5 kVA |
| Input Receptacle Type | NEMA L6-30P |
| Output Receptacle Type | NEMA 5-20R |
| Power Description | |
| Input Voltage | 208 V |
| Output Voltage | 120 V |
| Maximum Line Current | 30 A |
| Physical Characteristics | |
| Height | 3.50" (89 mm) |
| Width | 17.52" (445 mm) |
| Depth | 24.02" (610 mm) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Weight (Approximate) | 95.20 lb (43181.99 g) |
| Miscellaneous | |
| Package Contents | Step-Down Rack-mountable Transformer Rack mounting brackets User manual |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of the AP9626 transformer?
The AP9626 transformer has a power rating of 5 kVA, providing sufficient capacity for converting 208V input to 120V output in rack environments. This rating supports a maximum line current of 30 A, ensuring stable power delivery for connected equipment.
What input and output voltages does this transformer support?
This transformer accepts an input voltage of 208V and delivers an output voltage of 120V. It is designed for step-down conversion, making it suitable for environments where 208V power is available but equipment requires 120V input.
Is the AP9626 transformer rack-mountable?
Yes, the AP9626 is designed as a rack-mountable transformer with a 2U height. It includes rack mounting brackets for installation in standard 19-inch racks, optimizing space in data centers and server rooms.
What type of receptacles are used for input and output connections?
The input receptacle is a NEMA L6-30P, and the output receptacle is a NEMA 5-20R. These are standard North American connectors, ensuring compatibility with typical power cables and equipment in rack deployments.
What is included in the package with the transformer?
The package includes the step-down rack-mountable transformer, rack mounting brackets, and a user manual. These components facilitate straightforward installation and operation in rack environments.
What warranty coverage does the AP9626 transformer have?
The AP9626 transformer comes with a 2-year limited warranty, providing repair or replacement coverage for defects. This warranty supports reliable performance and peace of mind for business IT deployments.
What power capacity is listed for this UPS?
Power specifications help show where the unit fits best, including the type of load level, electrical environment, and backup role it is intended to support. These are usually the most decision-critical facts in a UPS or power-protection comparison.
What voltage details are listed?
The listed power specification is 208 V, which helps position the unit for the right load level and installation role.
