APC by Schneider Electric

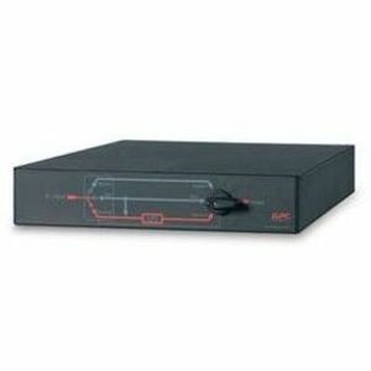

APC 19" Rack Mountable 30A Maintenance Bypass Panel - 6000VA (SBP6KRMT2U)
- 19" Rack Mountable 30A Maintenance Bypass Panel
- Installation guide
- Rack mounting brackets
- User manual
Marketing Information: Extremely reliable service bypass panels designed for APC InfraStruXure® Type A, Smart-UPS, and Symmetra UPS products.
Plug/Connector Type: NEMA L6-30P
Receptacles: 2 x NEMA L6-20R,1 x NEMA L6-30R
Protection Type: Overload
Load Capacity (VA): 6 kW
Input Voltage: 200 V AC,208 V AC
Output Voltage: 200 V AC,208 V AC
Current: 30 A
Color Family: Gray
Product Color: Gray
Form Factor: Rack-mountable
Rack Height: 2U
Height: 3.50" (89 mm)
Width: 17.01" (432 mm)
Depth: 25.98" (660 mm)
Weight (Approximate): 13.64 kg
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
Additional Warranty Information: 2 years (parts only)
[custom-specifications]
| Specifications | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SBP6KRMT2U |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Name | 19" Rack Mountable 30A Maintenance Bypass Panel |
| Product Type | Bypass Panel |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P |
| Receptacles | 2 x NEMA L6-20R,1 x NEMA L6-30R |
| Protection Type | Overload |
| Power Description | |
| Load Capacity (VA) | 6 kW |
| Input Voltage | 200 V AC,208 V AC |
| Output Voltage | 200 V AC,208 V AC |
| Current | 30 A |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Gray |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.50" (89 mm) |
| Width | 17.01" (432 mm) |
| Depth | 25.98" (660 mm) |
| Weight (Approximate) | 13.64 kg |
| Miscellaneous | |
| Package Contents | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
| Additional Warranty Information | 2 years (parts only) |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
Warranty Infomartion
2 Year
