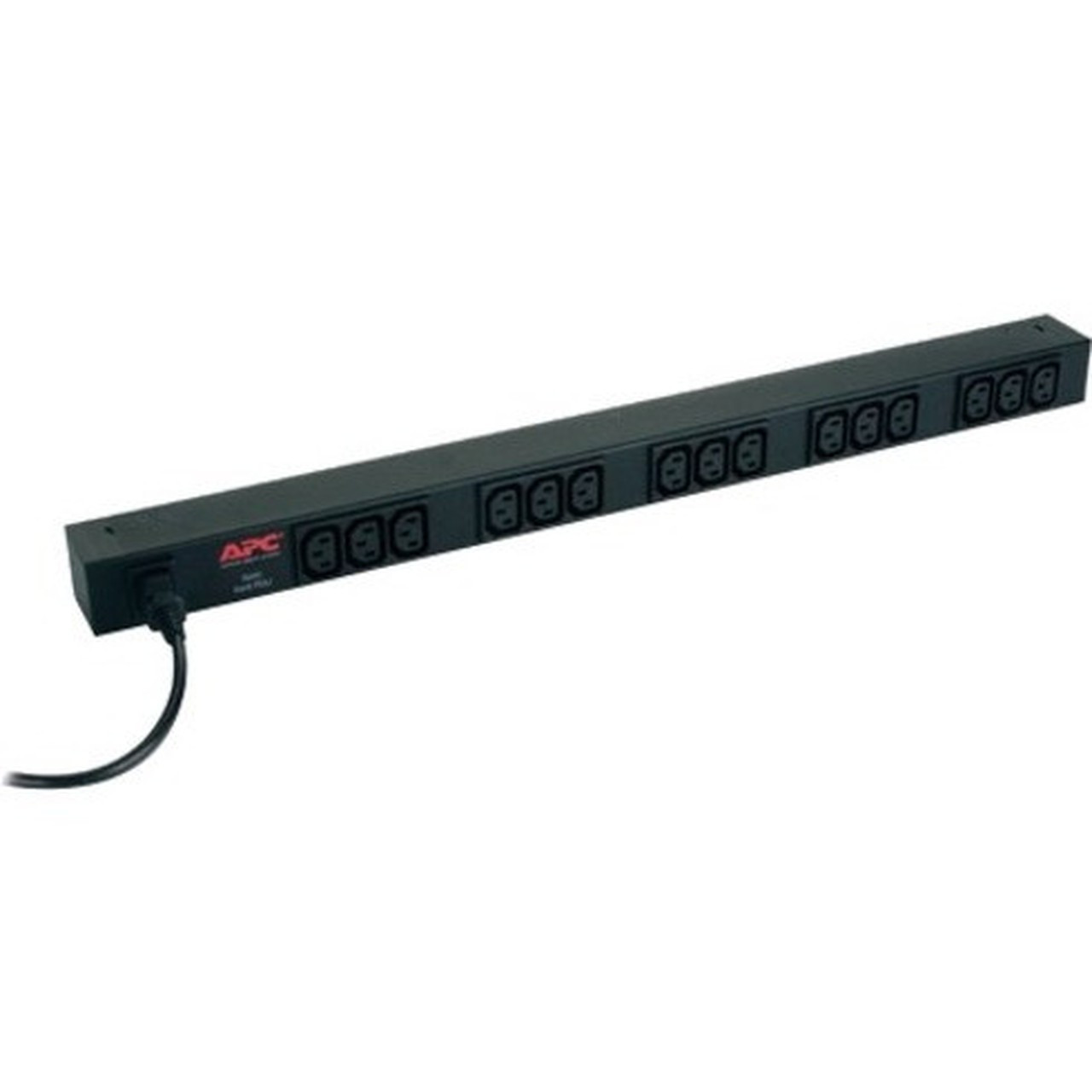

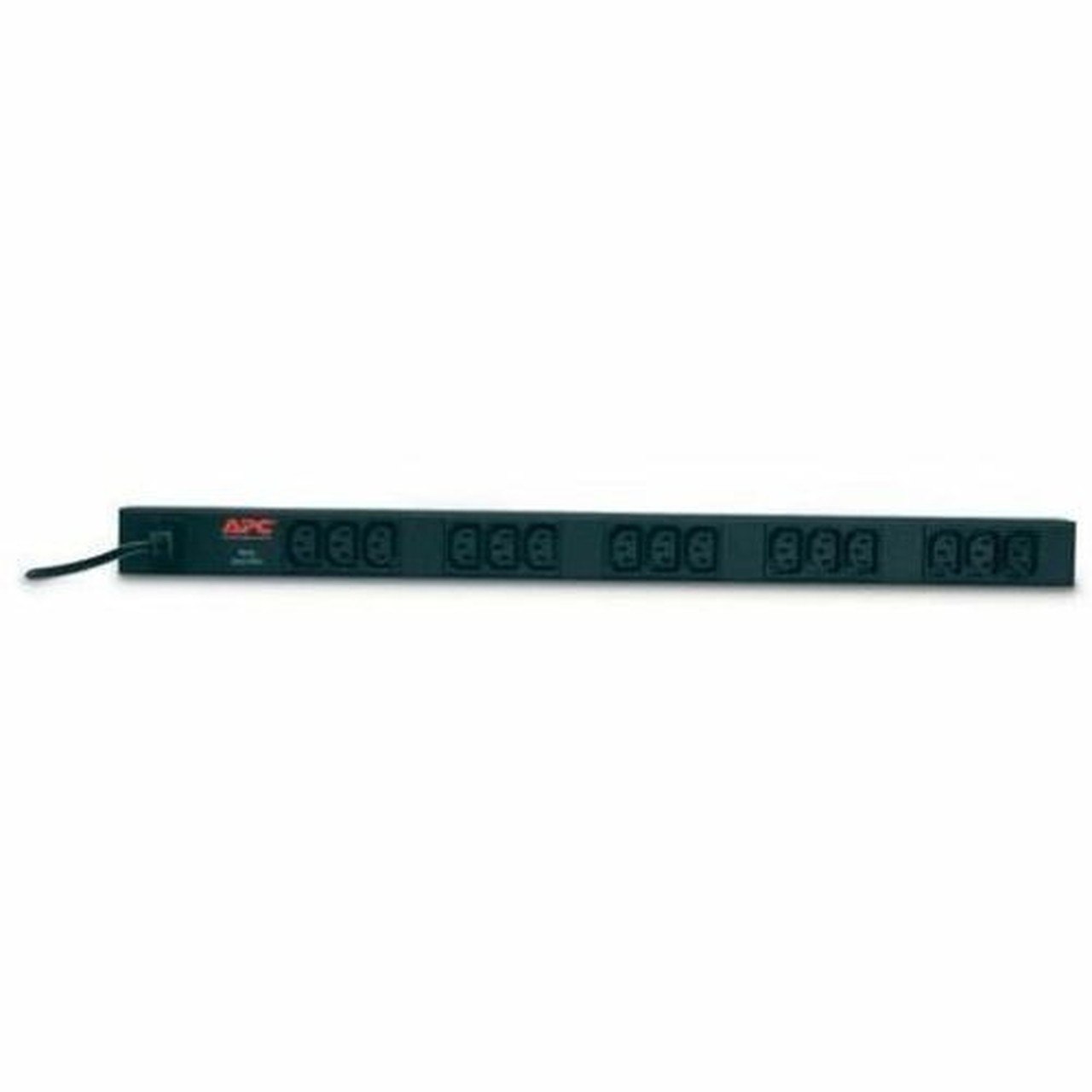

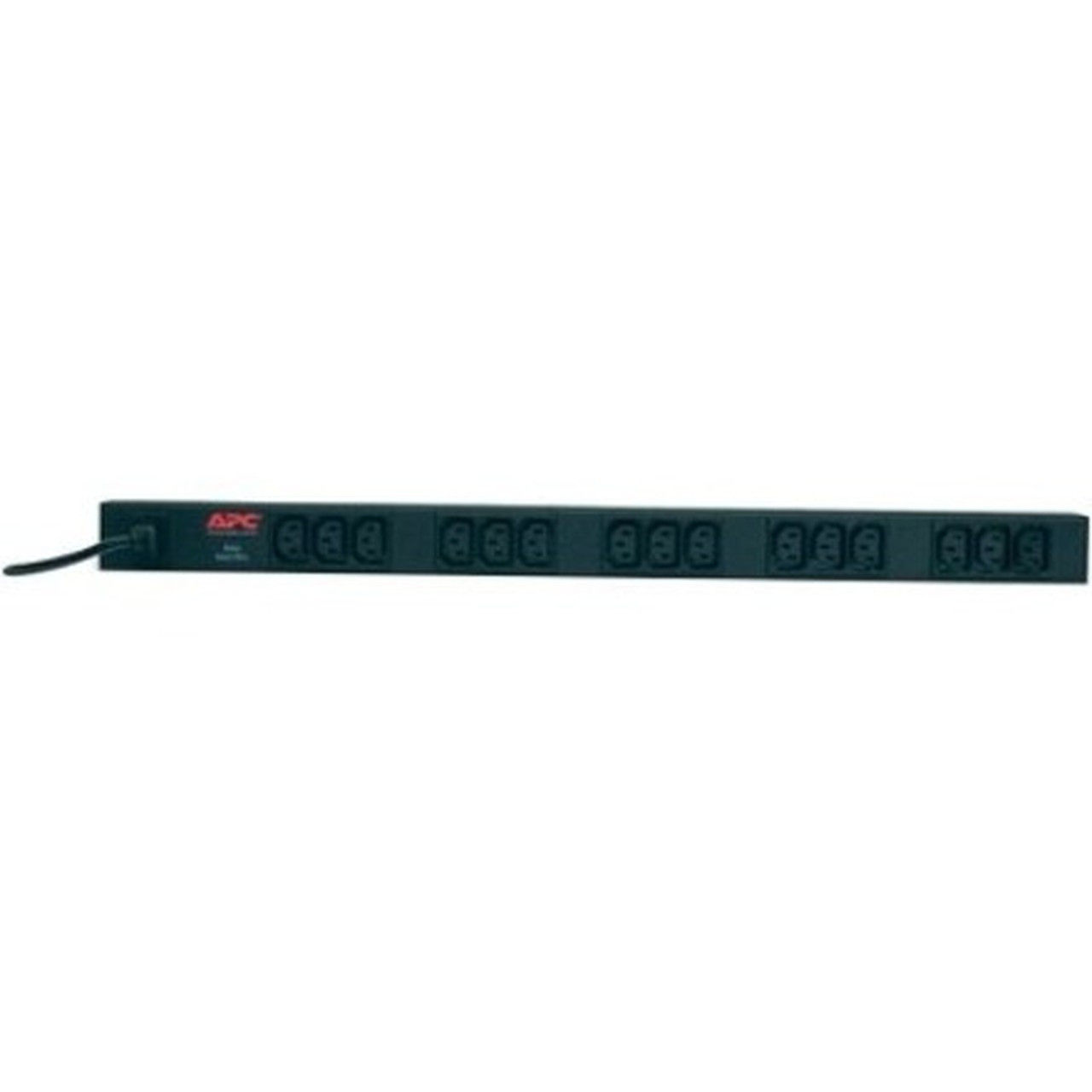

Rack PDU, Basic, Zero U, 10A,230V, (15)C13 - 15 x IEC 320-C13 - 2.3kVA - Zero U Rack-mountable (AP9568)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Basic Rack 2.3kVA PDU
- Installation guide
- Rack mounting brackets
- Toolless mounting kit
PDU Type: Basic
Plug/Connector Type: IEC 60320 C14
Receptacle Type: IEC 60320 C13
Receptacle Detail: 15 x IEC 60320 C13
Input Voltage: 120 V,200 V,208 V,230 V,240 V
Input Voltage Range: 208 V AC - 240 V AC
Output Voltage: 208 V AC,230 V AC
Power Rating (VA): 2.30 kVA
Color Family: Black
Product Color: Black
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Placement: Side
Rack Height: 0U
Cord Length: 6.5 ft (1.98 m)
Height: 24.02" (610 mm)
Width: 1.73" (44 mm)
Depth: 1.73" (44 mm)
Weight (Approximate): 4.41 lb (2000.34 g)
Package Contents:
Country of Origin: India
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
- Features 15 C13 outlets for comprehensive power distribution
- Vertical mounting to save valuable rack space
- Supports up to 10A, 230V power distribution
- Includes toolless mounting kit for quick setup
[custom-specifications]
| Specifications | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP9568 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | NetShelter |
| Product Series | Basic |
| Product Name | Basic Rack 2.3kVA PDU |
| Packaged Quantity | 1 Each |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Basic |
| Plug/Connector Type | IEC 60320 C14 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 15 x IEC 60320 C13 |
| Power Description | |
| Input Voltage | 120 V,200 V,208 V,230 V,240 V |
| Input Voltage Range | 208 V AC - 240 V AC |
| Output Voltage | 208 V AC,230 V AC |
| Power Rating (VA) | 2.30 kVA |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Placement | Side |
| Rack Height | 0U |
| Cord Length | 6.5 ft (1.98 m) |
| Height | 24.02" (610 mm) |
| Width | 1.73" (44 mm) |
| Depth | 1.73" (44 mm) |
| Weight (Approximate) | 4.41 lb (2000.34 g) |
| Miscellaneous | |
| Package Contents | |
| Country of Origin | India |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
User-Manual
Additional-pdf3
[/custom-user-manual]
