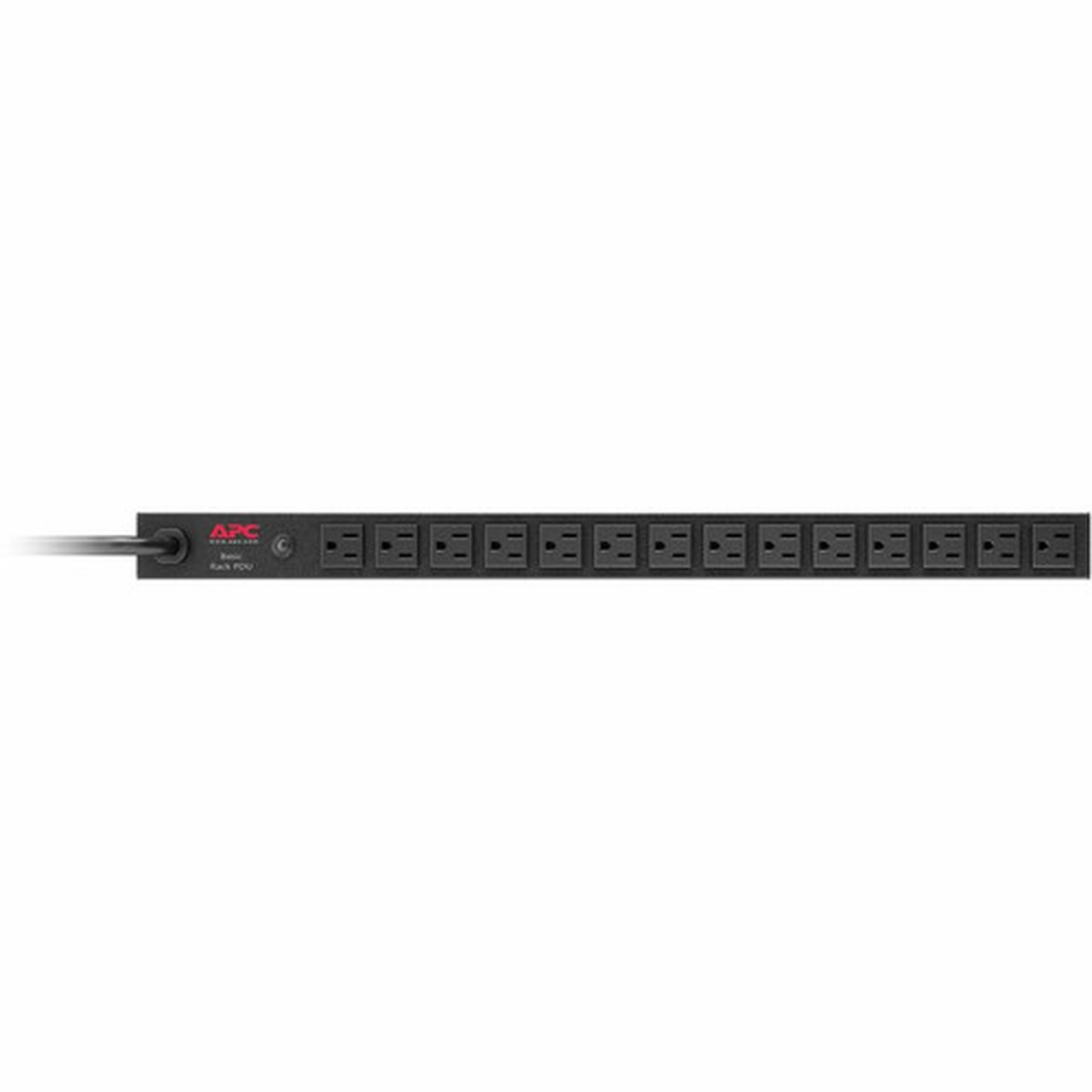

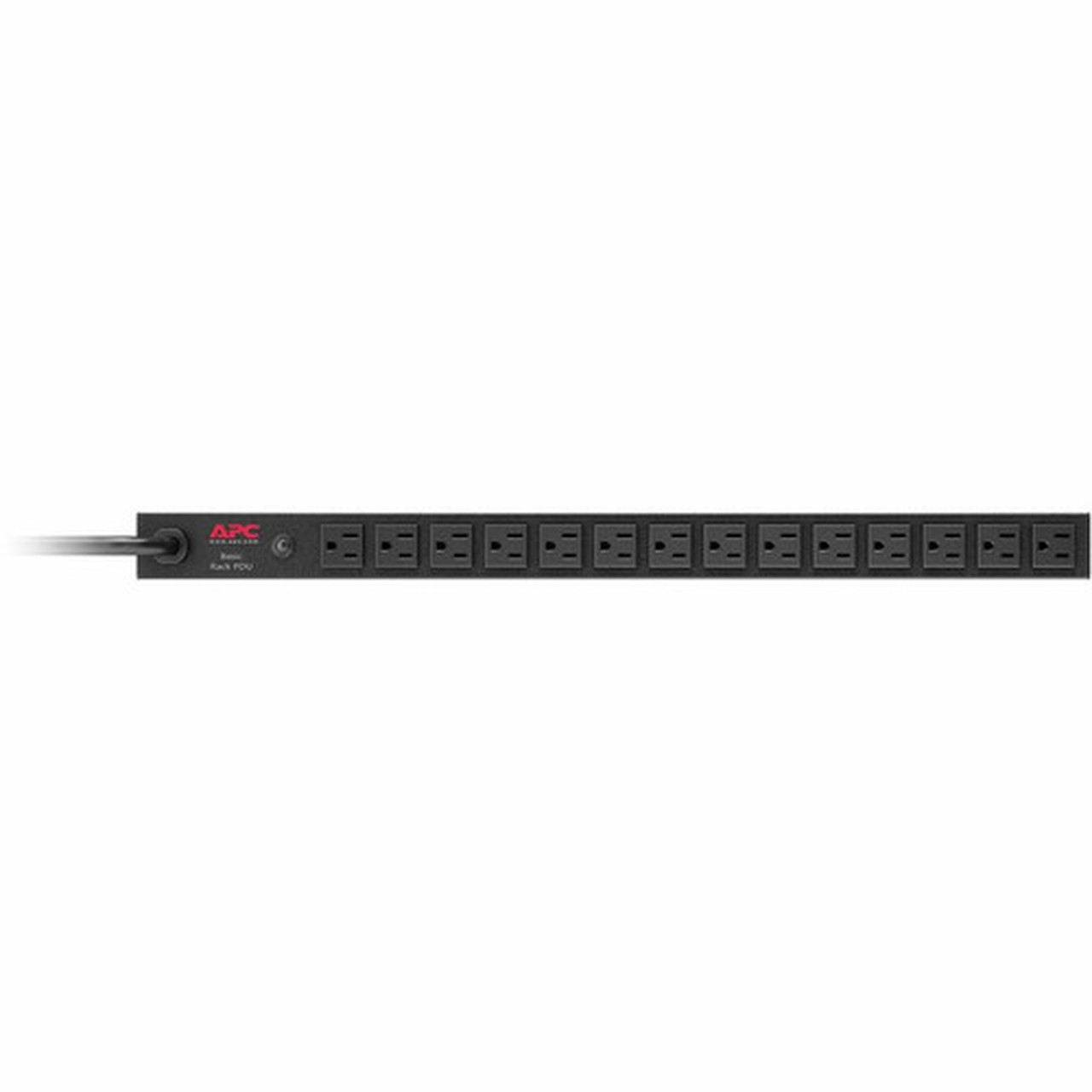

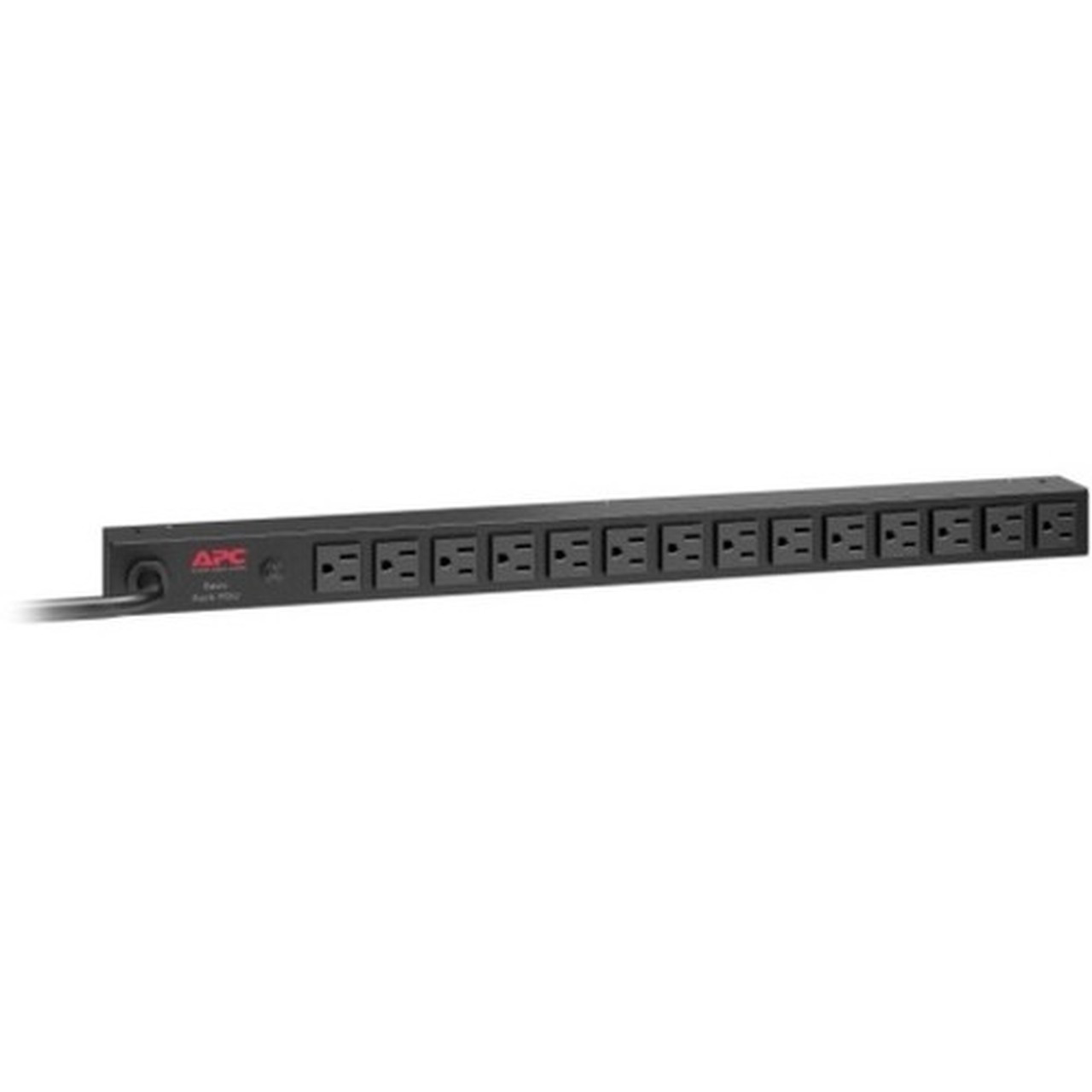

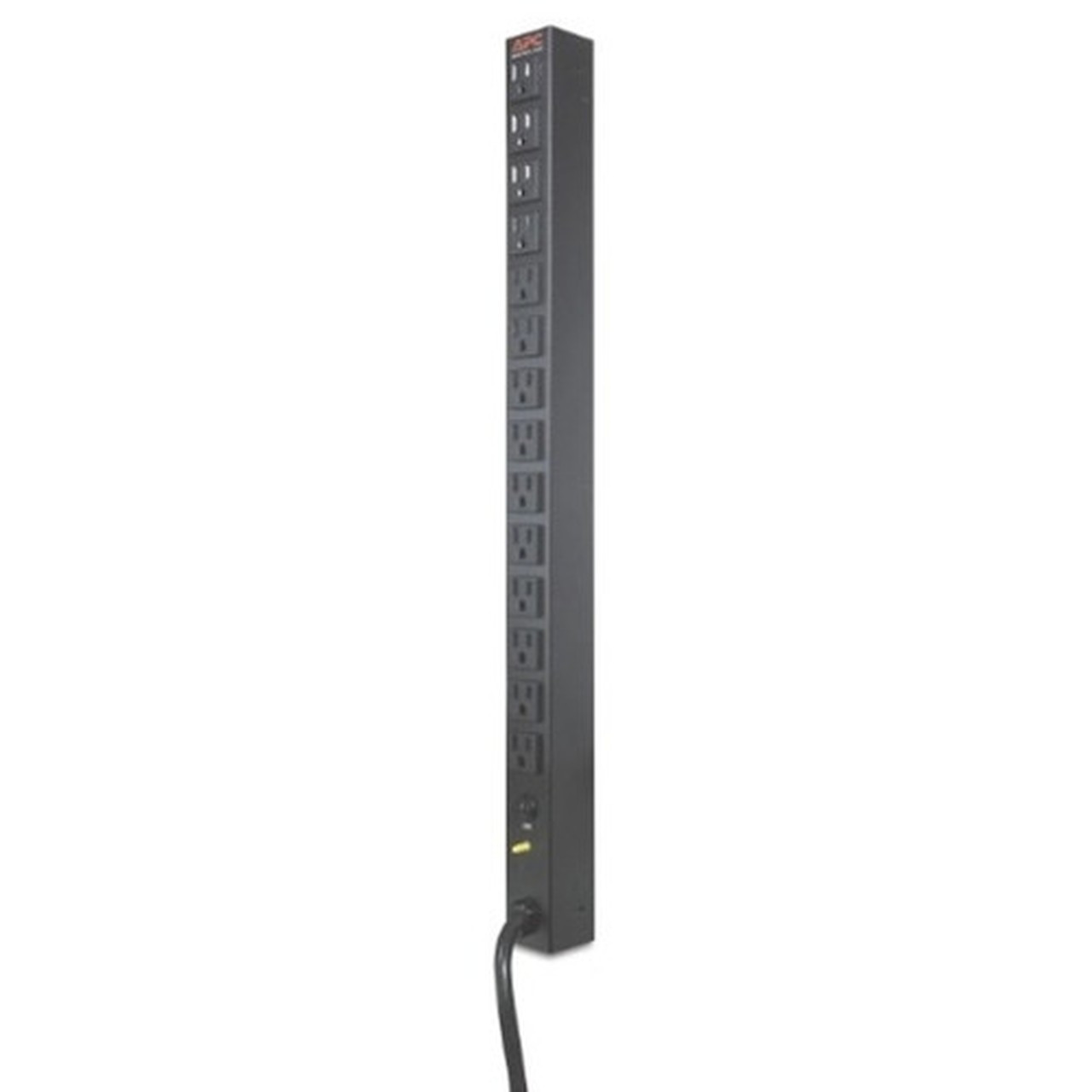

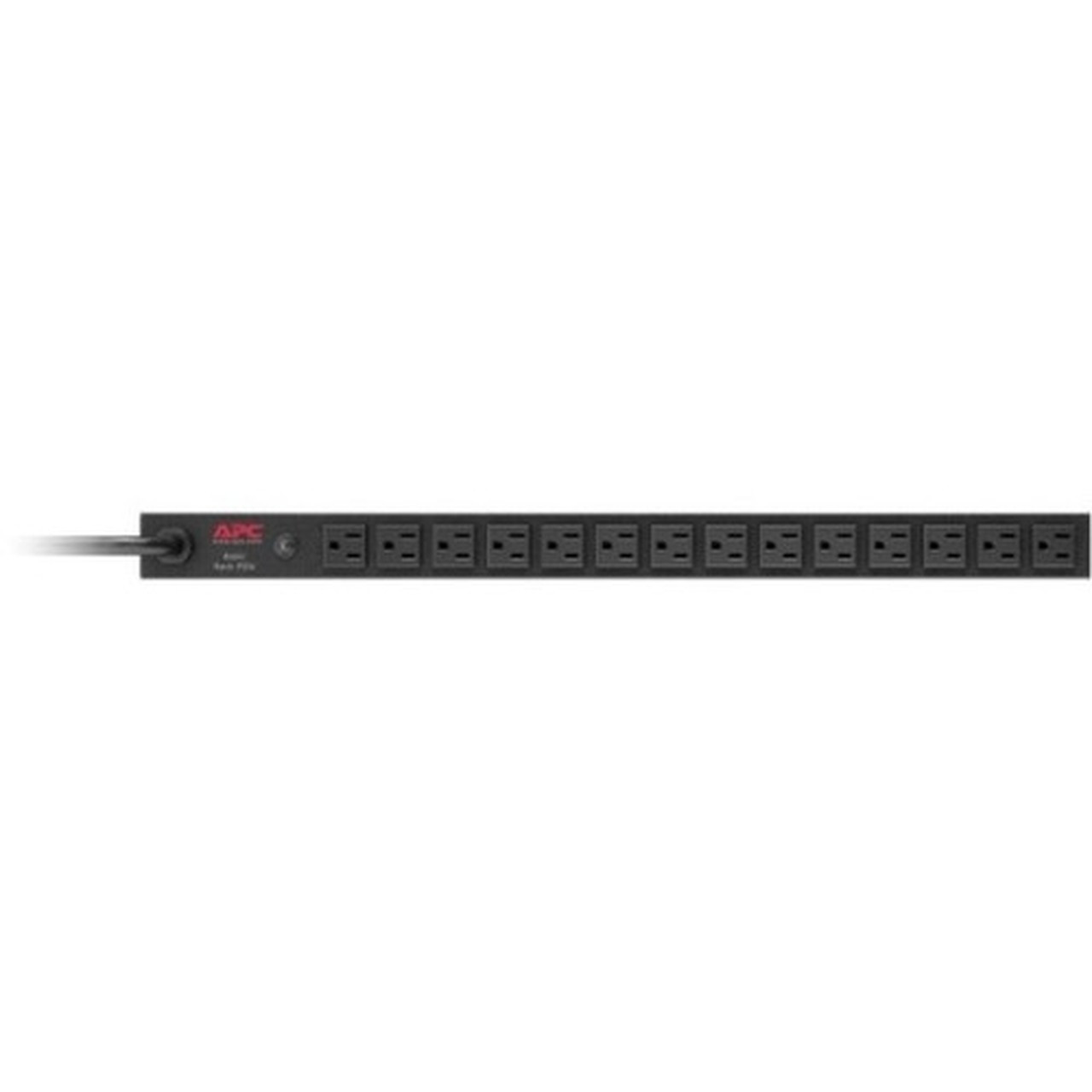

APC by Schneider Electric AP9551 Basic Rack 2400VA PDU - 14 x NEMA 5-15R Outlets - 20A/120V - Zero U Vertical Rack-mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Basic Rack PDU handles a power rating of 2.40 kVA, with input voltage compatibility for 100V and 120V systems and a stable 120V AC output. The unit supports up to 20A current distribution across its 14 outlets, each configured as NEMA 5-15R for standard North American plugs.
The PDU incorporates overload protection to prevent circuit damage from excessive power draw. Its vertical mounting orientation and Zero U rack height allow installation along the side of standard 19-inch racks without consuming usable equipment space.
Relevant factors for this section include PDU Type, Plug/Connector Type, Receptacle Type, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The AP9551 PDU maximizes rack efficiency while providing essential power distribution capabilities for business IT environments. Its design prioritizes space optimization and installation simplicity without compromising on outlet density or power capacity.
Space-Efficient Design
The Zero U vertical mounting preserves all rack units for active equipment while still delivering 14 outlets for comprehensive power distribution.
- Zero U rack height
- Vertical side mounting
- No equipment space consumed
Simplified Installation
Included toolless mounting brackets enable quick deployment without specialized tools, reducing setup time and complexity.
- Toolless mounting kit
- Quick-release brackets
- Minimal installation effort
Reliable Power Protection
Built-in overload protection monitors power draw and helps prevent circuit overloads that could damage connected equipment.
- Overload protection
- Circuit safeguarding
- Equipment protection
Deployment / Use Cases
This Basic Rack PDU serves as an ideal power distribution solution for environments where rack space is at a premium but outlet requirements remain substantial. The vertical Zero U design makes it particularly valuable in densely populated racks where every unit of vertical space matters.
Common deployment scenarios include data center server racks where multiple 1U and 2U servers require individual power connections, network equipment cabinets housing switches and routers, and audio/video production racks with numerous processing units. The 14-outlet configuration supports medium-density equipment deployments while the 2.40 kVA capacity handles typical server and networking power loads.
Data Center Server Racks
Power multiple 1U and 2U servers in standard 19-inch racks while preserving all usable rack units for equipment installation.
Network Equipment Cabinets
Distribute power to switches, routers, and other networking gear in telecommunications closets and network operation centers.
Physical Profile
The PDU measures 24.02 inches in height with a slim 1.65-inch width and 1.73-inch depth, designed specifically for vertical mounting along rack sides. The black finish maintains visual consistency with most rack equipment, while the 12-foot power cord provides ample reach to nearby power sources. Weighing approximately 4.85 pounds, the unit adds minimal load to rack structures.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0U, 1.65" (42 mm), 1.73" (44 mm), 4.85 lb (2199.92 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 1.65" (42 mm)
- Depth
- 1.73" (44 mm)
- Height
- 0U
- Weight
- 4.85 lb (2199.92 g)
- Length
- 12 ft (3.65 m)
What's in the Box
The package includes all necessary components for immediate deployment of the power distribution unit.
Highlights
- 14 NEMA 5-15R outlets for extensive device connectivity
- 2.40 kVA power rating with 20A/120V distribution capacity
- Zero U vertical rack mounting preserves equipment space
- Toolless mounting kit enables quick installation
- Overload protection safeguards connected equipment
- 12-foot power cord for flexible placement options
- Black finish maintains professional rack appearance
- RoHS compliant for environmental responsibility
- 2-year limited warranty for peace of mind
- Made in the Philippines with quality construction
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP9551 |
| Brand Name | APC by Schneider Electric |
| Product Line | Basic Rack |
| Product Name | Basic Rack 2400VA PDU |
| Packaged Quantity | 1 Each |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Basic |
| Plug/Connector Type | NEMA L5-20P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 14 x NEMA 5-15R |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 100 V,120 V |
| Input Voltage Range | 120 V AC - 132 V AC |
| Output Voltage | 120 V AC |
| Power Rating (VA) | 2.40 kVA |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Placement | Side |
| Rack Height | 0U |
| Cord Length | 12 ft (3.65 m) |
| Height | 24.02" (610 mm) |
| Width | 1.65" (42 mm) |
| Depth | 1.73" (44 mm) |
| Weight (Approximate) | 4.85 lb (2199.92 g) |
| Miscellaneous | |
| Package Contents | Basic Rack 2400VA PDU Rack mounting brackets Toolless mounting kit User manual |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this APC PDU?
The APC AP9551 Basic Rack PDU has a power rating of 2.40 kVA (kilovolt-amperes), which translates to 2400VA. This capacity supports distributing up to 20 amps at 120 volts across its 14 outlets, making it suitable for powering multiple servers, networking equipment, or other rack-mounted devices in a business IT environment.
How many outlets does this PDU provide and what type are they?
This power distribution unit provides 14 NEMA 5-15R outlets, which are the standard three-prong grounded receptacles commonly used in North America for computers, monitors, and other IT equipment. The consistent outlet type simplifies cable management and ensures compatibility with most business devices without requiring adapters.
What does 'Zero U' rack mounting mean for installation?
Zero U rack mounting indicates that the PDU does not consume any vertical rack units (U) that would otherwise be available for equipment. Instead, it mounts vertically along the side of standard 19-inch racks using the included brackets. This design preserves all usable rack space for servers, switches, and other active equipment while still providing comprehensive power distribution.
What input voltage does this PDU support?
The APC AP9551 PDU supports input voltages of 100V and 120V, with an operating range of 120V AC to 132V AC. It delivers a stable 120V AC output to all connected devices. This voltage compatibility makes it suitable for standard North American electrical systems commonly found in business environments.
What protection features does this PDU include?
This Basic Rack PDU includes overload protection that monitors the total current draw across all outlets. If the connected devices attempt to draw more power than the PDU's 20A capacity, the protection circuitry helps prevent circuit damage. This feature provides an additional layer of safety for valuable IT equipment connected to the distribution unit.
What is included in the package for installation?
The package contains the Basic Rack 2400VA PDU unit, rack mounting brackets specifically designed for vertical installation, a toolless mounting kit that enables installation without specialized tools, and a comprehensive user manual. The toolless mounting system significantly reduces deployment time and complexity compared to traditional bolt-on mounting methods.
