APC by Schneider Electric AP8870 Metered Rack PDU - 5.76 kVA - 30A - 0U - 16 NEMA 5-20R - 12 C13 - 2 C19 - NEMA L14-30P
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The AP8870 operates with an input voltage range of 120–230V AC, accepting both 120V and 208V inputs for flexibility in different power infrastructures. Output is stabilized at 120V AC, ensuring consistent power delivery to connected equipment. The PDU's metering functionality provides detailed power metrics, including historical reporting for capacity planning and energy optimization.
Management is facilitated through multiple protocols, with a 1-year Secure Network Management Card subscription included for enhanced security. The unit supports integration with EcoStruxure IT for real-time remote monitoring and management, enabling proactive power management across distributed IT environments.
Relevant factors for this section include PDU Type, Plug/Connector Type, Receptacle Type, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This PDU combines high power capacity with intelligent monitoring to address critical data center power management needs. The metering accuracy ensures reliable data for billing, capacity planning, and load balancing, while the extensive outlet configuration reduces the need for additional power strips or adapters.
Precision Metering
Delivers ±3% metering accuracy for current, voltage, kW, and kWh, enabling precise power usage tracking and capacity planning.
- Historical reporting for trend analysis
- Real-time data for immediate insights
Zero U Design
Installs vertically in rack side spaces without consuming rack units, maximizing usable equipment space.
- Tool-less installation
- Vertical mounting orientation
Remote Management
Offers web, SNMP, and Telnet management with EcoStruxure IT integration for centralized power monitoring.
- 1-year Secure NMC subscription
- Proactive fault detection
Deployment / Use Cases
The AP8870 is ideal for colocation facilities, large data centers, and remote IT sites where power distribution and monitoring are critical. Its high outlet count and mixed receptacle types make it suitable for environments with diverse equipment, from servers and storage arrays to networking gear and telecom devices.
In enterprise data centers, this PDU supports power capacity planning and load balancing across racks, helping to prevent overloads and optimize energy usage. For managed service providers, the metering and reporting capabilities enable accurate customer billing and capacity forecasting. The zero U design is particularly valuable in high-density deployments where rack space is at a premium.
Colocation Facilities
Provides metered power for tenant equipment with accurate billing data and remote management for off-site monitoring.
High-Density Data Centers
Maximizes rack space with zero U installation while delivering high-capacity power to multiple devices.
Physical Profile

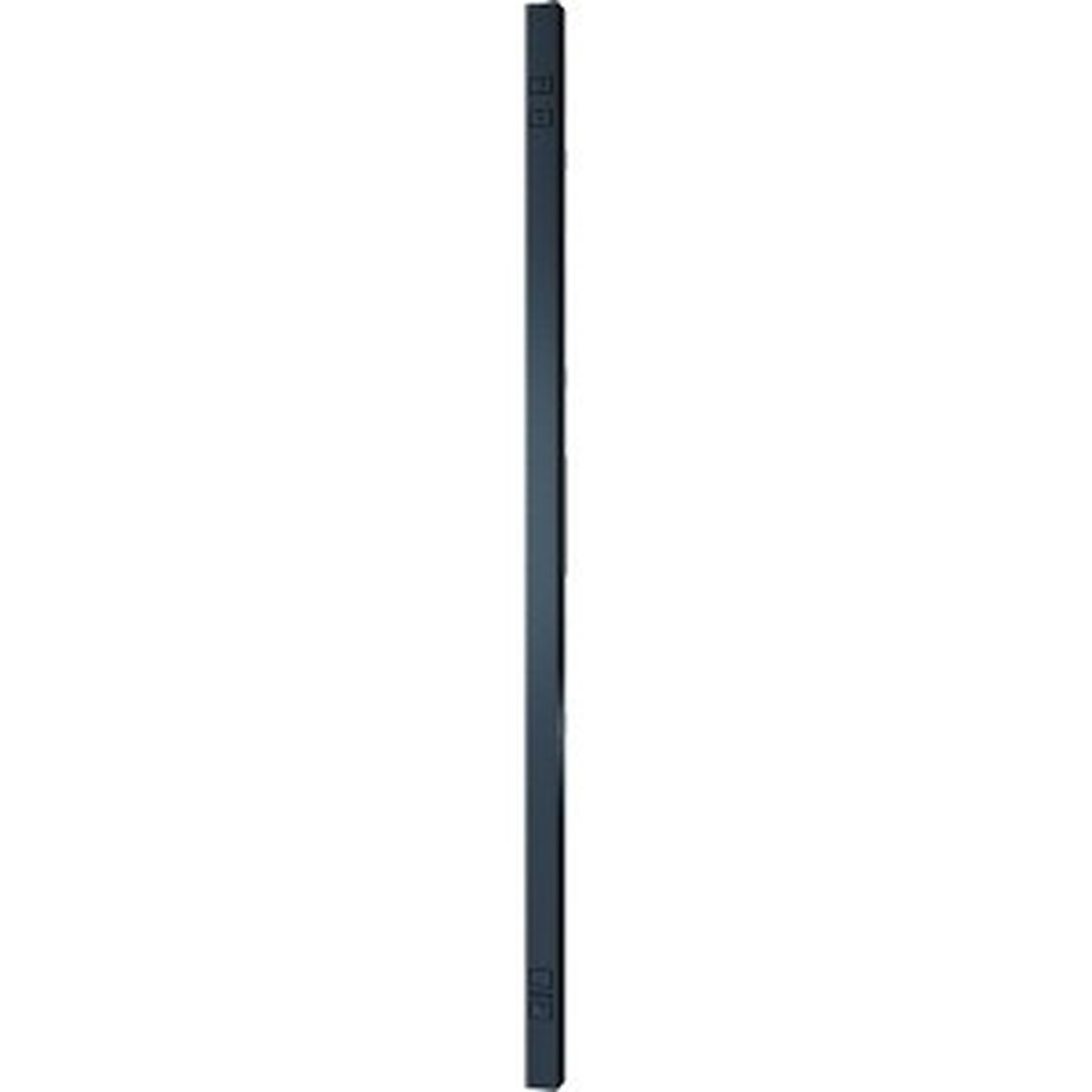

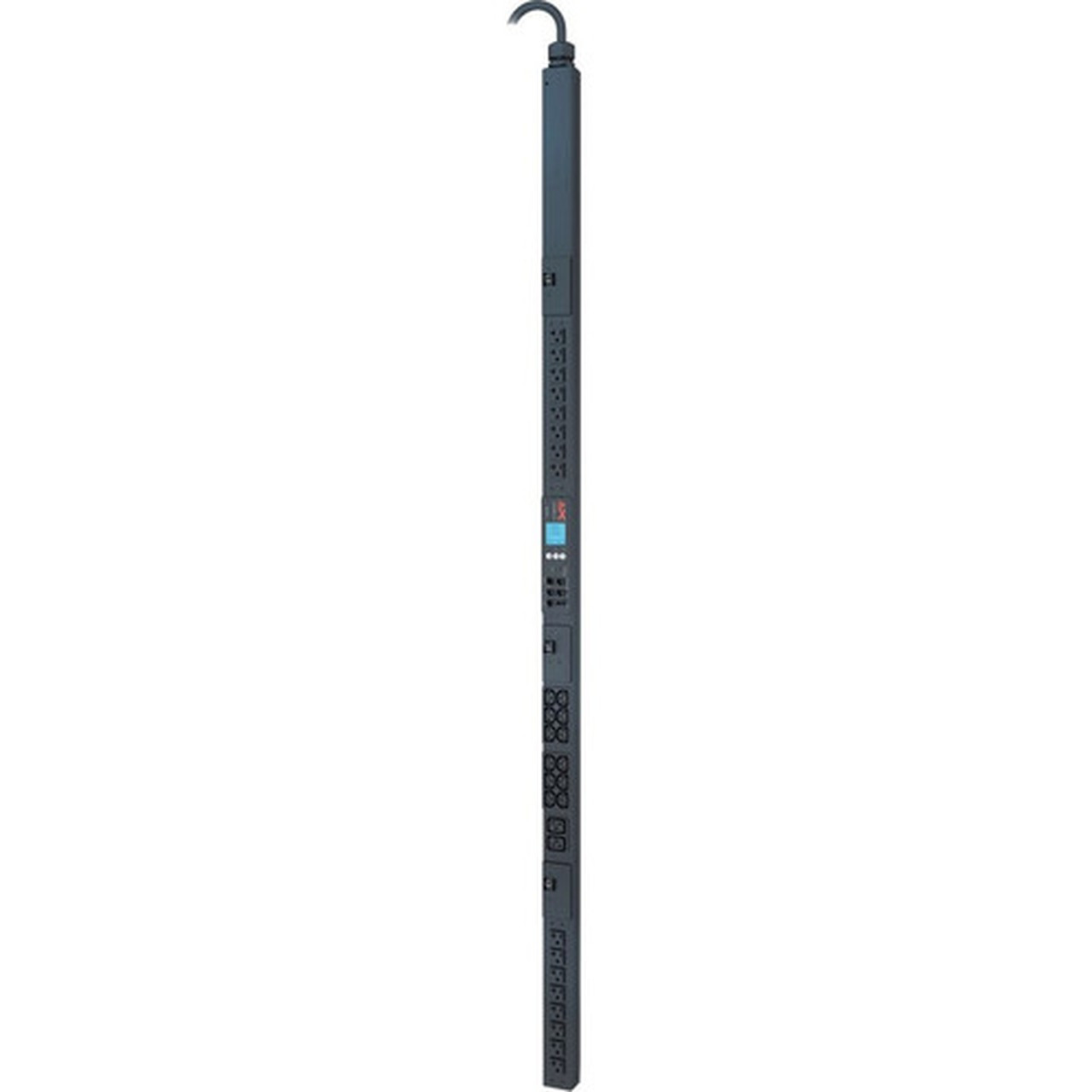

The AP8870 features a sleek black tower form factor with dimensions of 70.51" height, 2.17" width, and 1.73" depth, designed for vertical side-mounting in standard racks. Its compact profile and 0U rack height preserve valuable rack space for active equipment. The unit includes a 9.5-foot power cord for flexible placement within the rack, and its 14.07-pound weight ensures stable mounting without excessive load on rack rails.
- Width
- 2.17" (55 mm)
- Depth
- 1.73" (44 mm)
- Height
- 0U
- Weight
- 14.07 lb (6382.04 g)
- Length
- 9.5 ft (2.90 m)
What's in the Box
The package includes all necessary components for immediate deployment and setup.
Highlights
- 5.76 kVA power capacity with 30A input current
- 0U rack height for space-efficient vertical side-mounting
- 30 total outlets: 16 NEMA 5-20R, 12 IEC C13, 2 IEC C19
- ±3% metering accuracy for current, voltage, kW, and kWh
- Remote management via web, SNMP, and Telnet with EcoStruxure IT integration
- Includes 1-year Secure Network Management Card subscription
- Circuit and overload protection for connected equipment
- Tool-less installation for quick deployment
- RoHS compliant and environmentally friendly
- 2-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP8870 |
| Brand Name | APC by Schneider Electric |
| Product Name | Metered Rack PDU |
| Packaged Quantity | 1 Each |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Metered |
| Plug/Connector Type | NEMA L14-30P |
| Receptacle Type | NEMA 5-20R,IEC 60320 C19,IEC 60320 C13 |
| Receptacle Detail | 12 x IEC 60320 C13,16 x NEMA 5-20R,2 x IEC 60320 C19 |
| Protection Type | Circuit Protection,Overload Protection |
| Power Description | |
| Input Voltage | 120 V,208 V |
| Input Voltage Range | 120 V AC - 230 V AC |
| Output Voltage | 120 V AC |
| Power Rating (VA) | 5.76 kVA |
| Input Current | 30 A |
| Management | |
| Management | Web SNMP Telnet |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Form Factor | Tower |
| Placement | Side |
| Rack Height | 0U |
| Cord Length | 9.5 ft (2.90 m) |
| Height | 70.51" (1791 mm) |
| Width | 2.17" (55 mm) |
| Depth | 1.73" (44 mm) |
| Weight (Approximate) | 14.07 lb (6382.04 g) |
| Miscellaneous | |
| Package Contents | Metered Rack PDU Installation guide Rack mounting brackets Safety guide Serial configuration cable |
| Country of Origin | India |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of the AP8870 PDU?
The AP8870 delivers 5.76 kVA of power capacity with a 30A input current. It supports input voltages of 120V and 208V, with an output voltage of 120V AC, making it suitable for powering multiple servers, network switches, and storage devices in a rack environment.
How many outlets does this PDU have and what types are included?
This PDU features 30 total outlets: 16 NEMA 5-20R receptacles, 12 IEC C13 outlets, and 2 IEC C19 outlets. This mixed configuration accommodates a wide range of power cords commonly used in data center equipment, reducing the need for adapters and simplifying cable management.
Does the AP8870 consume rack units (U) when installed?
No, the AP8870 has a 0U rack height and installs vertically in the side of a standard 19-inch rack. This zero U design preserves all rack units for active equipment, making it ideal for high-density deployments where rack space is limited.
What management options are available for this metered PDU?
The AP8870 supports remote management through web, SNMP, and Telnet protocols. It includes a 1-year subscription for the Secure Network Management Card and integrates with EcoStruxure IT for real-time monitoring, historical reporting, and proactive power management across distributed IT environments.
What protection features does this PDU offer?
This PDU includes both circuit protection and overload protection to safeguard connected equipment against electrical faults. The metering functionality also helps prevent overloads by providing real-time current monitoring, allowing administrators to balance loads and avoid exceeding capacity.
What is included in the warranty and package contents?
The AP8870 comes with a 2-year limited warranty. The package includes the metered rack PDU unit, an installation guide, rack mounting brackets, a safety guide, and a serial configuration cable for setup. The unit is RoHS compliant and environmentally friendly.
