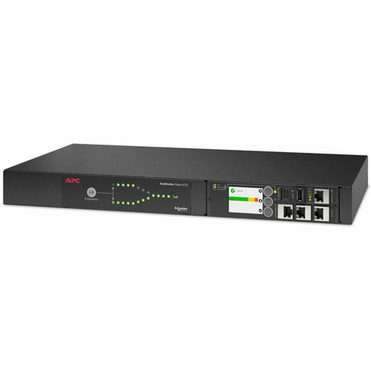

Marketing Information: APC NetShelter Rack Automatic Transfer Switch (ATS) AP4421A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4421A is single phase 1U Rack ATS with 10A rated current, 230V rated voltage and 2000VA load capacity. It comes with 2 IEC C14 inlet and 12 IEC C13 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.Plug/Connector Type: IEC 60320 C14 10A (2P + E)Receptacles: 12 x IEC 60320 C13Input Voltage: 230 V ACOutput Voltage: 230 V ACCurrent: 10 AColor Family: BlackProduct Color: BlackForm Factor: Rack-mountableRack Height: 1UHeight: 1.73" (44 mm)Width: 17.01" (432 mm)Depth: 9.29" (236 mm)Weight (Approximate): 3.93 kgPackage Contents: - NetShelter Automatic Transfer Switch
- Mounting Hardware
- Rack Mounting Brackets
- Serial Configuration Cable
Country of Origin: PhilippinesEnvironmentally Friendly: YesEnvironmental Compliance: Restriction of Hazardous Substances (RoHS)Limited Warranty: 2 YearAdditional Warranty Information: 2 years repair or replace
[custom-specifications]
SpecificationsManufacturer: Schneider Electric SA
Manufacturer Part Number: AP4421A
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: NetShelter
Product Name: NetShelter Automatic Transfer Switch
Product Type: Automatic Transfer Switch
Technical InformationPlug/Connector Type: IEC 60320 C14 10A (2P + E)
Receptacles: 12 x IEC 60320 C13
Power DescriptionInput Voltage: 230 V AC
Output Voltage: 230 V AC
Current: 10 A
Physical CharacteristicsColor Family: Black
Product Color: Black
Form Factor: Rack-mountable
Rack Height: 1U
Height: 1.73" (44 mm)
Width: 17.01" (432 mm)
Depth: 9.29" (236 mm)
Weight (Approximate): 3.93 kg
MiscellaneousPackage Contents:
- NetShelter Automatic Transfer Switch
- Mounting Hardware
- Rack Mounting Brackets
- Serial Configuration Cable
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
WarrantyLimited Warranty: 2 Year
Additional Warranty Information: 2 years repair or replace
[/custom-specifications]
