APC by Schneider Electric SMX2200HVNC Smart-UPS X 2200VA/1980W Line Interactive UPS - 4U Rack/Tower Convertible - 208-230V - 12 Outlets - Network Card
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Smart-UPS X model operates on single-phase power with a 10ms typical transfer time, maintaining continuous power during grid fluctuations. The unit features user-selectable high voltage settings from 200V to 240V, accommodating various electrical environments while providing 645 joules of surge protection.
The lead-acid battery chemistry provides reliable backup power with a typical recharge time of 3 hours. The UPS includes comprehensive connectivity options with RS-232, USB, and temperature probe interfaces for enhanced monitoring and control capabilities.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Smart-UPS X series combines advanced power protection with flexible deployment options, making it suitable for diverse IT infrastructure needs. The convertible rack/tower design allows installation in either configuration without compromising performance or accessibility.
Network Management Ready
Includes a 1-year subscription to secure network management capabilities, enabling graceful shutdown of physical servers, virtual machines, and HCI clusters during extended power outages.
- Preinstalled Web/SNMP card
- Remote monitoring and management
- Automated shutdown capabilities
Scalable Runtime
Supports connection of up to 10 external SMX120BP battery packs, allowing organizations to extend backup time based on specific load requirements and runtime needs.
- External battery expansion
- Flexible runtime configuration
- Modular power protection
Clean Power Delivery
Pure sine wave output ensures compatibility with sensitive electronic equipment, while automatic voltage regulation maintains output within acceptable levels without switching to battery power.
- Pure sine wave technology
- AVR for voltage stabilization
- Equipment protection
Deployment / Use Cases
The SMX2200HVNC is engineered for server rooms, data centers, network closets, and commercial installations where reliable power protection is critical. Its 2200VA capacity makes it suitable for protecting multiple servers, storage arrays, or networking equipment stacks.

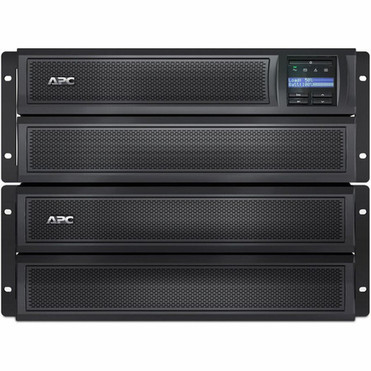

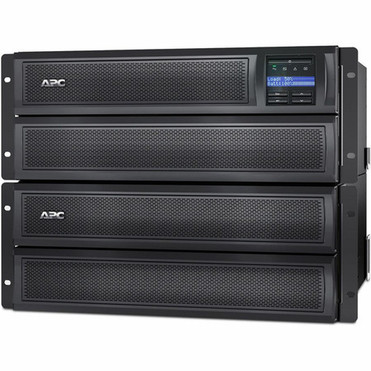

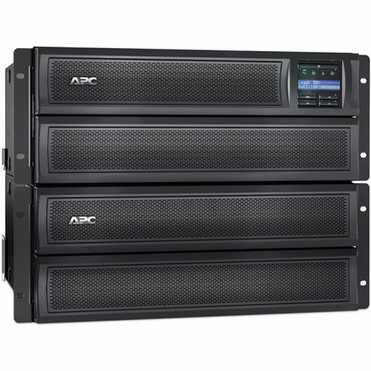

The rack-mountable configuration with 4U height fits standard server racks, while the tower option provides flexibility for standalone deployments. The short-depth design is particularly valuable in space-constrained environments where every inch of rack space matters.
Server Room Protection
Ideal for protecting physical servers, virtualization hosts, and associated storage systems in small to medium server rooms, providing both battery backup and power conditioning.
Network Infrastructure
Suitable for securing switches, routers, firewalls, and other networking equipment in wiring closets or network operations centers, ensuring continuous connectivity during power events.
Physical Profile
The black chassis measures 17.01" (432 mm) in height, 7.01" (178 mm) in width, and 19.02" (483 mm) in depth, with a weight of approximately 85.01 pounds. The 4U rack height allows efficient use of vertical space in standard server racks. The included rack mounting support rails facilitate secure installation, while the convertible design provides deployment flexibility for different environments.
- Width
- 7.01" (178 mm)
- Depth
- 19.02" (483 mm)
- Height
- 17.01" (432 mm)
- Weight
- 85.01 lb (38559.89 g)
- Length
- 6.6 ft (2 m)
What's in the Box
The package includes all necessary components for immediate deployment and management of the UPS system.
Highlights
- 2200VA/1980W line interactive UPS with pure sine wave output
- 4U rack/tower convertible design with short-depth chassis
- User-selectable high voltage setting (200V-240V)
- 12 total outlets (8 x C13, 2 x C19, 2 x jumper)
- Preinstalled network management card with 1-year subscription
- Supports up to 10 external battery packs for extended runtime
- Automatic Voltage Regulation maintains stable output
- 3-year UPS warranty with 2-year battery warranty
- RoHS compliant and environmentally friendly
- Includes comprehensive installation and management accessories
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMX2200HVNC |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS 2.2kVA Tower/Rack Mountable UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | British BS1363A,IEC 320-C20 |
| Receptacle Type | Schuko CEE 7/EU1-16P |
| Receptacle Detail | 2 x IEC 320-C19,2 x IEC Jumper,8 x IEC 320-C13 |
| Number of Battery & Surge Outlets | 12 |
| Cord Length | 6.6 ft (2 m) |
| Transfer Time | 10 ms |
| Phase | Single Phase |
| Power Description | |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.98 kW |
| Input Voltage | 208 V AC,230 V AC |
| Output Voltage | 208 V AC,230 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 645 J |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 17.01" (432 mm) |
| Width | 7.01" (178 mm) |
| Depth | 19.02" (483 mm) |
| Rack Height | 4U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 85.01 lb (38559.89 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS 2.2kVA Tower/Rack Mountable UPS CD with software Documentation CD Installation guide Rack mounting support rails Smart UPS signalling RS-232 cable Temperature probe USB cable Web/SNMP management card |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Battery: 24 month(s)|UPS: 36 month(s) |
User Manual
FAQ
What is the power capacity of this Smart-UPS X unit?
This Smart-UPS X model provides 2200VA (2.2kVA) and 1980W of power capacity. It operates on single-phase power with input and output voltages of 208V or 230V AC, making it suitable for protecting multiple servers, storage systems, or networking equipment in commercial IT environments.
Can this UPS be installed in both rack and tower configurations?

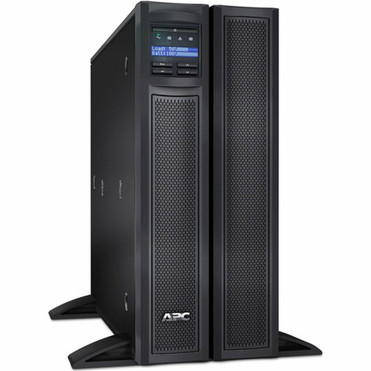

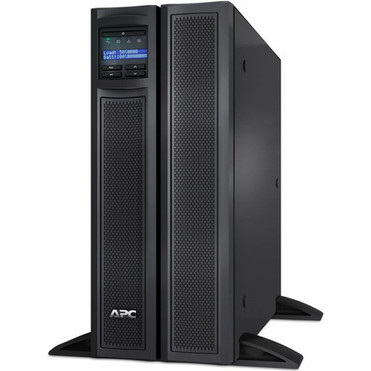

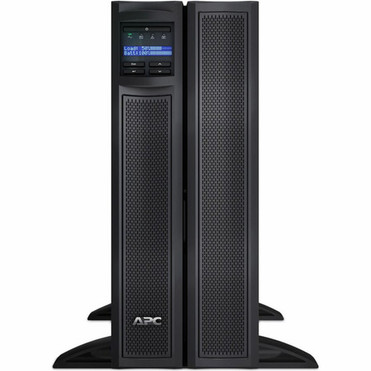

Yes, the SMX2200HVNC is a convertible 4U unit that can be installed as either a rack-mounted or tower UPS. The package includes rack mounting support rails for secure rack installation, while the design allows for standalone tower deployment when rack space is not available or preferred.
What type of outlets does this UPS provide?
The UPS features 12 total outlets: 8 IEC 320-C13 outlets, 2 IEC 320-C19 outlets, and 2 IEC jumper outlets. This combination accommodates various equipment types, with the C19 outlets suitable for higher-power devices and the C13 outlets for standard IT equipment.
Does this UPS include network management capabilities?
Yes, a Web/SNMP management card is preinstalled and includes a 1-year secure subscription. This enables network-based monitoring, management, and graceful shutdown of connected equipment, including physical servers, virtual machines, and HCI clusters during extended power outages.
How can I extend the runtime of this UPS?
The SMX2200HVNC supports connection of up to 10 external SMX120BP battery packs. This modular expansion capability allows organizations to customize backup time based on specific load requirements, providing flexibility for different runtime needs without replacing the entire UPS system.
What warranty coverage does this Smart-UPS include?
The UPS comes with a 3-year limited warranty for the unit itself and a 2-year warranty for the internal battery. This comprehensive coverage provides protection for your power infrastructure investment and ensures reliable performance throughout the warranty period.
What power capacity is listed for this UPS?
The listed power specification is 2.20 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 12, which helps buyers understand how many connected devices it can support in its intended deployment.
