APC by Schneider Electric SMT750C APC Smart-UPS 750VA/500W Line Interactive Tower UPS - 120V - 6x NEMA 5-15R Outlets - AVR - LCD - SmartConnect
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview

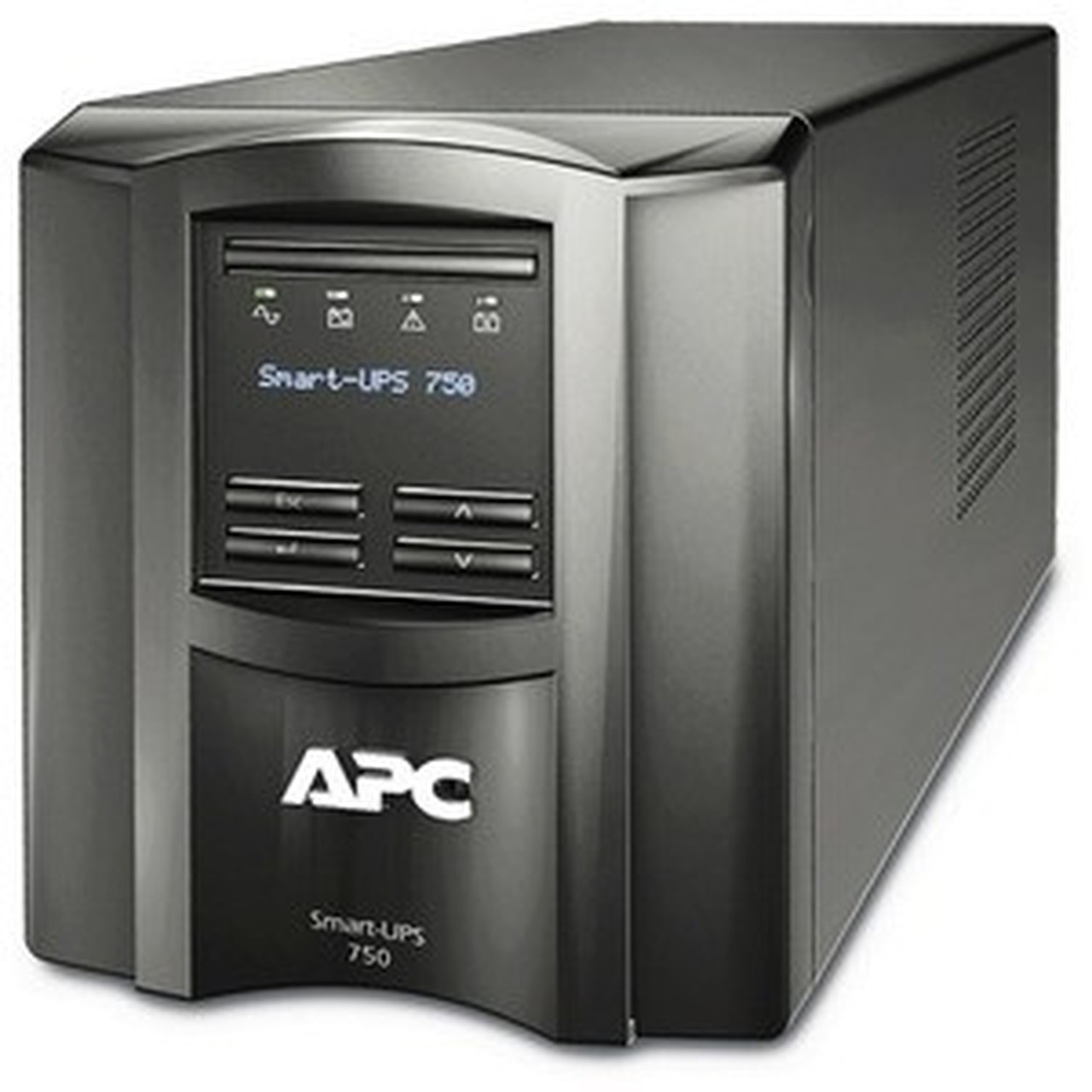

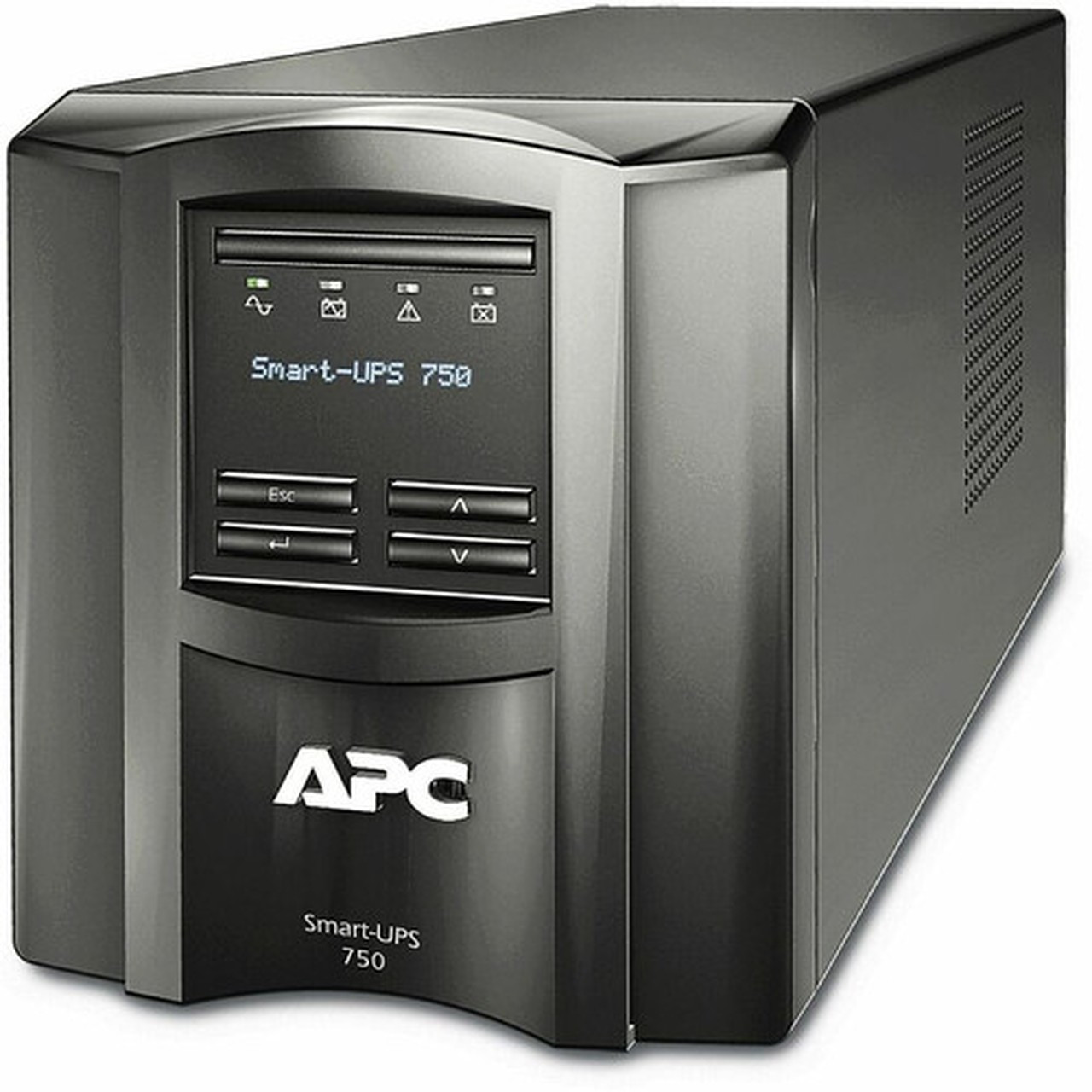

The APC Smart-UPS 750VA LCD 120V with SmartConnect is a line-interactive tower UPS engineered for reliable power protection in business environments where operational continuity is essential. This unit delivers 750VA/500W of pure sine wave backup power with automatic voltage regulation (AVR) to correct utility voltage fluctuations without switching to battery power, ensuring stable operation for connected equipment during brownouts and overvoltages.
Featuring six NEMA 5-15R outlets, a clear LCD display for real-time status monitoring, and SmartConnect Ethernet port for cloud-based remote management, this UPS ensures critical equipment remains operational during power disturbances. The hot-swappable lead-acid battery supports 5 minutes of runtime at full load and recharges in approximately 3 hours, maintaining readiness for subsequent outages. The tower form factor with compact dimensions makes it suitable for placement under desks, in network closets, or alongside server racks where space is limited but protection requirements are critical.
Designed for small to medium business environments, this Smart-UPS model provides robust protection for servers, networking gear, VoIP systems, point-of-sale terminals, and desktop workstations. The 500W capacity supports modern business equipment demands while the six outlets offer sufficient connectivity for complete workstation setups or small network clusters. With Energy Star certification and RoHS compliance, this unit meets environmental standards while delivering reliable performance in demanding IT deployments.
Technical Overview
This Smart-UPS model operates on a single-phase 120V AC input with a wide voltage range of 75V to 154V AC, providing robust protection against both brownouts and overvoltages. The 10ms transfer time ensures seamless transition to battery power during outages, while the 540-joule surge energy rating offers additional protection against voltage spikes that could damage sensitive electronics. The line-interactive topology includes AVR to boost or trim incoming voltage, extending battery life by reducing unnecessary battery usage during minor voltage fluctuations.
The pure sine wave output ensures compatibility with sensitive electronic equipment, including servers, networking gear, and modern power supplies that require clean power waveforms. This output mimics utility-grade electricity, preventing potential issues with equipment that requires stable power delivery. The 6-foot power cord provides flexible placement options, while the hot-swappable battery design allows for maintenance without disconnecting protected equipment.
Technical specifications include a 750VA apparent power capacity with 500W actual power delivery, supporting equipment with active PFC power supplies. The input voltage range of 75-154V AC accommodates varying utility conditions, while the 120V AC output maintains consistent power delivery. With single-phase operation and NEMA 5-15P plug configuration, this UPS integrates seamlessly into standard North American electrical systems for business deployments.
Key Product Advantages
The Smart-UPS 750VA combines essential power protection features with practical management capabilities for business continuity. Automatic Voltage Regulation actively corrects input voltage variations, while the pure sine wave output maintains equipment compatibility and performance.
SmartConnect Remote Monitoring
The integrated Ethernet port enables cloud-based monitoring of power status, environmental conditions, and historical data through the APC SmartConnect portal, allowing IT staff to manage UPS performance remotely without additional management cards.
- Cloud-based monitoring
- No additional management card required
- Historical data logging
LCD Display Interface
The front-panel LCD provides clear visibility of UPS status, load capacity, battery charge level, and input/output voltage readings, enabling quick diagnostics and reducing dependency on software interfaces for basic monitoring.
- Real-time status display
- Load capacity monitoring
- Battery charge level indicator
Graceful Shutdown Capability
Compatible with PowerChute Business Edition software for automated graceful shutdown of connected equipment via USB or serial connection, protecting data integrity and preventing hardware damage during extended outages.
- USB and serial shutdown support
- PowerChute Business Edition compatible
- Protects data and hardware
Deployment / Use Cases
This 750VA tower UPS is engineered for small to medium business environments where reliable power protection is essential for operational continuity. The compact tower form factor makes it suitable for placement under desks, in network closets, or alongside server racks where space is limited but protection requirements are critical.
Typical deployments include protecting single servers, network switches, routers, VoIP systems, point-of-sale terminals, and desktop workstations. The six outlets provide sufficient connectivity for a complete workstation setup or small network cluster, while the 500W capacity supports the power demands of modern business equipment.
Server & Network Protection
Ideal for single-server environments or network closets housing switches, routers, and firewalls, providing enough runtime for graceful shutdown procedures and protection against data corruption during power events.
Business Desktop & POS Systems
Supports retail point-of-sale terminals, desktop computers, and peripheral devices in small offices or retail environments, ensuring transaction integrity and preventing data loss during power disturbances.
Physical Profile

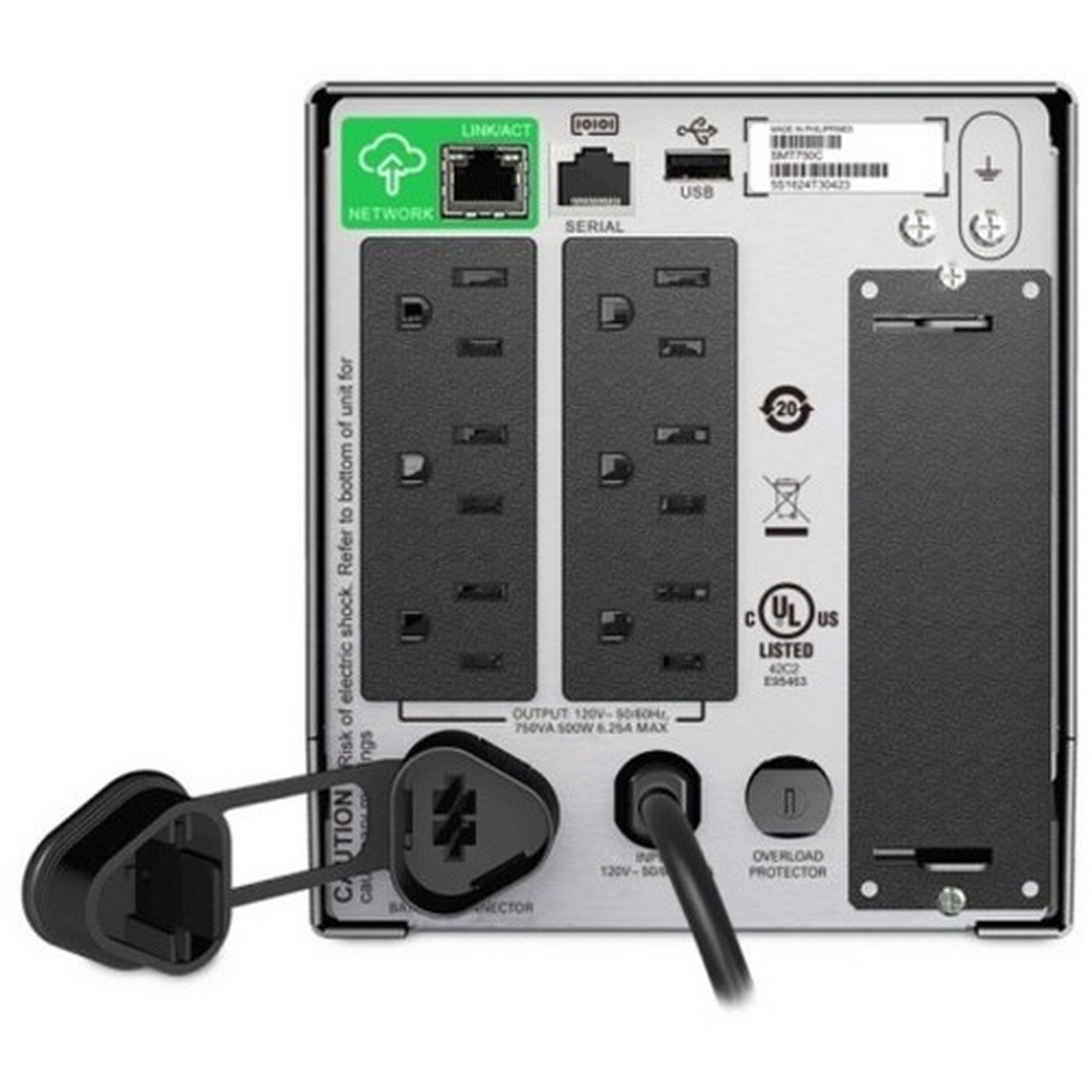

The black tower enclosure measures 6.34 inches high, 5.43 inches wide, and 14.53 inches deep, with a weight of approximately 27.56 pounds. This compact footprint allows placement in various office environments without consuming excessive floor space. The design includes front-panel controls and status indicators for easy access, while the rear panel houses all power connections and management ports.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 6.34" (161 mm), 5.43" (138 mm), 14.53" (369 mm), 27.56 lb (12501.01 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 5.43" (138 mm)
- Depth
- 14.53" (369 mm)
- Height
- 6.34" (161 mm)
- Weight
- 27.56 lb (12501.01 g)
- Length
- 6 ft (1.83 m)
What's in the Box
The package includes the Smart-UPS 750VA LCD 120V unit with SmartConnect capability and the necessary USB cable for connecting to protected equipment for graceful shutdown functionality.
Highlights
- 750VA/500W line-interactive pure sine wave tower UPS
- 6 x NEMA 5-15R outlets for connecting multiple devices
- Automatic Voltage Regulation corrects utility voltage fluctuations
- LCD display shows real-time status and power metrics
- SmartConnect Ethernet port enables cloud-based remote monitoring
- 5-minute runtime at full load with hot-swappable lead-acid battery
- 3-hour typical battery recharge time
- Compatible with PowerChute software for graceful shutdown
- Energy Star certified for energy efficiency
- 3-year warranty with 2-year battery coverage
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMT750C |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS 750VA LCD 120V with SmartConnect |
| Packaged Quantity | 1 Each |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail | 6 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Cord Length | 6 ft (1.83 m) |
| Transfer Time | 10 ms |
| Phase | Single Phase |
| Power Description | |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 500 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 75 V AC - 154 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 540 J |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 5 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 6.34" (161 mm) |
| Width | 5.43" (138 mm) |
| Depth | 14.53" (369 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 27.56 lb (12501.01 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS 750VA LCD 120V with SmartConnect USB cable |
| Energy Star | Yes |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Battery: 24 month(s)|UPS: 36 month(s) |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS?
This APC Smart-UPS delivers 750 VA apparent power with 500 W actual power capacity. The 750VA/500W rating makes it suitable for protecting servers, networking equipment, VoIP systems, and desktop workstations in small to medium business environments.
How much runtime does this UPS provide at full load?
At full load, this Smart-UPS provides 5 minutes of backup runtime. This gives sufficient time for connected equipment to perform graceful shutdown procedures using PowerChute software, protecting data integrity and preventing hardware damage during power outages.
How many outlets does this UPS have and what type are they?
This UPS features six NEMA 5-15R outlets, providing connectivity for multiple devices. All six outlets offer both battery backup and surge protection, making this unit suitable for complete workstation setups or small network clusters in business environments.
What voltage does this UPS support for input and output?
This Smart-UPS operates on standard 120V AC input and delivers 120V AC output. It features a wide input voltage range of 75-154V AC, with automatic voltage regulation that corrects utility voltage fluctuations without switching to battery power during brownouts and overvoltages.
Is this UPS designed for rack or tower deployment?
This Smart-UPS features a tower form factor designed for placement under desks, in network closets, or alongside server racks. The compact dimensions of 6.34" H × 5.43" W × 14.53" D and 27.56 lb weight make it suitable for office environments where floor space is limited but power protection is critical.
What management and connectivity options does this UPS include?
This Smart-UPS includes multiple management options: an LCD display for real-time status monitoring, SmartConnect Ethernet port for cloud-based remote monitoring via the APC portal, and USB/serial connections for graceful shutdown with PowerChute Business Edition software. The hot-swappable battery design allows maintenance without disconnecting protected equipment.
