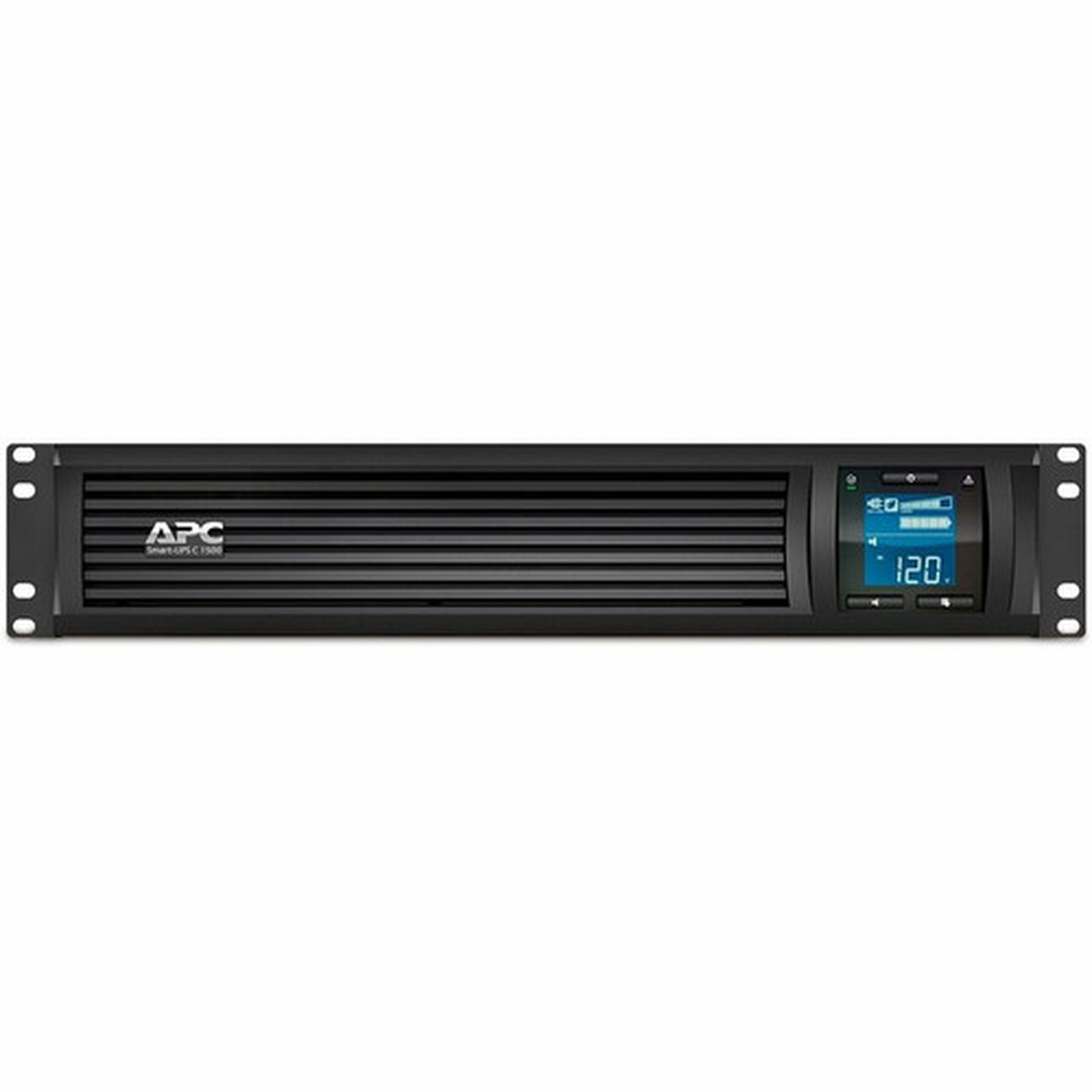

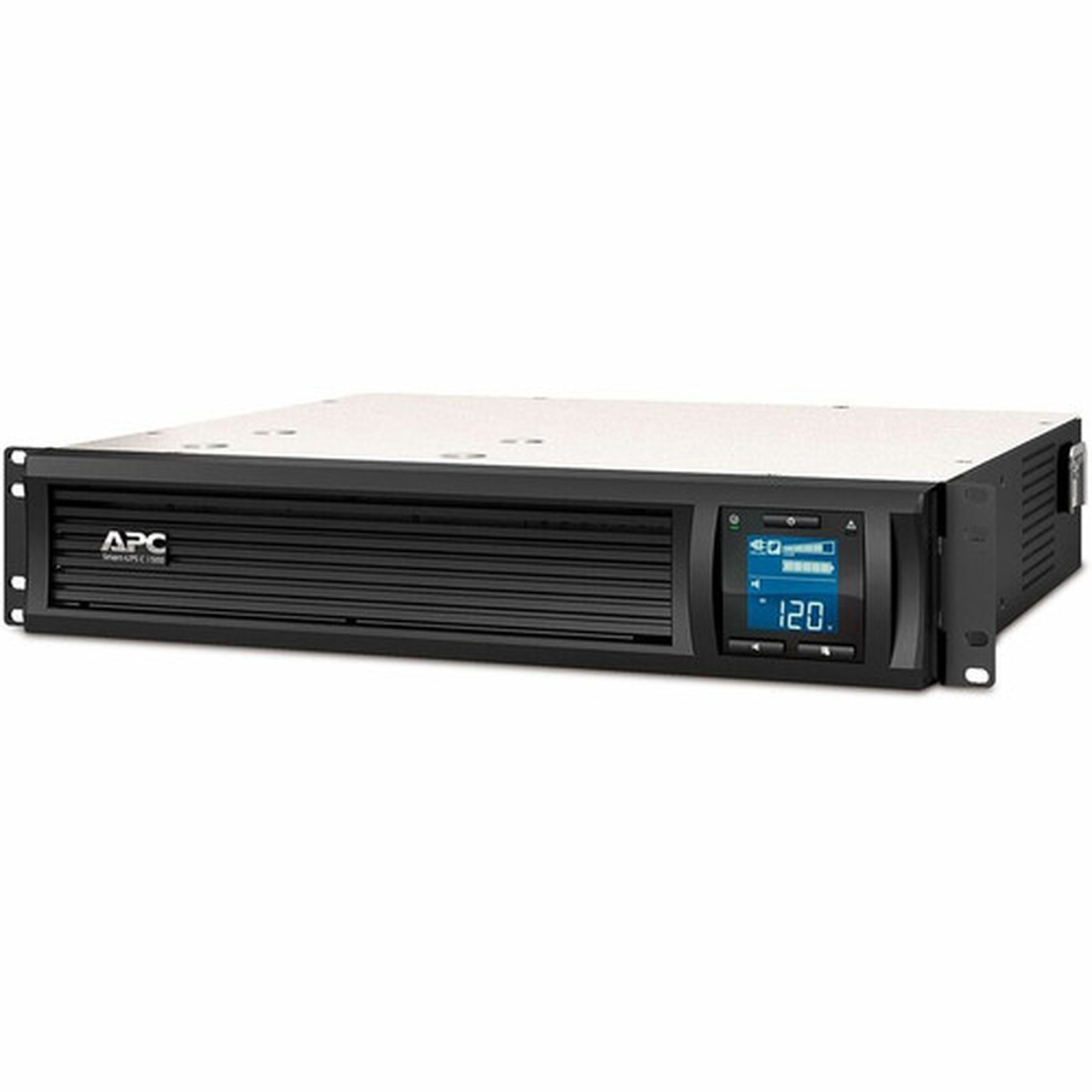

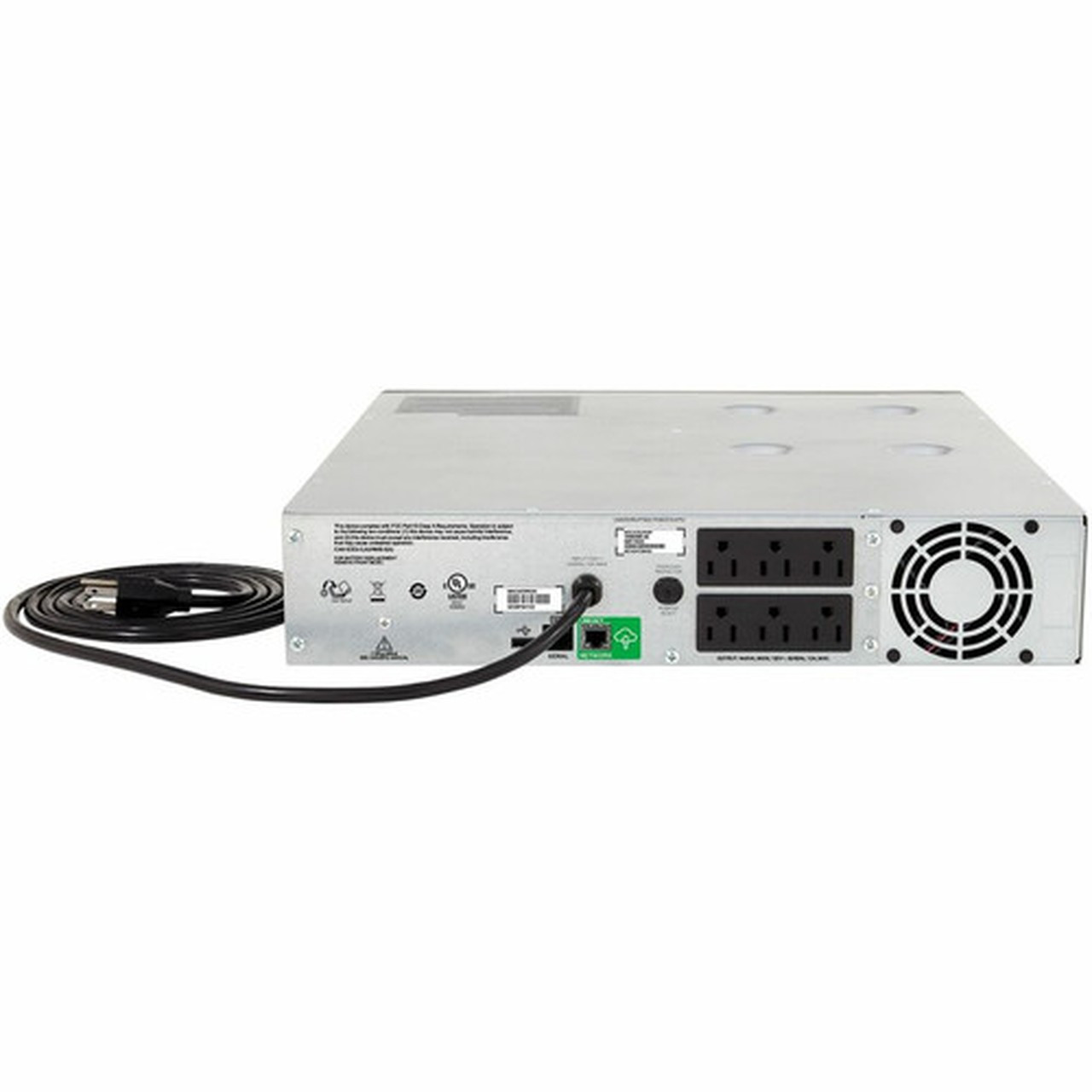

APC by Schneider Electric SMC1500-2UC APC Smart-UPS C 1440VA/900W Line Interactive Rackmount UPS - 2U - 120V - 6x NEMA 5-15R Outlets - SmartConnect
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The APC Smart-UPS C 1440VA/900W rackmount UPS delivers reliable line-interactive power protection in a 2U form factor for server rooms, network closets, and small business environments. This unit provides pure sine wave output with automatic voltage regulation to maintain stable power for connected equipment during brownouts and overvoltages. Its 1440VA/900W capacity supports multiple devices simultaneously, with six NEMA 5-15R outlets offering both battery backup and surge protection for comprehensive coverage.
Designed for entry-level servers, networking gear, retail POS systems, and business VoIP infrastructure, the Smart-UPS C combines essential runtime with remote management capabilities. The included SmartConnect port enables cloud-based monitoring without additional management cards, while USB and serial connections support graceful shutdown via PowerChute software. The hot-swappable battery design allows for maintenance without powering down connected equipment, minimizing operational disruption during service intervals.
With Energy Star certification and RoHS compliance, this UPS meets environmental standards while delivering reliable performance. The two-year limited warranty provides assurance of quality and durability for business-critical applications where uninterrupted power is essential.
Technical Overview
This Smart-UPS C model operates with a line-interactive design that conditions incoming power while providing battery backup during outages. The 1440VA/900W capacity supports multiple devices simultaneously, with a full-load runtime of approximately 10 minutes to allow for orderly shutdowns or ride-through brief interruptions. Electrical specifications include 120V input and output with a wide input range of 93-130V AC, ensuring compatibility with standard North American power systems.
The pure sine wave output maintains compatibility with sensitive electronics, while 680 joules of surge protection safeguards against voltage spikes. The 10ms transfer time ensures seamless transition to battery power during outages, preventing data loss or hardware damage. Lead-acid batteries provide reliable energy storage with a typical recharge time of three hours after complete discharge, ensuring rapid recovery to full protection status.
Communication options include SmartConnect Ethernet for cloud monitoring, plus USB and serial ports for local management and graceful shutdown functionality. The rack-mountable 2U form factor integrates seamlessly into standard 19-inch server racks, while the 8-foot power cord offers flexible placement within rack environments.
Key Product Advantages
The hot-swappable battery design allows for replacement without powering down connected equipment, minimizing downtime during maintenance. Lead-acid batteries typically recharge within three hours after complete discharge, ensuring rapid recovery to full protection status.
SmartConnect Cloud Monitoring
The integrated SmartConnect Ethernet port provides cloud-based remote monitoring without additional hardware, enabling status checks and alerts from any web browser.
- No management card required
- Web-based interface accessible anywhere
- Email alerts for power events
Automatic Voltage Regulation
Line-interactive design with AVR corrects under-voltage and over-voltage conditions without switching to battery, extending runtime and battery life.
- Corrects brownouts and overvoltages
- Reduces unnecessary battery usage
- Maintains stable output voltage
Deployment / Use Cases
The 2U rackmount form factor integrates seamlessly into standard 19-inch server racks alongside other equipment. Six NEMA 5-15R outlets provide sufficient connectivity for multiple devices, while the 8-foot power cord offers flexible placement within rack environments.
Retail point-of-sale systems benefit from the pure sine wave output that maintains compatibility with sensitive transaction hardware. Business VoIP equipment receives clean power to prevent call drops and system reboots during minor power fluctuations.
Server Room Protection
Ideal for single entry-level servers or small server clusters requiring clean power and brief runtime for graceful shutdowns during outages.
- Supports server hardware
- Provides time for orderly shutdown
- Protects against data corruption
Network Infrastructure
Protects routers, switches, network hubs, and other networking equipment to maintain connectivity during power disturbances.
- Keeps network gear online
- Prevents connectivity drops
- Supports VoIP systems
Physical Profile
This black rackmount UPS measures 3.39" (86 mm) in height, occupying 2U of vertical rack space. The 17.01" (432 mm) width and 18.78" (477 mm) depth provide a standard rack footprint compatible with most 19-inch server enclosures. At approximately 55.78 pounds, the unit includes integrated rack mounting brackets for secure installation in data center environments.
The compact 2U form factor maximizes rack space efficiency while providing substantial power protection capacity. The black finish blends seamlessly with standard server rack aesthetics, and the included mounting hardware ensures straightforward installation. The physical dimensions and weight specifications allow for accurate deployment planning and load distribution within rack configurations.
- Width
- 17.01" (432 mm)
- Depth
- 18.78" (477 mm)
- Height
- 3.39" (86 mm)
- Weight
- 55.78 lb (25301.38 g)
- Length
- 8 ft (2.44 m)
What's in the Box
The package includes the Smart-UPS C 1500VA RM 2U 120V unit with SmartConnect, documentation CD, installation guide, rack mounting brackets, and USB cable for immediate deployment.
Highlights
- 1440VA/900W line interactive pure sine wave 2U rackmount UPS
- Ideal for entry-level servers, networks, retail POS, and business VoIP
- Automatic Voltage Regulation keeps output voltage within acceptable user-selectable levels
- Cloud-based remote power monitoring via SmartConnect Ethernet port
- Graceful shutdown using serial or USB cables via PowerChute software
- Six NEMA 5-15R outlets with surge protection
- Hot-swappable lead-acid batteries for maintenance without downtime
- Energy Star certified for energy efficiency
- RoHS compliant and environmentally friendly
- Two-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMC1500-2UC |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Model | SMC1500 |
| Product Name | Smart-UPS C 1500VA RM 2U 120V with SmartConnect |
| Packaged Quantity | 1 |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail | 6 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Cord Length | 8 ft (2.44 m) |
| Transfer Time | 10 ms |
| Application/Usage | Server,Router,Switch,Network Hub,Network Device,POS Terminal |
| Power Description | |
| Load Capacity (VA) | 1.44 kVA |
| Load Capacity (Watt) | 900 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 93 V AC - 130 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 680 J |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 10.10 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.39" (86 mm) |
| Width | 17.01" (432 mm) |
| Depth | 18.78" (477 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 55.78 lb (25301.38 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS C 1500VA RM 2U 120V with SmartConnect Documentation CD Installation guide Rack mounting brackets USB cable |
| Energy Star | Yes |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS C?
This rackmount UPS provides 1440VA/900W of line-interactive power protection, suitable for protecting entry-level servers, networking equipment, and business-critical devices during power disturbances. The 1.44 kVA rating indicates its capacity to handle multiple connected devices simultaneously while maintaining pure sine wave output.
What runtime can I expect at full load?
At full 900W load, the battery provides approximately 10 minutes of runtime, allowing sufficient time for graceful shutdowns of connected equipment during power outages. This runtime supports orderly shutdown procedures for servers, network devices, and POS systems to prevent data loss and hardware damage.
How many outlets does this UPS include?
The unit features six NEMA 5-15R outlets that provide both battery backup and surge protection. All six outlets support connected equipment with the full 1440VA/900W capacity, making this suitable for protecting multiple servers, switches, routers, or other network infrastructure components.
What voltage specifications does this UPS support?
This Smart-UPS C operates at 120V AC input and output, with an input voltage range of 93-130V AC for compatibility with standard North American power systems. The automatic voltage regulation maintains stable output voltage during brownouts and overvoltages without switching to battery power unnecessarily.
Is this UPS designed for rack or tower deployment?
This is a 2U rackmount UPS designed specifically for installation in standard 19-inch server racks. The compact 2U form factor maximizes rack space efficiency while providing substantial power protection capacity, with included rack mounting brackets for secure installation in data center and network closet environments.
What management and connectivity options are available?
Management options include SmartConnect Ethernet for cloud-based remote monitoring, plus USB and serial ports for local management and graceful shutdown functionality via PowerChute software. The hot-swappable battery design allows for maintenance without powering down connected equipment, while the 8-foot power cord provides flexible placement within rack configurations.
