APC by Schneider Electric SRT3000RMXLT APC Smart-UPS SRT 3000VA 3kVA/2.7kW Double-Conversion Online UPS - 2U Rackmount - 208V - NEMA Outlets
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview

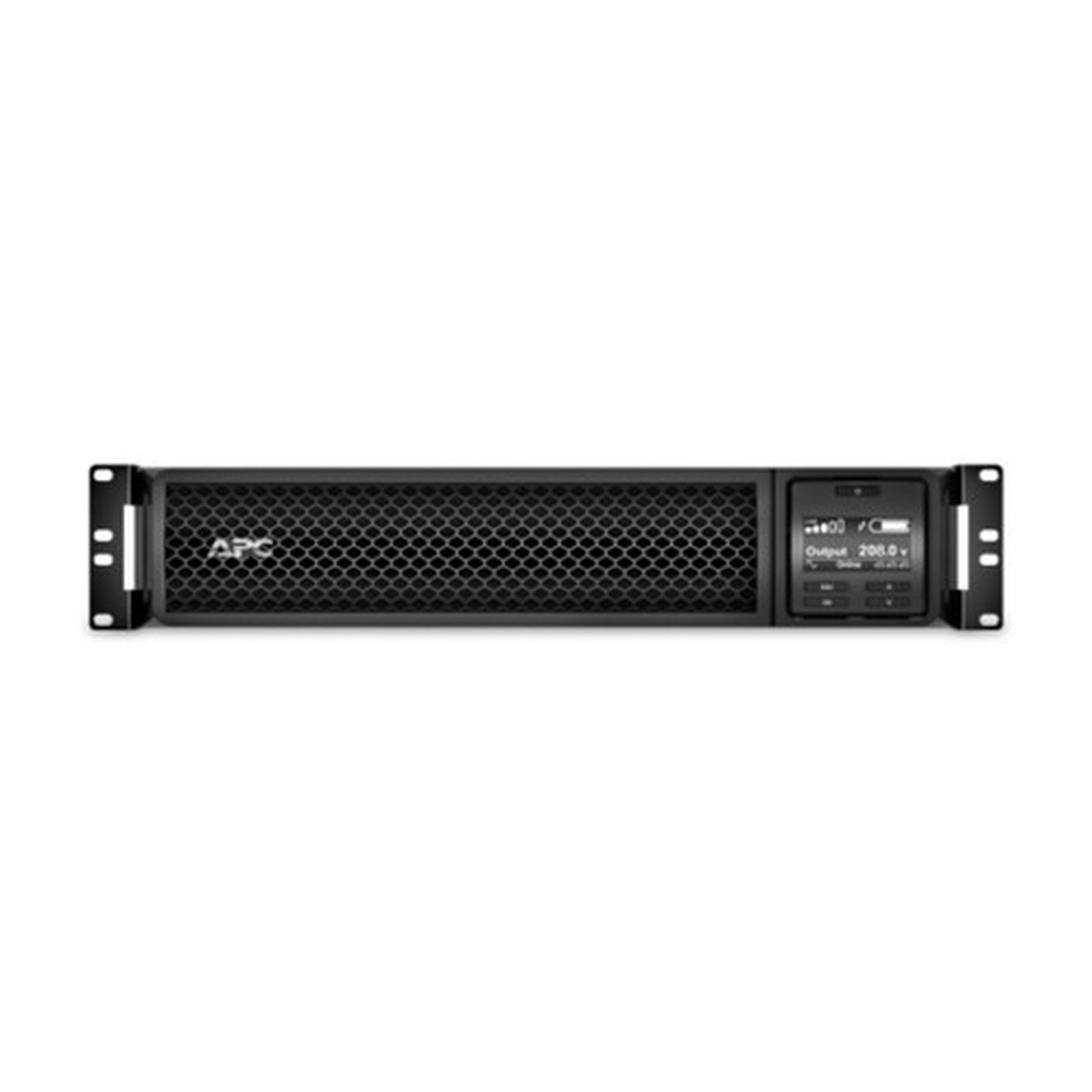

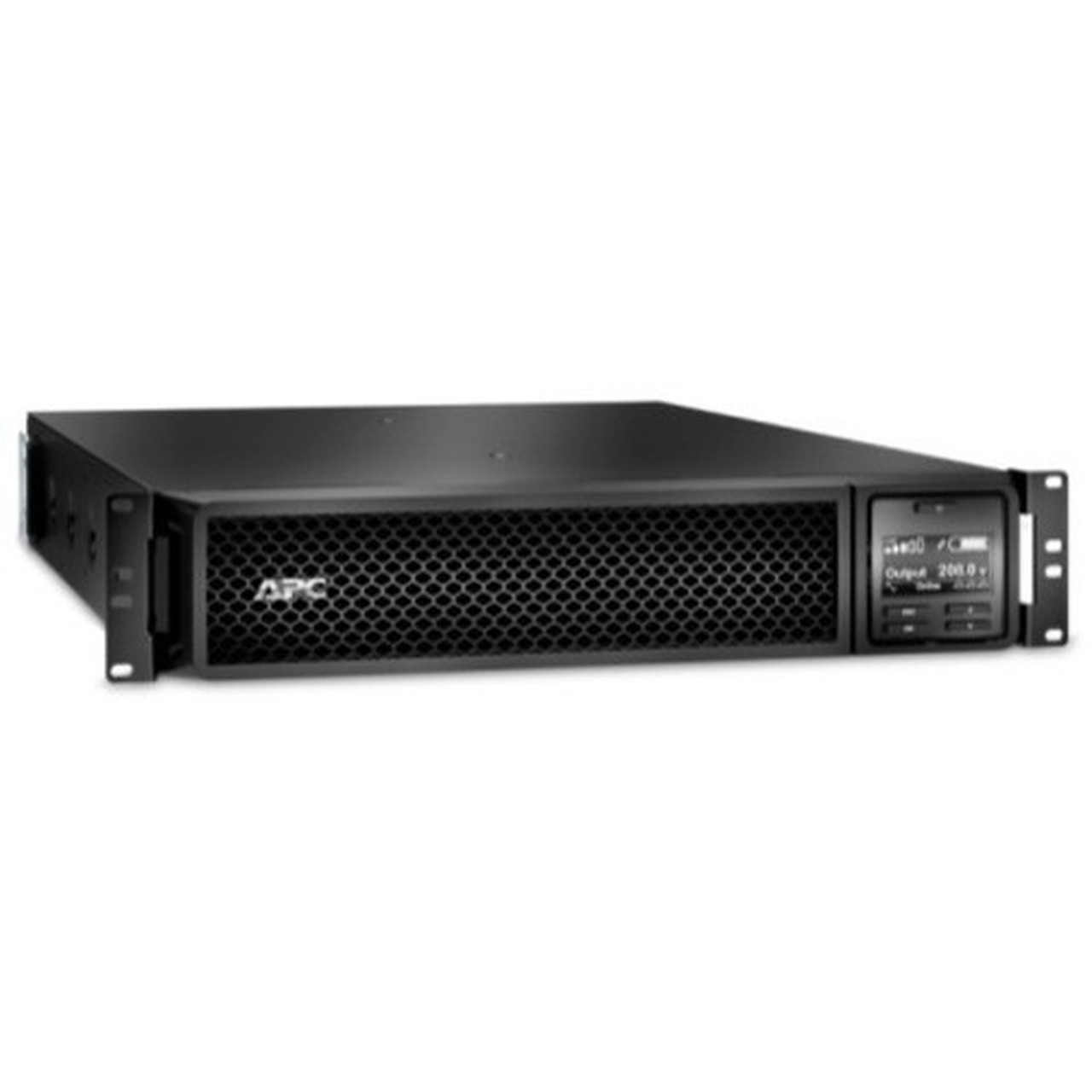

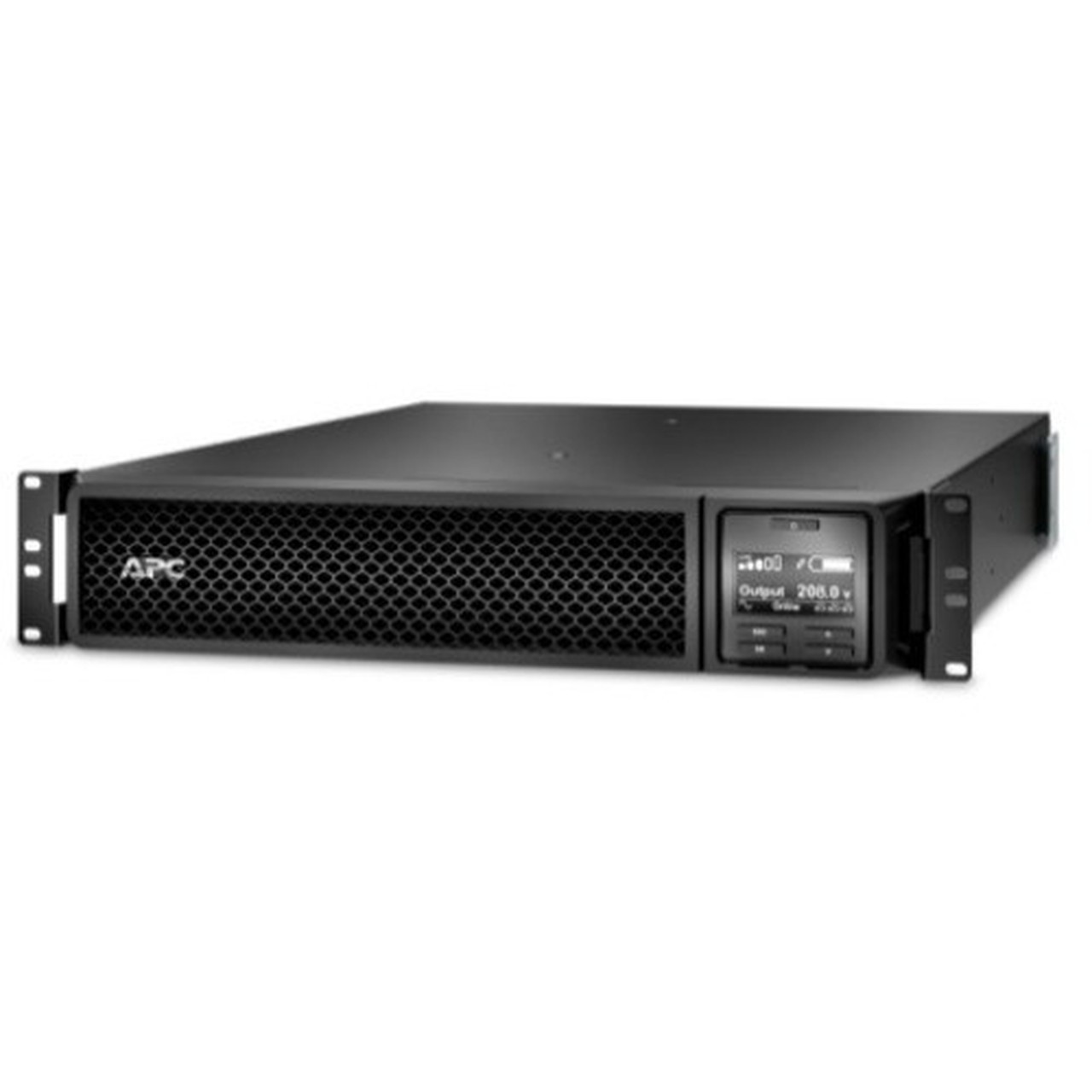

The APC Smart-UPS SRT 3000VA is a double-conversion online UPS engineered for critical server, storage, and network infrastructure protection. This 3kVA/2.7kW unit delivers pure sine wave output with zero transfer time, ensuring clean, uninterrupted power for sensitive electronic equipment. Its 2U rackmount design, with included rail kit, integrates seamlessly into standard server cabinets, while the 208V input/output configuration and NEMA outlets support commercial and light industrial power environments.
Built with lead-acid battery technology, the UPS provides a 4-minute runtime at full load, with a typical 3-hour recharge cycle. The system supports expansion with up to 10 external battery packs (SRT96RMBP) for extended backup durations. Included PowerChute Serial Edition software enables graceful shutdowns via serial or USB connections, protecting data integrity during extended outages. The unit is RoHS compliant and backed by a 3-year warranty with 2-year battery coverage.
Technical Overview
The APC Smart-UPS SRT 3000VA RM 208V is a double-conversion online UPS that continuously converts incoming AC power to DC and back to AC, providing complete isolation from power anomalies such as surges, sags, and frequency variations. This topology ensures zero transfer time during utility failures, making it ideal for critical loads where even momentary interruptions can cause data loss or system downtime. The unit delivers a pure sine wave output, which is essential for compatibility with modern active PFC power supplies found in servers, storage arrays, and networking equipment, preventing potential damage or instability.

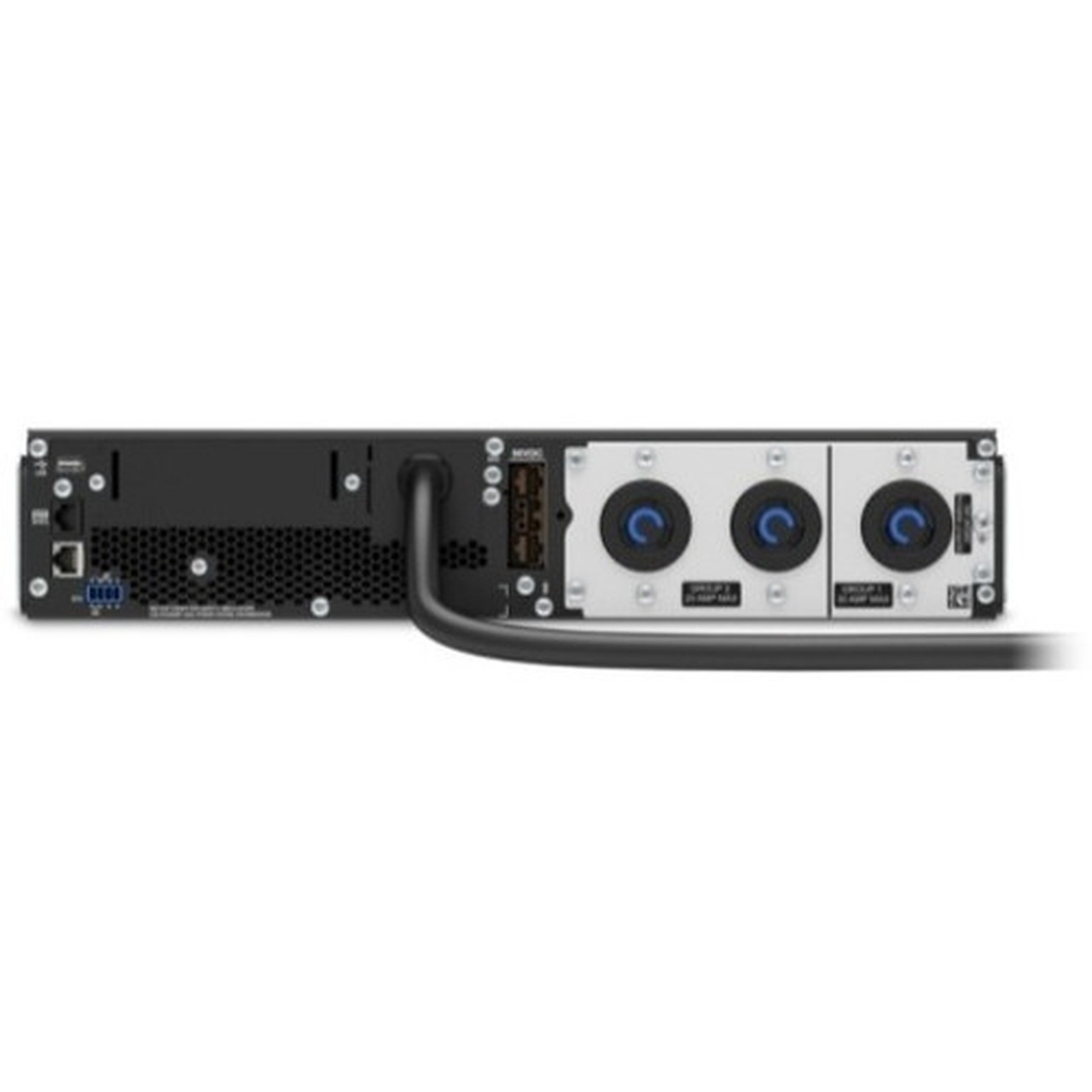

With a load capacity of 3 kVA (3000 VA) and 2.7 kW, this UPS supports multi-device deployments in commercial and light industrial settings. Input and output voltages are fixed at 208 V AC, matching common three-phase derived power in North American data centers and facilities. The electrical design is single-phase, featuring a 10-foot NEMA L6-20P input cord for flexible installation. Three NEMA outlets—one L6-30R and two L6-20R—provide versatile connectivity for IT equipment, supporting both 20-amp and 30-amp plugs to accommodate various power demands.
The UPS incorporates a surge energy rating of 340 joules, offering additional protection against voltage spikes. Its lead-acid battery chemistry ensures reliable performance, with a backup runtime of 4 minutes at full load and a typical recharge time of 3 hours. The system is designed for scalability, supporting up to 10 external APC SRT96RMBP battery packs to extend runtime based on specific needs. Integrated PowerChute Serial Edition software enables graceful shutdowns via serial or USB connections, enhancing data protection during prolonged outages.
Key Product Advantages
The Smart-UPS SRT series combines industrial-grade power protection with data center manageability. Double-conversion technology ensures zero transfer time during utility failures, eliminating the momentary power loss associated with line-interactive UPS models. This is critical for applications where even a brief interruption can cause data corruption or system crashes.
Rack/Tower Convertible Design
Includes a full rail kit for immediate 2U rack installation. The unit can also be deployed as a tower, offering flexibility for environments without rack infrastructure.
- Rail kit included
- 2U rack height
- Tower-convertible
Extended Runtime Scalability
Supports connection of up to 10 external APC SRT96RMBP battery packs, allowing runtime to be extended from minutes to hours based on load and battery count.
- Up to 10 external packs
- Scalable runtime
- SRT96RMBP compatible
Integrated Management Software
PowerChute Serial Edition provides automatic safe shutdown of connected servers and network devices via serial or USB interface, preventing data loss during prolonged outages.
- Graceful shutdown
- Serial/USB connectivity
- Data protection
Deployment / Use Cases
This UPS is engineered for environments where power quality and uptime are non-negotiable. Its 3kVA capacity and 208V operation make it ideal for protecting rack-mounted server stacks, network switches, storage arrays, and telecom equipment in small to medium data closets, server rooms, and light industrial control panels.
The pure sine wave output and double-conversion topology are particularly suited for medical labs, broadcast equipment, and financial trading systems, where sensitive electronics require isolation from grid noise and harmonics. The rack/tower flexibility allows deployment in both dedicated IT racks and standalone equipment rooms.
Server & Storage Protection
Safeguards critical business applications, databases, and file servers from power disturbances, ensuring operational continuity and data integrity.
Voice/Data Network Infrastructure
Provides backup power for VoIP systems, routers, switches, and wireless access points, maintaining communication channels during utility failures.
Physical Profile
The UPS occupies 2U of vertical rack space, with dimensions of 3.35" (85 mm) height, 17.01" (432 mm) width, and 25" (635 mm) depth. This compact footprint maximizes rack density while providing substantial power capacity. The unit weighs 69 lb (31.3 kg), requiring proper rack mounting and handling considerations. The black finish matches standard data center aesthetics. The included rail kit, brackets, and hardware simplify installation into 19-inch racks with square or round mounting holes.
- Width
- 17.01" (432 mm)
- Depth
- 25" (635 mm)
- Height
- 3.35" (85 mm)
- Weight
- 69 lb (31297.87 g)
- Length
- 10 ft (3.05 m)
What's in the Box
The package includes all components necessary for immediate deployment and management.
Highlights
- 3kVA/2.7kW double-conversion online UPS with pure sine wave output
- 2U rackmount design with included rail kit for easy installation
- 208V input and output voltage for commercial/industrial applications
- Three NEMA outlets (1x L6-30R, 2x L6-20R) for flexible device connections
- 4-minute runtime at full load, expandable with external battery packs
- PowerChute Serial Edition software for graceful server shutdown
- RoHS compliant and environmentally friendly design
- 3-year warranty with 2-year battery coverage
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT3000RMXLT |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS On-Line |
| Product Name | Smart-UPS SRT 3000VA RM 208V |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L6-20P |
| Receptacle Type | NEMA L6-20P |
| Receptacle Detail | 1 x NEMA L6-30R,2 x NEMA L6-20R |
| Number of Battery & Surge Outlets | 3 |
| Cord Length | 10 ft (3.05 m) |
| Phase | Single Phase |
| Power Description | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 340 J |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.35" (85 mm) |
| Width | 17.01" (432 mm) |
| Depth | 25" (635 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 69 lb (31297.87 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS SRT 3000VA RM 208V CD with software Documentation CD Installation guide Rack mounting brackets Rack mounting hardware Rack mounting support rails USB cable Warranty card |
| Software Included | Powerchute Serial Edition |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
