APC by Schneider Electric SRT8KRMXLT30 APC Smart-UPS On-Line 8kVA/8kW Double-Conversion Rackmount UPS 6U 208V 6x L6-30R Outlets Network Card Rail Kit
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double-conversion online UPS continuously converts incoming AC power to DC and back to clean AC, isolating connected equipment from all power anomalies including sags, surges, spikes, and noise. The 8kVA/8kW capacity supports substantial server and storage loads, while the pure sine wave output ensures compatibility with power supplies in modern IT equipment.
The electrical architecture features single-phase operation with 208-240V input and output range, 480 joule surge energy rating, and lead-acid battery chemistry. The unit provides approximately 5 minutes of runtime at full load, with typical recharge completing in 1.5 hours. External battery packs can be added to extend runtime for longer backup requirements.
This section brings together practical product details such as Receptacle Type, Receptacle Detail, Number of Battery & Surge Outlets, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Smart-UPS On-Line SRT series combines enterprise-grade power protection with intelligent management capabilities. The zero-transfer-time design ensures uninterrupted operation for critical systems, while the network management interface enables remote monitoring, configuration, and graceful shutdown of physical and virtual infrastructure.
Intelligent Power Management
The embedded network card provides web/SNMP management with one-year secure subscription included, allowing IT administrators to monitor power conditions, configure alerts, and automate shutdown procedures across servers and hyperconverged infrastructure.
- Network-based monitoring
- Graceful shutdown capabilities
- Virtual machine awareness
Scalable Runtime
Support for up to ten external battery packs (SRT192RMBP2) enables runtime extension to meet specific business continuity requirements, making this UPS adaptable to evolving infrastructure needs.
- External battery expansion
- Runtime flexibility
- Future-proof design
Deployment / Use Cases
This 8kVA rackmount UPS is ideally suited for protecting server racks, storage arrays, network switches, and other critical infrastructure in data centers, server rooms, and edge computing locations. The double-conversion technology makes it particularly valuable for environments with unstable utility power or sensitive electronic equipment.
Medical laboratories benefit from the clean power delivery for diagnostic and monitoring equipment, while light industrial applications utilize the robust design for manufacturing control systems. Voice and data network installations appreciate the network management capabilities for distributed infrastructure protection.
Data Center Rack Protection
Deploy in standard 19-inch server racks to protect multiple servers, storage units, and networking gear with centralized management through the embedded network interface.
Critical Infrastructure Support
Ensure uninterrupted operation for medical equipment, industrial control systems, and telecommunications infrastructure where power quality directly impacts operational reliability.
Physical Profile
The black rackmount chassis occupies 6U of vertical space with dimensions of 10.35" height, 17.01" width, and 28.15" depth. Weighing approximately 246 pounds, this substantial unit requires proper rack mounting with the included support rails, brackets, and hardware. The rack/tower convertible design offers installation flexibility, though the included rail kit optimizes for standard rack deployment.
- Width
- 17.01" (432 mm)
- Depth
- 28.15" (715 mm)
- Height
- 10.35" (263 mm)
- Weight
- 245.99 lb (111579.19 g)
What's in the Box
The package includes all necessary components for installation and operation of the UPS system.
Highlights
- 8kVA/8kW double-conversion online UPS with pure sine wave output
- 6U rackmount design with included rail kit for standard 19-inch racks

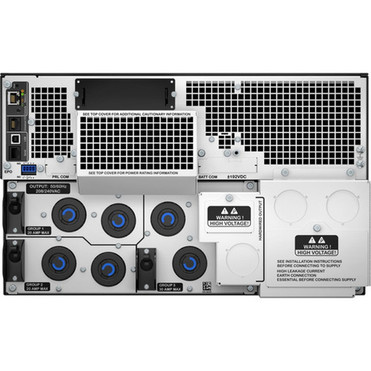

- Six NEMA L6-30R outlets plus hardwire connection for flexible power distribution
- Embedded network management card with one-year secure subscription
- SmartSlot expansion for additional communication and management options
- Support for up to ten external battery packs for extended runtime
- Zero transfer time ensures uninterrupted power for critical equipment
- 3-year warranty with 2-year battery coverage for long-term protection
- Energy Star certified and RoHS compliant for environmental responsibility
- Rack/tower convertible design offers installation flexibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT8KRMXLT30 |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS On-Line |
| Product Name | Smart-UPS SRT 8000VA RM 208V L630 |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Receptacle Type | NEMA L6-30R |
| Receptacle Detail | 1 x Hard Wire 3-wire (2PH + G),6 x NEMA L6-30R |
| Number of Battery & Surge Outlets | 6 |
| Phase | Single Phase |
| Power Description | |
| Load Capacity (VA) | 8 kVA |
| Load Capacity (Watt) | 8 kW |
| Input Voltage | 208 V AC,240 V AC |
| Output Voltage | 208 V AC,240 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 480 J |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 5 Minute |
| Typical Battery Recharge Time | 1.50 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 10.35" (263 mm) |
| Width | 17.01" (432 mm) |
| Depth | 28.15" (715 mm) |
| Rack Height | 6U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 245.99 lb (111579.19 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS SRT 8000VA RM 208V L630 CD with software Documentation CD Installation guide Rack mounting brackets Rack mounting hardware Rack mounting support rails Temperature probe USB cable Warranty card Web/SNMP management card |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Battery: 24 month(s)|UPS: 36 month(s) |
User Manual
FAQ
What is the difference between double-conversion and line-interactive UPS topology?
Double-conversion online UPS continuously converts incoming AC to DC and back to clean AC, providing complete isolation from power anomalies with zero transfer time. Line-interactive units only engage battery during outages and may have brief transfer interruptions. This double-conversion design offers superior protection for sensitive server and network equipment.
How many devices can this 8kVA UPS support simultaneously?
With 8kW (8000 watt) capacity, this UPS can support multiple servers, storage arrays, and networking equipment. The six NEMA L6-30R outlets distribute this capacity across connected devices. Actual device count depends on individual power consumption, but this unit is designed for substantial rack-mounted infrastructure loads.
What is the runtime at half load versus full load?
The specified 5-minute runtime applies at full 8kW load. Runtime increases significantly at reduced loads—typically doubling or more at 50% load. For precise runtime calculations at specific load levels, consult the runtime charts in the product documentation or use APC's runtime calculator tools.
Can this UPS be installed as a tower instead of rackmount?
Yes, this Smart-UPS model features rack/tower convertible design. While it includes a complete rail kit for standard 19-inch rack installation, it can also be deployed as a standalone tower unit. The substantial weight (246 pounds) requires appropriate floor support and accessibility considerations for tower placement.
What management capabilities does the included network card provide?
The embedded web/SNMP management card enables remote monitoring of power status, battery health, temperature, and load levels via network interface. It supports graceful shutdown of physical servers, virtual machines, and hyperconverged infrastructure. The included one-year secure subscription provides enhanced security features for management access.
How do I expand the backup runtime beyond 5 minutes?
Runtime can be extended by adding external battery packs. This UPS supports up to ten SRT192RMBP2 external battery packs, significantly increasing backup duration. Each additional pack extends runtime proportionally, allowing customization based on specific business continuity requirements and infrastructure criticality.
What power capacity is listed for this UPS?
The listed power specification is 8 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 6, which helps buyers understand how many connected devices it can support in its intended deployment.
