APC by Schneider Electric SRTL2K2RM1UC APC Smart-UPS Ultra On-Line 2200VA Lithium-ion UPS - 1U Rack/Tower - 120V - 6 Outlets - SmartConnect - Extended
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Smart-UPS Ultra model operates on a true online double-conversion topology, ensuring zero transfer time and complete isolation from input power anomalies. It accepts 120V/125V AC input and delivers regulated 120V/125V AC output at 60 Hz, maintaining sine wave integrity for sensitive electronics.
The integrated lithium-ion battery offers significantly longer service life compared to traditional VRLA batteries, typically lasting three times longer and eliminating the need for mid-life battery replacements. The system provides 6.05 minutes of runtime at full load (2200W) and 12.65 minutes at half load (1100W), with a fast 1.5-hour recharge cycle.
Relevant factors for this section include Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA). When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Smart-UPS Ultra distinguishes itself through its versatile mounting ecosystem, advanced battery chemistry, and integrated remote management capabilities. It is built to deliver uninterrupted power for mission-critical infrastructure while simplifying installation and long-term ownership.
Five Mounting Options
Deploy as a standard 1U rackmount unit, free-standing tower, wall-mounted enclosure, ceiling-suspended unit, or under-desk installation. The included rack mounting brackets and support rails enable quick integration into existing infrastructure.
- 1U rack height (1.69")
- 17.01" width x 22.05" depth
- Silver Gray finish
Lithium-Ion Endurance
The lithium-ion battery pack provides a longer operational lifespan, higher energy density, and reduced maintenance compared to valve-regulated lead-acid (VRLA) alternatives. It is designed to last the entire service life of the UPS under normal conditions.
- 3x longer life than VRLA
- No scheduled battery replacement
- 1123.2 kJ energy capacity
SmartConnect & EcoStruxure Ready
Includes USB and RJ-45 network ports for local and remote monitoring, plus an EPO (Emergency Power Off) port for safety integration. The unit is EcoStruxure Ready, enabling centralized management through Schneider Electric's IoT platform.
- 1-Year Secure Network Management Card subscription
- LCD display for status monitoring
- EPO port for facility safety systems
Deployment / Use Cases
This 2200VA UPS is engineered to protect rack-mounted servers, network switches, storage arrays, and telecommunications equipment in small to medium business environments, branch offices, and edge computing locations.
Its compact 1U form factor and multi-mount capability make it suitable for dense server cabinets, wall-mounted network enclosures, under-desk installations for point-of-sale systems, and ceiling-mounted deployments in retail or industrial settings where floor space is limited.
Server Room & Data Center
Provide clean, uninterrupted power to critical servers and networking gear in rack-optimized configurations. The dual-conversion online topology ensures zero transfer time during utility failures or fluctuations.
Network Closet & Edge Computing
Protect switches, routers, and edge servers in distributed IT environments. The wall and ceiling mounting options allow installation in tight spaces without sacrificing rack units.
Physical Profile
The UPS features a low-profile 1U rack-mount design measuring 1.69" (43 mm) in height, 17.01" (432 mm) in width, and 22.05" (560 mm) in depth. Its Silver Gray enclosure is constructed for durability in commercial environments. Weighing 35.05 lb (15.9 kg), it includes integrated handles for safe transport and installation.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.69" (43 mm), 17.01" (432 mm), 22.05" (560 mm), 35.05 lb (15898.41 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.01" (432 mm)
- Depth
- 22.05" (560 mm)
- Height
- 1.69" (43 mm)
- Weight
- 35.05 lb (15898.41 g)
- Length
- 7.9 ft (2.40 m)
What's in the Box
The package includes all necessary components for immediate deployment in various configurations.
Highlights
- 2200VA/2200W dual-conversion online UPS with pure sine wave output
- Lithium-ion battery lasts 3x longer than VRLA, no mid-life replacement needed
- Five mounting styles: rack, tower, wall, ceiling, and desktop under-mount
- 1U rack-optimized form factor (1.69" H) for space-efficient deployment
- 120V/125V input and output, 60 Hz, single-phase operation

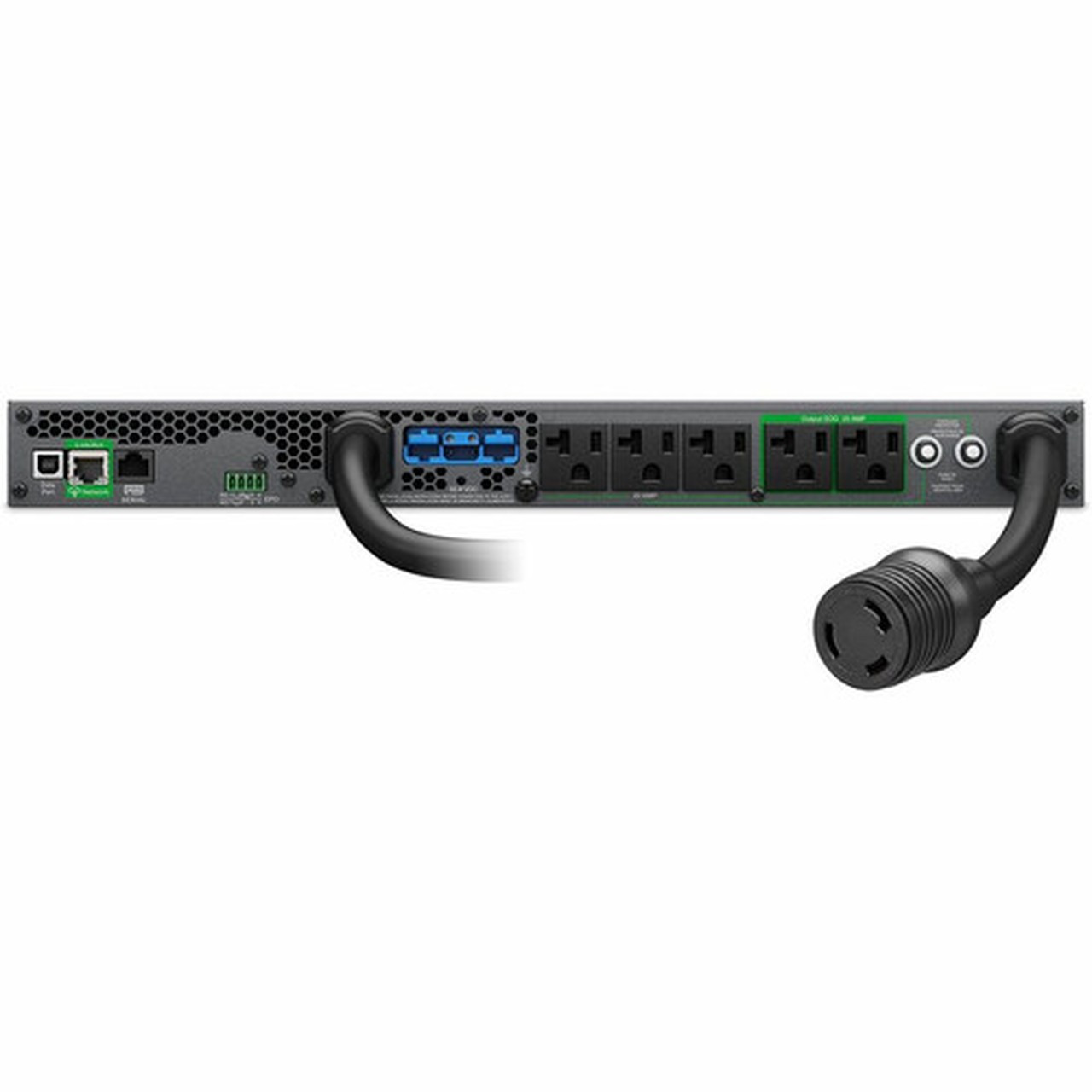

- 6 NEMA outlets: 5x 5-20R and 1x L5-20R for flexible device connectivity
- SmartConnect with USB, RJ-45 network, and EPO ports for management
- EcoStruxure Ready for remote monitoring and centralized control
- 5-year warranty covering UPS and internal batteries
- Includes 1-Year Secure Network Management Card subscription
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRTL2K2RM1UC |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS Ultra |
| Product Name | Smart-UPS Ultra 2200VA Rack/Tower/Wall/Ceiling/Desktop Mountable UPS |
| Packaged Quantity | 1 |
| Product Type | Dual Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20P |
| Receptacle Detail | 1 x NEMA L5-20R,5 x NEMA 5-20R |
| Cord Length | 7.9 ft (2.40 m) |
| Phase | Single Phase |
| Application/Usage | Network,Server |
| Power Description | |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 2.20 kW |
| Input Voltage | 120 V AC,125 V AC |
| Output Voltage | 120 V AC,125 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Display & Graphics | |
| Display | LCD |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| Battery Information | |
| DC System Voltage | 50 V DC |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Energy | 1123.2 kJ |
| Backup/Run Time (Full Load) | 6.05 Minute |
| Backup/Run Time (Half Load) | 12.65 Minute |
| Typical Battery Recharge Time | 1.50 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Storage Relative Humidity | 95% |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission | 55 dB |
| Physical Characteristics | |
| Product Color | Silver Gray |
| Height | 1.69" (43 mm) |
| Width | 17.01" (432 mm) |
| Depth | 22.05" (560 mm) |
| Rack Height | 1U |
| Form Factor | Rack/Tower/Wall/Ceiling/Desktop Mountable |
| Weight (Approximate) | 35.05 lb (15898.41 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS Ultra 2200VA Rack/Tower/Wall/Ceiling/Desktop Mountable UPS RJ45 Cable USB cable Country-Specific Detachable Power Cord Rack Mounting Brackets Rack Mounting Support Rails Installation Guide Warranty Card |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the power capacity of this UPS?
This APC Smart-UPS Ultra has a load capacity of 2.20 kVA (2200 VA) and 2.20 kW (2200 watts). It is designed to support critical network and server equipment requiring clean, uninterrupted power within this capacity range.
How long does the battery last during a power outage?
At full load (2200 watts), the UPS provides 6.05 minutes of runtime. At half load (1100 watts), runtime extends to 12.65 minutes. These figures are based on the integrated lithium-ion battery pack and assume typical operating conditions.
What types of outlets does this UPS have?
The unit includes six NEMA outlets: five NEMA 5-20R receptacles and one NEMA L5-20R receptacle. This configuration supports a mix of standard and locking plug types for secure connections to servers, switches, and other IT equipment.
Can this UPS be mounted in a server rack?
Yes, it is designed for 1U rack mounting with included brackets and support rails. It also supports tower, wall, ceiling, and desktop under-mount installations, offering exceptional flexibility for various deployment scenarios.
What is the advantage of the lithium-ion battery?
The lithium-ion battery provides approximately three times the service life of traditional VRLA batteries, often lasting the entire lifespan of the UPS without replacement. It also offers higher energy density, faster recharge times (1.5 hours typical), and reduced maintenance requirements.
What management and monitoring features are included?
The UPS includes an LCD display for local status, USB and RJ-45 network ports for remote management, and an EPO port for safety shutdowns. It is EcoStruxure Ready for integration with Schneider Electric's IoT platform and comes with a 1-year subscription for the Secure Network Management Card.
