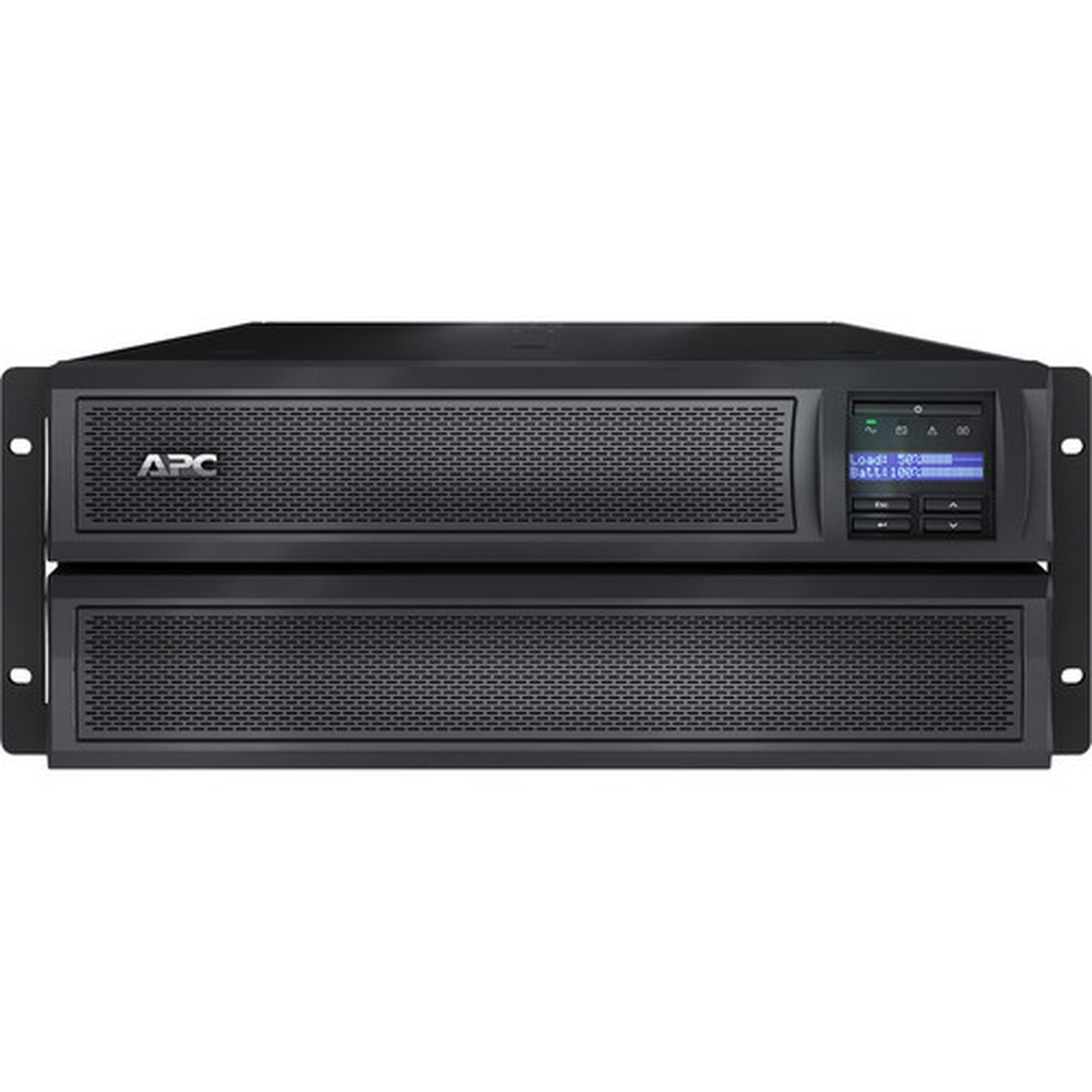

APC by Schneider Electric SMX3000LV APC Smart-UPS X 3000VA Line Interactive UPS - 2.88kVA/2700W - 4U Rack/Tower Convertible - 120V - 10 Outlets - Pure
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The APC Smart-UPS X 3000VA line interactive UPS delivers reliable power protection for critical IT infrastructure. This 4U rack/tower convertible unit provides 2.88kVA/2700W capacity with pure sine wave output, ensuring clean power for sensitive servers, storage systems, and networking equipment. Its user-selectable low voltage setting of 100V-127V accommodates varying power conditions, and Automatic Voltage Regulation maintains stable output voltage within acceptable levels.
Designed for both rack and tower deployment, this UPS features a short-depth chassis that maximizes space efficiency in server cabinets while providing extra room for cable management. The unit includes a comprehensive outlet configuration with 10 total outlets: 1 NEMA L5-30R, 3 NEMA 5-20R, and 6 NEMA 5-15R, supporting mixed equipment loads. With a 4ms transfer time, it ensures seamless transition to battery power during outages, protecting against data loss and downtime.
Technical Overview
This line interactive UPS operates at 120V AC input and output with a 15A input current, delivering 2.88 kVA and 2.70 kW of power capacity. The pure sine wave output ensures compatibility with active PFC power supplies found in modern servers and networking gear, while a surge energy rating of 540 J provides robust protection against power spikes.
The unit supports expansion with up to 10 external battery packs (SMX120BP) for extended runtime requirements. Its hot-swappable, maintenance-free lead acid battery typically recharges within 3 hours and offers runtime of 6 minutes at full load and 18 minutes at half load. The SmartSlot accommodates optional network management cards for remote monitoring and control, and integration with EcoStruxure IT or third-party management platforms enables centralized oversight.
Relevant product facts for this section include Plug/Connector Type: NEMA L5-30P, Receptacle Type: NEMA L5-30P, Receptacle Detail: 1 x NEMA L5-30R,3 x NEMA 5-20R,6 x NEMA 5-15R, Load Capacity (VA): 2.88 kVA. When those details are considered together, they give buyers a clearer picture of how the product is equipped, how it connects, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Smart-UPS X combines enterprise-grade power protection with flexible deployment options. Its convertible rack/tower design adapts to various IT environments, while the comprehensive outlet configuration supports mixed equipment loads.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Management Capabilities, Reliability Features.
Management Capabilities
SmartSlot accommodates optional network management cards for remote monitoring and control. Integration with EcoStruxure IT or third-party management platforms enables centralized oversight of power infrastructure.
- Remote monitoring
- Centralized management
- EcoStruxure IT compatible
Reliability Features
Graceful shutdown capabilities via serial or USB connections using PowerChute Serial Edition software protect data integrity during extended outages. The system provides unattended shutdown of critical equipment.
- Graceful shutdown
- Data protection
- Unattended operation
Deployment / Use Cases
This 3000VA UPS is engineered for server rooms, network closets, and commercial applications where reliable power backup is essential. Its capacity and outlet configuration make it suitable for protecting multiple devices simultaneously.
The 4U rack-mountable form factor integrates seamlessly into standard server cabinets, while the removable support feet enable tower deployment in office environments. The short depth design is particularly valuable in space-constrained racks.
Relevant product facts for this section include Plug/Connector Type: NEMA L5-30P, Receptacle Type: NEMA L5-30P, Receptacle Detail: 1 x NEMA L5-30R,3 x NEMA 5-20R,6 x NEMA 5-15R, Load Capacity (VA): 2.88 kVA. When those details are considered together, they give buyers a clearer picture of how the product is equipped, how it connects, and what kind of day-to-day role it is meant to support.
Server Room Protection
Ideal for rack-mounted servers, storage arrays, and networking switches that require clean, uninterrupted power. The 10-outlet configuration supports mixed equipment loads with appropriate power distribution.
Network Infrastructure
Protects core networking equipment, routers, and switches that form the backbone of business communications. The pure sine wave output ensures compatibility with sensitive networking hardware.
Physical Profile
The black chassis measures 17.01" (432 mm) high, 7.01" (178 mm) wide, and 19.02" (483 mm) deep, occupying 4U of rack space with a weight of 85.19 pounds. This compact, short-depth design saves valuable space in server cabinets, making it ideal for rack-mountable deployments in data centers or network closets.
The package includes rack mounting brackets, support rails, hardware, and removable support feet, allowing easy conversion between rack and tower configurations. The robust construction ensures durability in commercial environments, while the manageable dimensions facilitate installation in standard server racks or as a standalone tower unit in office settings.
- Width
- 7.01" (178 mm)
- Depth
- 19.02" (483 mm)
- Height
- 17.01" (432 mm)
- Weight
- 85.19 lb (38641.53 g)
- Length
- 8 ft (2.44 m)
What's in the Box
The package includes all necessary components for installation and operation.
Highlights
- 2880VA/2700W line interactive UPS with pure sine wave output
- 4U rack/tower convertible design with short-depth chassis
- 10 outlets: 1 x NEMA L5-30R, 3 x NEMA 5-20R, 6 x NEMA 5-15R
- User-selectable voltage setting from 100V to 127V
- Supports up to 10 external battery packs for extended runtime
- Hot-swappable, maintenance-free lead acid battery
- SmartSlot for optional network management card
- Compatible with EcoStruxure IT and third-party management platforms
- Includes PowerChute Serial Edition for graceful shutdown
- 3-year UPS warranty with 2-year battery warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMX3000LV |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS X 3000VA Rack/Tower LCD 100-127V |
| Packaged Quantity | 1 Each |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA L5-30P |
| Receptacle Detail | 1 x NEMA L5-30R,3 x NEMA 5-20R,6 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 10 |
| Cord Length | 8 ft (2.44 m) |
| Transfer Time | 4 ms |
| Power Description | |
| Load Capacity (VA) | 2.88 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Input Voltage | 120 V AC |
| Input Current | 15 A |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 540 J |
| Interfaces/Ports | |
| USB | Yes |
| Battery Information | |
| Number of Batteries | 1 |
| Battery Characteristics | Spill-proof, Maintenance-free |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 6 Minute |
| Backup/Run Time (Half Load) | 18 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Product Color | Black |
| Height | 17.01" (432 mm) |
| Width | 7.01" (178 mm) |
| Depth | 19.02" (483 mm) |
| Rack Height | 4U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 85.19 lb (38641.53 g) |
| Miscellaneous | |
| Package Contents | Smart-UPS X 3000VA Rack/Tower LCD 100-127V CD with software Documentation CD Installation guide Rack mounting brackets Rack mounting hardware Rack mounting support rails Removable support feet Smart UPS signalling RS-232 cable USB cable |
| Software Included | Powerchute Serial Edition |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Battery: 24 month(s)|UPS: 36 month(s) |
User Manual
FAQ
What is the power capacity of this APC Smart-UPS X?
This UPS delivers 2.88 kVA (2880VA) and 2.70 kW (2700W) of power capacity, making it suitable for protecting multiple servers, storage arrays, or networking devices simultaneously in a rack or tower configuration.
What runtime can I expect from this UPS?
At full load, the battery provides approximately 6 minutes of runtime, while at half load it extends to about 18 minutes. The runtime supports graceful shutdown procedures for connected equipment during power outages.
How many outlets does this UPS have and what types?
It includes 10 total outlets: 1 NEMA L5-30R, 3 NEMA 5-20R, and 6 NEMA 5-15R. This mixed configuration allows you to connect various IT equipment with different plug types simultaneously.
What input and output voltage does this UPS support?
The UPS operates at 120V AC for both input and output, with a user-selectable low voltage setting from 100V to 127V to accommodate varying power conditions in different locations.
Can this UPS be installed in both rack and tower configurations?
Yes, this is a convertible 4U unit that can be installed as either a rack-mounted device or a standalone tower. The package includes rack mounting brackets, support rails, hardware, and removable support feet for flexible deployment.
What management and connectivity options are available?
The UPS features a SmartSlot for optional network management cards, USB connectivity, and includes PowerChute Serial Edition software for graceful shutdown. It can integrate with EcoStruxure IT or third-party management platforms for centralized monitoring and control.
