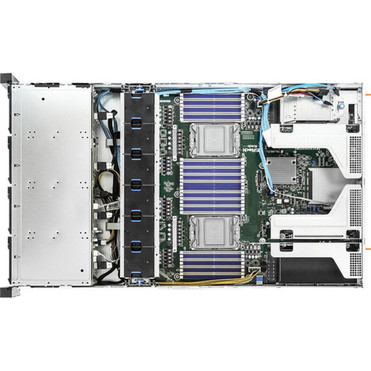

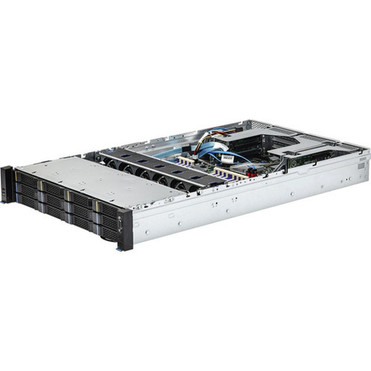

ASRock 2U12L-ICX2 Rackmount Barebone Server - LGA 4189 Socket - Intel C621A Chipset - 256 GB DDR4 - 12 x 3. 5" Bays - Dual PSU
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This barebone server features the LGA 4189 socket, compatible with Intel Xeon Platinum, Gold, Silver, and Bronze processors for scalable performance across different workload requirements. The Intel C621A chipset provides the platform foundation with support for up to 256 GB of DDR4-3200 memory across 32 DIMM slots.
Storage flexibility is delivered through Serial ATA/600 and Serial Attached SCSI (SAS) controllers, supporting both high-capacity and high-performance drive configurations. The system includes 14 total expansion bays with 12 dedicated to 3.5" drives, plus Gigabit Ethernet for network connectivity.
Relevant factors for this section include Processor Socket, Processor Supported, 64-bit Processing, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The 2U12L-ICX2 delivers a balanced combination of compute density, storage capacity, and power redundancy in a standard rack form factor. Its design prioritizes both performance scalability and operational reliability for continuous deployment environments.
High-Density Storage
Twelve 3.5" drive bays provide substantial raw storage capacity for data-intensive applications, backups, or archival systems, with support for both SATA and SAS interfaces.
- 12x 3.5" bays
- SAS/SATA controller support
- 14 total expansion slots
Memory Scalability
Thirty-two DDR4 memory slots support up to 256 GB of system RAM, enabling large memory footprints for virtualization, databases, and in-memory processing workloads.
- 256 GB maximum
- 32 DIMM slots
- DDR4-3200 speed
Power Redundancy
Dual power supplies with 1.60 kW maximum capacity provide power failover protection, reducing single points of failure in critical server deployments.
- 2x power supplies
- 1.60 kW total
- 120/230V input
Deployment / Use Cases
This barebone server is engineered for environments where storage density and compute reliability are primary considerations. Its 2U form factor makes it suitable for standard rack installations in data centers, colocation facilities, and enterprise server rooms.
Typical deployments include storage servers for network-attached storage (NAS) or backup targets, virtualization hosts for consolidating multiple virtual machines, and application servers for database or file serving workloads. The extensive drive bay count supports both capacity-optimized and performance-tiered storage configurations.
Storage Server
Deploy as a dedicated storage node with twelve 3.5" drives for high-capacity file serving, backup repositories, or archival storage systems.
- 12 drive capacity
- SAS/SATA support
- Gigabit networking
Virtualization Host
Utilize the memory scalability and processor support to host multiple virtual machines for server consolidation, development environments, or test labs.
- 256 GB RAM support
- Xeon processor compatibility
- Dual PSU redundancy
Physical Profile
The server occupies a 2U rack space with dimensions of 3.43" (87 mm) height, 17.62" (447.60 mm) width, and 30.69" (779.50 mm) depth. This compact footprint maximizes rack density while providing sufficient internal volume for twelve 3.5" drives and dual power supplies.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2U, 17.62" (447.60 mm), 30.69" (779.50 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.62" (447.60 mm)
- Depth
- 30.69" (779.50 mm)
- Height
- 2U
Highlights
- LGA 4189 socket supports Intel Xeon Platinum, Gold, Silver, and Bronze processors
- Up to 256 GB DDR4-3200 memory across 32 DIMM slots
- Twelve 3.5" drive bays for high-capacity storage configurations
- Dual power supplies with 1.60 kW maximum capacity for redundancy
- Serial ATA/600 and SAS controllers for flexible storage connectivity
- Gigabit Ethernet for network communication
- 2U rack-mountable form factor for standard server rack compatibility
- Four USB ports including three USB 3.2 Gen 1 for peripheral connectivity
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASRock, Inc |
| Manufacturer Part Number | 2U12L-ICX2 |
| Brand Name | ASRock |
| Product Model | 2U12L-ICX2 |
| Product Name | 2U12L-ICX2 Barebone System |
| Product Type | Barebone System |
| Processor | |
| Processor Socket | Socket LGA-4189 |
| Processor Supported | Xeon Platinum,Xeon Gold,Xeon Silver,Xeon Bronze |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Memory | |
| Maximum Memory Supported | 256 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 32 |
| Intel Optane Memory Ready | Yes |
| Controllers | |
| Controller Type | Serial ATA/600,Serial Attached SCSI (SAS) |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 14 |
| Number of 3.5" Bays | 12 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 3 |
| Number of VGA Ports | 1 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1.60 kW |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.43" (87 mm) |
| Width | 17.62" (447.60 mm) |
| Depth | 30.69" (779.50 mm) |
User Manual
FAQ
What processors are compatible with this barebone server?
The ASRock 2U12L-ICX2 features an LGA 4189 socket that supports Intel Xeon Platinum, Xeon Gold, Xeon Silver, and Xeon Bronze processors. This compatibility provides a range of performance options from entry-level to high-end server CPUs for different workload requirements.
How much memory can this server support?
This barebone system supports up to 256 GB of DDR4 SDRAM across 32 memory slots. The memory standard is DDR4-3200/PC4-25600, and the platform is Intel Optane Memory Ready for potential future memory technology integration.
What storage configuration does this server support?
The server includes 14 total expansion bays with 12 dedicated to 3.5" drives. Storage connectivity is provided through both Serial ATA/600 and Serial Attached SCSI (SAS) controllers, supporting a mix of SATA and SAS drives for capacity or performance-optimized configurations.
What power supply configuration does this server have?
The system includes two installed power supplies with a maximum combined wattage of 1.60 kW. This dual power supply configuration provides redundancy, with each supply capable of operating on 120V AC or 230V AC input voltage.
What networking capabilities does this server provide?
The barebone server features Gigabit Ethernet for network connectivity. This provides sufficient bandwidth for most server applications, including file serving, virtualization management, and backup operations in enterprise environments.
What are the physical dimensions and rack requirements?
The server has a 2U rack height, measuring 3.43" (87 mm) in height, 17.62" (447.60 mm) in width, and 30.69" (779.50 mm) in depth. This standard 2U form factor fits in most server racks and provides balanced density for both compute and storage components.
