Asus RNUC14RVSU500001I NUC 14 Pro+ NUC14RVSu5 Barebone Mini PC - Intel Core Ultra 5125H 14th Gen - 96GB DDR5-5600 - 2x Thunderbolt 4 - 2.5GbE - WiFi 6
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The Asus NUC 14 Pro+ NUC14RVSu5 is a barebone mini PC system that delivers modern computing performance in an exceptionally compact footprint. Built around Intel's 14th Gen Core Ultra 5 125H processor with hybrid core architecture, this system is engineered for multitasking productivity, virtualization, and light AI workloads. Its barebone configuration means you add your own memory, storage, and operating system, providing flexibility to tailor the system to specific performance or budget requirements.
Designed for space-constrained environments, the NUC 14 Pro+ combines a sleek white chassis with a comprehensive port selection, including dual Thunderbolt 4 ports and 2.5 Gigabit Ethernet. It supports up to 96GB of high-speed DDR5 memory and dual NVMe storage drives, ensuring responsive performance for office applications, content creation, and digital signage deployments. The system's 120W power adapter and efficient thermal design maintain reliable operation in continuous-use scenarios.
Technical Overview
At the core of the NUC 14 Pro+ is the Intel Core Ultra 5 125H processor, a 14th Gen chip that integrates performance and efficiency cores alongside an AI Boost NPU for accelerated machine learning tasks. The processor's 64-bit architecture and Intel chipset provide a stable platform for Windows 11 or Linux operating systems. Memory support extends to 96GB across two DDR5-5600 (PC5-44800) SODIMM slots, offering substantial bandwidth for demanding applications.
Storage expansion is handled by two M.2 interfaces supporting NVMe drives, enabling fast boot times and rapid data access. Graphics are powered by Intel integrated graphics with shared DDR5 memory, sufficient for dual 4K display output through HDMI and Thunderbolt 4 ports. The system's 65W thermal design power is managed by an internal cooling solution that maintains acoustics and reliability under load.
Key Product Advantages
The NUC 14 Pro+ excels in environments where space efficiency, connectivity, and modern performance are critical. Its compact mini PC form factor reduces desk clutter while providing full desktop capabilities, making it ideal for digital signage, kiosks, and office workstations. The inclusion of dual Thunderbolt 4 ports offers high-speed data transfer, display connectivity, and peripheral daisy-chaining, a feature rarely found in systems this small.
High-Speed Connectivity
With 2.5 Gigabit Ethernet, WiFi 6, and Bluetooth 5.3, the system ensures reliable wired and wireless networking for bandwidth-intensive tasks and peripheral connectivity.
- 2.5GbE for fast file transfers
- WiFi 6 for congested wireless environments
- Bluetooth 5.3 for low-energy peripherals
Expandable Storage & Memory
Two DDR5 memory slots and dual M.2 NVMe interfaces allow significant performance tuning, whether prioritizing large memory capacity for virtualization or fast storage for application responsiveness.
- 96GB RAM for multitasking
- Dual NVMe drives for RAID configurations
- User-upgradeable components
Deployment / Use Cases
This barebone mini PC is versatile enough for commercial, educational, and home office deployments. Its small size and VESA mount compatibility make it perfect for behind-display installations in retail digital signage, interactive kiosks, or conference room displays. The robust port selection, including HDMI and Thunderbolt 4, supports multi-monitor setups for financial trading, design work, or control room environments.
For general office use, the system handles productivity suites, web conferencing, and departmental applications efficiently. Its support for Windows 11 and Linux allows IT departments to standardize on preferred operating systems, while the barebone nature reduces initial cost and e-waste by reusing existing storage and memory components. Light AI workloads, such as local inference for security cameras or data analysis scripts, benefit from the integrated NPU and processor AI capabilities.
Digital Signage & Kiosks
The compact, fan-cooled design and reliable operation suit 24/7 signage deployments in retail, hospitality, or corporate lobbies.
Office Workstation
Provides a tidy, under-desk computing solution for employees, with enough performance for multitasking and modern business applications.
Physical Profile
Encased in a sleek white chassis, the NUC 14 Pro+ measures just 1.61 inches tall, 5.67 inches wide, and 4.41 inches deep, with a weight of 1.76 pounds. This compact form factor allows placement in tight spaces, such as behind monitors, under desks, or mounted on walls using optional VESA brackets. The minimalist design blends into modern office or retail environments while providing adequate ventilation for sustained performance.

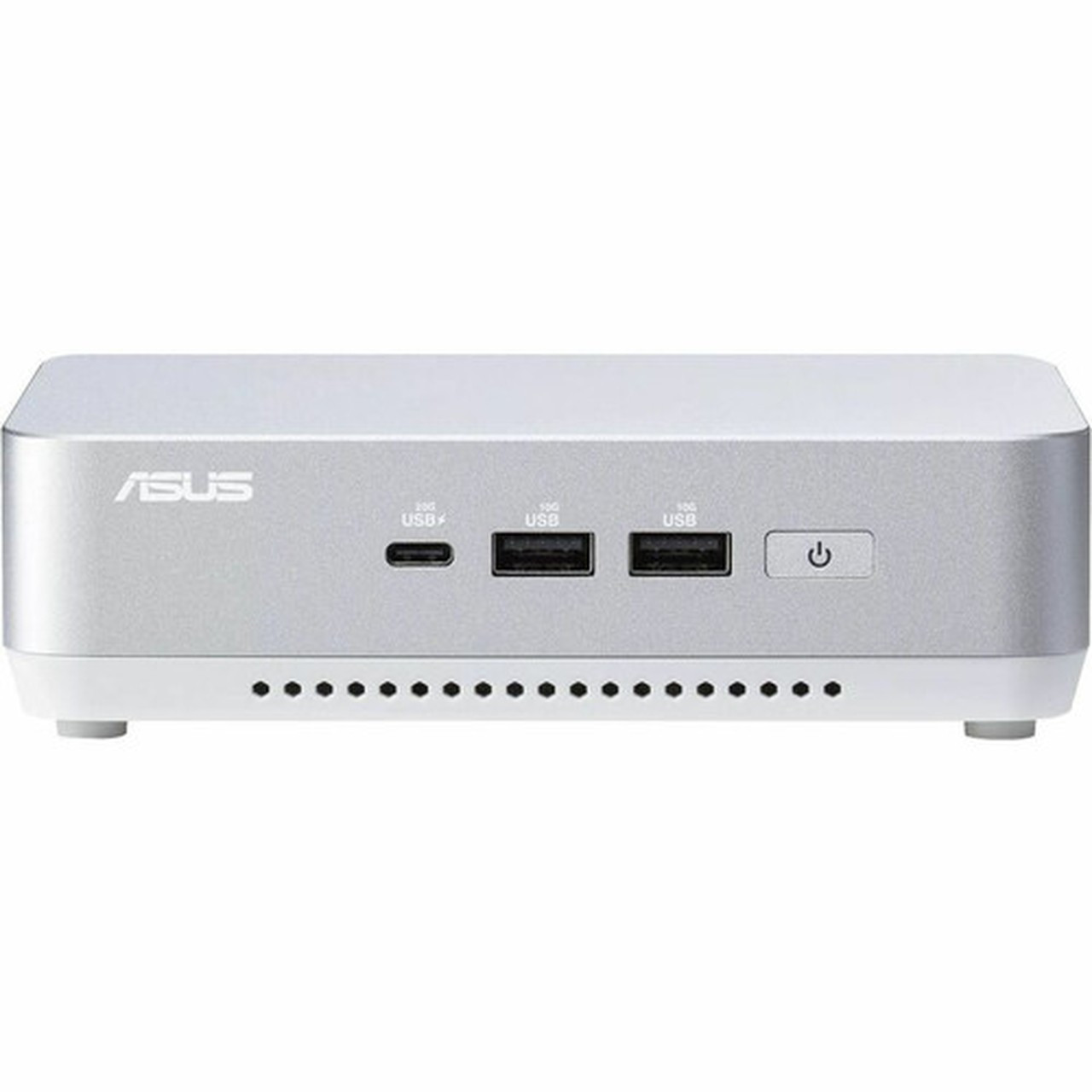

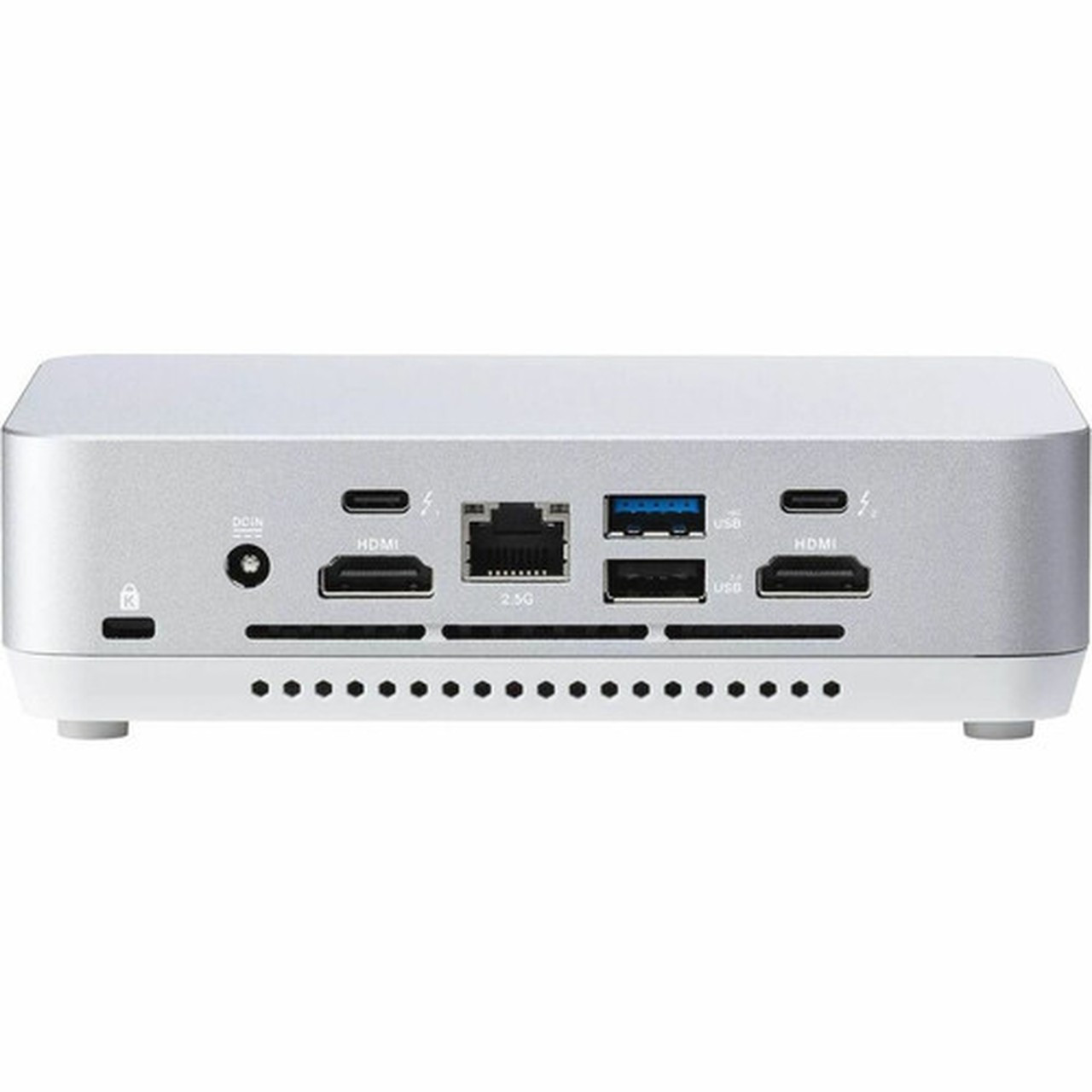

The front panel includes a USB 3.2 Gen2x2 Type-C port for high-speed peripheral connections, while the rear houses HDMI, Thunderbolt 4, USB 3.2 Gen 2, and 2.5GbE ports for permanent connectivity. The small footprint and lightweight construction enhance portability for mobile workstations or temporary deployment scenarios.
- Width
- 5.67" (144 mm)
- Depth
- 4.41" (112 mm)
- Height
- 1.61" (41 mm)
- Weight
- 1.76 lb (800 g)
What's in the Box
This barebone system includes the core components needed to build a complete mini PC, allowing you to add your preferred memory, storage, and operating system.
Highlights
- Intel Core Ultra 5 125H 14th Gen processor with 14-core hybrid architecture and AI acceleration
- Supports up to 96GB of DDR5-5600 memory across two user-accessible SODIMM slots
- Dual Thunderbolt 4 ports for high-speed data, video, and peripheral connectivity
- 2.5 Gigabit Ethernet, WiFi 6 (802.11ax), and Bluetooth 5.3 for comprehensive networking
- Two M.2 NVMe interfaces for fast storage expansion and RAID configurations
- Compact mini PC form factor in white, measuring just 1.61” H x 5.67” W x 4.41” D
- Supports Windows 11 and Linux operating systems for flexible deployment
- Includes 120W power adapter and is RoHS compliant for environmental safety
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | RNUC14RVSU500001I |
| Brand Name | Asus |
| Product Line | NUC 14 Pro+ |
| Product Model | NUC14RVSu5 |
| Product Name | NUC 14 Pro+ NUC14RVSu5 Barebone System |
| Product Type | Barebone System |
| Technical Information | |
| AI-powered | Yes |
| Processor | |
| Processor Type | Core Ultra 5 |
| Processor Generation | 14th Gen |
| Processor Model | 125H |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 96 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-5600/PC5-44800 |
| Total Number of Memory Slots | 2 |
| Controllers | |
| Controller Type | NVMe |
| Display & Graphics | |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| I/O Expansions | |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 5 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1 x USB 3.2 Gen2x2 Type C (20Gbps) |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of Thunderbolt 4 Ports | 2 |
| Operating System | |
| Operating System Supported | Windows 11,Linux |
| Power Description | |
| Maximum Power Supply Wattage | 120 W |
| Thermal Design Power | 65 W |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Form Factor | Mini PC |
| Height | 1.61" (41 mm) |
| Width | 5.67" (144 mm) |
| Depth | 4.41" (112 mm) |
| Weight (Approximate) | 1.76 lb (800 g) |
| Miscellaneous | |
| Package Contents | NUC 14 Pro+ NUC14RVSu5 Barebone System Power Adapter |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What components do I need to add to make this barebone system operational?
To complete the system, you must install DDR5 SO-DIMM memory (up to 96GB total across two slots), at least one M.2 NVMe solid-state drive for storage, and an operating system such as Windows 11 or a Linux distribution. The system does not include memory, storage, or an OS pre-installed, providing flexibility to choose components based on performance needs and budget.
What display outputs does this mini PC support?
The NUC 14 Pro+ provides display output through its HDMI port on the rear and its two Thunderbolt 4 ports, which also support DisplayPort Alt Mode. This allows connection to up to three external monitors simultaneously, with support for 4K resolution on each. The Thunderbolt 4 ports enable daisy-chaining of compatible monitors and peripherals.
Can this system handle light AI or machine learning tasks?
Yes, the Intel Core Ultra 5 125H processor includes an integrated Neural Processing Unit (NPU) designed to accelerate AI inference workloads. This makes the system suitable for light AI applications such as image recognition, voice processing, or local data analysis without requiring a discrete GPU. It is ideal for edge AI deployments in retail, security, or smart office environments.
What are the wired and wireless networking capabilities?
Wired networking is provided by a 2.5 Gigabit Ethernet port, offering higher bandwidth than standard Gigabit Ethernet for file transfers and network-intensive applications. Wireless connectivity includes WiFi 6 (802.11ax) for fast and reliable wireless networking in congested environments, along with Bluetooth 5.3 for connecting peripherals like keyboards, mice, and headsets with improved energy efficiency.
Is this mini PC suitable for 24/7 operation in digital signage?
Yes, the compact design, efficient cooling, and reliable Intel platform make it well-suited for continuous operation in digital signage, kiosk, or information display applications. Its small size allows for discreet mounting behind screens, and the 120W power supply ensures stable performance. Support for Windows 11 or Linux provides flexibility for signage software compatibility.
What expansion or upgrade options are available after purchase?
The system offers two DDR5 memory slots supporting up to 96GB total, allowing memory upgrades as needs grow. Two M.2 NVMe interfaces enable storage expansion, including adding a second drive for additional capacity or configuring RAID for performance or redundancy. The front USB 3.2 Gen2x2 Type-C port and rear Thunderbolt 4 ports provide high-speed external expansion for peripherals and storage enclosures.
