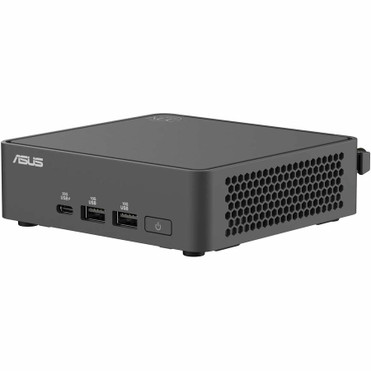

Asus RNUC15CRKC70000U NUC 15 Pro Barebone Mini PC - Intel Core 7240H - DDR5 Dual Slot - 2. 5GbE - Wi-Fi 7 - Thunderbolt 4
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This NUC 15 Pro model features a comprehensive I/O panel that includes 5 USB ports—3 of which are USB 3.2 Gen 2 Type-A and 1 front USB 3.2 Gen2x2 Type-C—alongside HDMI output and dual Thunderbolt 4 ports for high-speed data transfer and display connectivity. The 2.5 Gigabit Ethernet port ensures robust wired network performance, while Wi-Fi 7 (802.11be) and Bluetooth 5.4 provide advanced wireless capabilities.
The system's Intel chipset manages the Core 7 processor's AI acceleration features, which enhance performance in supported applications. The dual memory slots accept DDR5 modules, allowing configurations that balance capacity and speed. The compact chassis measures 4.61" wide by 4.41" deep, maintaining a minimal desktop footprint while accommodating the thermal design needed for sustained operation.
Relevant factors for this section include AI-powered, Processor Manufacturer, Processor Type, Processor Model. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The NUC 15 Pro excels in environments where compact size cannot compromise on connectivity or expansion options. Its combination of Thunderbolt 4, 2.5Gb Ethernet, and Wi-Fi 7 ensures that both wired and wireless network demands are met with contemporary bandwidth.
Modern Connectivity Suite
Dual Thunderbolt 4 ports support 40 Gbps data transfer, DisplayPort alternate mode, and power delivery, while Wi-Fi 7 offers multi-link operation for reduced latency and increased throughput compared to previous wireless standards.
- Thunderbolt 4 for high-speed peripherals
- Wi-Fi 7 for next-gen wireless
- 2.5GbE for network-intensive tasks
Expandable Storage Architecture
Two M.2 slots enable RAID configurations or separate boot and data drives, leveraging NVMe performance for fast system responsiveness and application loading times.
- Dual M.2 NVMe slots
- RAID 0/1 capable
- PCIe Gen 5 ready
Deployment / Use Cases
This barebone system is particularly effective in space-constrained commercial settings where full-sized desktops are impractical. Its small form factor allows mounting behind monitors, under desks, or in kiosk enclosures without sacrificing the connectivity needed for modern peripherals.
Common deployment scenarios include digital signage controllers in retail environments, compact workstations for office hot-desking, media centers for conference rooms, and edge computing nodes in distributed networks. The support for Windows 11 IoT makes it suitable for embedded applications where long-term stability and remote management are priorities.
Office & Productivity
The Core 7 processor and DDR5 memory handle office applications smoothly, while the multiple USB ports and Thunderbolt 4 connectivity support docking stations, external storage, and dual displays for enhanced productivity setups.
Digital Signage & Kiosks
The compact size and HDMI output make this system ideal for driving displays in retail, hospitality, or public information kiosks, with Wi-Fi 7 ensuring reliable content updates and network connectivity.
Physical Profile
The mini PC form factor measures 4.61" (117 mm) in width and 4.41" (112 mm) in depth, with a height that accommodates the cooling solution and internal components. The all-black finish provides a professional appearance that blends into office or commercial environments. The compact dimensions enable placement in locations where traditional desktop towers would be impractical, and the system can be oriented horizontally or vertically depending on mounting requirements.
- Width
- 4.61" (117 mm)
- Depth
- 4.41" (112 mm)
What's in the Box
The package includes the NUC 15 Pro RNUC15CRKC70000U barebone system chassis with internal board and cooling, plus an AC power adapter. Memory modules, storage drives, and operating system software must be purchased separately to complete the system.
Highlights
- Intel Core 7 240H processor with 64-bit architecture and AI acceleration
- DDR5 memory support across two expansion slots for up to 64GB configurations
- Dual M.2 NVMe slots for high-speed PCIe Gen 5 storage
- 2.5 Gigabit Ethernet port for high-bandwidth wired networking
- Wi-Fi 7 (802.11be) and Bluetooth 5.4 for advanced wireless connectivity
- Two Thunderbolt 4 ports supporting 40Gbps data transfer and DisplayPort
- Five total USB ports including USB 3.2 Gen2x2 Type-C front port
- Compact mini PC form factor measuring 4.61" × 4.41" footprint
- Supports Windows 11, Linux distributions, and Windows 11 IoT
- RoHS compliant construction with black finish
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | RNUC15CRKC70000U |
| Brand Name | Asus |
| Product Line | NUC 15 Pro |
| Product Model | RNUC15CRKC70000U |
| Product Name | NUC 15 Pro RNUC15CRKC70000U Barebone System |
| Product Type | Barebone System |
| Technical Information | |
| AI-powered | Yes |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core 7 |
| Processor Model | 240H |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 2 |
| Controllers | |
| Controller Type | NVMe |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11be |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.4 |
| I/O Expansions | |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 5 |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1 x USB 3.2 Gen2x2 Type-C |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of Thunderbolt 4 Ports | 2 |
| Operating System | |
| Operating System Supported | Windows 11 Home,Windows 11 Pro,Red Hat Enterprise Linux,Ubuntu,Windows 11 IoT |
| Power Description | |
| Maximum Power Supply Wattage | 120 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Mini PC |
| Width | 4.61" (117 mm) |
| Depth | 4.41" (112 mm) |
| Miscellaneous | |
| Package Contents | NUC 15 Pro RNUC15CRKC70000U Barebone System AC Adapter |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What components do I need to add to make this barebone system operational?
To complete this Asus NUC 15 Pro barebone system, you will need to install DDR5 memory modules in the two available slots, add one or two M.2 NVMe storage drives, and install your preferred operating system. The system does not include memory, storage, or pre-installed software, giving you full control over component selection and configuration.
What operating systems are supported by this NUC 15 Pro model?
This barebone system supports Windows 11 Home, Windows 11 Pro, Red Hat Enterprise Linux, Ubuntu, and Windows 11 IoT. The broad compatibility allows deployment in various environments from general office computing to specialized embedded applications. You will need to purchase and install the operating system separately as it is not included with the hardware.
How many display outputs does this mini PC support?
The system includes HDMI output on the rear panel and supports DisplayPort alternate mode through the two Thunderbolt 4 ports. This configuration allows for multiple display setups, with Thunderbolt 4 ports capable of driving high-resolution monitors while also providing data transfer and power delivery capabilities.
What are the advantages of the Wi-Fi 7 connectivity in this system?
Wi-Fi 7 (802.11be) offers significant improvements over previous wireless standards, including higher throughput, reduced latency through multi-link operation, and better performance in congested network environments. This makes the system well-suited for applications requiring reliable wireless connectivity in offices, retail spaces, or other commercial settings where wired connections may be impractical.
Can this NUC 15 Pro be mounted in different orientations?
Yes, the compact chassis can be positioned horizontally on a desk or mounted vertically using optional VESA mounts. The small footprint of 4.61" × 4.41" makes it suitable for placement behind monitors, under desks, or in kiosk enclosures. The thermal design maintains proper cooling in either orientation for sustained operation.
What is the power consumption of this barebone system?
The system includes a 120-watt maximum power supply that provides sufficient capacity for the Core 7 processor, memory, storage, and connected peripherals. Actual power consumption will vary based on the specific components installed and system workload, but the efficient design and modern components typically result in lower power usage compared to traditional desktop systems.
