Asus NVIDIA GeForce RTX 3060 Graphic Card - 8 GB GDDR6 - 7680 x 4320 - 1.81 GHz Boost Clock - 128 bit Bus Width - PCI Express 4.0 - - (DUAL-RTX3060-8G-WHITE)

Marketing Information:

ASUS Dual GeForce RTXTM 3060 White Edition 8GB GDDR6 with two powerful Axial-tech fans and a 2-slot design for broad compatibility

• NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world's fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
• 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
• 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
• Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
• A 2-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis.
• 0dB Technology lets you enjoy light gaming in relative silence.
• Dual ball fan bearings can last up to twice as long as sleeve bearing designs.

DUAL

Featuring the latest NVIDIA® Ampere architecture, ASUS Dual GeForce RTX™ 3060 fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards - including two Axial-tech fans for maximizing airflow to the heatsink - are packed into the 20 cm long, 2-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

COOLING

• Axial-tech
  Fan Design
• 0dB
  Technology
• Dual Ball
  Fan Bearings
• 2-slot Design

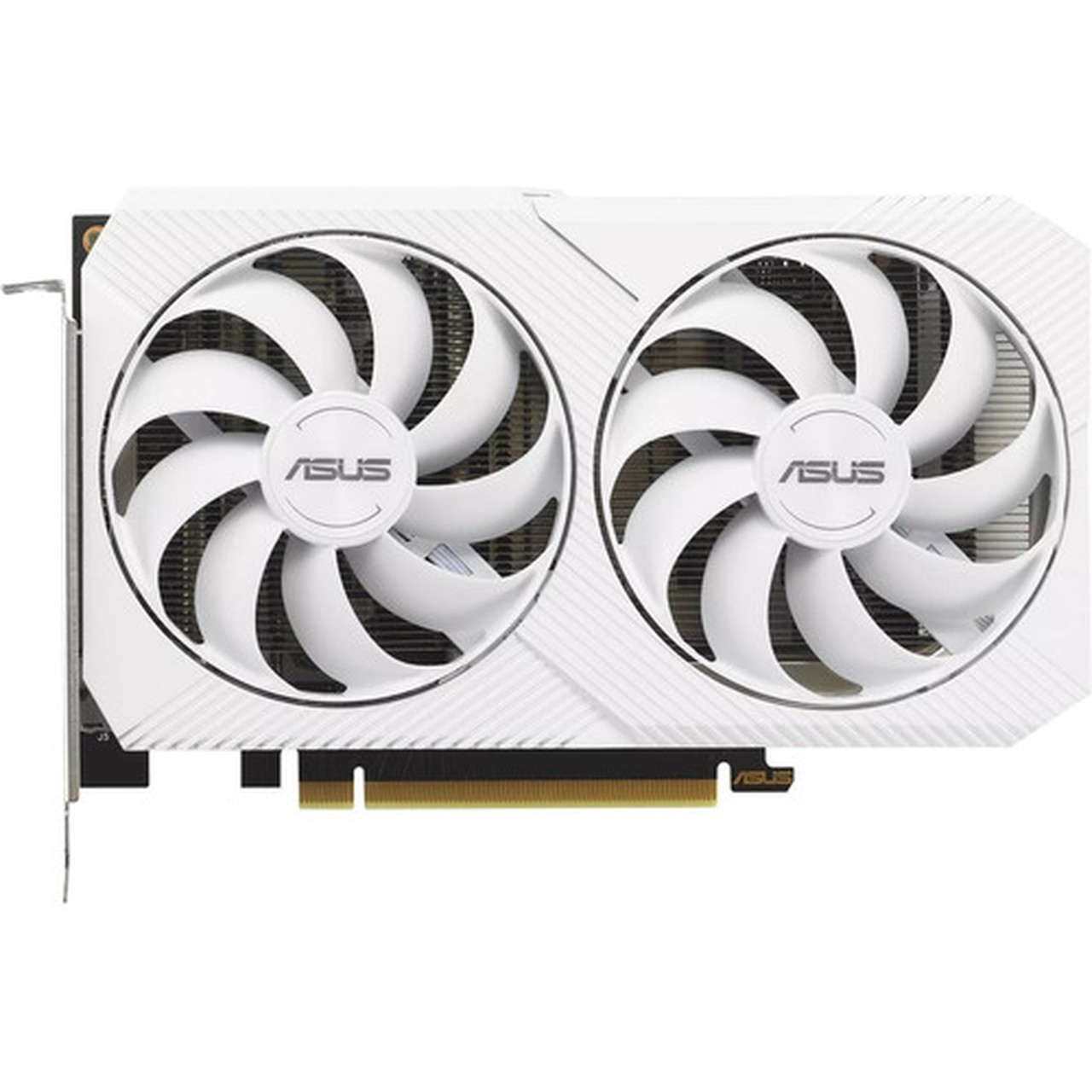

Axial-tech Fan Design Better, faster, stronger

Two tried-and-true Axial-tech fans feature a smaller hub that facilitates long

ENGINEERING

• Auto-Extreme
  Technology

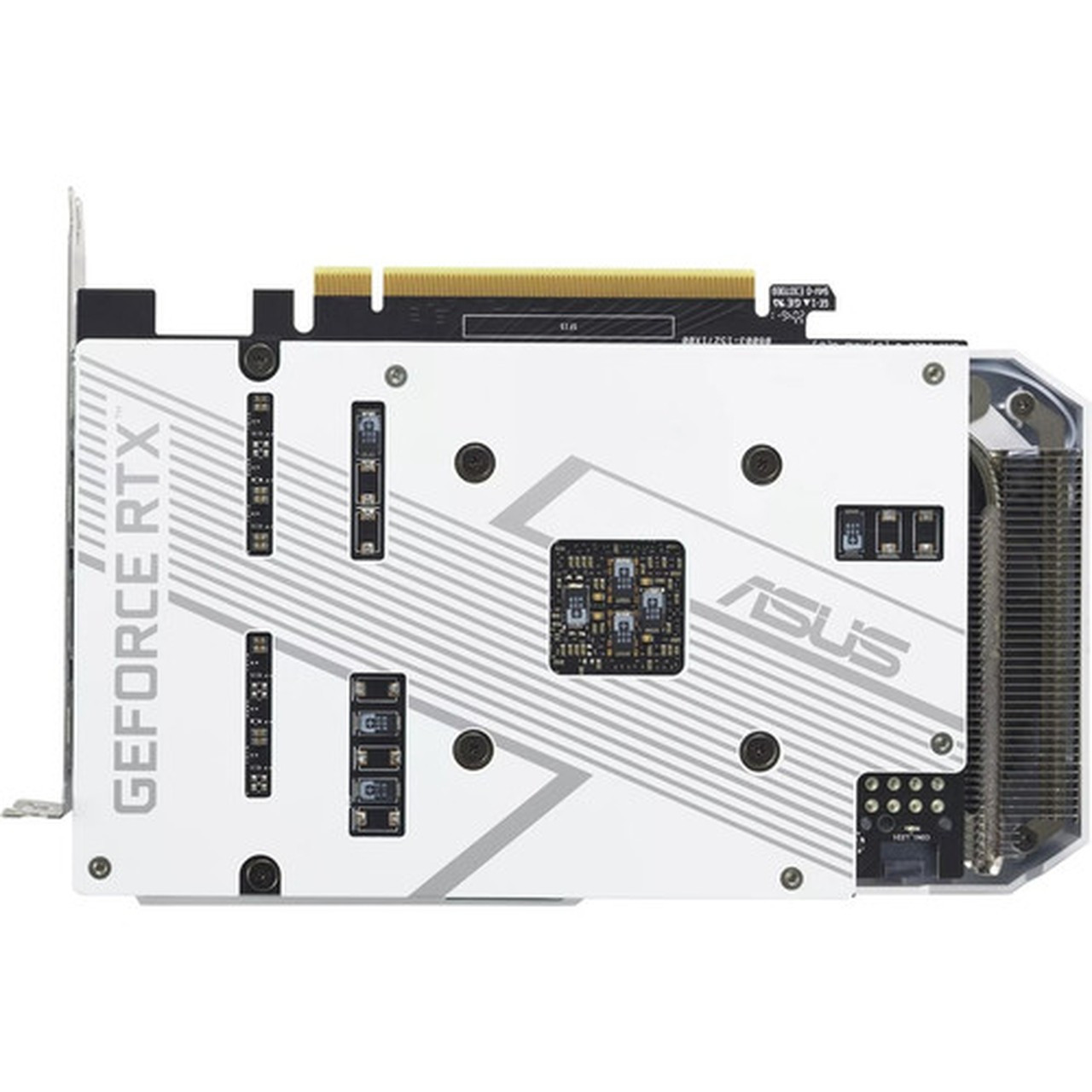

• Protective
  Backplate
• Stainless Steel
  Bracket

Auto-Extreme Technology Precision automated manufacturing

Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall

SOFTWARE

• GPU TWEAK III
• XSplit
• QuantumCloud

GPU TWEAK III Monitor, tweak, and tune

ASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card.

More from the Manufacturer

API Supported: OpenGL 4.6,DirectX 12 Ultimate

Number of Monitors Supported: 4

Maximum Digital Display Resolution: 7680 x 4320

CUDA Cores: 3584

Chipset Manufacturer: NVIDIA

Chipset Line: GeForce

Chipset Series: RTX

Chipset Model: RTX 3060

GPU Boost Clock: 1.81 GHz

Standard Memory: 8 GB

Memory Technology: GDDR6

Bus Width: 128 bit

Host Interface: PCI Express 4.0

DisplayPort: Yes

Number of DisplayPort Outputs: 3

HDMI: Yes

Number of HDMI Outputs: 1

Power Supply Wattage: 650 W

Power Connector: 1x 8-pin

Slot Space Required: Dual

Form Factor: Plug-in Card

Cooler Type: Fan Cooler

Height: 1.50" (38 mm)

Width: 4.84" (123 mm)

Length: 7.87" (200 mm)

Package Contents:

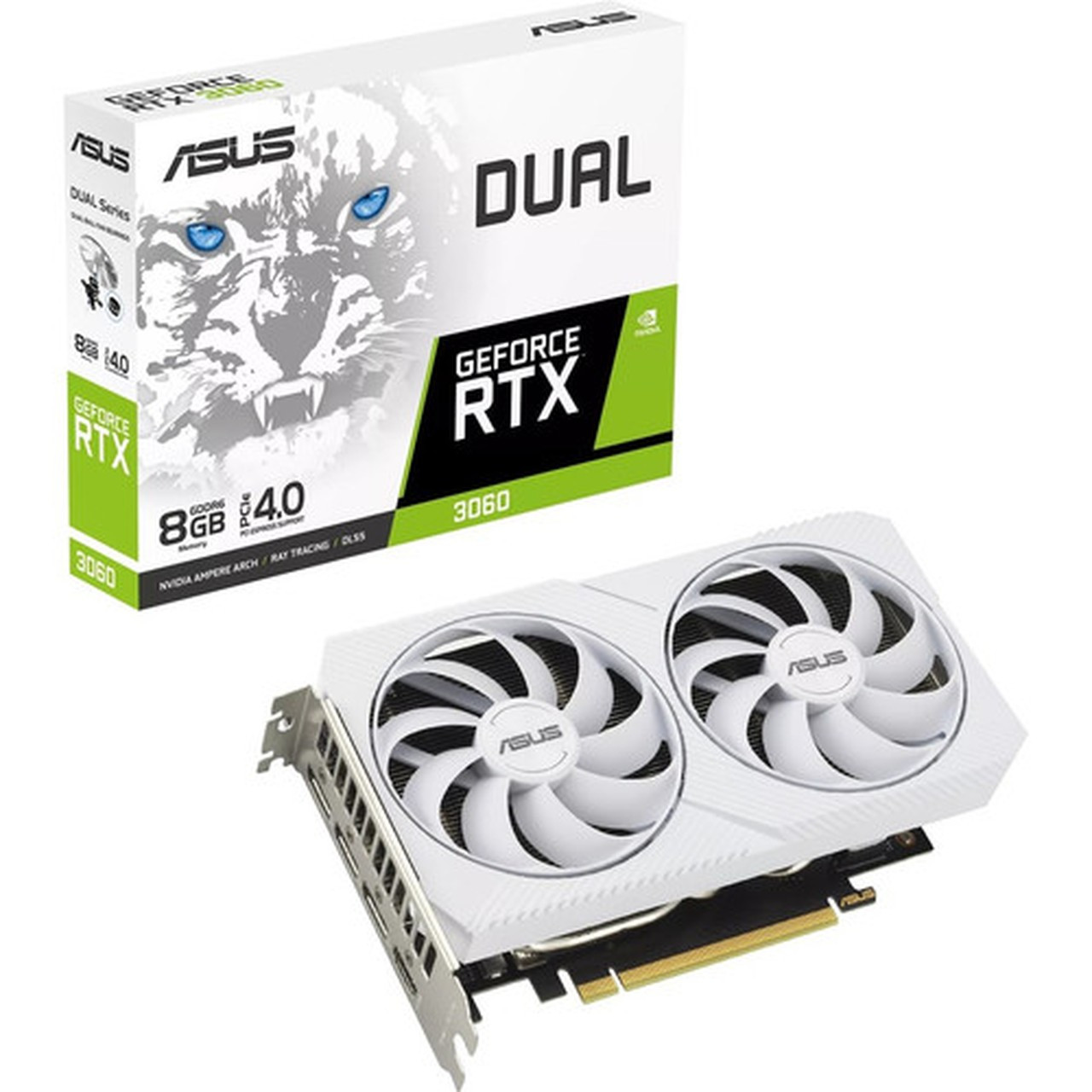

• Dual GeForce RTX 3060 White Edition 8GB GDDR6 Graphic Card
• 1 x Collection card
• 1 x Speedsetup manual

Platform Supported: PC

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 36 Month
