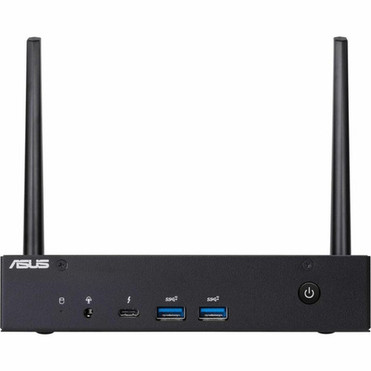

Asus 90MR00P1-M00030 PL63-BB5000XT-O Barebone Mini PC - Intel Core i3/i5/i7 Ready - 64 GB DDR4-3200 RAM - NVMe SSD - 2. 5GbE - Windows 10/11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This barebone system is built around Intel's 11th Gen Core processor platform, supporting 64-bit processing and Intel Dynamic Tuning Technology for automated performance optimization. The integrated Intel Iris Xe Graphics provides capable visual output for up to four simultaneous displays via HDMI and other supported interfaces.
Connectivity includes 2.5 Gigabit Ethernet for high-speed wired networking, dual Thunderbolt 4 ports with Power Delivery input, four USB 3.2 Gen 2 ports, and integrated Wi-Fi with Bluetooth 5.0. The system is validated for Windows 10 Pro and Windows 11 Pro operating systems.
Relevant factors for this section include Processor Supported, 64-bit Processing, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The PL63-BB5000XT-O combines enterprise-grade reliability with the flexibility of a barebone configuration. Its compact design and comprehensive connectivity make it suitable for space-constrained deployments where performance and durability are essential.
Reliability & Support
Part of the ASUS Corporate Stable Model program with a 36-month stable-supply guarantee and extensive 24/7 reliability testing for long-term dependability in commercial environments.
- 36-month supply guarantee
- 24/7 reliability tested
- Commercial-grade components
Modern Connectivity
Features dual Thunderbolt 4 ports with Power Delivery input, 2.5 Gigabit Ethernet, and Bluetooth 5.0 for connecting peripherals, displays, and networks at high speeds.
- Thunderbolt 4 with PD
- 2.5 GbE networking
- Bluetooth 5.0
Deployment / Use Cases
The PL63-BB5000XT-O's compact footprint and flexible configuration options make it ideal for various business and industrial applications. Its small form factor allows for discreet placement in retail environments, office workstations, or mounted behind displays.
Common deployment scenarios include digital signage controllers, point-of-sale systems, thin client replacements, kiosk computers, and general office productivity workstations. The system's support for multiple displays and fast connectivity enables efficient multitasking and content delivery.
Relevant factors for this section include Processor Supported, 64-bit Processing, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Digital Signage & Kiosks
With support for up to four displays and compact dimensions, this mini PC can drive multiple screens for advertising, wayfinding, or interactive kiosk applications.
Office Workstations
Configure with appropriate processor, memory, and storage for responsive office productivity, video conferencing, and business application performance.
Physical Profile
Measuring just 1.33" × 6.54" × 4.71" (33.9 × 166.2 × 119.7 mm) and weighing approximately 1.54 lb (700 g), the PL63-BB5000XT-O occupies minimal space while providing full computing capabilities. The black metal chassis offers durability and professional appearance suitable for various environments.
The compact 0.67-liter design supports VESA mounting for display attachment or discreet placement. The small footprint makes it ideal for space-constrained deployments where traditional desktop systems would be impractical.
- Width
- 6.54" (166.20 mm)
- Depth
- 4.71" (119.70 mm)
- Height
- 1.33" (33.90 mm)
- Weight
- 1.54 lb (700 g)
What's in the Box
This barebone system package includes the essential components needed to begin your configuration.
Package contents include PL63-BB5000XT-O Barebone System Power Adapter, PL63-BB5000XT-O Barebone System. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Supports Intel Core i3, i5, or i7 processors (11th Gen)
- Up to 64 GB DDR4-3200 memory capacity
- NVMe PCIe Gen 4 M.2 SSD support for fast storage
- Intel Iris Xe Graphics with 4-display capability
- 2.5 Gigabit Ethernet and dual Thunderbolt 4 ports
- Compact 0.67L metal chassis (1.33" × 6.54" × 4.71")
- Validated for Windows 10 Pro and Windows 11 Pro
- ASUS Corporate Stable Model with 36-month supply guarantee
- Energy Star compliant and RoHS environmental compliance
- Wi-Fi and Bluetooth 5.0 wireless connectivity
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | 90MR00P1M00030 |
| Brand Name | Asus |
| Product Series | PL63 |
| Product Model | PL63-BB5000XT-O |
| Product Name | PL63-BB5000XT-O Barebone System |
| Product Type | Barebone System |
| Processor | |
| Processor Supported | Core i3,Core i5,Core i7 |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Controllers | |
| Controller Type | NVMe |
| Display & Graphics | |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.0 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Number of USB 3.2 Gen 2 Ports | 4 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Operating System | |
| Operating System Supported | Windows 10 Pro,Windows 11 |
| Power Description | |
| Maximum Power Supply Wattage | 90 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Mini PC |
| Height | 1.33" (33.90 mm) |
| Width | 6.54" (166.20 mm) |
| Depth | 4.71" (119.70 mm) |
| Weight (Approximate) | 1.54 lb (700 g) |
| Miscellaneous | |
| Package Contents | PL63-BB5000XT-O Barebone System Power Adapter |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What processors are compatible with this barebone system?
The PL63-BB5000XT-O supports 11th Generation Intel Core i3, Core i5, and Core i7 processors. You will need to separately purchase and install a compatible CPU along with appropriate cooling solution to complete the system configuration.
How much memory can this mini PC support?
This system supports up to 64 GB of DDR4-3200 (PC4-25600) SDRAM. The memory operates at 3200 MHz speed and uses standard DDR4 modules that you install separately based on your performance requirements and budget.
What type of storage does this system use?
The PL63-BB5000XT-O includes an NVMe (Non-Volatile Memory Express) controller supporting PCIe Gen 4 x4 M.2 SSDs. This interface provides significantly faster data transfer speeds compared to SATA SSDs, reducing application load times and improving system responsiveness.
What operating systems are supported?
This barebone system is validated for both Windows 10 Pro and Windows 11 Pro operating systems. You will need to separately purchase and install your preferred Windows license. The hardware supports 64-bit processing and includes necessary drivers for the Intel platform components.
What connectivity options are available?
Connectivity includes 2.5 Gigabit Ethernet for high-speed wired networking, dual Thunderbolt 4 ports with Power Delivery input, four USB 3.2 Gen 2 ports, integrated Wi-Fi, and Bluetooth 5.0. The system also supports HDMI output and can drive up to four simultaneous displays.
Is this system suitable for commercial deployment?
Yes, the PL63-BB5000XT-O is designed for commercial and industrial environments. It's part of the ASUS Corporate Stable Model program with a 36-month stable-supply guarantee and has undergone extensive reliability testing for 24/7 operation. The compact metal chassis and comprehensive connectivity make it suitable for digital signage, kiosks, office workstations, and other business applications.
