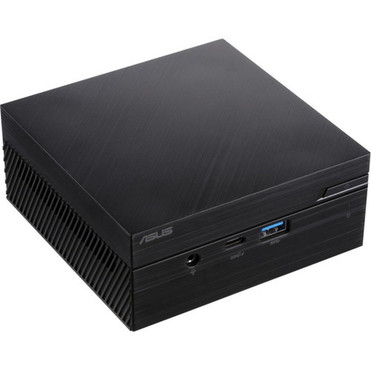

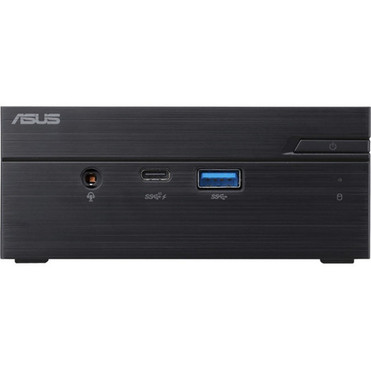

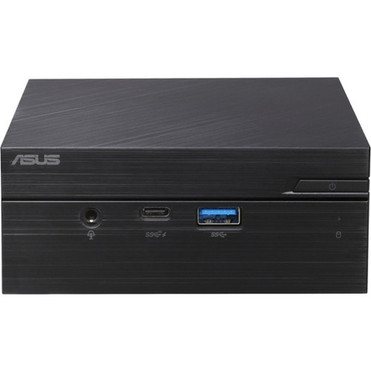

Asus 90MR00I3-M001T0 PN41-BBF5000ATL Barebone Mini PC - Celeron N5100 1. 10 GHz - DDR4-3200 - 2. 5GbE - Wi-Fi 6 - 7x USB - Mini PC Form Factor
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the PN41-BBF5000ATL is Intel's Celeron N5100 processor, a quad-core chip with a base frequency of 1.10 GHz that can boost to 2.80 GHz under load. This 11th generation processor integrates Intel UHD Graphics with shared DDR4 memory architecture, providing sufficient graphical capability for office applications and media playback.
The system's connectivity suite includes modern networking technologies with 2.5 Gigabit Ethernet for wired connections and Wi-Fi 6 (802.11ax) for wireless networking. Bluetooth 5.2 support enables energy-efficient connections to peripherals. Seven USB ports provide extensive peripheral connectivity, including three Type-C ports with quick charging capability and DisplayPort output functionality.
Relevant factors for this section include Processor Type, Processor Generation, Processor Model, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The PN41-BBF5000ATL combines compact dimensions with versatile connectivity options, making it suitable for space-constrained environments where both wired and wireless connectivity are required. The system's barebone approach allows IT departments to configure memory and storage according to specific application requirements rather than accepting pre-configured limitations.
Modern Connectivity
With 2.5GbE, Wi-Fi 6, and Bluetooth 5.2, this system supports current networking standards for both wired and wireless environments.
- 2.5 Gigabit Ethernet for high-speed wired networking
- Wi-Fi 6 (802.11ax) for improved wireless performance
- Bluetooth 5.2 for energy-efficient peripheral connections
Flexible Configuration
The barebone design allows customization of memory capacity, storage type and capacity, and operating system selection.
- Supports DDR4-3200 memory modules
- Accepts both SATA and NVMe storage devices
- User-installed operating system flexibility
Deployment / Use Cases
This mini PC excels in environments where space efficiency and quiet operation are priorities. The compact 1.93-inch profile allows installation in areas where traditional desktop systems would be impractical, including behind monitors, under desks, or in retail kiosk enclosures.
Typical deployment scenarios include digital signage displays, point-of-sale systems, thin client implementations, and office productivity workstations. The system's 65W power supply contributes to energy efficiency in always-on applications, while RoHS compliance ensures environmentally responsible manufacturing standards.
Relevant factors for this section include Processor Type, Processor Generation, Processor Model, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Office Productivity
Ideal for general office applications, web browsing, and document processing with sufficient performance for daily business tasks.
Digital Signage
Compact size and HDMI/DisplayPort outputs make this system suitable for driving digital displays in retail, corporate, or hospitality environments.
Physical Profile
Measuring just 1.93 inches in height with a 4.53-inch square footprint, the PN41-BBF5000ATL occupies minimal desk or mounting space. The mini PC form factor supports VESA mounting options for display attachment, further reducing the system's physical presence in workspace environments. The compact design does not compromise connectivity, with ports distributed across front and rear panels for convenient access.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.93" (49 mm), 4.53" (115 mm), 4.53" (115 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 4.53" (115 mm)
- Depth
- 4.53" (115 mm)
- Height
- 1.93" (49 mm)
What's in the Box
The barebone system ships with the necessary components to begin configuration and deployment.
Package contents include PN41-BBF5000ATL Barebone System Power Adapter, PN41-BBF5000ATL Barebone System. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Intel Celeron N5100 processor (11th Gen) with 1.10 GHz base frequency, 2.80 GHz turbo
- Supports DDR4-3200 memory for responsive system performance
- 2.5 Gigabit Ethernet and Wi-Fi 6 (802.11ax) for versatile networking options
- Seven USB ports including three Type-C with quick charging capability
- Compact mini PC form factor measuring 1.93" × 4.53" × 4.53"
- HDMI and DisplayPort over USB-C video output options
- Bluetooth 5.2 for wireless peripheral connectivity
- Energy Star certified for energy-efficient operation
- RoHS compliant for environmentally responsible manufacturing
- Barebone configuration allows memory, storage, and OS customization
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | 90MR00I3M001T0 |
| Brand Name | Asus |
| Product Series | PN41 |
| Product Model | PN41-BBF5000ATL |
| Product Name | PN41-BBF5000ATL Barebone System |
| Product Type | Barebone System |
| Processor | |
| Processor Type | Celeron |
| Processor Generation | 11th Gen |
| Processor Model | N5100 |
| Processor Speed | 1.10 GHz |
| Maximum Turbo Speed | 2.80 GHz |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Controllers | |
| Controller Type | Serial ATA,NVMe |
| Display & Graphics | |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| I/O Expansions | |
| Number of M.2 Interfaces | 1 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 7 |
| Number of USB 3.1 Gen 1 Ports | 4 |
| USB Type-C (Front) | Yes |
| USB Type-C (Rear) | Yes |
| USB Type-C Detail | 2 x USB 3.2 Gen2 Type-C (w/ quick charge); 1 x USB 3.2 Gen1 Type-C (w/ DP output) |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Supply Wattage | 65 W |
| Physical Characteristics | |
| Form Factor | Mini PC |
| Height | 1.93" (49 mm) |
| Width | 4.53" (115 mm) |
| Depth | 4.53" (115 mm) |
| Miscellaneous | |
| Package Contents | PN41-BBF5000ATL Barebone System Power Adapter |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What components do I need to add to make this barebone system operational?
The PN41-BBF5000ATL requires DDR4 memory modules, a storage device (either SATA or NVMe), and an operating system to become fully functional. The system supports standard DDR4-3200 memory and includes both Serial ATA and NVMe storage controller interfaces for flexibility in component selection based on performance requirements and budget.
What type of memory does this system support?
This barebone system supports DDR4 SDRAM memory modules that comply with the DDR4-3200/PC4-25600 standard. The memory configuration must be selected and installed by the user, allowing customization of capacity based on specific application requirements while ensuring compatibility with the system's memory controller.
What networking capabilities does this mini PC include?
The system features 2.5 Gigabit Ethernet for wired networking, providing higher bandwidth than standard Gigabit Ethernet. Wireless connectivity includes Wi-Fi 6 (802.11ax) for improved wireless performance and Bluetooth 5.2 for connecting peripherals like keyboards, mice, and audio devices with energy-efficient data transfer.
How many USB ports are available and what types?
There are seven USB ports total: four USB 3.1 Gen1 ports and three USB Type-C ports. The Type-C ports include two USB 3.2 Gen2 ports with quick charging capability and one USB 3.2 Gen1 port that supports DisplayPort output for connecting monitors or displays.
Can this system be mounted behind a monitor or in tight spaces?
Yes, the compact dimensions of 1.93" × 4.53" × 4.53" make this system ideal for space-constrained installations. The mini PC form factor supports VESA mounting options, allowing the system to be attached directly to compatible monitor mounts or wall brackets, further reducing its footprint in workspace environments.
What video output options does this system provide?
Video output is available through an HDMI port on the rear panel and DisplayPort functionality via one of the USB Type-C ports. This dual-output capability supports connecting multiple displays or provides flexibility in display connection types based on monitor compatibility and available cables.
