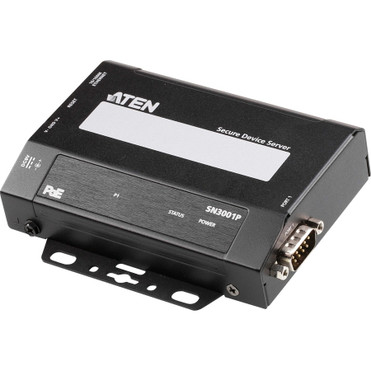

ATEN SN3001P 1-Port RS-232 Secure Device Server with PoE - Twisted Pair - 1 x Network (RJ-45) - 1 x Serial Port - PoE Ports - - Fast - (SN3001P)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- SN3001P 1-Port RS-232 Secure Device Server with PoE
- DC Terminal Connector
- 4 x Foot Pad Set
- DIN Rail Mount Kit
Media Type Supported: Twisted Pair
Ethernet Technology: Fast Ethernet
Network Standard: 10/100Base-TX
Network (RJ-45): Yes
Serial Port: Yes
PoE (RJ-45) Port: Yes
Number of Network (RJ-45) Ports: 1
Number of Serial Ports: 1
Input Voltage: 9 V DC
Power Consumption: 0.98 W
Plug/Connector Type: Terminal Block (3 Wire)
Form Factor: Desktop,Wall Mountable,DIN Rail Mountable,Rack-mountable
Height: 1.02" (26 mm)
Width: 4.61" (117 mm)
Depth: 3.86" (98 mm)
Weight (Approximate): 7.41 oz (210 g)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- 1 RS-232 serial port for secured serial data over Ethernet transmission
- Secured operation modes - Secure Real COM, Secure TCP Server / Client, Secure Serial Tunneling Server / Client, Console Management (SSH), and Console Management Direct (SSH)

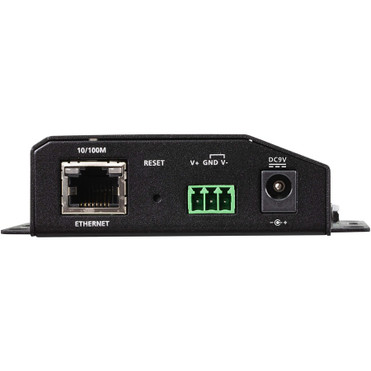

- Redundant power input (power jack and terminal block) for fail-safe power; IEEE 802.3af-compliant PoE power device equipment
- Surge protection for serial, Ethernet, and power
[custom-specifications]
| Specifications | |
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | SN3001P |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Brand Name | ATEN |
| Product Line | Altusen |
| Product Series | SN3000 |
| Product Model | SN3001P |
| Product Name | SN3001P 1-Port RS-232 Secure Device Server with PoE |
| Product Type | Device Server |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Standard | 10/100Base-TX |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| PoE (RJ-45) Port | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of Serial Ports | 1 |
| Power Description | |
| Input Voltage | 9 V DC |
| Power Consumption | 0.98 W |
| Plug/Connector Type | Terminal Block (3 Wire) |
| Physical Characteristics | |
| Form Factor | Desktop,Wall Mountable,DIN Rail Mountable,Rack-mountable |
| Height | 1.02" (26 mm) |
| Width | 4.61" (117 mm) |
| Depth | 3.86" (98 mm) |
| Weight (Approximate) | 7.41 oz (210 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
