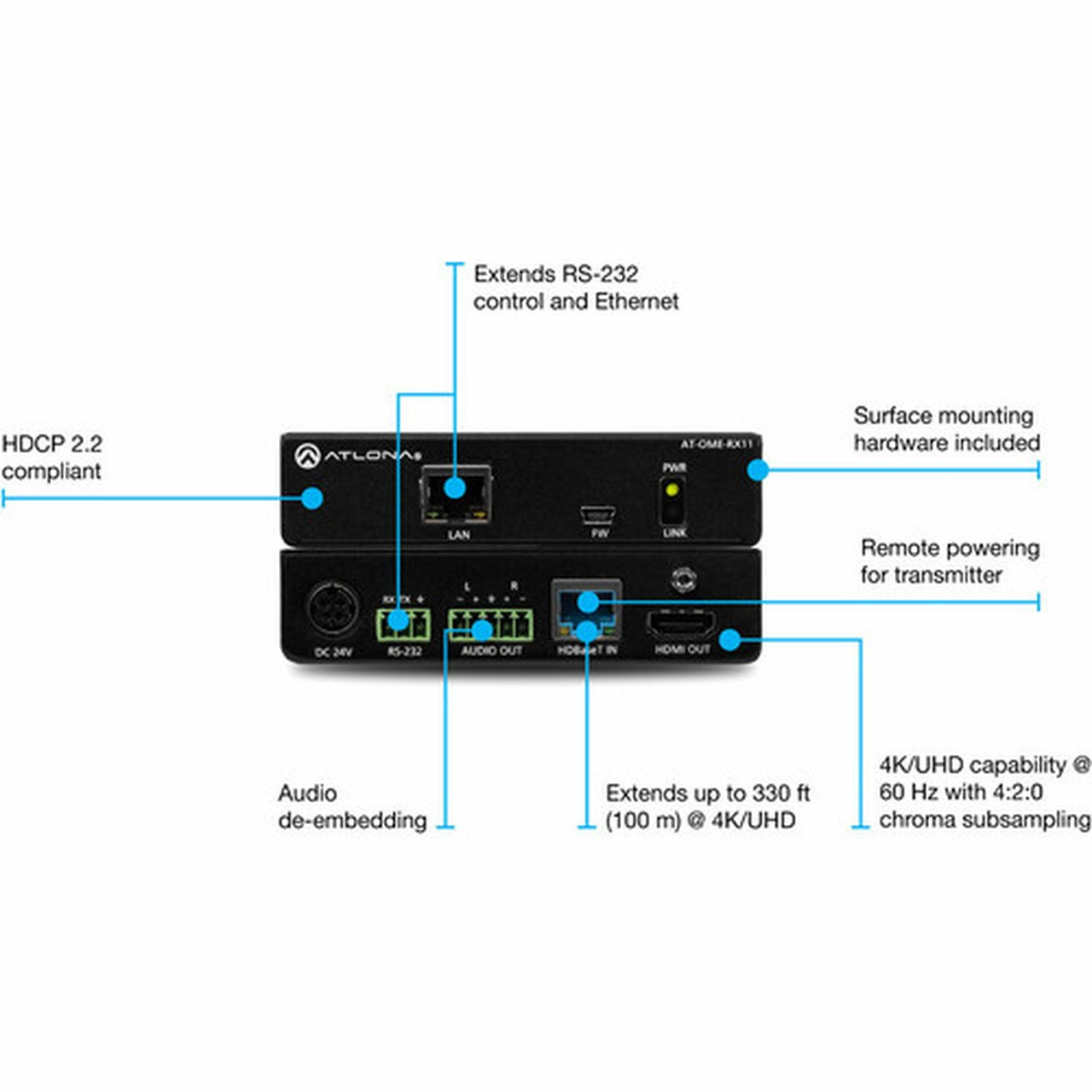

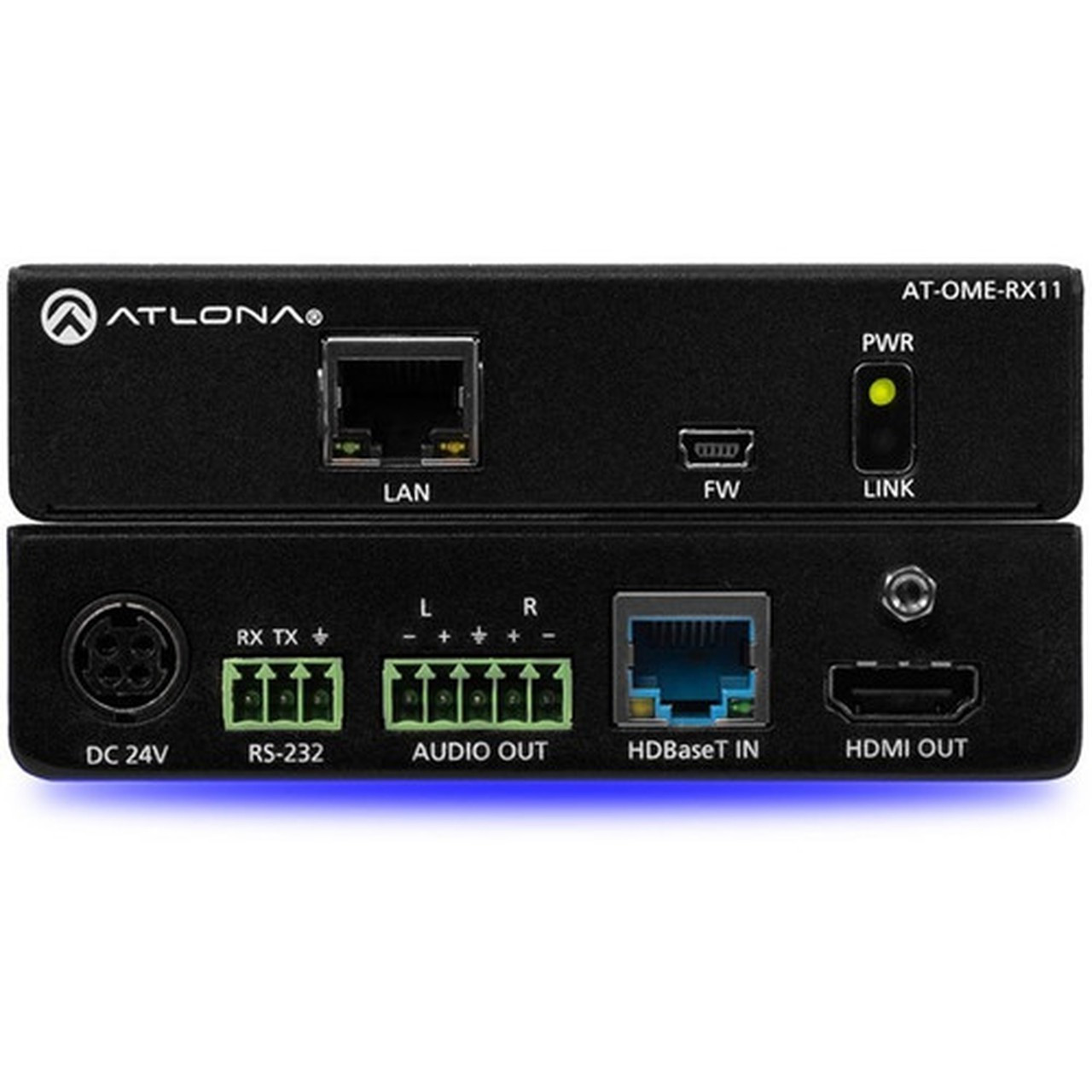

Marketing Information: The Atlona AT-OME-RX11 is an HDBaseT receiver for video up to 4K/60 4:2:0, plus embedded audio, control, and Ethernet over distances up to 330 feet (100 meters). Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-RX11 is HDCP 2.2 compliant and receives RS-232 and IP control signals. Additionally, this receiver features two-channel audio de-embedding to a balanced analog audio output. The OME-RX11 is locally powered, and can deliver Power over Ethernet (PoE) over HDBaseT to an Atlona Omega Series, HDVS-200 Series, or AT-UHD-EX-100CE-TX-PD transmitter.
The OME-RX11 incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation applications. The Ethernet port on the OME-RX11 is for IP pass-through with the transmitter.
Applications
- Complete system integration - The OME-RX11 and an Omega Series switcher together provide a comprehensive and cost-effective integration solution for meeting rooms and other AV presentation spaces.
- Video conferencing and interactive displays - The OME-RX11 offers a new option for legacy Atlona transmitters and switchers with HDBaseT outputs, to provide audio de-embedding for feeding into an amplifier and speakers.
Connectivity Technology: WiredNumber of Output Devices Supported: 1Maximum Operating Distance: 330 ft (100584 mm)Graphics Modes: 4KMaximum Video Resolution: 4096 x 2160Network (RJ-45): YesHDMI Out: YesUSB: YesNumber of Network (RJ-45) Ports: 2Number of USB Ports: 1Number of HDMI Outputs: 1Media Type Supported: Twisted PairReceiver Height: 1.02" (25.91 mm)Receiver Width: 4.29" (108.97 mm)Receiver Depth: 5.24" (133.10 mm)Receiver Weight (Approximate): 410 gLimited Warranty: 10 Year
[custom-specifications]
Specifications
Manufacturer: Atlona Technologies
Manufacturer Part Number: AT-OME-RX11
Manufacturer Website Address: http://www.atlona.com
Brand Name: Atlona
Product Line: Omega
Product Model: AT-OME-RX11
Product Name: HDBaseT Receiver for HDMI with Audio
Product Type: Video Extender Receiver
Technical Information
Connectivity Technology: Wired
Number of Output Devices Supported: 1
Maximum Operating Distance: 330 ft (100584 mm)
Video
Graphics Modes: 4K
Maximum Video Resolution: 4096 x 2160
Interfaces/Ports
Network (RJ-45): Yes
HDMI Out: Yes
USB: Yes
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 1
Number of HDMI Outputs: 1
Media & Performance
Media Type Supported: Twisted Pair
Physical Characteristics
Receiver Height: 1.02" (25.91 mm)
Receiver Width: 4.29" (108.97 mm)
Receiver Depth: 5.24" (133.10 mm)
Receiver Weight (Approximate): 410 g
Warranty
Limited Warranty: 10 Year
