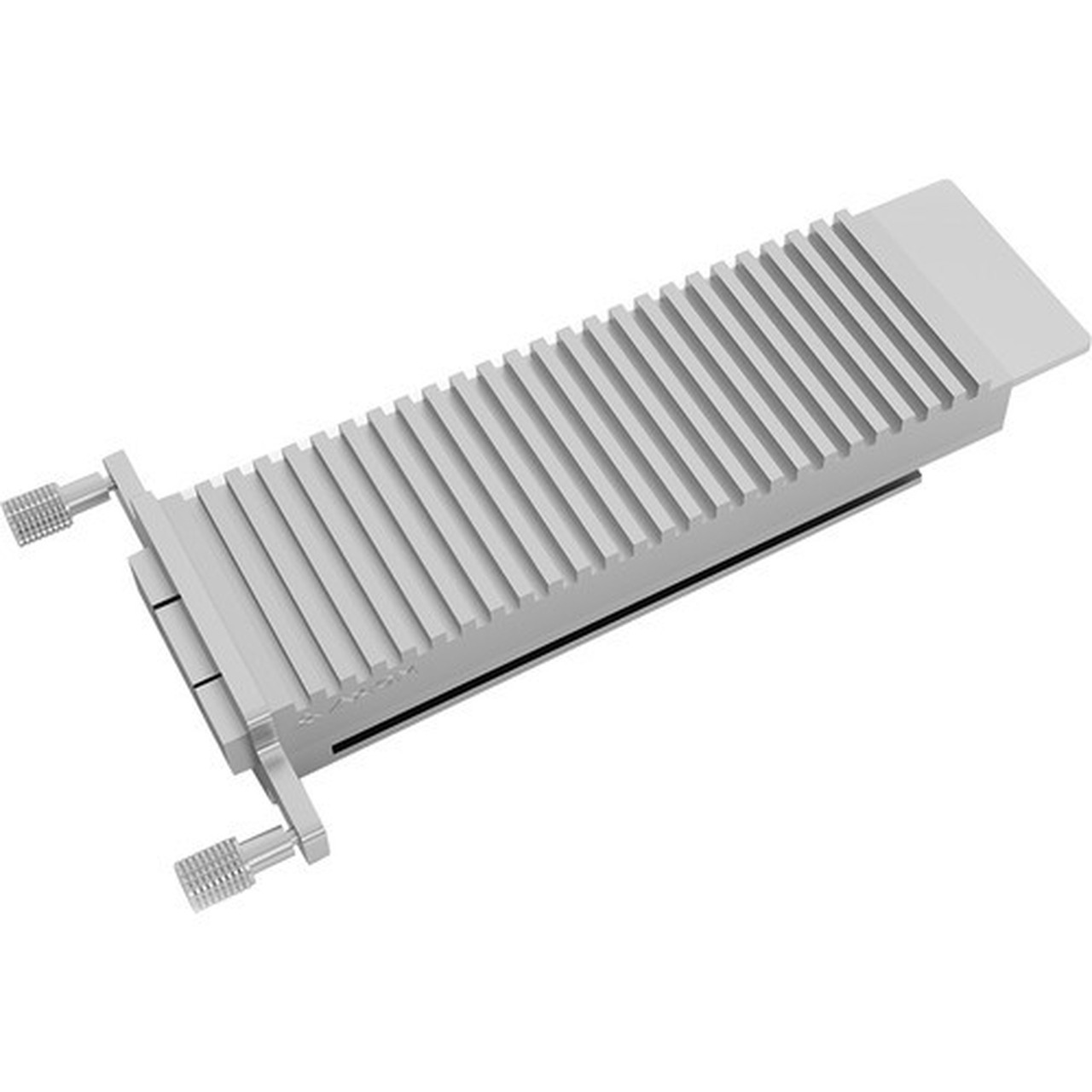

Axiom 10113-AX 10GBASE-ZR XENPAK Module for Extreme - 10GbE Single-Mode Fiber SC Connector
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This XENPAK module operates at 10 Gbps data rates using 10GBASE-ZR technology over single-mode fiber. The SC connector provides a secure optical interface, while the module's design supports efficient heat dissipation and stable performance in continuous operation.
The module's electrical interface complies with XENPAK MSA specifications, ensuring proper mechanical and electrical integration with compatible switches and routers. Its environmental design includes features that minimize power consumption and support reliable operation across typical data center temperature ranges.
Key Product Advantages
This XENPAK module delivers high-speed connectivity with the reliability needed for critical network infrastructure. Its compatibility with Extreme equipment and adherence to industry standards provide confidence in deployment and long-term operation.
High-Speed Performance
Supports 10 Gigabit Ethernet data rates for bandwidth-intensive applications and network backbone connections.
- 10 Gbps throughput
- Low latency operation
- Stable signal integrity
Fiber Connectivity
Utilizes single-mode fiber for long-distance transmission capabilities with minimal signal degradation.
- SC connector interface
- Single-mode fiber support
- Reliable optical performance
Standards Compliance
MSA compliance ensures interoperability with compatible networking equipment and simplifies integration.
- Industry-standard form factor
- Tested compatibility
- Quality assurance
Deployment / Use Cases
The Axiom 10GBASE-ZR XENPAK module is designed for network environments requiring high-speed fiber connectivity. Its primary application is in data networking infrastructure where 10GbE links between switches, routers, or servers are necessary.
Typical deployments include data center interconnects, campus network backbones, and service provider network edges. The module's single-mode fiber support makes it suitable for longer distance connections where multimode fiber would be insufficient, while its MSA compliance ensures it works with compatible Extreme networking equipment.
Data Center Networking
Connect switches and servers within data centers using high-speed 10GbE fiber links for improved performance and scalability.
Network Backbone
Establish reliable backbone connections between network segments or buildings using single-mode fiber for extended reach.
Physical Profile
The module measures 0.71 inches in height, 1.42 inches in width, and 4.76 inches in depth (18 x 36 x 121 mm), with a weight of approximately 234.1 grams. This compact form factor fits standard XENPAK slots in compatible networking equipment while providing adequate space for thermal management and signal processing components.
- Width
- 1.42" (36 mm)
- Depth
- 4.76" (121 mm)
- Height
- 0.71" (18 mm)
- Weight
- 234.1 g
Highlights
- 10 Gigabit Ethernet technology for high-speed data transfer
- Single-mode fiber support for long-distance transmission
- SC connector interface for reliable optical connectivity
- MSA compliant for compatibility with Extreme equipment
- Compact XENPAK form factor for easy integration
- Data networking and optical network applications
- Environmentally friendly design
- Single port configuration for straightforward deployment
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | 10113-AX |
| Brand Name | Axiom |
| Product Model | 10113-AX |
| Product Name | 10GBASE-ZR XENPAK Module for Extreme - 10113 |
| Product Type | XENPAK |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | SC |
| Interfaces/Ports Details | 1 x SC 10GBASE-ZR Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Physical Characteristics | |
| Height | 0.71" (18 mm) |
| Width | 1.42" (36 mm) |
| Depth | 4.76" (121 mm) |
| Weight (Approximate) | 234.1 g |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Environmentally Friendly | Yes |
FAQ
What type of fiber does this XENPAK module support?
This module supports single-mode fiber, which is designed for long-distance transmission with minimal signal loss. Single-mode fiber uses a single wavelength of light to carry data over extended distances, making it suitable for connections spanning miles in network backbone and data center applications.
What is the data transfer rate of this module?
The module supports data transfer rates up to 10 Gbps using 10 Gigabit Ethernet technology. This high-speed capability enables bandwidth-intensive applications and efficient network performance for data networking and optical network infrastructure requiring fast connectivity.
What equipment is this XENPAK module compatible with?
This module is designed for Extreme networking equipment and is MSA (Multi-Source Agreement) compliant. MSA compliance ensures interoperability with compatible switches, routers, and other networking devices that support the XENPAK form factor and 10GBASE-ZR technology standards.
What connector type does this module use?
The module features an SC connector interface, which provides a secure and reliable optical connection for single-mode fiber. SC connectors are commonly used in data networking environments for their durability and consistent performance in fiber optic installations.
