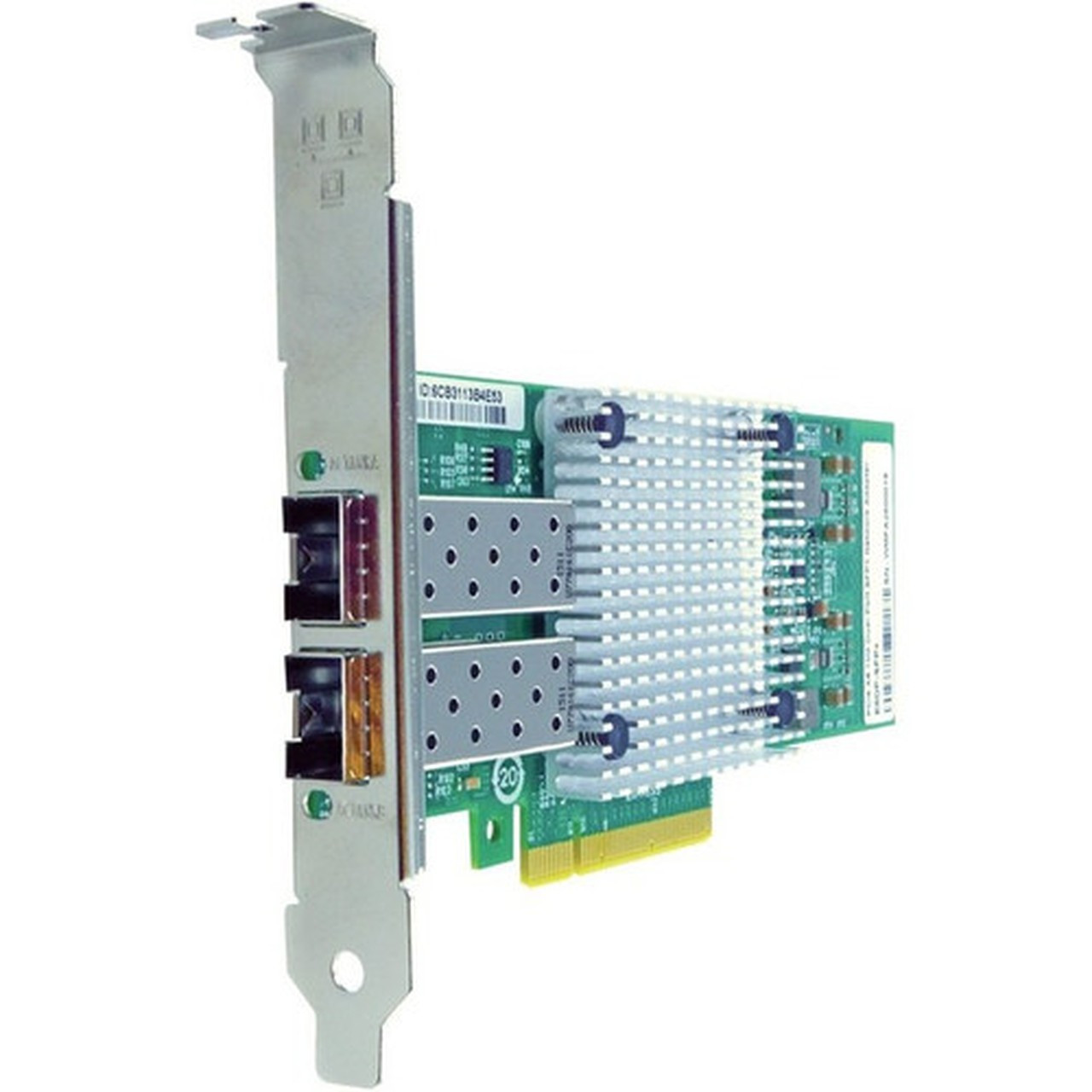

Axiom UCSC-PCIE-CSC-02-AX Cisco 10Gigabit Ethernet Card - Dual Port SFP+ PCIe 2.0 x 8 NIC for Server
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This dual-port 10Gigabit Ethernet card utilizes PCI Express 2.0 x8 interface technology to maximize data throughput between the host system and network infrastructure. The SFP+ expansion slots support optical fiber connections, enabling data transmission rates up to 10Gbps with excellent signal integrity over extended distances.
The 10GBase-X network technology ensures compatibility with high-speed networking standards while maintaining efficient power consumption and thermal management. The card's compact form factor measures 6.50 inches in height, 0.51 inches in width, and 2.68 inches in depth, with a lightweight design at just 3.84 ounces for minimal impact on system airflow and cooling.
Relevant factors for this section include Host Interface, Total Number of Ports, Expansion Slot Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This network interface card provides significant advantages for organizations requiring reliable high-speed connectivity between servers and network components. The dual SFP+ port design enables redundant connections or aggregated bandwidth configurations, while the PCIe 2.0 x8 interface ensures minimal latency and maximum throughput for data-intensive applications.
High-Performance Connectivity
Delivers 10Gbps data transfer rates with 4000MB/s bandwidth capacity, reducing network bottlenecks in server-to-server and server-to-storage communications.
- Dual SFP+ ports for flexible configuration
- PCIe 2.0 x8 interface for maximum throughput
- 10GBase-X technology for standardized performance
Enterprise Reliability
Built for continuous operation in server environments with robust construction and comprehensive compatibility testing for stable network performance.
- Optical fiber support for long-distance connections
- Server-optimized design
- 3-year limited warranty coverage
Deployment / Use Cases
The Axiom Cisco 10Gigabit Ethernet Card is ideal for upgrading server network capabilities in data centers, enterprise computing environments, and high-performance computing clusters. Its dual-port design supports various deployment scenarios including redundant network paths, link aggregation for increased bandwidth, or separate connections to different network segments.
This adapter excels in environments requiring high-speed data transfer between servers and storage arrays, virtualization hosts communicating across physical servers, or database servers handling intensive transaction workloads. The optical fiber support makes it particularly suitable for installations where longer cable runs are necessary between equipment racks or across data center floors.
Data Center Server Upgrades
Enhance existing server infrastructure with 10Gigabit connectivity to reduce network congestion and improve application response times in virtualized environments.
High-Performance Computing
Support data-intensive applications such as scientific computing, financial modeling, and media processing with low-latency, high-bandwidth network connections.
Physical Profile
The plug-in card form factor measures 6.50 inches in height, 0.51 inches in width, and 2.68 inches in depth (165 × 13 × 68 mm), with a weight of approximately 3.84 ounces (108.86 grams). This compact design allows installation in standard PCIe slots while maintaining minimal footprint within server chassis. The included full-height and half-height mounting brackets provide installation flexibility for various server form factors and rack configurations.
- Width
- 0.51" (13 mm)
- Depth
- 2.68" (68 mm)
- Height
- 6.50" (165 mm)
- Weight
- 3.84 oz (108.86 g)
What's in the Box
The package includes all necessary components for immediate deployment of the 10Gigabit Ethernet card in server environments.
Highlights
- Dual SFP+ ports for flexible 10Gigabit network connectivity
- PCI Express 2.0 x8 host interface for maximum data throughput
- 10GBase-X network technology supporting up to 10Gbps transfer rates
- Optical fiber media support for reliable long-distance connections
- 4000MB/s bandwidth capacity for high-performance server applications
- Server-optimized design with full and half-height mounting brackets
- Compact form factor measuring 6.50" × 0.51" × 2.68" (165 × 13 × 68 mm)
- 3-year limited warranty for reliable long-term operation
- Environmentally compliant with China RoHS standards
- Plug-in card design for straightforward server installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | UCSC-PCIE-CSC-02-AX |
| Brand Name | Axiom |
| Product Name | Cisco 10Gigabit Ethernet Card |
| Product Type | 10Gigabit Ethernet Card |
| Interfaces/Ports | |
| Host Interface | PCI Express 2.0 x8 |
| Total Number of Ports | 2 |
| I/O Expansions | |
| Expansion Slot Type | SFP+ |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Network & Communication | |
| Network Technology | 10GBase-X |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Height | 6.50" (165 mm) |
| Width | 0.51" (13 mm) |
| Depth | 2.68" (68 mm) |
| Weight (Approximate) | 3.84 oz (108.86 g) |
| Miscellaneous | |
| Package Contents | Cisco 10Gigabit Ethernet Card Full Height and Half Height Mounting Brackets |
| Device Supported | Server |
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What type of network connections does this card support?
This dual-port 10Gigabit Ethernet card supports optical fiber connections through its SFP+ expansion slots. The 10GBase-X network technology enables data transfer rates up to 10Gbps, making it ideal for high-bandwidth applications between servers and network infrastructure. The card is designed specifically for optical fiber media, which provides reliable performance over longer distances compared to copper connections.
What server interface is required for this network card?
The card requires a PCI Express 2.0 x8 slot for installation. This interface provides sufficient bandwidth to support the dual 10Gigabit ports without creating bottlenecks. The PCIe 2.0 x8 specification delivers up to 4GB/s bidirectional bandwidth, which comfortably accommodates the card's maximum 4000MB/s throughput capacity for optimal network performance.
Can this card be installed in both full-height and half-height servers?
Yes, the package includes both full-height and half-height mounting brackets, providing installation flexibility for various server form factors. This allows deployment in standard rack-mounted servers as well as more compact server configurations. The card itself maintains the same electrical and functional specifications regardless of which bracket is used during installation.
What is the maximum data transfer rate of this Ethernet card?
This 10Gigabit Ethernet card supports data transfer rates up to 10Gbps per port using 10GBase-X network technology. With dual SFP+ ports, the card can handle aggregated bandwidth configurations or separate network segments. The 4000MB/s bandwidth capacity ensures efficient data movement for server applications requiring high-speed network connectivity.
What type of warranty coverage does this product include?
The Axiom Cisco 10Gigabit Ethernet Card includes a 3-year limited warranty. This coverage provides protection against manufacturing defects and ensures reliable operation in server environments. The product also complies with China Restriction of Hazardous Substances (China RoHS) environmental standards, reflecting its commitment to environmental responsibility.
Is this network card suitable for data center deployment?
Yes, this card is specifically designed for server environments including data center deployment. Its dual SFP+ port configuration supports redundant network paths for increased reliability, while the optical fiber compatibility enables longer cable runs between equipment racks. The compact form factor and efficient thermal design make it suitable for dense server installations where space and cooling are important considerations.
