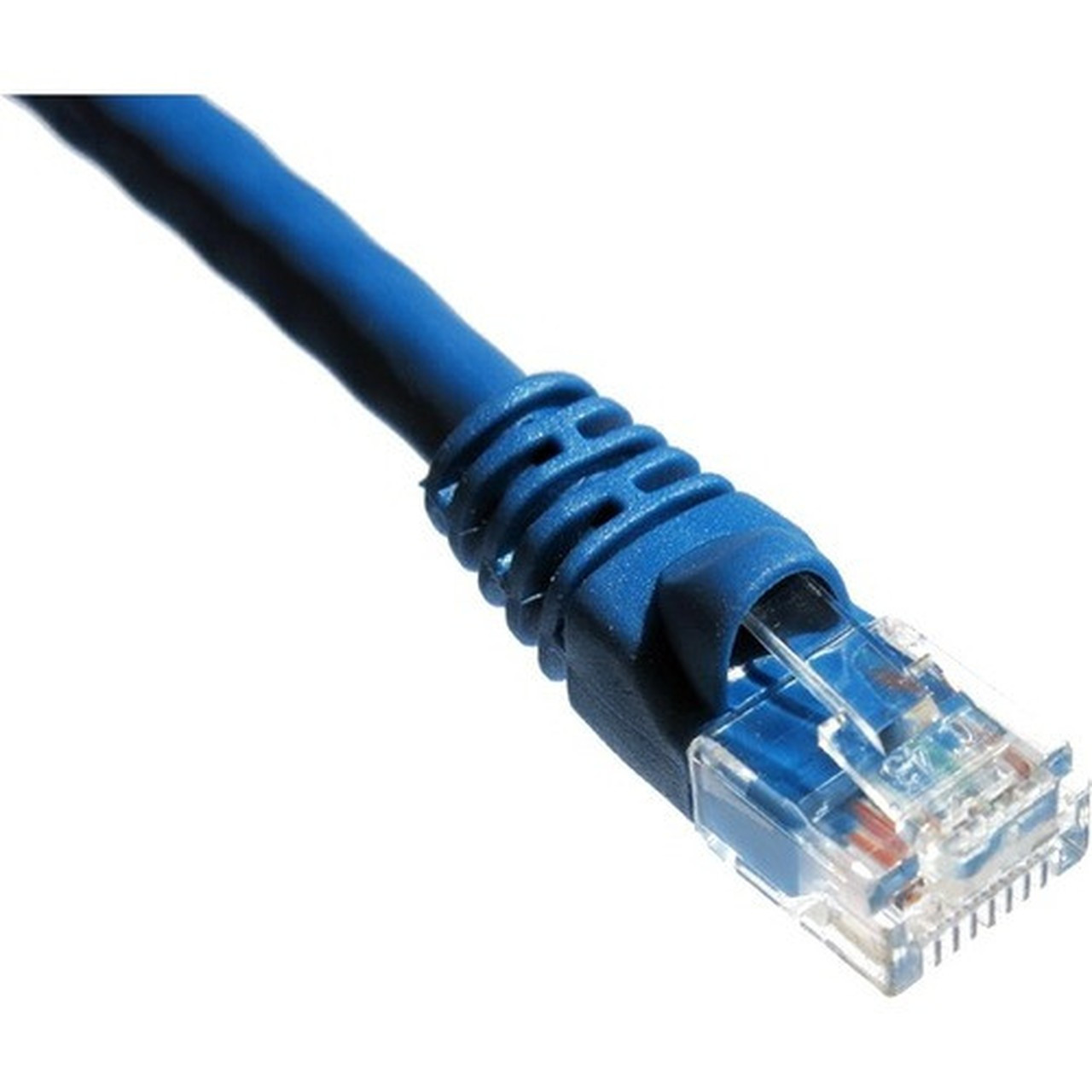

Axiom 75FT CAT6A 650mhz S/FTP Shielded Patch Cable - 75 ft Category 6a Network Cable for Network Device - First End: 1 x RJ-45 Male - (C6AMBSFTPB75-AX)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
- Offers a reliable network connectivity
- Features Category 6a cable type
- Features Molded
- 1 x RJ-45 Male Network offers a secure and reliable connection with a compatible network device
- Marketing Information:
- Conductor: 4-pair 26 AWG stranded copper
- S/FTP Shielding: Foil shield: Aluminum foil (100% coverage), Braided shield: Copper braid (40% coverage)
- Connector: 50 micron gold-plated RJ45
- Supports 10GBASE-T
- Jacket: PVC
- Standard: Category 6A IEEE 802.an; TIA 568-C.2; UL®, ETL Tested
- Molded Rubber Boots with Strain Relief
- RoHS Compliant
- Tested up to 650MHz
- Jacket Diameter: 6.9 +/- 0.15mm
- Min Avg. jacket Thickness: 0.58mm
- Backward Compatible with Cat 6, Cat 5 & Cat 5E Networks
- Available in all lengths from 1ft-100ft
- Colors: B= Blue, G=Gray Cable Type: Category 6aCable Characteristic: Patch CableCable Length: 75 ftConnector on First End: 1 x RJ-45 Male NetworkConnector on Second End: 1 x RJ-45 Male NetworkConnector Plating: GoldFeatures:
- Molded
- Booted
- Stranded
- Strain Relief
High quality Category 6A (CAT6A) shielded patch cables are the solution to your data, voice and video distribution needs. The S/FTP Shielding is designed to protect a high speed 10 Gigabit network connection from external noise as well as electromagnetic interference. It will handle bandwidth-intensive applications and drastically reduces both impedance and structural return loss (SRL). With speeds of up to 650MHz you can connect to your 10GBASE-T LAN/WAN segments and networking gear at maximum speed. Also, with its superior connector you get a cable that is built for speed and endurance. Axiom Cat6A cables are made of 100% bare copper wire, as opposed to copper clad aluminum (CCA) wire, making them fully compliant with UL Code 444 and National Electrical Code TIA-568-C.2 fire and safety standards, which require pure bare copper wire in Cat6A communications cables.
[custom-specifications]
Manufacturer: Axiom Memory Solutions
Manufacturer Part Number: C6AMBSFTPB75-AX
Manufacturer Website Address: http://search.axiomupgrades.com
Brand Name: Axiom
Product Name: 75FT CAT6A 650mhz S/FTP Shielded Patch Cable
Product Type: Network Cable
Technical Information
Cable Type: Category 6a
Cable Characteristic: Patch Cable
Cable Length: 75 ft
Connector on First End: 1 x RJ-45 Male Network
Connector on Second End: 1 x RJ-45 Male Network
Connector Plating: Gold
Features:
- Molded
- Booted
- Stranded
- Strain Relief
Shielding: Yes
Device Supported: Network Device
American Wire Gauge: 26 AWG
Data Transfer Rate: 1.25 GB/s
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
Warranty
Limited Warranty: Lifetime
[/custom-specifications]
