Axiom LCSCSD9Y-80M-AX LC/SC Singlemode Duplex OS2 9/125 Fiber Optic Cable - 262. 5 ft Yellow
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This fiber optic cable utilizes single-mode technology with a 9/125 µm core/cladding specification, optimized for high-bandwidth applications over long distances. The OS2 rating confirms its suitability for outdoor and indoor use with enhanced performance characteristics.

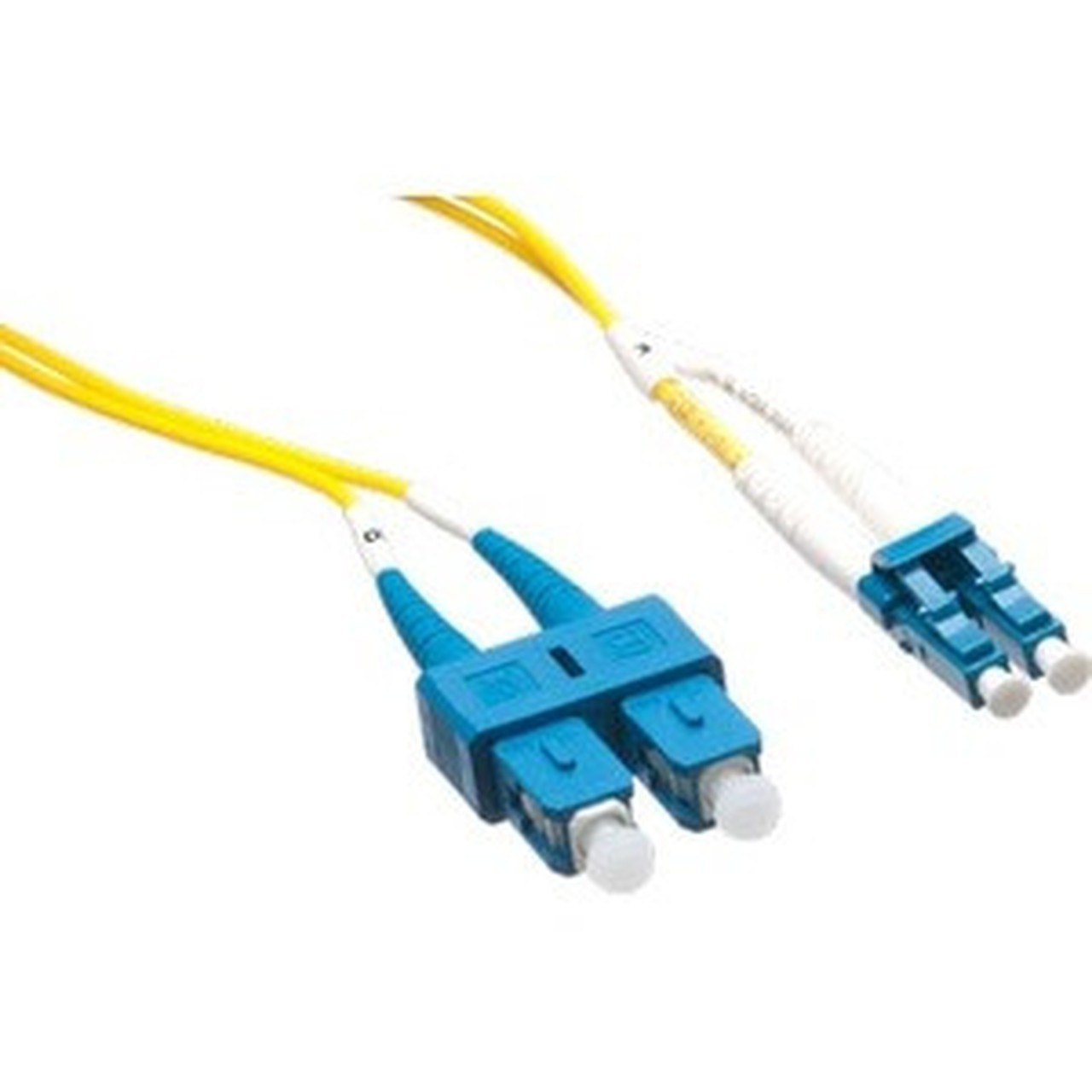

The cable terminates with two LC male connectors on one end and two SC male connectors on the other, creating a duplex configuration that supports bidirectional data flow. This setup is compatible with standard network devices requiring LC and SC interfaces.
Key Product Advantages
This cable combines robust construction with precise fiber optic engineering to meet the demands of modern network environments. Its design prioritizes reliability and performance in data-intensive applications.
Durable Build
The crush-resistant yellow jacket protects the fiber core from physical damage, ensuring consistent performance in rack-mounted or routed installations.
- Withstands compression and bending
- High-visibility color for easy identification
Precision Connectivity
LC and SC connectors provide secure, low-loss connections that maintain signal integrity across the entire 262.5 ft length.
- LC connectors for high-density applications
- SC connectors for stable mating
Deployment / Use Cases
This LC/SC fiber optic cable is engineered for network infrastructure where reliable, high-speed data transmission is critical. Its single-mode design and OS2 rating make it suitable for both enterprise and service provider environments.
Common applications include connecting network switches to routers, linking data center equipment, extending network segments between buildings, and supporting telecommunications infrastructure. The 262.5 ft length accommodates medium to long-distance runs without requiring intermediate connections.
Highlights
- 262.5 ft LC to SC single-mode fiber optic cable
- OS2-rated 9/125 µm construction for reliable performance
- Crush-resistant yellow jacket for durability
- LC and SC male connectors in duplex configuration
- Compatible with standard network devices
- Lifetime warranty for long-term reliability
- Single-mode technology for long-distance data transmission
- Suitable for backbone and infrastructure connections
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | LCSCSD9Y-80M-AX |
| Brand Name | Axiom |
| Product Name | LC/SC Singlemode Duplex OS2 9/125 Fiber Optic Cable 80m |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Fiber Optic Mode | Single-mode |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Cable Length | 262.5 ft |
| Connector Type on First End | LC Network - Male |
| Connector on First End Details | 2 x LC Network - Male |
| Connector Type on Second End | SC Network - Male |
| Connector on Second End Details | 2 x SC Network - Male |
| Device Supported | Network Device |
| Features | Crush Resistant |
| Physical Characteristics | |
| Color Family | Yellow |
| Product Color | Yellow |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What type of fiber optic cable is this?
This is a single-mode duplex fiber optic cable with OS2 rating and 9/125 µm core/cladding specification. It uses single-mode technology optimized for long-distance data transmission with minimal signal loss, making it suitable for network backbone and infrastructure applications.
What connectors does this cable have?
The cable features two LC male connectors on one end and two SC male connectors on the other end, creating a duplex configuration. This LC to SC setup supports bidirectional data flow and is compatible with network equipment requiring these standard fiber optic interfaces.
How long is this fiber optic cable?
This cable measures 262.5 feet (approximately 80 meters) in length. This substantial length accommodates medium to long-distance network runs without requiring intermediate connections or splicing, making it ideal for connecting equipment across different rooms or buildings.
What is the cable jacket made of?
The cable features a crush-resistant yellow jacket that protects the fiber core from physical damage during installation and use. The bright yellow color provides high visibility for easy identification in complex network environments, while the crush-resistant construction ensures durability in demanding conditions.
