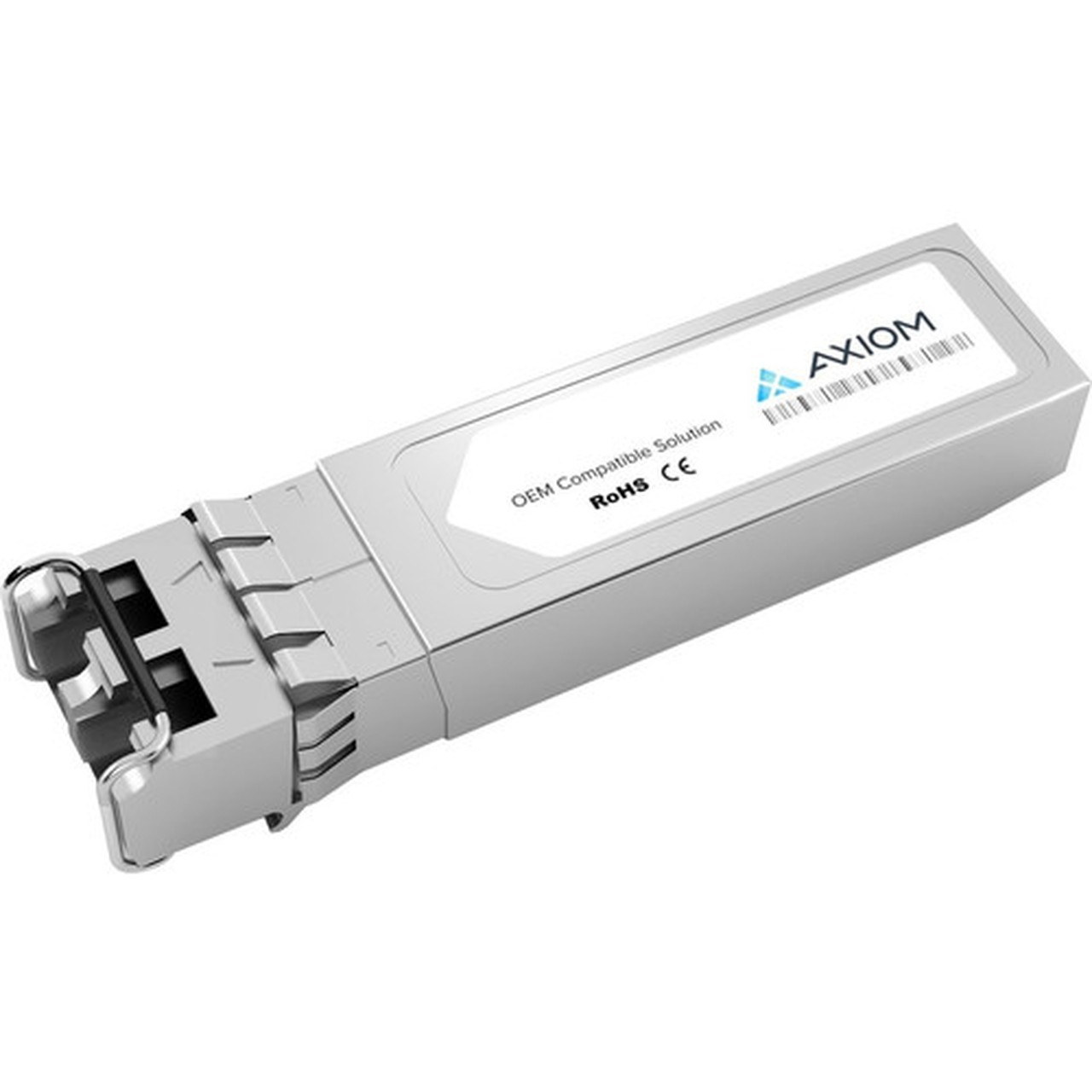

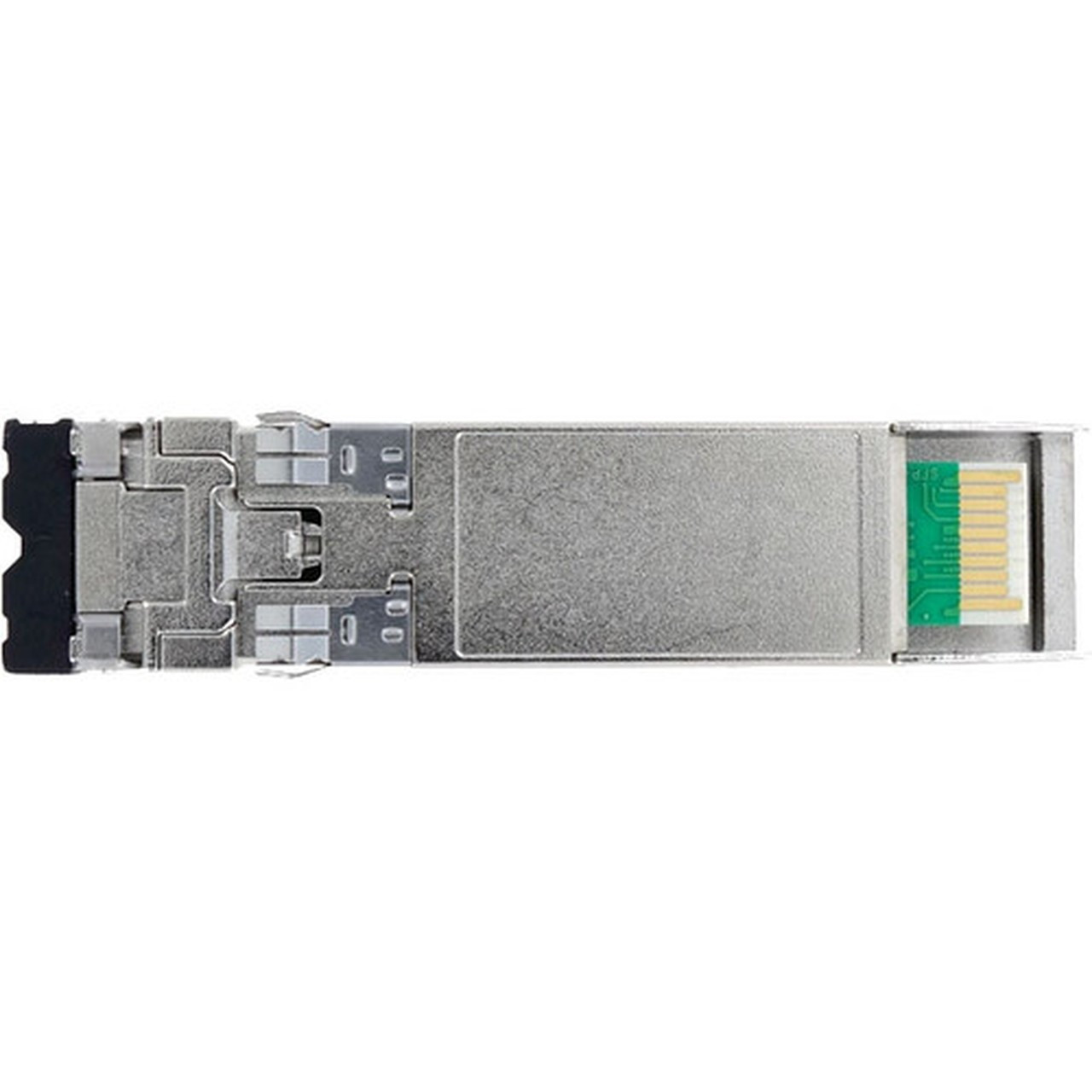

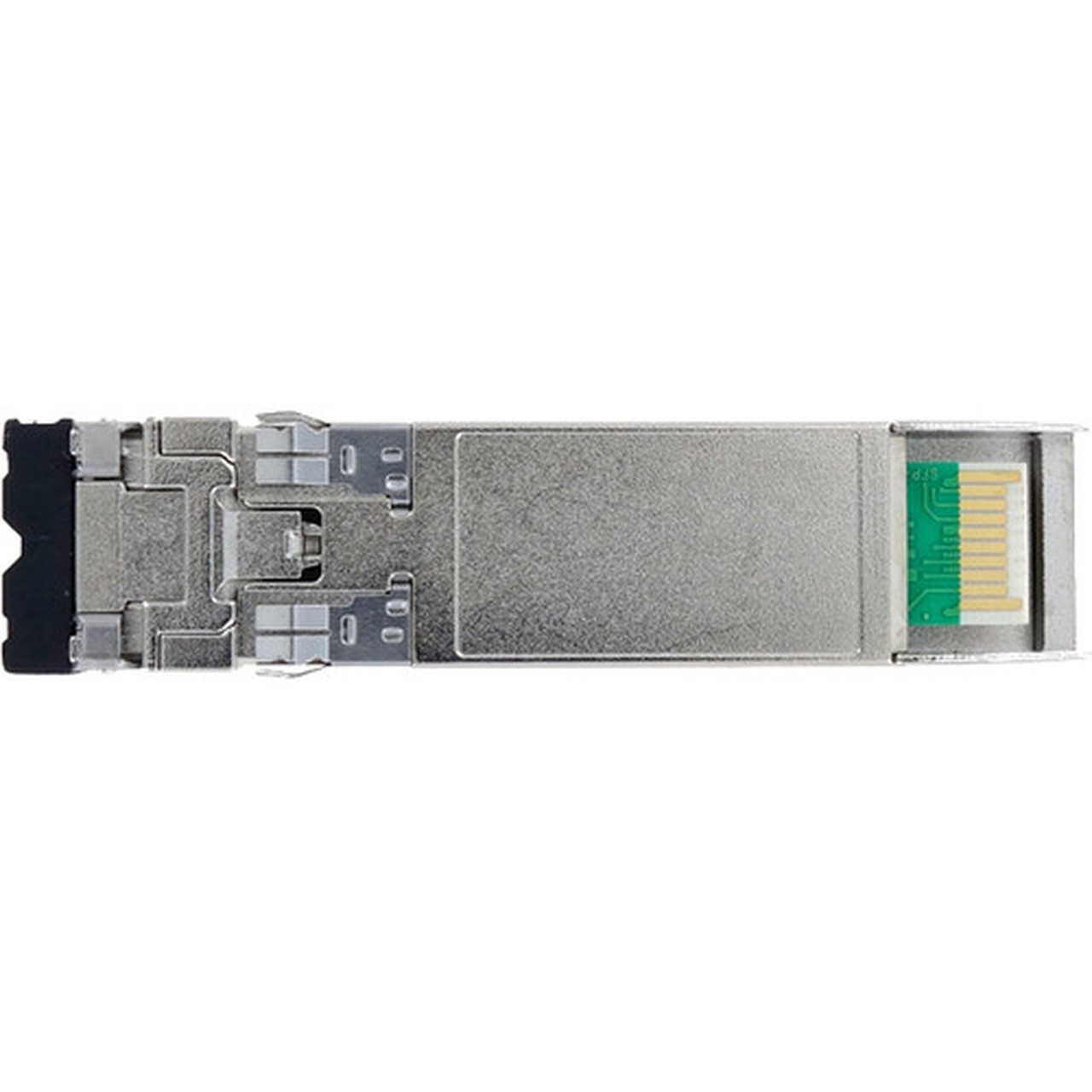

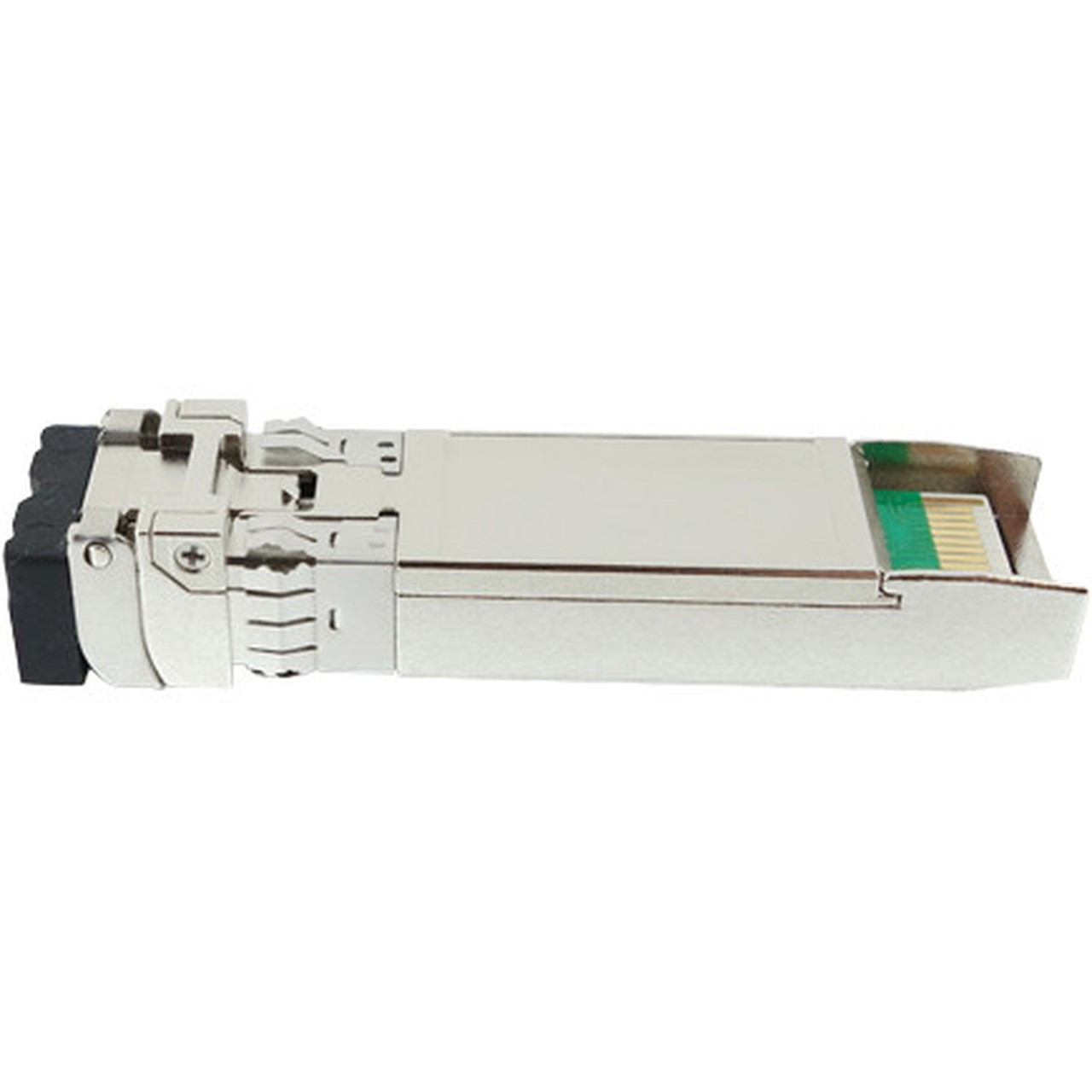

AXIOM MEMORY SFP-10G-SR-X-AX Axiom 10GBASE-SR SFP+ Transceiver for Cisco - LC Multimode Fiber 10GbE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP+ transceiver operates on the 10GBASE-SR standard, delivering data rates up to 10 Gbps over multimode fiber optic cables. It uses an LC duplex connector for secure optical connections, supporting high-bandwidth applications like server clustering, network backbone links, and storage area networks.
The module is optimized for short-reach multimode fiber deployments, typically supporting distances up to 300 meters on OM3 cable or 400 meters on OM4 cable, though exact reach depends on cable quality and network conditions. Its 10 Gigabit Ethernet technology ensures low latency and high throughput for demanding network environments.
Key Product Advantages
This transceiver offers several advantages for network administrators seeking cost-effective and reliable 10GbE connectivity. Its compatibility with Cisco equipment reduces deployment complexity, while multimode fiber support provides a balance of performance and affordability for short to medium-distance links.
High-Speed Connectivity
Enables 10 Gbps data transfer rates, supporting bandwidth-intensive applications and reducing network bottlenecks.
- 10 Gigabit Ethernet technology
- Low latency for real-time data
Broad Compatibility
MSA compliance ensures interoperability with a wide range of Cisco switches and routers, simplifying inventory management.
- Works with Cisco SFP+ ports
- Standardized form factor
Deployment / Use Cases
The Axiom SFP-10G-SR-X-AX is ideal for upgrading network infrastructure to 10GbE speeds without replacing entire cabling systems. Common use cases include connecting switches within a data center rack, linking servers to storage arrays, or extending network backbones in enterprise environments.
In data centers, this transceiver supports high-density server connections and virtualization workloads. For enterprise networks, it facilitates fast inter-switch links and uplinks to core routers, improving overall network performance and scalability.
Data Center Interconnects
Connect top-of-rack switches to aggregation layers or link servers to NAS/SAN storage over multimode fiber.
Network Backbone Upgrades
Enhance existing fiber infrastructure with 10GbE speeds for improved throughput between network segments.
Physical Profile
The transceiver features a compact SFP+ form factor with dimensions of 0.53" wide, 0.49" high, and 2.21" deep (13.40 mm x 12.50 mm x 56.10 mm), weighing approximately 0.59 oz (16.78 g). Its small size allows high-density installations in switch chassis, while the robust construction ensures reliable operation in varied environmental conditions.
- Width
- 0.53" (13.40 mm)
- Depth
- 2.21" (56.10 mm)
- Height
- 0.49" (12.50 mm)
- Weight
- 0.59 oz (16.78 g)
Highlights
- 10 Gigabit Ethernet data rate for high-speed network connections
- LC connector for secure multimode fiber optic cabling
- MSA compliant for broad Cisco switch compatibility
- RoHS certified for environmentally responsible manufacturing
- Compact SFP+ form factor for high-density deployments
- Supports data networking and optical network applications
- Ideal for short-reach multimode fiber links up to 400 meters
- Enables server-to-switch and switch-to-switch connectivity
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | SFP-10G-SR-X-AX |
| Brand Name | Axiom |
| Product Model | SFP-10G-SR-X-AX |
| Product Name | 10GBASE-SR SFP+ Transceiver for Cisco - SFP-10G-SR-X |
| Product Type | SFP+ |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC 10GBASE-SR Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Physical Characteristics | |
| Height | 0.49" (12.50 mm) |
| Width | 0.53" (13.40 mm) |
| Depth | 2.21" (56.10 mm) |
| Weight (Approximate) | 0.59 oz (16.78 g) |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
FAQ
What is the data rate of this SFP+ transceiver?
This Axiom transceiver supports a data rate of 10 Gbps using 10 Gigabit Ethernet technology. It is designed for high-speed network connections, making it suitable for bandwidth-intensive applications like data center interconnects, server clustering, and network backbone upgrades where fast data transfer is critical.
What type of fiber and connector does this module use?
The transceiver uses an LC duplex connector for optical connections and supports multimode fiber optic cabling. Multimode fiber is commonly used for short to medium-distance links, typically up to 300-400 meters depending on cable grade, providing a cost-effective solution for enterprise and data center environments.
Is this transceiver compatible with Cisco networking equipment?
Yes, this SFP+ transceiver is 100% compatible with Cisco switches and routers that accept SFP+ interfaces. It is MSA (Multi-Source Agreement) compliant, ensuring interoperability with a wide range of Cisco devices, which simplifies deployment and reduces compatibility concerns for network administrators.
What are the typical use cases for this 10GBASE-SR transceiver?
Common use cases include connecting switches within data center racks, linking servers to storage arrays, and extending network backbones in enterprise settings. It is ideal for upgrading existing multimode fiber infrastructure to 10GbE speeds, supporting applications like virtualization, high-performance computing, and network aggregation.
