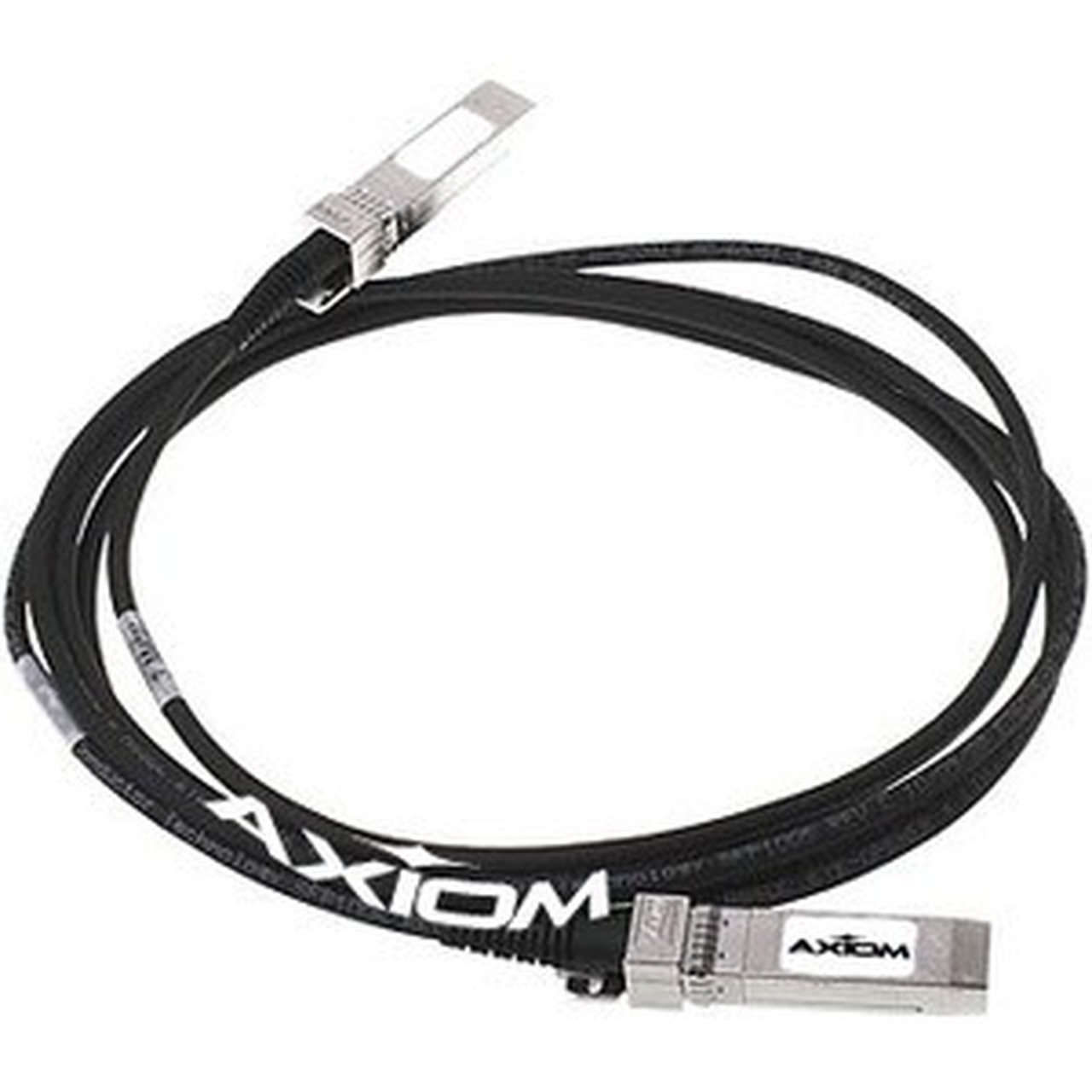

Axiom 3007776-EZ-AX 10GBASE-CU SFP+ Passive DAC Twinax Cable - 3. 3 ft Twinaxial Network Cable for Direct Attach Links
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This twinaxial cable operates as a passive direct attach cable, meaning it requires no external power and uses the SFP+ electrical interface directly. The 10GBASE-CU designation confirms compliance with IEEE 802.3 standards for 10 Gigabit Ethernet over copper, ensuring interoperability with compatible SFP+ ports.
The cable's construction provides robust signal integrity over its 3.3-foot length, suitable for rack-to-rack or within-rack connections. The SFP+ connectors on both ends ensure a secure, hot-pluggable interface that maintains signal quality without the complexity of active components.
Key Product Advantages
This cable offers several advantages for network infrastructure deployments, particularly in environments where simplicity, cost-efficiency, and performance are prioritized.
Cost-Effective Connectivity
Eliminates the need for separate optical transceivers and fiber cables, reducing both initial hardware costs and ongoing maintenance expenses for short-reach connections.
- No external power required
- Lower total cost of ownership compared to active optical solutions
Simplified Deployment
The pre-terminated SFP+ connectors on both ends ensure plug-and-play installation, reducing configuration time and minimizing potential connection errors during setup.
- Hot-pluggable design
- Direct device-to-device connectivity
Reliable Performance
Passive twinaxial construction provides stable 10 Gbit/s throughput with low latency, making it suitable for latency-sensitive applications and high-performance computing environments.
- IEEE 802.3 compliant
- Citrix compatible
Deployment / Use Cases
This direct attach cable is designed for specific networking scenarios where short-distance, high-speed connections between compatible devices are required.
In data center environments, it's commonly used for connecting top-of-rack switches to servers within the same rack or adjacent racks. The 3.3-foot length makes it ideal for these compact deployments where excessive cable length would create management challenges.
For network administrators managing Citrix environments, this cable provides a tested solution for connecting virtualization hosts, storage arrays, or network appliances that require reliable 10 Gigabit connectivity. The passive design ensures compatibility without requiring additional configuration or management overhead.
Highlights
- 10 Gbit/s data transfer rate for high-speed network connections
- 3.3-foot twinaxial cable length ideal for rack-to-rack deployments
- SFP+ connectors on both ends for direct device attachment
- Passive direct attach cable design requires no external power
- Compatible with network devices and Citrix environments
- Lifetime limited warranty for long-term reliability assurance
- IEEE 802.3 10GBASE-CU compliant for standards-based interoperability
- Cost-effective alternative to optical transceivers for short distances
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | 3007776-EZ-AX |
| Brand Name | Axiom |
| Product Name | 10GBASE-CU SFP+ Passive DAC Twinax Cable Citrix Compatible 1m |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Twinaxial |
| Cable Length | 3.3 ft |
| Connector Type on First End | SFP+ Network |
| Connector on First End Details | 1 x SFP+ Network |
| Connector Type on Second End | SFP+ Network |
| Connector on Second End Details | 1 x SFP+ Network |
| Device Supported | Network Device |
| Data Transfer Rate | 10 Gbit/s |
| Features | Passive |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the maximum distance this cable can support?
This 10GBASE-CU SFP+ Passive DAC Twinax Cable is designed for short-reach connections up to 3.3 feet (1 meter). It's ideal for within-rack or adjacent-rack deployments in data center environments where devices are in close proximity. For longer distances, active optical cables or separate transceivers with fiber would be more appropriate.
Does this cable require external power or configuration?
No, this is a passive direct attach cable that requires no external power source or configuration. The cable uses the electrical interface of the SFP+ ports directly, making it a true plug-and-play solution. Simply connect the SFP+ connectors to compatible ports on your network devices, and the connection will be established automatically.
What types of devices are compatible with this SFP+ cable?
This cable is compatible with any network devices featuring SFP+ ports that support 10GBASE-CU direct attach connections. This includes switches, routers, servers, storage arrays, and network appliances from various manufacturers. The cable has been tested for compatibility with Citrix environments, making it suitable for virtualization and cloud infrastructure deployments.
What is the difference between passive and active DAC cables?
Passive DAC cables like this one contain only copper wiring with no signal amplification electronics, making them simpler, more reliable, and less expensive for short distances. Active DAC cables include signal conditioning electronics to extend reach but require power and cost more. This 3.3-foot passive cable is optimal for its intended short-reach applications without the complexity of active components.
