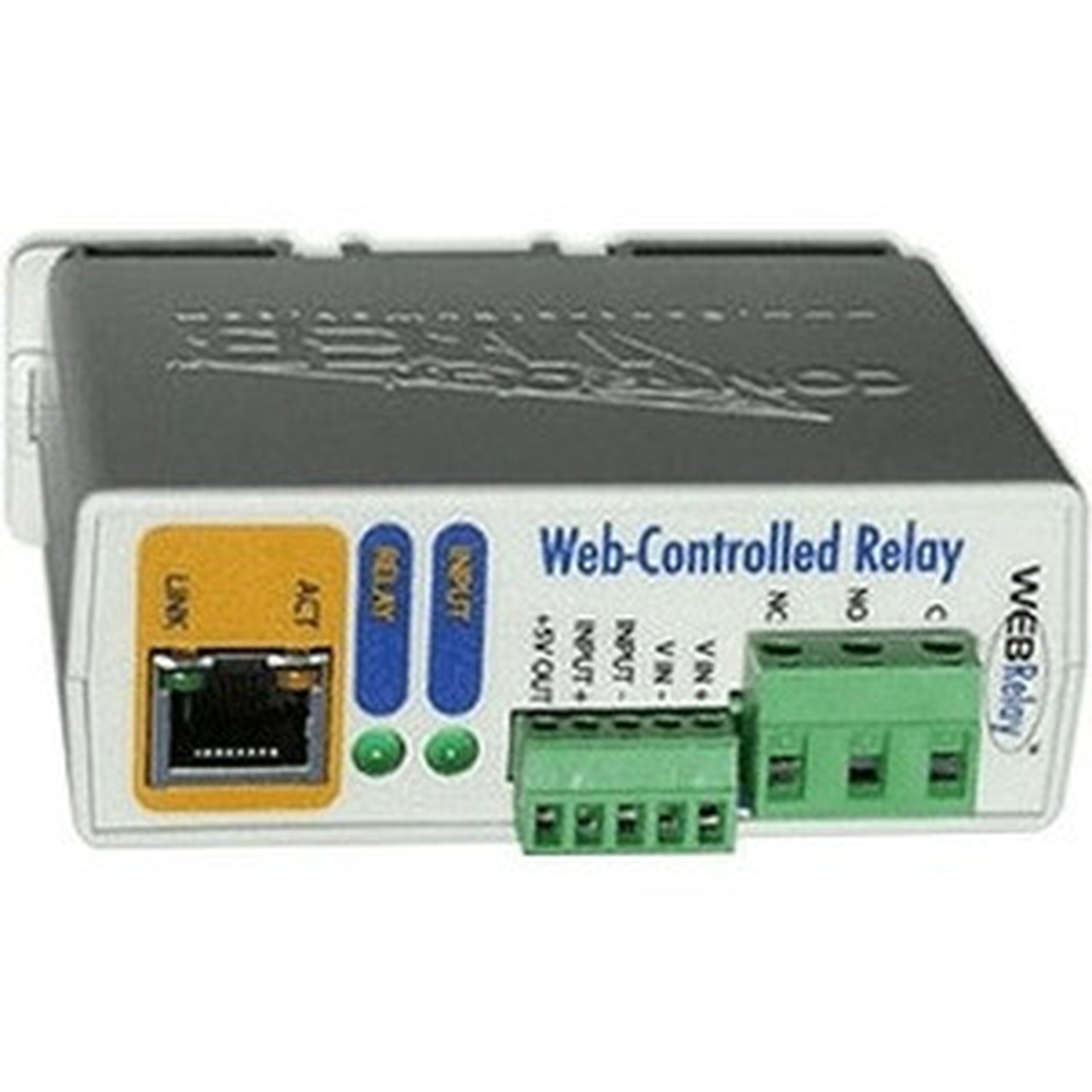

AXIS External IP Relay - 1 Output, 1 Input - RJ-45 - Intercom System (01397-001)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Write a Review
AXIS
AXIS External IP Relay - 1 Output, 1 Input - RJ-45 - Intercom System (01397-001)
Marketing Information: Do you need an intercom to switch on lights or call a lift, but the switched devices are far away and laying cables all the way to the intercom isn't an option? Use an external IP relay, which is controlled using HTTP commands from a 2N IP intercom or access unit. The command is sent to the relay in unsecured form. You can also use the IP relay input. Connect an exit button, for example, to switch the output locally.
Interface: RJ-45
Application/Usage: Intercom System
Minimum Operating Voltage: 9 V DC
Maximum Operating Voltage: 28 V DC
Minimum Operating Temperature: -40°F (-40°C)
Maximum Operating Temperature: 134.6°F (57°C)
Minimum Storage Temperature: -40°F (-40°C)
Maximum Storage Temperature: 185°F (85°C)
Relative Humidity: 5% - 95%
Product Material: Polycarbonate Plastic
Height: 3.07" (78 mm)
Width: 1.42" (36 mm)
Weight (Approximate): 142 g
Country of Origin: Czech Republic
[custom-specifications]
| Specifications | |
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 01397-001 |
| Manufacturer Website Address | http://www.axis.com |
| Brand Name | AXIS |
| Product Name | External IP Relay - 1 Output, 1 Input |
| Product Type | Relay |
| Product Information | |
| Interface | RJ-45 |
| Application/Usage | Intercom System |
| Power Description | |
| Minimum Operating Voltage | 9 V DC |
| Maximum Operating Voltage | 28 V DC |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 134.6°F (57°C) |
| Minimum Storage Temperature | -40°F (-40°C) |
| Maximum Storage Temperature | 185°F (85°C) |
| Relative Humidity | 5% - 95% |
| Physical Characteristics | |
| Product Material | Polycarbonate Plastic |
| Height | 3.07" (78 mm) |
| Width | 1.42" (36 mm) |
| Weight (Approximate) | 142 g |
| Miscellaneous | |
| Country of Origin | Czech Republic |
[/custom-specifications]
