Tripp Lite series BHDBT-K-SI-LR Video Console/Extender - 1 Input Device - 1 Output Device - 328 ft (99974.40 mm) Range - 2 x Network - (BHDBT-K-SI-LR)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC

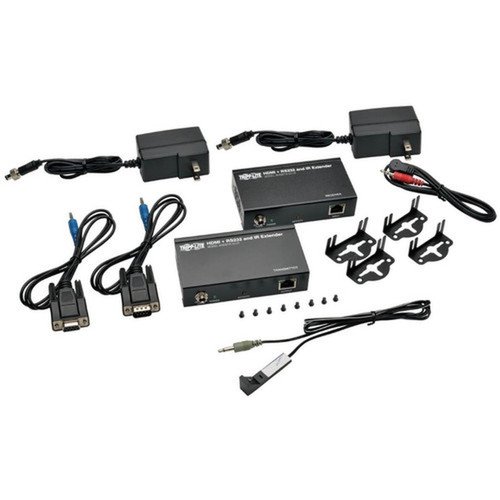

Product Features
- Transmitter
- Receiver
- IR-IN and IR-OUT Cables
- 3.5 mm Male to DB9 Female Adapter Cable
- 3.5 mm Male to DB9 Male Adapter Cable
- 2 x External Power Supplies (Input: 100-240V, 50/60 Hz, 0.5A Output: 5V, 3A)
- Mounting Hardware
- Owner's Manual
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 328 ft (99974.40 mm)
Graphics Modes: 4K
Maximum Video Resolution: 3840 x 2160
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 2
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6a
Color Family: Black
Product Color: Black
Form Factor: Pole-mountable,Wall Mountable,Rack-mountable
Transmitter Weight (Approximate): 1.05 lb (476.27 g)
Package Contents:
Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Limited Warranty: 1 Year
- Extends a 1080p @ 60 Hz signal up to 328 feet (100 m)
- Extends a 3840 x 2160 (4K x 2K) signal up to 328 feet (100 m)
- Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
- Controls RS-232 serial devices at baud rates up to 115 Kbps
- Allows you to control a Blu-ray™ player from a remote monitor
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | BHDBT-K-SI-LR |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Model | BHDBT-K-SI-LR |
| Product Name | BHDBT-K-SI-LR Video Console/Extender |
| Product Type | Video Extender Transmitter/Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 328 ft (99974.40 mm) |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6a |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Pole-mountable,Wall Mountable,Rack-mountable |
| Transmitter Weight (Approximate) | 1.05 lb (476.27 g) |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
[custom-options]
| Product | Tripp Lite 6ft DB9 Serial Extension Cable Straight Through RS232 M/F 6' - DB-9 Male - DB-9 Female - 1.83m |
| SKU | P520-006 |
| Sale Price | $5.95 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
User-Manual
[/custom-user-manual]
