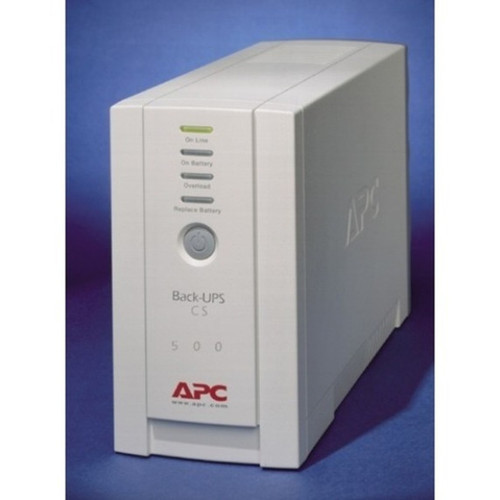

APC by Schneider Electric BK500EI Back-UPS CS 500VA/300W Battery Backup UPS - Tower Form - 6 Outlets - 220V AC Input
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This standby UPS operates with an input voltage of 220 V AC and delivers a regulated output of 230 V AC, ensuring stable power delivery to connected loads. The power architecture utilizes a stepped sine wave waveform, suitable for most standard electronic devices including computers, monitors, and networking hardware.
The internal battery system employs maintenance-free, spill-proof lead-acid chemistry and supports hot-swappable replacement, minimizing downtime during battery service. Thermal management is handled through a design dissipating 24 BTU/h, with safe operation maintained up to 113°F (45°C).
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The BK500EI combines essential protection features with practical design elements that benefit both residential and small business users. Its balanced specification set addresses core power backup needs without unnecessary complexity.
Comprehensive Outlet Protection
Six total outlets provide battery backup and surge protection, allowing users to secure multiple critical devices simultaneously. This includes dedicated protection for connected phone lines via the integrated RJ-45 dataline port.
- 6 battery & surge outlets
- RJ-45 dataline protection
- IEC 320-C14 input connector
Intuitive Status Monitoring
Clear visual indicators and audible alarms keep users informed about UPS status. The system provides immediate feedback for on-battery operation, low battery conditions, and overload situations.
- Multi-status LED indicators
- Audible alarms for critical events
- On-line/battery/replace/overload status
Deployment / Use Cases
This UPS is optimally configured for protecting essential electronics in environments where brief power interruptions are common. Its 500 VA capacity and practical runtime make it suitable for safeguarding workstations, networking equipment, and point-of-sale systems.
Small offices can deploy the BK500EI to maintain connectivity for routers, switches, and desktop computers during outages, preventing network downtime and data corruption. Home users benefit from protection for entertainment systems, gaming consoles, and home office equipment, with the tower form factor fitting discreetly under desks or in entertainment centers.
Home Office Protection
Ideal for securing desktop computers, monitors, and networking equipment against power fluctuations that can cause hardware damage or data loss during critical work sessions.
Network Infrastructure Support
Provides sufficient runtime to maintain internet connectivity and network operations during brief outages, ensuring continuous communication and preventing service interruptions.
Physical Profile
The tower design measures 6.50" (165.10 mm) in height, 3.60" (91.44 mm) in width, and 11.20" (284.48 mm) in depth, with a beige finish that blends with office and home environments. Weighing approximately 13.90 lb (6304.93 g), the unit remains stable while allowing for straightforward placement on floors, shelves, or under desks without specialized mounting hardware.
- Width
- 3.60" (91.44 mm)
- Depth
- 11.20" (284.48 mm)
- Height
- 6.50" (165.10 mm)
- Weight
- 13.90 lb (6304.93 g)
What's in the Box
The package includes all necessary components for immediate deployment and management of the UPS system.
Highlights
- 500 VA/300 W load capacity provides sufficient backup during power failures
- Six battery and surge-protected outlets support multiple connected devices
- 2.4 minutes runtime at full load, extending to 13.9 minutes at half load
- Maintenance-free, spill-proof lead-acid battery with hot-swappable design
- Stepped sine wave output ensures compatibility with standard electronics
- Integrated USB port enables communication with management software
- RJ-45 dataline protection safeguards connected telephone equipment
- Clear status indicators and audible alarms for immediate system feedback
- Tower form factor with beige finish fits discreetly in office environments
- Includes comprehensive documentation and management software
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | BK500EI |
| Brand Name | APC by Schneider Electric |
| Product Line | Back-UPS |
| Product Series | CS |
| Product Model | BK500EI |
| Product Name | Back-UPS CS 500VA |
| Packaged Quantity | 1 Each |
| Product Type | Standby UPS |
| Technical Information | |
| Plug/Connector Type | IEC 320-C14 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 2 x IEC 60320 C13,3 x IEC 60320 C13,1 |
| Number of Battery & Surge Outlets | 6 |
| Dataline Protection | RJ-45 |
| Power Description | |
| Load Capacity (VA) | 500 VA |
| Load Capacity (Watt) | 300 W |
| Input Voltage | 220 V AC |
| Output Voltage | 230 V AC |
| Waveform Type | Stepped Sine Wave |
| Surge Energy Rating | 300 J |
| Management | |
| Alarm | On Battery,Low Battery,Overload |
| Controls/Indicators | |
| Status Indicators | On Line On Battery Replace Battery Overload |
| Interfaces/Ports | |
| USB | Yes |
| Battery Information | |
| Battery Characteristics | Spill-proof, Maintenance-free |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 2.40 Minute |
| Backup/Run Time (Half Load) | 13.90 Minute |
| Hot Swappable | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 113°F (45°C) |
| Thermal Dissipation | 24 BTU/h |
| Physical Characteristics | |
| Product Color | Beige |
| Height | 6.50" (165.10 mm) |
| Width | 3.60" (91.44 mm) |
| Depth | 11.20" (284.48 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 13.90 lb (6304.93 g) |
| Miscellaneous | |
| Package Contents | Back-UPS CS 500VA (1) Detachable 1.2 m IEC power cord (1) Detachable IEC power cord CD with software Documentation CD Telephone cable USB cable Warranty card |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this UPS?
The APC BK500EI provides 500 VA (volt-amps) and 300 watts of power capacity. This specification determines how much equipment the UPS can support during a power outage. The 500 VA rating indicates the total apparent power handling capability, while the 300 W rating represents the actual power delivery to connected devices.
How long will this UPS run during a power outage?
Runtime varies based on the connected load. At full 300 W load, the UPS provides approximately 2.4 minutes of backup power. At half load (150 W), runtime extends to approximately 13.9 minutes. These runtimes are sufficient for saving work and performing orderly shutdowns of connected equipment.
How many devices can I connect to this UPS?
The BK500EI features six total battery and surge-protected outlets, allowing connection of multiple devices simultaneously. All six outlets provide both battery backup and surge protection. The unit uses IEC 60320 C13 receptacles, compatible with standard computer and electronics power cords.
What type of battery does this UPS use?
This UPS utilizes a maintenance-free, spill-proof lead-acid battery. The battery features hot-swappable design, meaning it can be replaced without powering down connected equipment. This chemistry provides reliable performance and long service life with minimal maintenance requirements.
What input voltage does this UPS require?
The BK500EI operates on 220 V AC input voltage and delivers 230 V AC output. This voltage specification is suitable for standard electrical systems in many regions. The unit automatically regulates output voltage to maintain stable power delivery to connected equipment during normal operation and battery backup modes.
What management features does this UPS include?
Management features include status indicators showing on-line, on-battery, replace battery, and overload conditions, along with audible alarms for critical events. The integrated USB port enables connection to a computer for communication with APC PowerChute management software, providing monitoring, automatic shutdown capabilities, and runtime estimation.
What power capacity is listed for this UPS?
The listed power specification is 500 VA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 6, which helps buyers understand how many connected devices it can support in its intended deployment.
