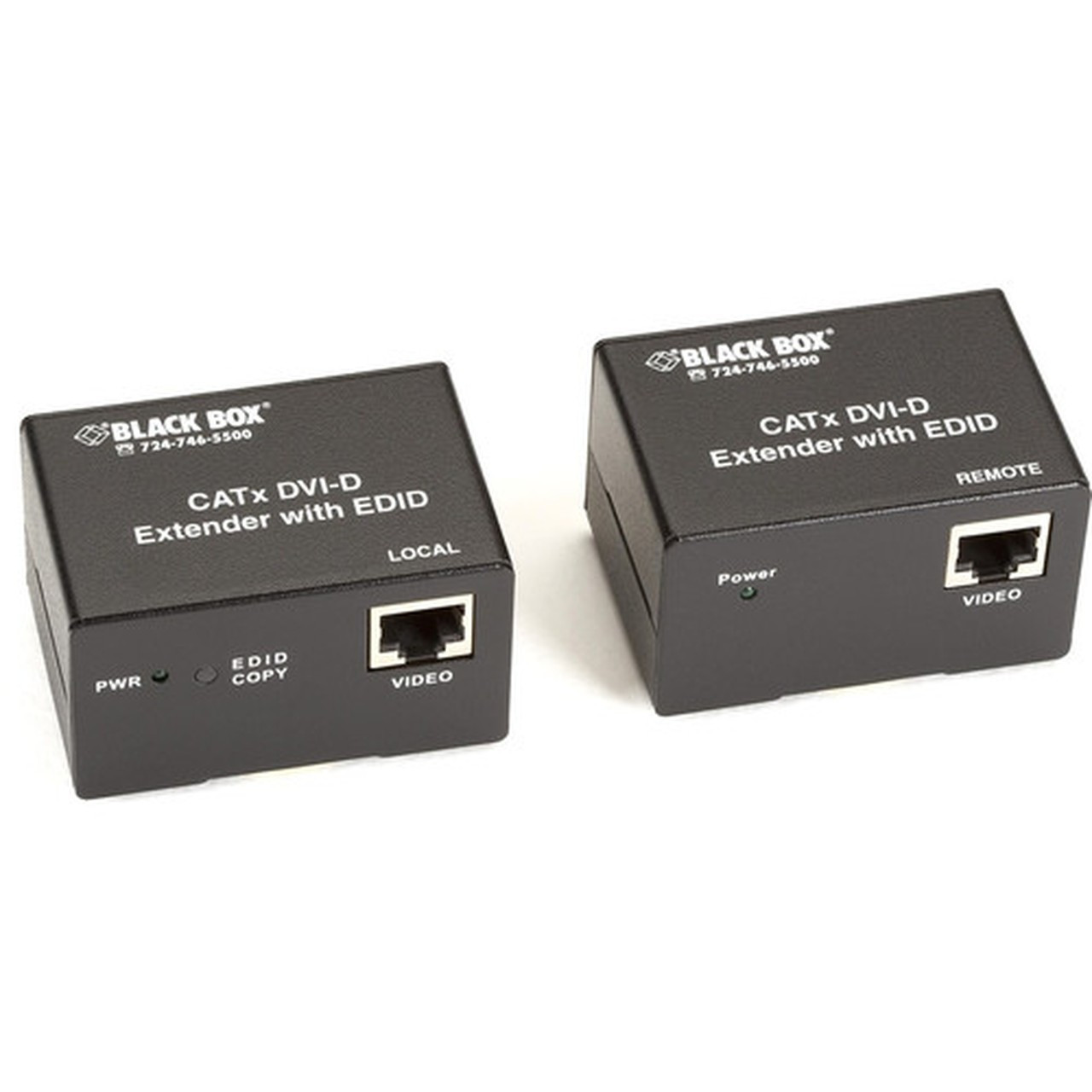

Black Box ACS2001A-R3 CATx DVI-D with DDC SL Extender Kit - 164 ft Range - 1920 x 1200 WUXGA - 2x RJ-45 - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This video extender kit operates on wired connectivity technology, delivering reliable signal transmission without compression artifacts. It supports a maximum video resolution of 1920 x 1200 at 60Hz in WUXGA graphics mode, making it suitable for extended desktop applications, high-definition presentations, and detailed graphical workstations.
The transmitter unit features precise physical dimensions of 2" width × 1.5" height × 2.6" depth (50.8 × 38.1 × 66.04 mm) with a weight of approximately 9.6 ounces (272.16 grams). This compact form factor allows for flexible mounting options while maintaining robust construction for continuous operation in professional environments.
Relevant factors for this section include Connectivity Technology, Number of Input Devices Supported, Number of Output Devices Supported, Graphics Modes. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ACS2001A-R3 extender kit provides several distinct advantages for AV professionals and system integrators requiring reliable long-distance DVI signal distribution.
Extended Reach Without Signal Degradation
Transmits crystal-clear DVI-D video up to 164 feet over affordable Cat6 cabling, eliminating the need for expensive fiber solutions or bulky direct-run DVI cables while maintaining full resolution and refresh rates.
- 164 ft maximum distance
- Uses standard Cat6 infrastructure
- No compression artifacts
Complete Display Control Retention
DDC SL (Display Data Channel - Serial Line) support ensures full communication between source and display, enabling automatic resolution detection, EDID management, and plug-and-play functionality without manual configuration.
- Automatic EDID handling
- Plug-and-play compatibility
- Monitor control preserved
Simplified Installation and Integration
The compact transmitter/receiver design with standard RJ-45 connections integrates seamlessly into existing structured cabling systems, while the universal power supply accommodates various international voltage standards for global deployment.
- RJ-45 industry standard
- Universal power supply included
- Compact form factor
Deployment / Use Cases
This DVI extender kit addresses common challenges in commercial and institutional environments where source devices must be located at significant distances from displays. The 164-foot operating range enables flexible equipment placement while maintaining visual quality and control functionality.
In digital signage networks, the extender allows centralized media players to drive multiple remote displays throughout retail spaces, airports, or corporate campuses. For command and control centers, it facilitates clean cable management by running signals through existing cable trays and conduits rather than bulky direct-attach DVI cables.
Conference Room and Classroom AV
Extend laptop or desktop DVI outputs to ceiling-mounted projectors or wall-mounted displays while keeping source equipment securely located at instructor stations or tech closets.
Medical Imaging and Diagnostic Displays
Maintain diagnostic image quality when transmitting DVI signals from imaging workstations to review monitors in adjacent reading rooms or consultation areas.
What's in the Box
The kit includes all necessary components for immediate deployment without requiring additional purchases or compatibility concerns.
Highlights
- Extends DVI-D signals up to 164 feet over Cat6 cable
- Supports WUXGA resolution (1920 × 1200) at 60Hz
- DDC SL maintains full display control and EDID communication
- Two RJ-45 ports for straightforward cable connection
- Compact black transmitter measures 2"W × 1.5"H × 2.6"D
- Universal power supply included for global deployment
- RoHS and WEEE compliant for environmental responsibility
- 3-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | ACS2001A-R3 |
| Brand Name | Black Box |
| Product Name | CATx DVI-D with DDC SL Extender Kit |
| Product Type | Video Extender Transmitter/Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 164.04 ft (50000 mm) |
| Video | |
| Graphics Modes | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| DVI In | Yes |
| DVI Out | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of DVI Inputs | 1 |
| Number of DVI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6 |
| Physical Characteristics | |
| Product Color | Black |
| Transmitter Height | 1.50" (38.10 mm) |
| Transmitter Width | 2" (50.80 mm) |
| Transmitter Depth | 2.60" (66.04 mm) |
| Transmitter Weight (Approximate) | 9.60 oz (272.16 g) |
| Miscellaneous | |
| Package Contents | CATx DVI-D with DDC SL Extender Kit Universal Power Supply |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the maximum distance this DVI extender can transmit video?
The Black Box ACS2001A-R3 extender kit transmits DVI-D signals up to 164.04 feet (50 meters) when using Category 6 twisted-pair cabling. This extended range allows source equipment to be located in separate rooms, closets, or floors while maintaining full video quality and display control functionality at the remote display location.
What video resolution does this extender support?
This extender supports a maximum video resolution of 1920 × 1200 pixels in WUXGA (Widescreen Ultra Extended Graphics Array) format at 60Hz refresh rate. This resolution is ideal for extended desktop applications, high-definition presentations, and detailed graphical work requiring precise image quality over extended distances.
Does this extender support DDC/EDID communication between devices?
Yes, the extender fully supports DDC SL (Display Data Channel - Serial Line), which maintains communication between the video source and display. This enables automatic resolution detection, EDID (Extended Display Identification Data) management, and plug-and-play functionality without requiring manual configuration of display settings.
What type of cable do I need to use with this extender?
The extender requires standard Category 6 (Cat6) twisted-pair Ethernet cable with RJ-45 connectors. Cat6 cable provides the necessary bandwidth and signal integrity for transmitting DVI-D video up to the maximum 164-foot distance while supporting the full 1920 × 1200 resolution and DDC SL communication channels.
How many displays can I connect with this extender kit?
This is a point-to-point extender kit designed to connect one DVI source to one DVI display. The transmitter unit has one DVI input, and the receiver unit has one DVI output. For multiple display applications, additional extender kits would be required, or you would need to use a DVI distribution amplifier before the extender transmitter.
What is included in the package with this extender?
The package includes the complete CATx DVI-D with DDC SL Extender Kit consisting of both transmitter and receiver units, plus a universal power supply that accommodates various international voltage standards. No additional cables or power adapters are required for basic operation, though you will need to provide your own Cat6 cable for connecting the transmitter to the receiver.
