Black Box

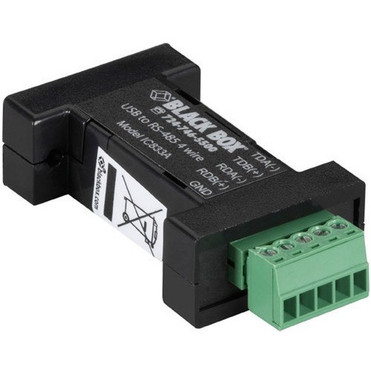

Black Box DB9 Mini Converter (USB to Serial), USB/RS-485 (4-wire, Terminal Block) - 1 x Type B Female USB - 1 x DB-9 Serial (IC833A)
- Automatic configuration on Windows 98, ME, 2000, XP, and Vista systems.
- Powered from the USB interface.
- Includes 3-ft. (0.9 m) USB cable.
- Support TDA, TDB, RDA, RDB, and GND.
- Baud rates up to 921 Kbps.
- Use on RS-485 2-wire or RS-422/485 4-wire networks.
- Support Send Data Control (SDC).
- Full handshake support (TD, RD, RTS, CTS, DTR, DSR, DCD, RI, GND).
- Baud rates up to 460 Kbps.
- DB9 Mini Converter (USB to Serial), USB/RS-485 (4-wire, Terminal Block)
- 1m USB Cable
Marketing Information:
USB is the connectivity standard for today's PCs, replacing familiar serial ports. However, many commercial and industrial devices still use RS-232, RS-422, or RS-485 interfaces. To connect these devices to modern PCs, you need simple and reliable converters.
The Black Box Mini USB-to-Serial Converter offer USB-to-serial conversion in a space saving package. Simply plug the converter into an available USB port on your computer or USB hub and install the drivers supplied on CD ROM. The serial device will show up as an additional COM port in the Windows Device Manager.
RS-485 (two- and four-wire)
RS-232
Adapter Type: Serial/USB
Connector Type on First End: USB 2.0 Type B - Female
Connector on First End Details: 1 x Type B USB 2.0 USB Female
Connector Type on Second End: DB-9 RS-485 Serial
Connector on Second End Details: 1 x 9-pin DB-9 RS-485 Serial
Height: 0.60" (15.24 mm)
Width: 2.30" (58.42 mm)
Depth: 1.30" (33.02 mm)
Package Contents:
Country of Origin: United States
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 5 Year
- With data transfer adapter easily transfer data with high speed
- Serial/USB adapter is fast & durable adding convenience in life
[custom-specifications]
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | IC833A |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Name | DB9 Mini Converter (USB to Serial), USB/RS-485 (4-wire, Terminal Block) |
| Product Type | Data Transfer Adapter | Technical Information |
| Adapter Type | Serial/USB |
| Connector Type on First End | USB 2.0 Type B - Female |
| Connector on First End Details | 1 x Type B USB 2.0 USB Female |
| Connector Type on Second End | DB-9 RS-485 Serial |
| Connector on Second End Details | 1 x 9-pin DB-9 RS-485 Serial | Physical Characteristics |
| Height | 0.60" (15.24 mm) |
| Width | 2.30" (58.42 mm) |
| Depth | 1.30" (33.02 mm) | Miscellaneous |
| Package Contents |
|
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) | Warranty |
| Limited Warranty | 5 Year |
