Marketing Information: - Component level tested panel that provides better performance and stability in the overall channel; the panel by itself can pass CAT5e
- Includes cable management bars that make organization easier
- Provides significant headroom over CAT5e specifications
- Universal wiring - panels are supplied with labeling for both T568A and T568B wiring
- Wide spacing between IDCs means increased room for cable
- Rear IDCs feature in-line paired punchdown sequence
- IDC 110 block features peaks to make lacing cable easier
- Rolled-edge construction provides superior panel rigidity
- Includes cable ties and mounting hardware

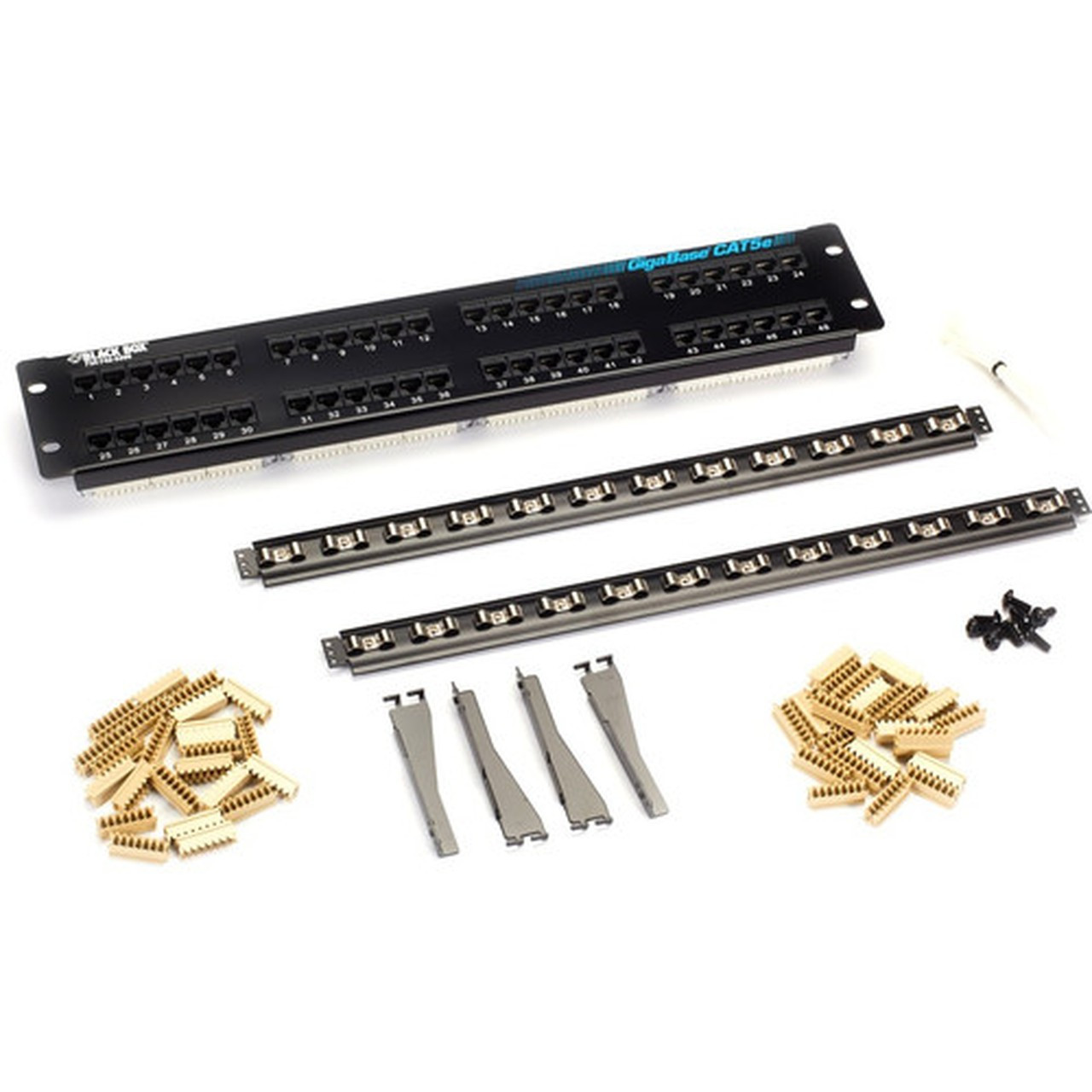

Total Number of Ports: 48Number of Network (RJ-45) Ports: 48Form Factor: Rack-mountableCompatible Rack Unit: 2UHeight: 3.50" (88.90 mm)Width: 19" (482.60 mm)Depth: 1.25" (31.75 mm)Weight (Approximate): 1.32 kgPackage Contents: - GigaBase CAT5e Patch Panel - 2U, Unshielded, 48-Port
- Cables Ties
- 4 x 10-32
- 4 x 12-24 Cup Heads Screws
- Stuffer caps
- 1 x Cable Support Bar
- Manual
Environmentally Friendly: YesCountry of Origin: TaiwanTAA Compliant: YesLimited Warranty: Lifetime
[custom-specifications]
SpecificationsManufacturer: Black Box Corporation
Manufacturer Part Number: JPM906A-R6
Manufacturer Website Address: http://www.blackbox.com
Brand Name: Black Box
Product Line: GigaBase
Product Name: GigaBase CAT5e Patch Panel - 2U, Unshielded, 48-Port
Product Type: Network Patch Panel
Interfaces/PortsTotal Number of Ports: 48
Number of Network (RJ-45) Ports: 48
Physical CharacteristicsForm Factor: Rack-mountable
Compatible Rack Unit: 2U
Height: 3.50" (88.90 mm)
Width: 19" (482.60 mm)
Depth: 1.25" (31.75 mm)
Weight (Approximate): 1.32 kg
MiscellaneousPackage Contents:
- GigaBase CAT5e Patch Panel - 2U, Unshielded, 48-Port
- Cables Ties
- 4 x 10-32
- 4 x 12-24 Cup Heads Screws
- Stuffer caps
- 1 x Cable Support Bar
- Manual
Environmentally Friendly: Yes
Country of Origin: Taiwan
TAA Compliant: Yes
WarrantyLimited Warranty: Lifetime
[/custom-specifications]
