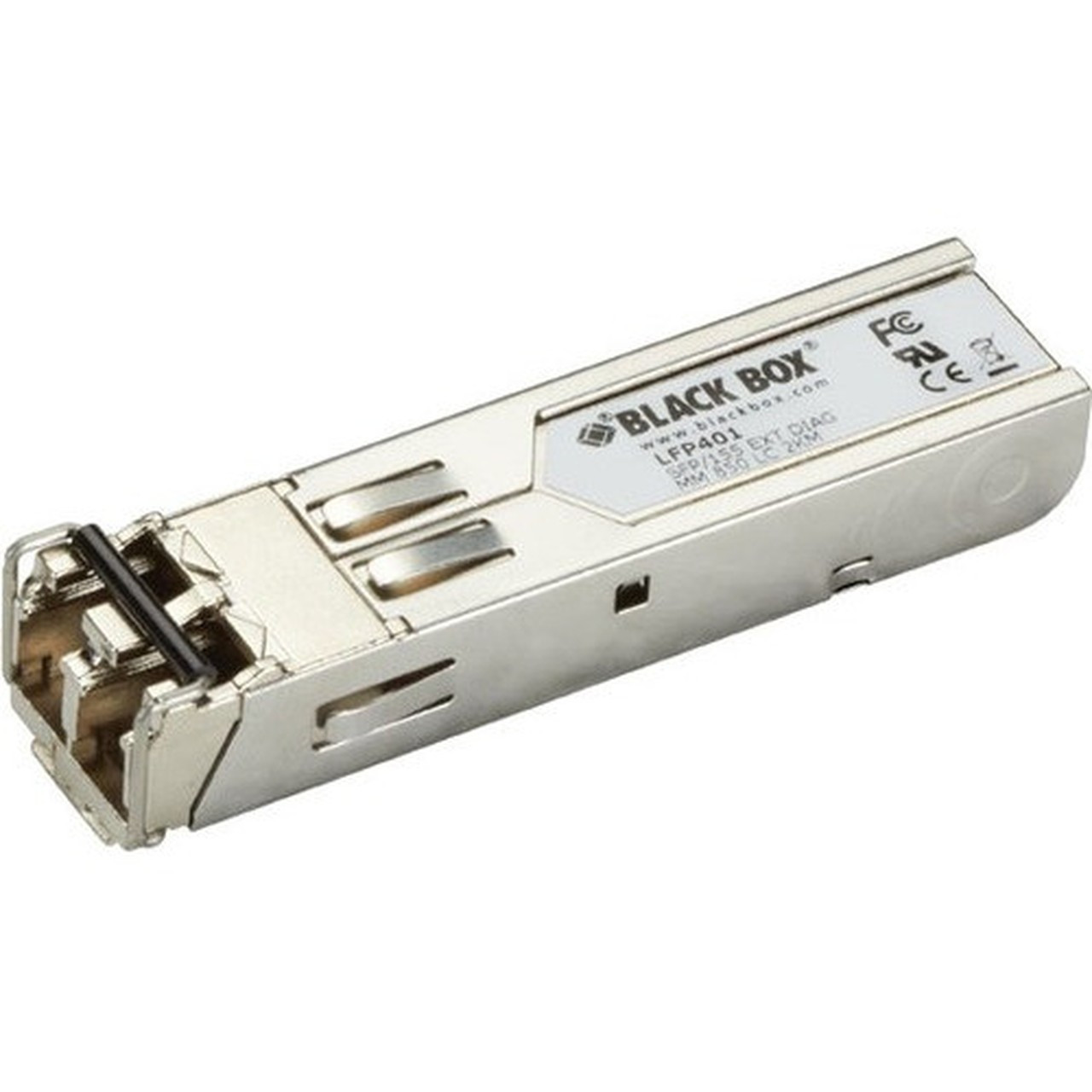

Black Box LFP401 SFP Module - For Optical Network, Data Networking - 1 x Duplex LC 100Base-X Network - Optical Fiber - 850 nm - - Fast (LFP401)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Application/Usage: Optical Network,Data Networking
Total Number of Ports: 1
Connector Type: LC
Interfaces/Ports Details: 1 x Duplex LC 100Base-X Network
Media Type Supported: Optical Fiber
Fiber Optic Cable Wavelength: 850 nm
Fiber Mode Supported: Multi-mode
Ethernet Technology: Fast Ethernet
Network Technology: 100Base-X
Maximum Distance Supported: 2 km (1.24 Mile)
Maximum Data Transfer Rate: 155 Mbit/s
Form Factor: Hot-pluggable
Height: 2.20" (55.88 mm)
Width: 0.60" (15.24 mm)
Depth: 0.50" (12.70 mm)
Weight (Approximate): 0.58 oz (16.33 g)
TAA Compliant: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 1 Year
- With 100Base-X technology, enjoy up to 100Mbps data transfer rate over supported network cable
- Featuring Fast Ethernet port to enhance the data transfer rate by up to 100Mbps for connectivity
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- Typically used for short distance, multi-mode fiber optic is ideal to carry data and transmit audio/video applications within a building
[custom-specifications]
| Specifications | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LFP401 |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Model | LFP401 |
| Product Name | LFP401 SFP Module |
| Product Type | SFP |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x Duplex LC 100Base-X Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Optic Cable Wavelength | 850 nm |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-X |
| Maximum Distance Supported | 2 km (1.24 Mile) |
| Maximum Data Transfer Rate | 155 Mbit/s |
| Physical Characteristics | |
| Form Factor | Hot-pluggable |
| Height | 2.20" (55.88 mm) |
| Width | 0.60" (15.24 mm) |
| Depth | 0.50" (12.70 mm) |
| Weight (Approximate) | 0.58 oz (16.33 g) |
| Miscellaneous | |
| TAA Compliant | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
