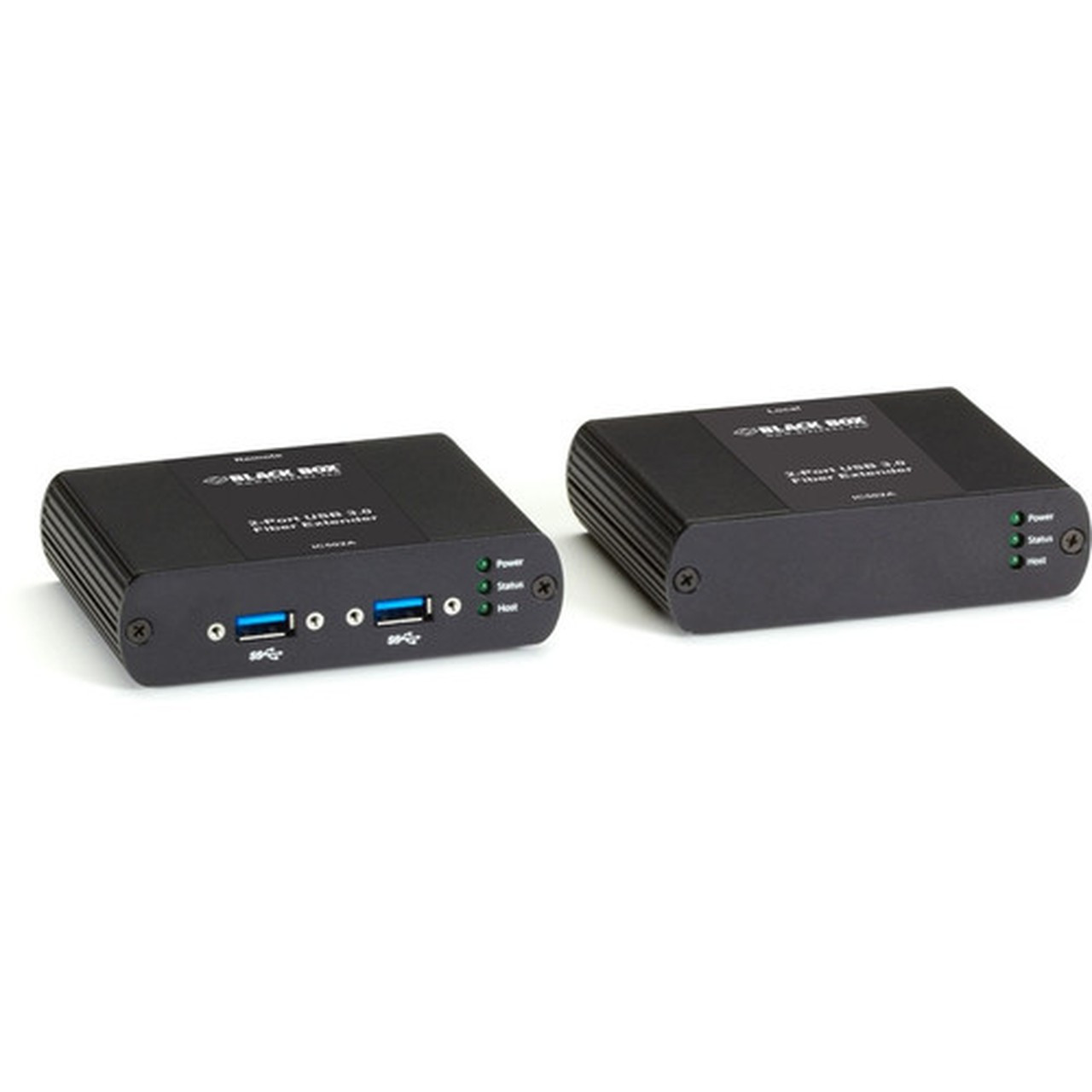

USB 3.0 Extender Multimode 2 Port Solution For Long Distance High Speed Connectivity Extended Black Range Box Ft Mm X IC502A-R2
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Local extender unit
- Remote extender unit
- USB 3.0 cable
- Power supply with country-specific cord
- Quick start guide
- Power Local unit: From the USB bus; Remote unit: From 100-240 VAC, 50-60 Hz adapter (included); Output: 24 VDC (locking)

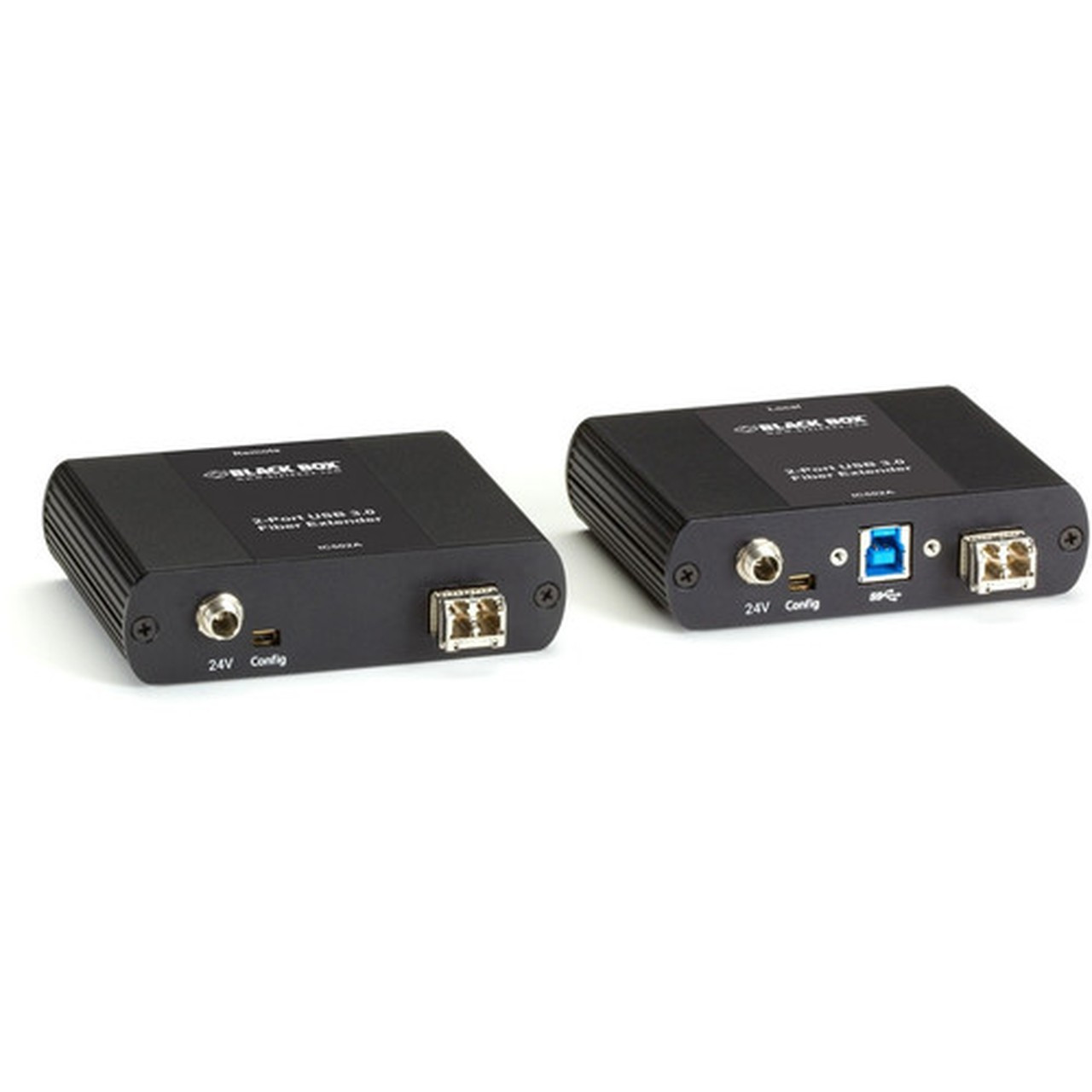

- Local unit: USB: (1) USB 3.0 Type B F (locking); Interconnect: (2) LC fiber
- Remote unit: USB: (2) USB 3.0 Type A F (locking); Interconnect: (2) LC fiber
- On each unit: (3) LEDs (Power, Link, Host)
Marketing Information:
Extend a SuperSpeed USB 3.0 signal beyond the 16 ft (5 m) limitation up to 328 ft (100 m) over Multimode fiber to two peripherals. Compatible with the USB 3.0 or "SuperSpeed USB" standard, the extender boasts speeds up to 5 Gbps, about ten times that of USB 2.0. This way, you can extend your USB bus connections to newer USB 3.0 devices that use higher bandwidths and require bidirectional asynchronous, full-duplex data transfer. Plus, it supplies more power than USB 2.0 to the remote devices. With the higher data-transfer rate and power, the extender is ideal for connecting industrial USB 3.0 machine vision cameras, particularly those with high power sensors. It's also great for post-production video editing and broadcast applications with USB 3.0 peripherals and external USB CD/DVD drives in different rooms
Maximum Extended Range: 328.08 ft (100000 mm)
Maximum Data Transfer Rate: 640 MB/s
USB: Yes
Number of USB Ports: 2
Input Voltage: 240 V AC
Height: 1" (25.40 mm)
Width: 3.90" (99.06 mm)
Depth: 3" (76.20 mm)
Package Contents:
Additional Information:
Certifications & Standards: CE
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
[custom-specifications]
| Specifications | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | IC502A-R2 |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Name | USB 3.0 Extender - Multimode, 2-Port |
| Product Type | USB Extender |
| Technical Information | |
| Maximum Extended Range | 328.08 ft (100000 mm) |
| Maximum Data Transfer Rate | 640 MB/s |
| Interfaces/Ports | |
| USB | Yes |
| Number of USB Ports | 2 |
| Power Description | |
| Input Voltage | 240 V AC |
| Physical Characteristics | |
| Height | 1" (25.40 mm) |
| Width | 3.90" (99.06 mm) |
| Depth | 3" (76.20 mm) |
| Miscellaneous | |
| Package Contents |
|
| Additional Information |
|
| Certifications & Standards | CE |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-options]
| Product | Black Box Mounting Bracket for USB Extender |
| SKU | IC400MK |
| Sale Price | $28.56 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
Additional-pdf3
[/custom-user-manual]
