C13 Locking Receptacle - 4 Tier - 6.3mm Terminal, 1.5mm Panel Thickness - Black (IEC-Lock Part #: PA135015BK4)

(No reviews) Write a Review
$28.00
SKU: FN-PW-SCL-C13-4T
Availability: Stock Toronto
Weight: 0.22 LBS
Adding to cart… The item has been added

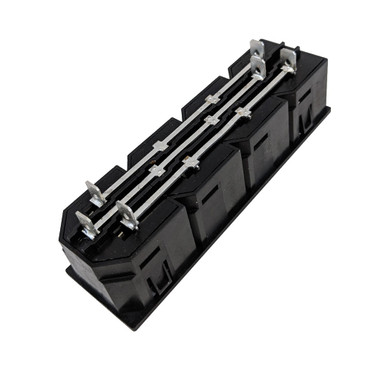

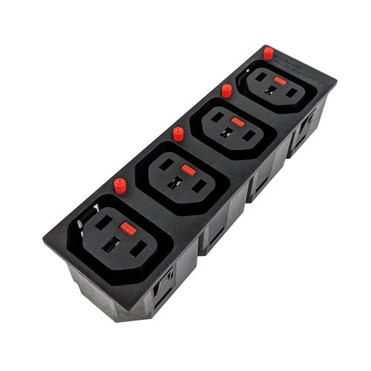

This power outlet has four locking female C13 connectors on one side and a solder/quick connect terminal on the other. This outlet is typically used to provide maximum retention when connecting a C14 power cable to the locking C13 power outlet. Compatible with any C14 cable.

Physical Characteristics
Connection Type Snap-in Mounting From Front
Color Black
Material (Body) Thermoplastic UL94V-0
Materials Socket Black Polyamide 66 (PA66) UL94V-0
Material Rating LSZH - Low Smoke Zero Halogen
Connector Plating Nickel
Rating 10A/250V AC
Insulation Resistance 10M (500V DC, 1Min.)
Dielectric Strength 2KV (50Hz 1 Min) to Accessible Surfaces
Lock Retention >100N
Panel Mount Yes
Panel Thickness Black & White IEC320 Snap-in 1mm or 1.5mm
Solder/QC Dimensions 6.5 x 1.6mm
Manufacturing Information
IEC-Lock Part # PA135015BK4
Connectors
C13 x 4 Female
Solder/Quick Connect Male
Approvals
UL Yes
CSA Yes
Certification
c(UL)us Yes
Packaging Information
Package Quantity 1
Product Weight 0.22 lbs [0.1kg]

Spec Sheets

Download attachment
