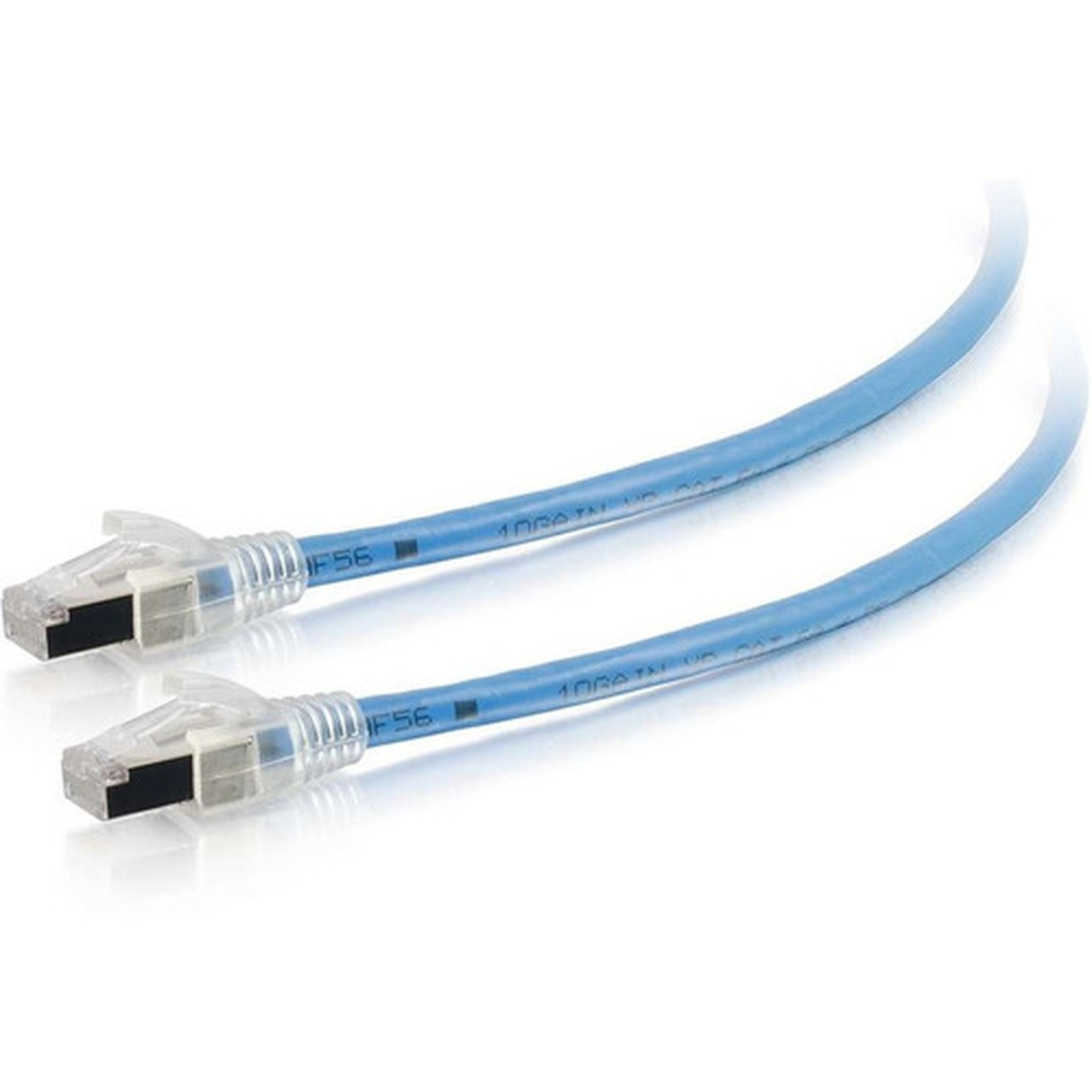

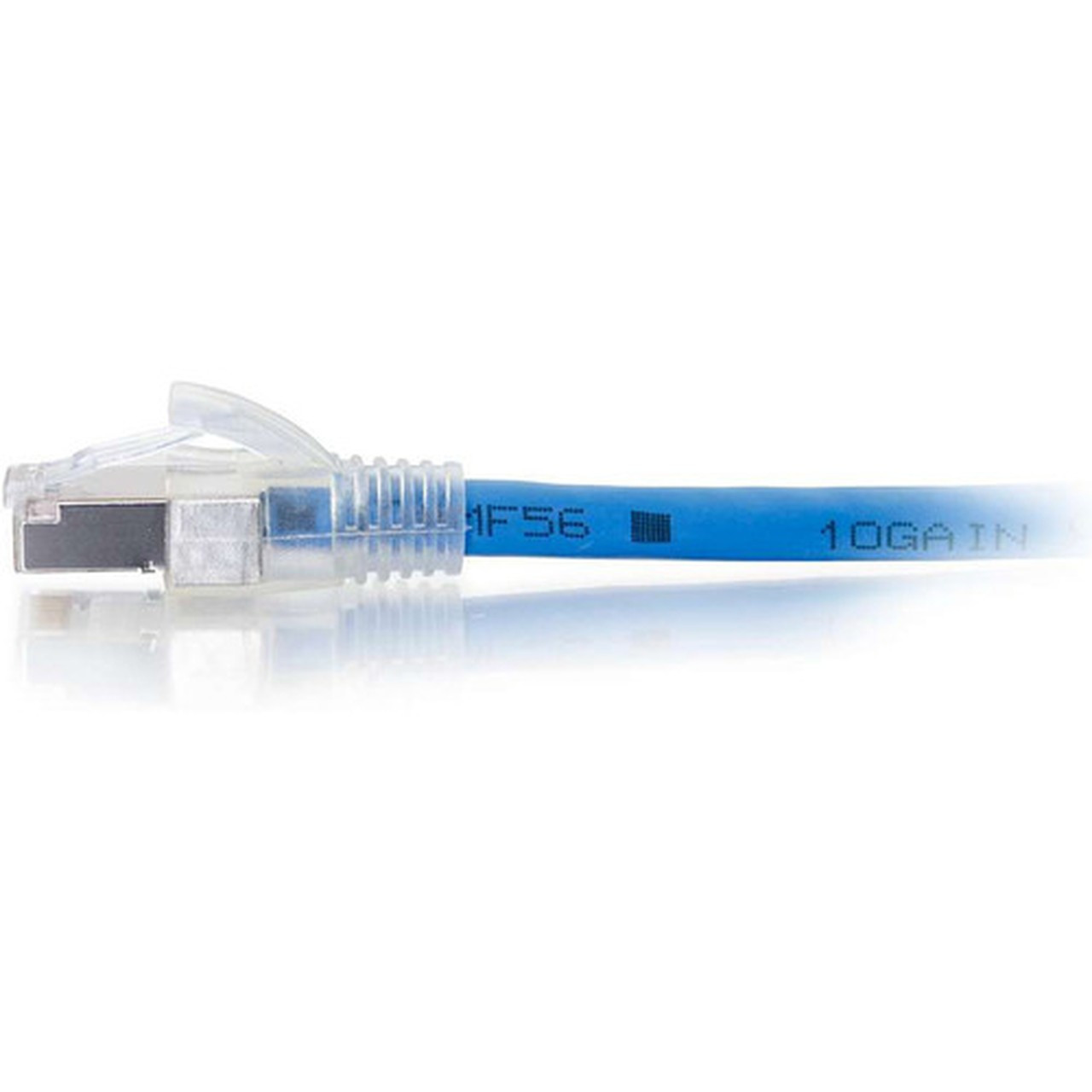

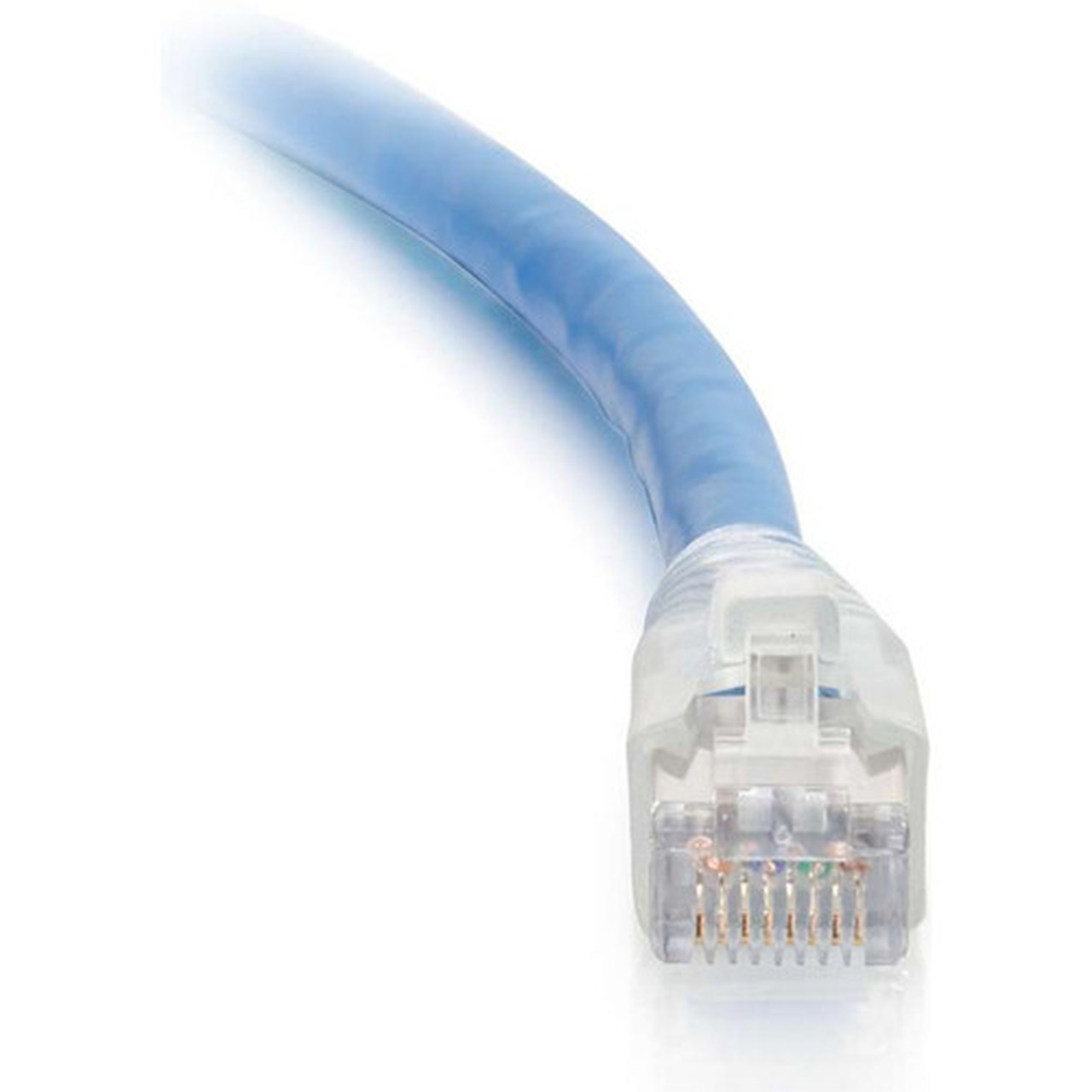

C2G 300ft HDBaseT Certified Cat6a Cable - Non-Continuous Shielding - CMP Plenum - 300 ft Category 6a Network Cable for Network Device (43178)

Marketing Information:

This Snagless Discontinuous Shielded Cat6a patch cable is ideal for use with HD A/V applications such as HDBaseT extenders and Power over Ethernet (PoE) applications requiring higher levels of current. The HD A/V application is perfect for conference rooms and digital signage where greater distance requirements are needed between a source and a display. Each patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a channel requirements.

These cables have been tested and validated to guarantee they consistently meet the highest industry performance and safety standards. The uniquely designed Isolation Wrap contains discontinuous sections of metallized material, held in place by a polymeric layer. These cables have a nominal 0.265" diameter that allows for higher cable density and smaller bend radius than other Cat6a cable products. These cables are also designed for Power over Ethernet (PoE) applications type 1-4 according to IEEE 802.3bt draft D1.2.

These cables have discontinuous metallic shielding elements surrounding the inner 4-pair core of the cable. The effect of this approach is to attenuate both electromagnetic signals that emanate from the cable core and the potentially interfering electromagnetic signals that are generated by other sources. The metallic shielding elements are designed to be discontinuous to avoid any need for grounding, which is a requirement for shielded cable designs, and have been shown to provide superior Alien Crosstalk performance in comparison to conventionally designed Category 6A UTP cables.

Cable Type: Category 6a

Cable Characteristic: Patch Cable

Cable Length: 300 ft

Connector Type on First End: RJ-45 Network - Male

Connector on First End Details: 1 x RJ-45 Network - Male

Connector Type on Second End: RJ-45 Network - Male

Connector on Second End Details: 1 x RJ-45 Network - Male

Contact Plating: Gold

Shielding: Yes

Device Supported: Network Device

American Wire Gauge: 23 AWG

Data Transfer Rate: 10 Gbit/s

Boot Type: Snagless

Features: PoE,Crosstalk Protection,Molded

Color Family: Blue

Product Color: Blue

Weight (Approximate): 5.56 kg

Energy Star: Yes

Environmentally Friendly: Yes

Country of Origin: United States

Limited Warranty: Lifetime
